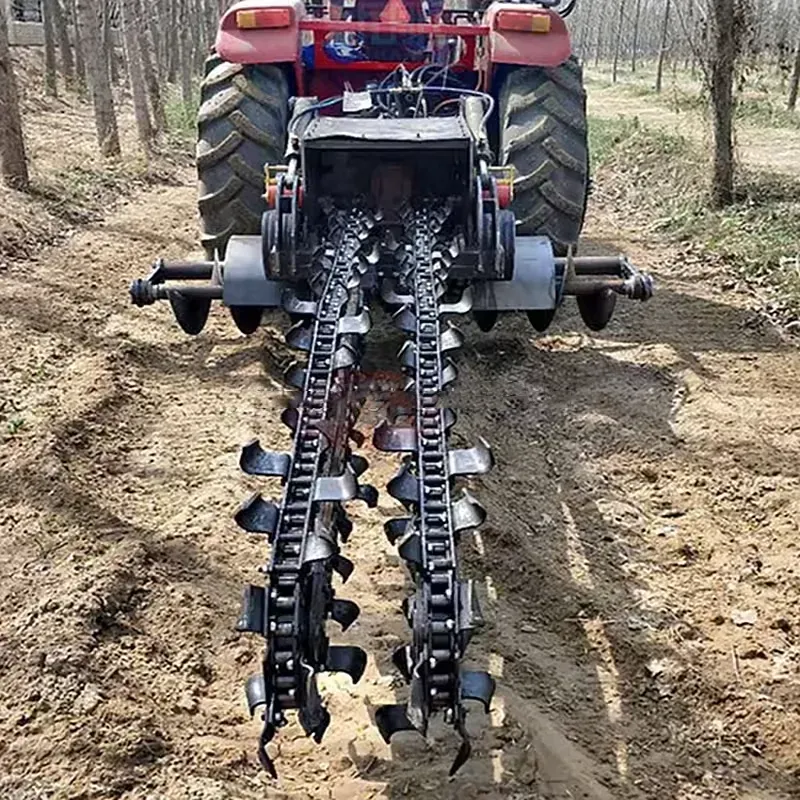

Chain Trencher Farm Ditcher for Digging Ditch

Introducing the ultimate in agricultural trenching operations - the Chain Trencher Farm Ditcher. This piece of machinery comes with a 1-Year warranty, weighs 800 KG, and is designed for use in farming industries. Its key selling points include high productivity and the core components of a gearbox. The single chain trencher has a trenching width of 15-20cm and a trenching depth of 1.5m. The trencher is three pointed mounted and uses a 65Mn Spring steel or carbide blade. It matches power between 50-80hp.

The Advantages of the Chain Trencher Farm Ditcher

This innovative farm equipment boasts numerous advantages, making it a valuable tool for any agricultural operation. Here are six key benefits:

1. 1. High Productivity: This machinery is designed for high-efficiency trenching operations, significantly reducing the time and effort required for trenching tasks.
   2. Durable Materials: Made with 65Mn Spring steel or carbide blade, the Chain Trencher Farm Ditcher is robust and designed to last, providing excellent value for money.
   3. 1-Year Warranty: The manufacturer provides a 1-year warranty, ensuring that the product is of high quality and that any issues are resolved promptly.

1. Customized Trenching: With a trenching width of 15-20cm and a trenching depth of 1.5m, this machine can be adjusted to meet specific trenching requirements.
2. Heavy-Duty Gearbox: The inclusion of a high-quality gearbox as a core component ensures reliable and smooth operation, maintaining a high level of productivity.
3. Applicable in Multiple Industries: While it's primarily designed for use in the farming industry, this versatile equipment can be used in other sectors that require trenching operations.

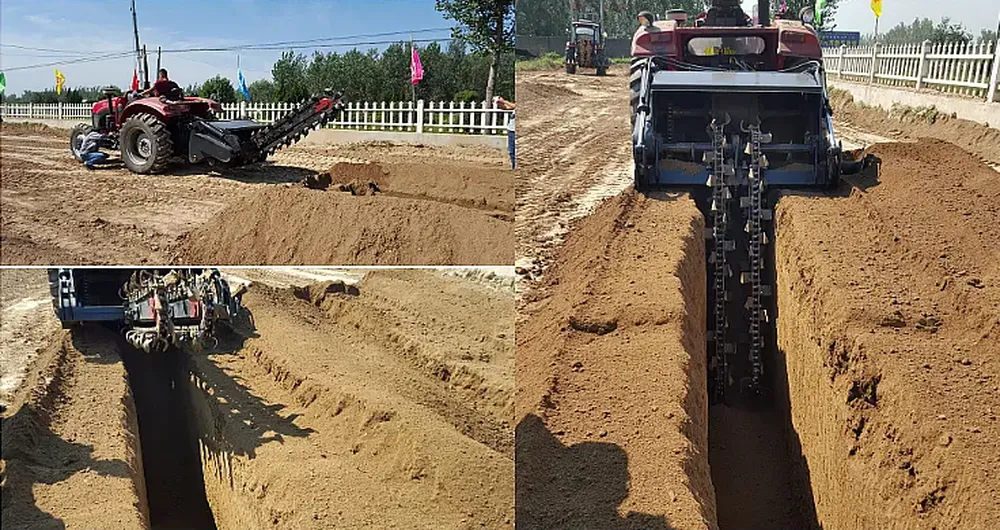

Applications of the Chain Trencher Farm Ditcher

The Chain Trencher Farm Ditcher is not merely a farming tool; it offers a wide range of applications across different industries. Here are six of its most common uses:

1. 1. Agricultural Trenching: It is used extensively for trenching operations in farms, aiding in the installation of irrigation systems, drainage, and more.
   2. Landscaping: This tool is ideal for creating trenches for landscape edging, irrigation lines, or low-voltage lighting in landscaping projects.
   3. Construction: In construction sites, the Chain Trencher Farm Ditcher can be used for preparing foundations and creating trenches for utility lines.
   4. Telecommunications: This machinery can dig trenches for laying telecommunication lines and cables.
   5. Pipeline Installations: It is used for digging precise trenches for pipeline installations in various industries.
   6. Road Works: The Chain Trencher Farm Ditcher is also used in road works for creating channels for drainage or laying utility lines.

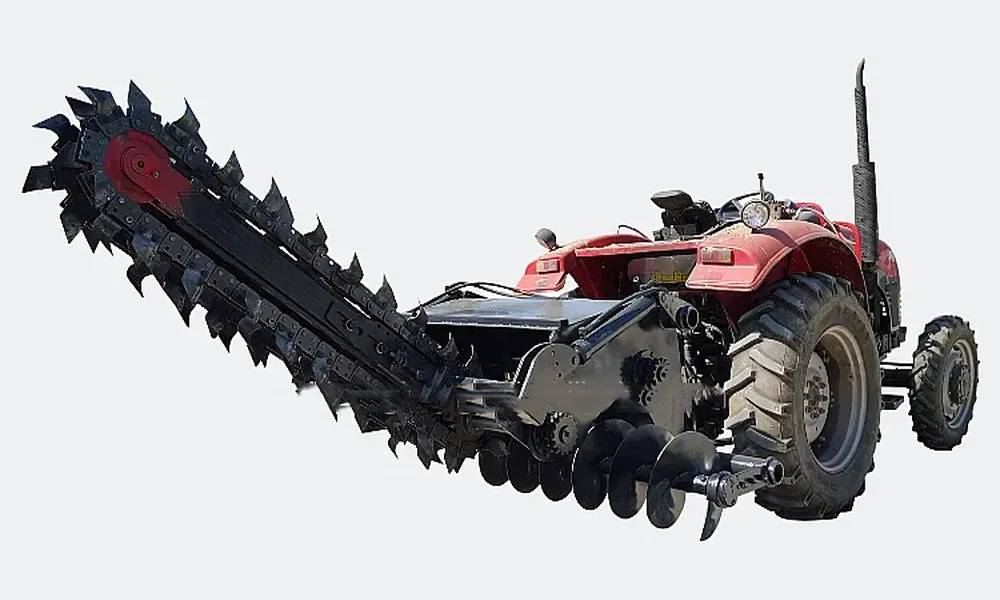

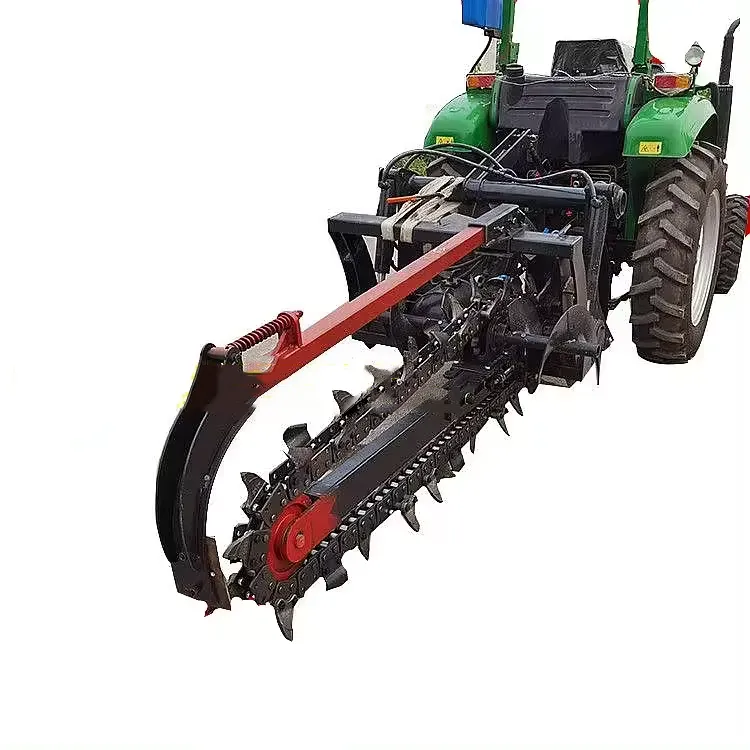

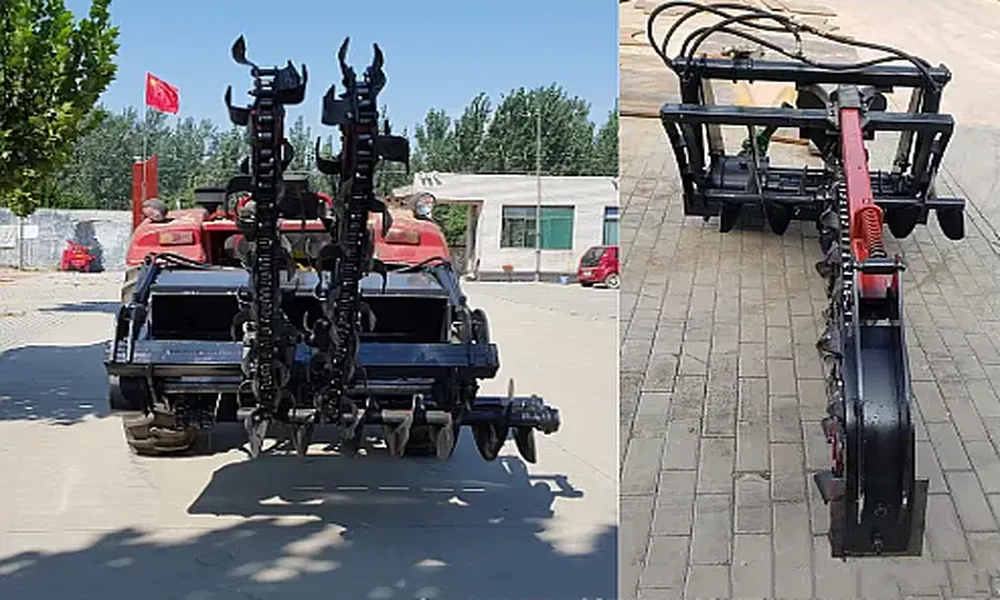

Key Components of the Tractor 3 Point Mounted Chain Trencher

The tractor 3-point mounted chain trencher is a versatile and powerful tool for digging precise trenches. Let??s look at the key components of this equipment:

1. Three-Point Hitch: This allows the trencher to be attached to the tractor, providing a flexible and secure connection.
2. Power Take-Off (PTO) Shaft: This transfers mechanical power from the tractor to the trencher, driving the chain mechanism.
3. Chain with Digging Teeth: The primary digging component, this chain rotates around a boom, equipped with teeth that cut through the soil.
4. Boom: This supports the chain and determines the depth of the trench. The length of the boom can be adjusted to change the trench depth.
5. Drive System: Comprising a gearbox and possibly a hydraulic motor, this system translates the power from the PTO shaft to the movement of the chain.
6. Soil Ejection System: This system removes excavated soil from the trench path, ensuring a clean trench.

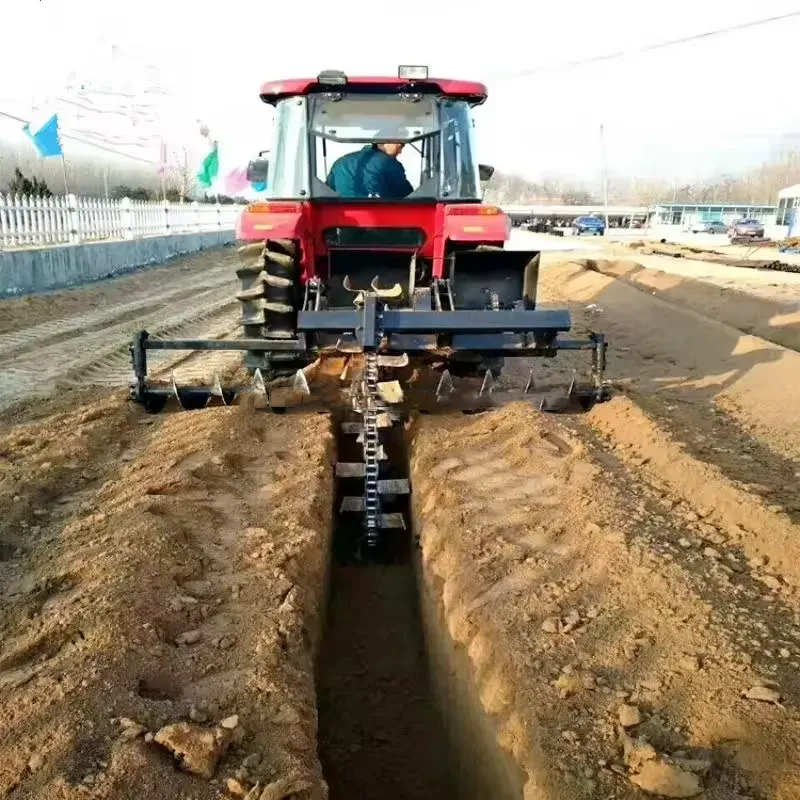

How Does the Tractor 3 Point Mounted Chain Trencher Work?

The tractor 3-point mounted chain trencher utilizes the tractor's power to dig trenches efficiently. Here's a step-by-step breakdown of how it operates:

1. Attachment and Power Source: The trencher is attached to the tractor via the three-point hitch. Once PTO mounted, the trencher is powered by the tractor??s PTO shaft.
2. Chain and Boom Operation: When the PTO is engaged, it drives the trencher's chain mechanism. As the chain rotates around the boom, the teeth cut into the soil, breaking it up and removing it from the trench path.
3. Depth Control: The depth of the trench is controlled by the length of the boom and the adjustment mechanism on the trencher.
4. Movement and Trench Formation: As the tractor moves forward, the rotating chain digs a continuous trench in the soil, with the excavated soil being ejected to one side of the trench.

How to Install the 3 Point Mounted Chain Trencher to Tractor

Installing a 3-point mounted chain trencher to a tractor involves several steps to ensure a secure and proper connection. Here is a general overview of how to attach a chain trencher to a tractor:

1. 1. Read Manuals: Start by thoroughly reading the operator's manuals for both the tractor and the trencher. Familiarize yourself with any specific mounting instructions and safety precautions.
   2. Positioning the Tractor and Trencher: Position the tractor close to the trencher so that the three-point hitch arms of the tractor are near the trencher's mounting points.
   3. Attaching the Trencher: Use the tractor's controls to lower the three-point hitch to a height that aligns with the trencher's mounting brackets. Attach the lower arms of the three-point hitch to the corresponding mounts on the trencher.
   4. Connecting the PTO Shaft: Align the PTO shaft on the trencher with the PTO stub on the tractor. Slide the PTO shaft onto the tractor's PTO stub.
   5. Final Checks: Walk around the tractor and trencher to make a final inspection. Ensure everything is correctly attached and secure.

Common Troubleshooting for the Chain Trencher Farm Ditcher

Troubleshooting a tractor 3-point mounted chain trencher involves identifying and resolving common issues that may arise during its operation. Here are some common troubleshooting tips:

1. Trencher Won't Start or Operate: Ensure the PTO shaft is properly connected to both the tractor and the trencher. Check the hydraulic fluid levels for models with hydraulic adjustments.
2. Trencher Chain Doesn??t Move: Verify that the tractor's PTO is engaged and the tractor is running at the correct RPM. If there is debris or rocks stuck in the chain, carefully remove any blockages.
3. Inefficient Trenching or Poor Trench Quality: Inspect the chain for worn or missing teeth and replace them as necessary. Ensure the trench depth is correctly set for the soil conditions and the task at hand.
4. Trencher Vibrates Excessively: Check if the chain is evenly tensioned and not missing any teeth. Inspect the trencher for any loose parts or connections that could be causing instability.
5. Excessive Wear on Chain or Teeth: Consider using teeth and chains designed for specific soil types if the soil is hard, rocky, or abrasive. Adjust chain tension according to the manufacturer's guidelines.

Why Choose Raydafon's Tractor Mounted Chain Trencher?

Raydafon Agricultural Machinery Co., Ltd. is a leading player in the research and development of agricultural machinery. Our product range is comprehensive, with a focus on performance, reliability, and quality. Our products are sold all over the country and are exported to various countries and regions worldwide.At Raydafon, we value professionalism, maintaining international certifications, and providing customized services. We have advanced production facilities and offer reliable after-sales services. Our commitment to innovation and excellence has made us a trusted choice for agricultural machinery needs.[embed]https://www.youtube.com/embedf6nv2ByPjb8[/embed]Author: Yjx
