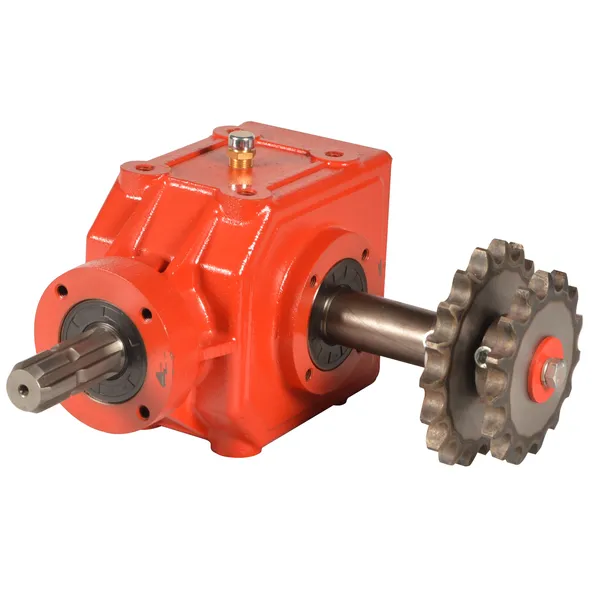

Agricultural Gearbox-Replacement of Bondioli & Pavesi 2061

Agricultural Gearbox-Replacement of Bondioli & Pavesi 2061

An agricultural gearbox is typically used in agricultural machinery such as rotary tillers, mowers, and other equipment. It plays a pivotal role in transmitting power from the tractor's power take-off (PTO) to the implement, ensuring that it operates at the correct speed and efficiency. It's crucial for the smooth and reliable functioning of farming equipment. Our agricultural gearbox is a perfect replacement for the Replacement of Bondioli & Pavesi 2061 gearbox. Choosing the right gearbox will help ensure the continued efficient and reliable operation of your farming equipment.

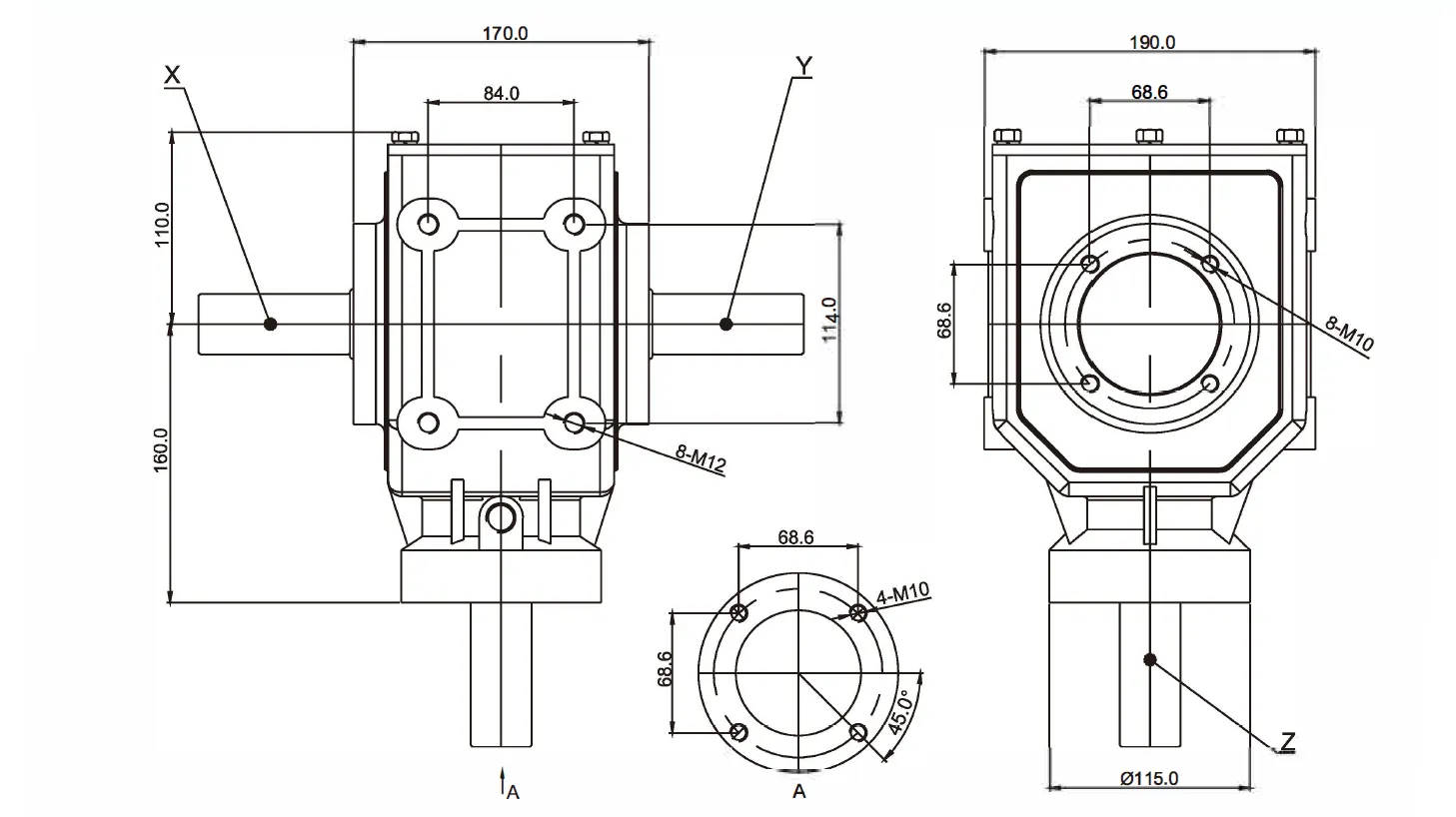

Dimensions of Agricultural Gearbox-Replacement of Bondioli & Pavesi 2061

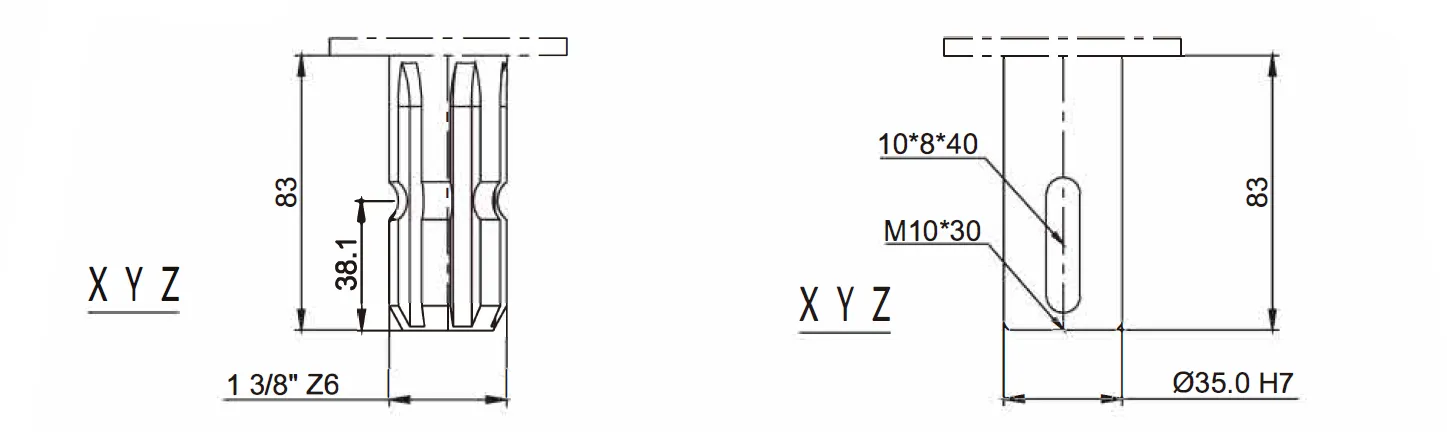

Agricultural Gearbox-Replacement of Bondioli & Pavesi 2061 Shaft Dimensions

Agricultural Gearbox-Replacement of Bondioli & Pavesi 2061 Technical Data

i		Suitable	Rpm input	Rpm output	KW(Nom)	Output torque	Toothing
			r/min	r/min	hp	N.m
Decelerate	1:1.93	Universal gearbox	540	1042	38	50	Gleason HelicalTeeth
	1:2.46		540	1328	38	50
	1:3.1		540	1674	38	45
Decelerate	1.93:1		540	280	25	35
	2.46:1		540	280	22	30
	3.1 :1		540	174	18	25
Remark: If you have any special require feel free let me know, we also accept custom.

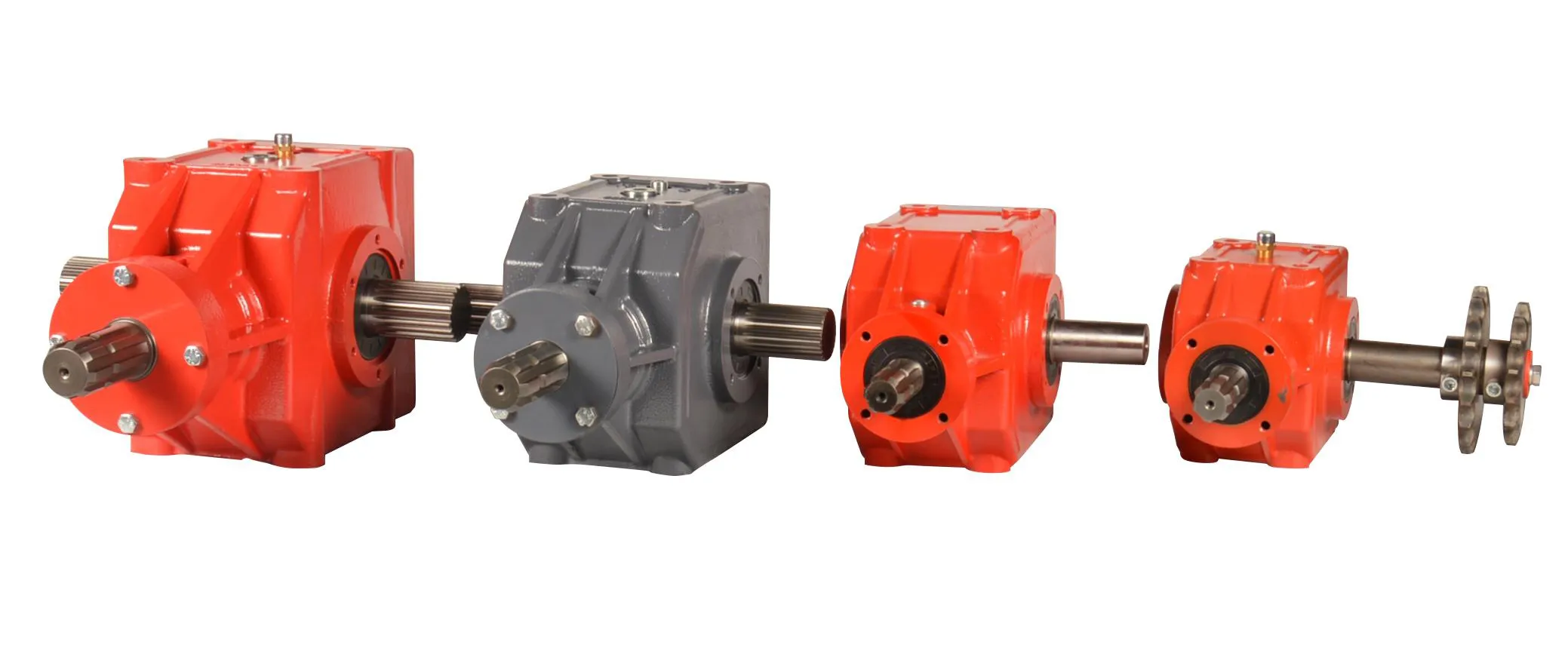

Advantages of Agricultural Gearbox-Replacement of Bondioli & Pavesi 2061

The Agricultural Gearbox-Replacement of Bondioli & Pavesi 2061 offers several advantages that have made it a popular choice among farmers and equipment operators. Some of the key advantages of using the 2061 agricultural gearbox include:1. Durability and Reliability: We are known for manufacturing robust and long-lasting gearboxes. The 2061 model is no exception, designed to withstand the demanding conditions of agricultural applications. Its sturdy construction and high-quality materials ensure durability and reliability, reducing the need for frequent repairs or replacements.2. Versatility: The gearbox is designed to be versatile, making it compatible with a wide range of agricultural implements and machinery. This flexibility allows farmers to use the gearbox with different types of equipment, including plows, tillers, mowers, and more, providing versatility and adaptability to their farming operations.3. Efficient Power Transmission: The Gearbox-Replacement of Bondioli & Pavesi 2061 is engineered to transmit power efficiently from the tractor to the attached agricultural implement. It minimizes power loss during transmission, ensuring that the equipment operates at its optimal performance level. This efficiency leads to improved productivity and reduced fuel consumption.4. Smooth Operation: The 2061 gearbox is designed to provide a smooth and consistent power transfer, resulting in smooth operation of the agricultural machinery. This ensures that the equipment can perform its tasks effectively, enhancing the overall efficiency and precision of farming operations.5. Wide Range of Ratios: The Agricultural Gearbox-Replacement of Bondioli & Pavesi 2061 offers a wide range of gear ratios, allowing operators to adjust the speed and torque output according to the specific requirements of their farming tasks. This versatility enables farmers to optimize the performance of their equipment for different applications, enhancing productivity and versatility.6. Easy Maintenance: Agricultural gearboxes, including the 2061 model, are designed with ease of maintenance in mind. They often incorporate features such as accessible lubrication points and easy-to-replace wear parts, making maintenance and servicing tasks more straightforward and efficient.

Applications of Agricultural Gearbox-Replacement of Bondioli & Pavesi 2061

The Agricultural Gearbox-Replacement of Bondioli & Pavesi 2061 has a wide range of applications in various farming operations. Here are some common applications where the agricultural gearbox is utilized:(1) Tillage Equipment: The 2061 gearbox is commonly used in tillage equipment, such as plows, cultivators, and harrows. It is responsible for transmitting power from the tractor to these implements, allowing for efficient soil preparation and seedbed preparation.(2) Crop Planting and Seeding: The agricultural gearbox is also used in planting and seeding equipment, including seed drills and planters. It ensures the proper distribution of seeds or seedlings, helping farmers achieve accurate and consistent planting patterns.(3) Crop Maintenance Equipment: Agricultural machinery used for crop maintenance tasks, such as mowers, flail choppers, and rotary cutters, often rely on the gearbox. It enables efficient power transmission to these implements, facilitating effective cutting and mulching of crops and vegetation.(4)Harvesting Equipment: Harvesting machinery, such as combine harvesters, often utilize the agricultural gearbox. It plays a crucial role in powering the various components of the harvester, including the cutting mechanism, threshing system, and grain collection system, ensuring efficient and effective harvesting operations.(5)Hay and Forage Equipment: The 2061 agricultural gearbox is commonly found in hay and forage equipment, such as balers and hay rakes. It enables the proper functioning of these machines, facilitating the baling and collection of hay and forage crops.

Maintainance of Agricultural Gearbox-Replacement of Bondioli & Pavesi 2061

Proper maintenance of the Agricultural Gearbox-Replacement of Bondioli & Pavesi 2061 is essential to ensure its longevity and optimal performance. Here are some maintenance practices to consider:1. Regular Inspections: Regularly inspect the gearbox for any signs of wear, damage, or leaks. Look for loose or damaged components, check the lubrication levels, and ensure that all connections are secure.2. Lubrication: The gearbox requires proper lubrication for smooth operation and to prevent premature wear. Follow the manufacturer's recommendations for the type of lubricant and the recommended intervals for oil changes. Regularly check the oil level and top it up as needed.3. Cleaning: Keep the gearbox clean from dirt, debris, and crop residues. Regularly clean the exterior of the gearbox using a soft brush or cloth. Avoid using high-pressure water, as it can force water into the gearbox and cause damage.4. Replacement of Wear Parts: Over time, certain parts of the gearbox may wear out and require replacement. Keep an eye on components such as seals, bearings, and gears. Replace any worn or damaged parts promptly to avoid further damage to the gearbox.5. Proper Use and Operation: Ensure that the gearbox is used within its specified limits and according to the manufacturer's guidelines. Avoid overloading the gearbox or operating it at excessive speeds or torques, as this can lead to premature wear and failure.6. Storage: If the equipment is not in use for an extended period, properly store the gearbox in a clean and dry environment. Protect it from moisture, dust, and extreme temperatures.

We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.
