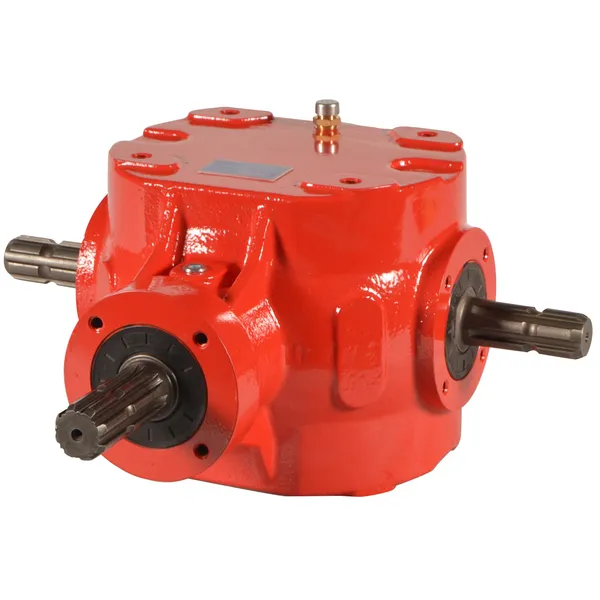

Agricultural Gearbox-Replacement of Bondioli & Pavesi 2155

Agricultural Gearbox-Replacement of Bondioli & Pavesi 2155

The replacement Replacement of Bondioli & Pavesi 2155 gearbox is widely used in various farming applications. The agricultural gearboxes are known for their durability, reliability, and high performance. The 2155 series gearbox is specifically designed for agricultural machinery and equipment, such as tractors, harvesters, and other farm implements. It plays a crucial role in transmitting power from the engine to the drivetrain and various agricultural implements, enabling efficient operation in the field.

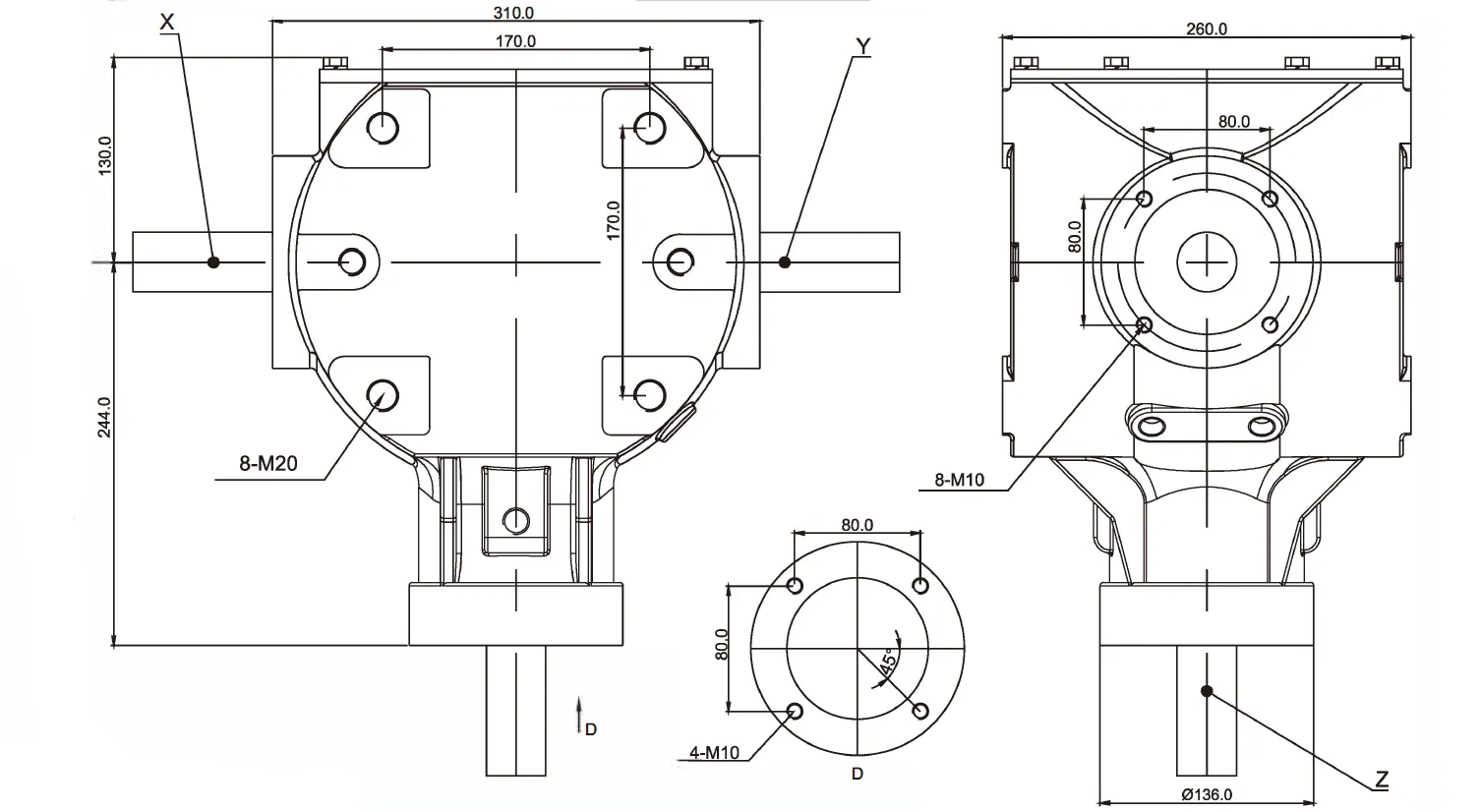

Dimensions of Agricultural Gearbox-Replacement of Bondioli & Pavesi 2155

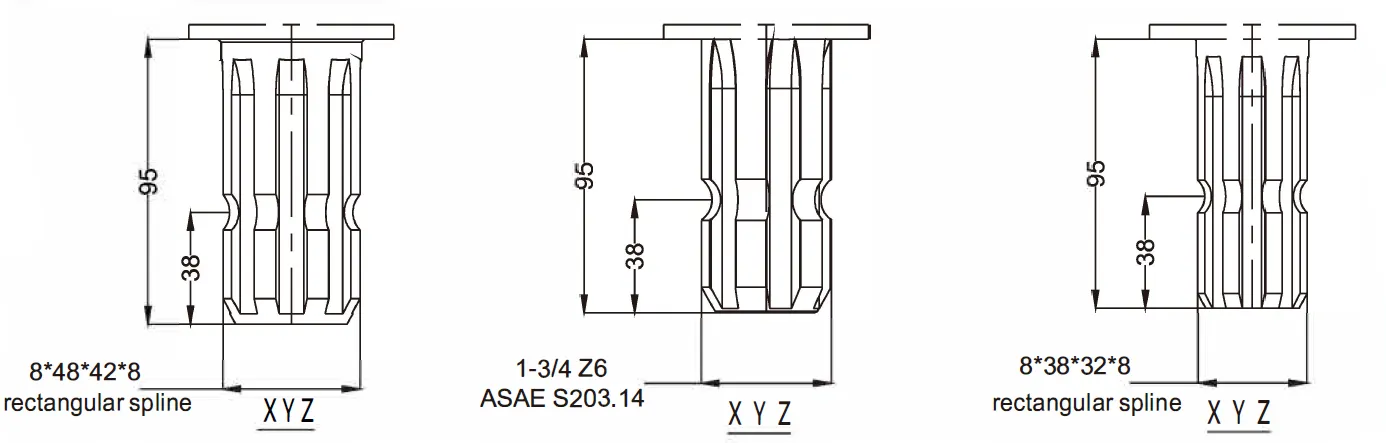

Agricultural Gearbox-Replacement of Bondioli & Pavesi 2155 Shaft Dimensions

Agricultural Gearbox-Replacement of Bondioli & Pavesi 2155 Technical Data

i		Suitable	Rpm input	Rpm output	KW(Nom)	Output torque	Toothing
			r/min	r/min	hp	N.m
	1:1	Universal gearbox	540	540	121	165	Gleason HelicalTeeth
Decelerate	1.25:1		540	432	111	151
	1.53:1		540	353	97	132
	1.93:1		540	280	81	110
	2.42:1		540	223	59	80
Remark: If you have any special require feel free let me know, we also accept custom.

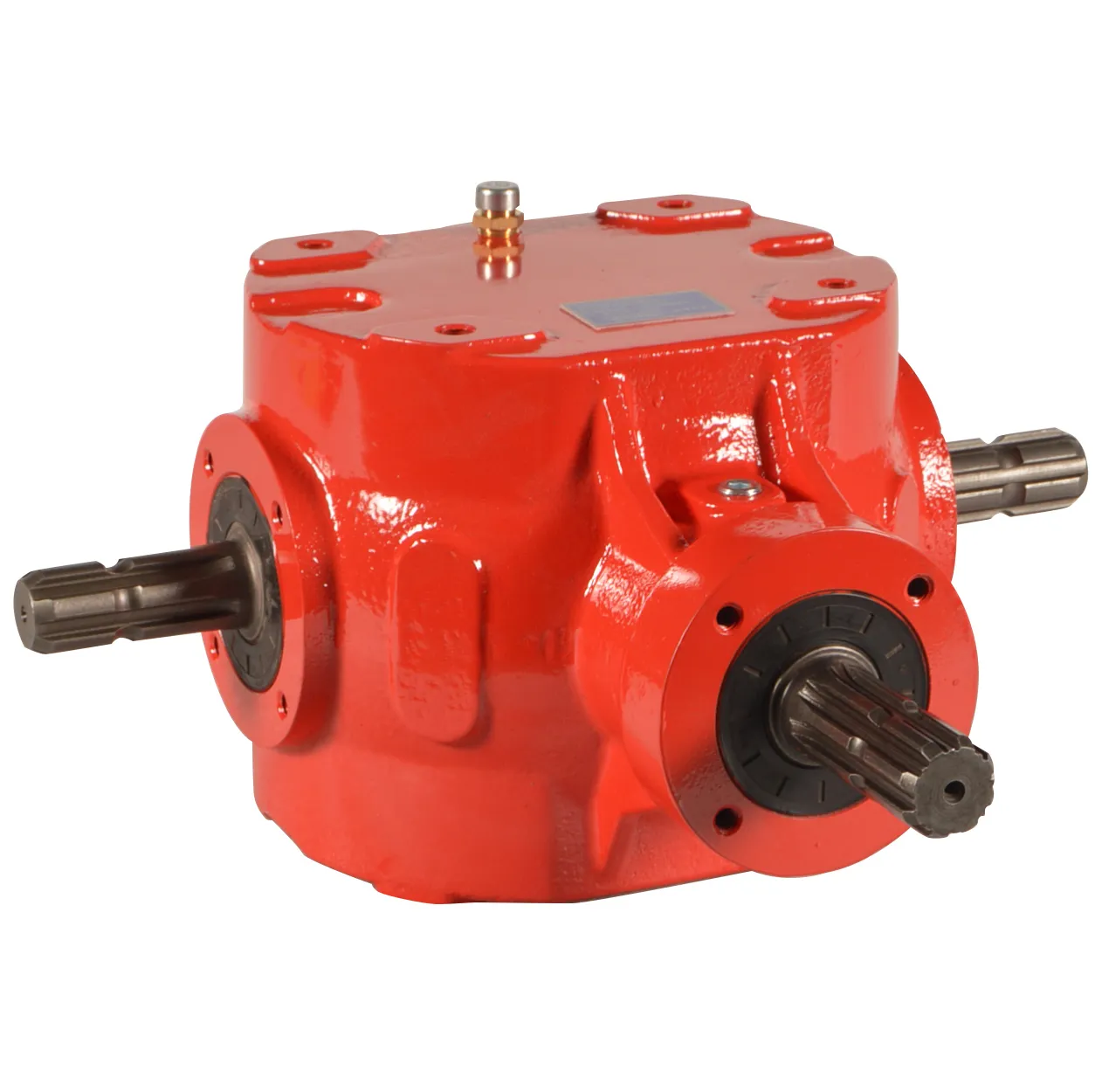

Agricultural Gearbox-Replacement of Bondioli & Pavesi 2155 Features

There are several advantages to using the replacement Replacement of Bondioli & Pavesi 2155 gearbox in farming applications:1. High Performance: The 2155 series gearbox is designed to deliver high performance in agricultural machinery. It efficiently transfers power from the engine to the drivetrain and implements, ensuring smooth and reliable operation. The gearbox's gear ratios can be adjusted to match the specific requirements of different tasks, allowing farmers to achieve optimal performance in various applications.2. Durability and Reliability: Our gearboxes are known for their durability and reliability. The 2155 model is built to withstand the rigorous demands of agricultural work. Its robust construction and high-quality materials make it resistant to heavy loads, frequent gear shifting, and harsh environmental conditions. This ensures a long lifespan and reduces downtime due to gearbox failures or breakdowns.3. Versatility: The 2155 series agricultural gearbox is highly versatile and compatible with a wide range of agricultural machinery and equipment. It can be integrated with different brands and models of tractors, harvesters, and other implements, making it a flexible choice for farmers with diverse equipment fleets.4. Customization and Adaptability: We can offer customization options for customers. The replacement Replacement of Bondioli & Pavesi 2155 gearbox can be tailored to meet specific requirements, making it adaptable to a wide range of machinery and farming needs.5. Ease of Maintenance: The 2155 gearbox is designed for easy maintenance, a crucial aspect in the demanding world of agriculture where downtime can be costly. Regular maintenance is simplified, extending the life of the gearbox.

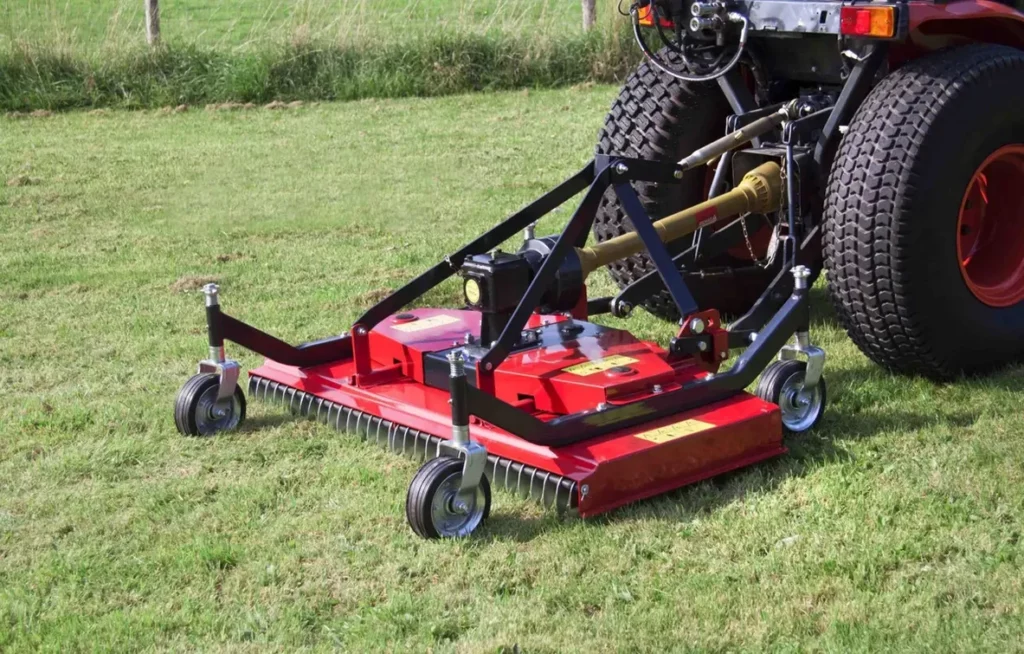

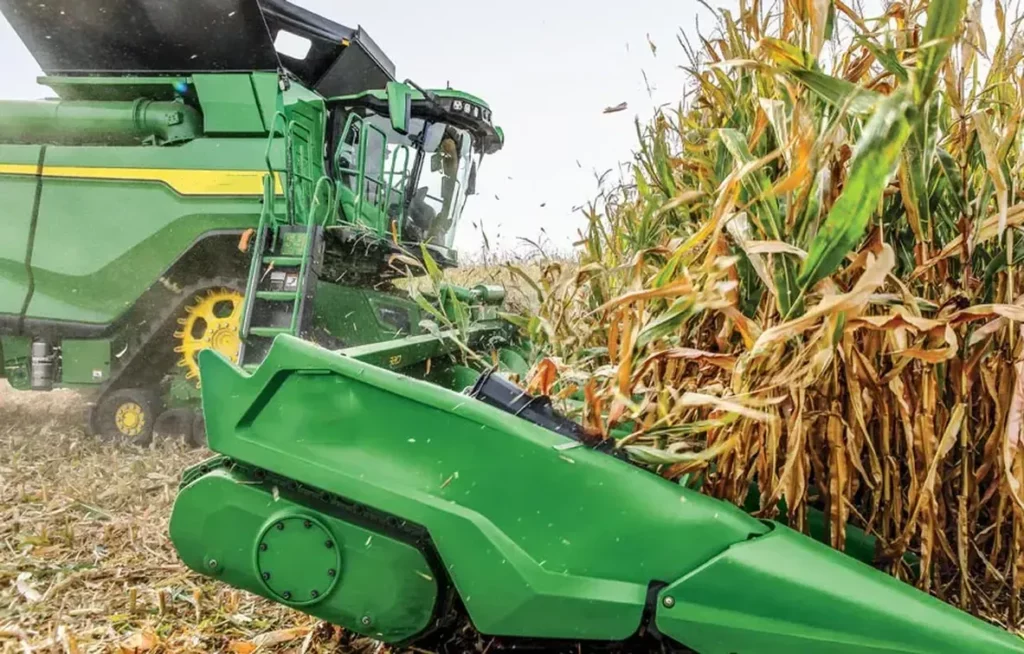

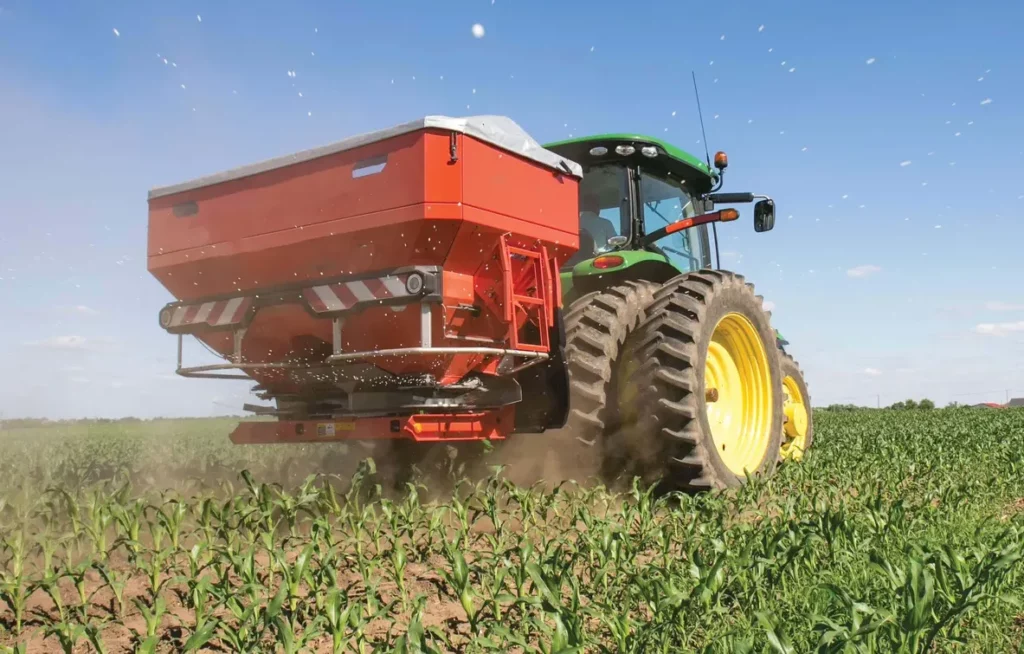

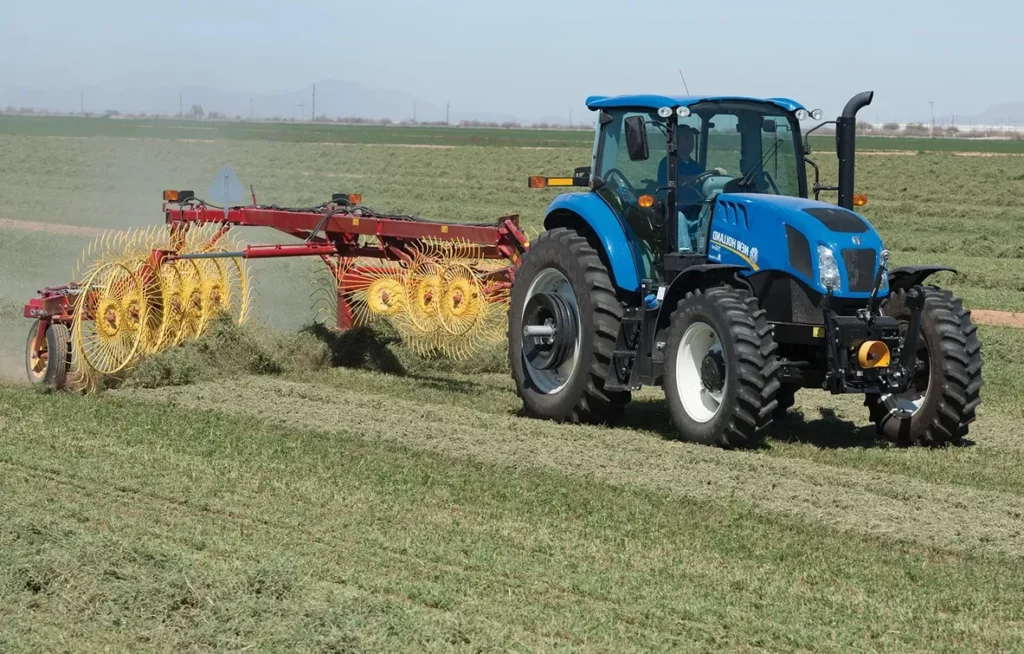

Agricultural Gearbox-Replacement of Bondioli & Pavesi 2155 Applications in Agriculture

The replacement Replacement of Bondioli & Pavesi 2155 gearbox has a wide range of applications in the field of agriculture. It is designed to enhance the performance and functionality of various farming equipment, including tractors, harvesters, and other implements. Here are some common applications of the 2155 series gearbox in agriculture:(1) Tractor Power Transmission: The 2155 gearbox is often utilized in tractors to transfer power from the engine to the wheels or tracks. It ensures efficient power distribution and enables the tractor to move smoothly across different terrains. The gearbox's adjustable gear ratios allow farmers to optimize the tractor's speed and torque output based on various tasks, such as plowing, tilling, hauling, and mowing.(2) Harvesting Equipment: The 2155 series agricultural gearbox is commonly used in harvesting machinery, such as combine harvesters and forage harvesters. It facilitates power transmission to the cutting and threshing mechanisms, ensuring efficient crop harvesting. The gearbox's flexibility in gear ratios allows farmers to adjust the harvesting machine's speed and performance according to different crop types and field conditions.(3) Seeders and Planters: Agricultural seeders and planters often incorporate the 2155 gearbox to deliver power to the seeding and planting mechanisms. The gearbox ensures precise and consistent seed or plant placement, optimizing the planting process. Its gear ratios can be adjusted to achieve the desired seeding or planting speed, ensuring accurate seed or plant spacing and depth.(4) Irrigation Systems: The 2155 gearbox is also utilized in irrigation systems to drive water pumps or other components. It enables efficient power transmission from the engine to the irrigation equipment, ensuring proper water distribution across the fields. The gearbox's adjustability allows farmers to control the irrigation system's water flow rate and pressure, optimizing water usage and maximizing crop yield.(5) Hay and Forage Equipment: The 2155 series agricultural gearboxes are commonly found in hay balers, forage choppers, and other equipment used for haymaking and forage production. The gearbox facilitates power transmission to the cutting, baling, or chopping mechanisms, ensuring effective processing and packaging of hay or forage. Its adjustable gear ratios enable farmers to optimize the equipment's performance based on different crop types and desired end products.(6) Other Agricultural Implements: The 2155 series gearbox can be integrated into various other agricultural implements, such as rotary tillers, mowers, sprayers, and loaders. It enhances the power transmission efficiency of these implements, allowing farmers to accomplish tasks like soil preparation, vegetation control, chemical application, and material handling with ease.

Agricultural Gearbox-Replacement of Bondioli & Pavesi 2155 Maintenance

Proper maintenance of the replacement Replacement of Bondioli & Pavesi 2155 gearbox is essential to ensure its longevity, optimal performance, and reliability. Here are some maintenance practices to consider:1. Regular Inspection: Perform routine visual inspections of the gearbox to check for any signs of wear, damage, or leaks. Inspect the gearbox housing, seals, and connections for any abnormalities. Pay attention to the condition of gears, bearings, and shafts.2. Lubrication: Follow the manufacturer's recommendations for lubrication intervals and use the recommended lubricant. Ensure that the agricultural gearbox is adequately lubricated to minimize friction and wear. Regularly check the oil level and top up or change the lubricant as needed. Also, inspect the oil filter and clean or replace it if necessary.3. Cleanliness: Keep the gearbox and its surrounding area clean from dirt, debris, and other contaminants. Regularly remove any buildup of dirt, mud, or crop residue from the gearbox. This helps prevent damage to the components and ensures proper heat dissipation.4. Tighten Loose Connections: Periodically check and tighten all bolts, nuts, and fasteners to ensure they are securely tightened. Vibrations and continuous operation can cause these connections to loosen over time, leading to potential issues.5. Seal Maintenance: Inspect the seals regularly and replace them if they are damaged or show signs of wear. Properly functioning seals help prevent oil leaks and contamination.6. Cooling System: If the agricultural gearbox is equipped with a cooling system, ensure that it is clean and functioning properly. Check for any blockages in the cooling fins or radiator and clean them if necessary. A well-maintained cooling system helps prevent overheating and extends the gearbox's life.

We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.
