Agricultural harvester rubber v belt for Agricultural Machinery Parts and vhaverster v-belt

PRODUCT SPECIFICATIONS

Belt No.	TOP Width	Top Height	Angle(°)	Type			HD	HDJ
HZ	10	8	40	Agriculturalbelt		wrappped V-belt
HA	13	8	40
HB	17	11	40
HC	22	14	40
HD	32	19	40	Variable speed belt	coggedV-belt
HDJ	32	16	40
HI	25.4	12.7	40
HJ	31.8	15.1	40
HK	38.1	17.5	40
HL	44.5	19.8	40
HM	50.8	22.2	40
HO	62	27	40



Belt NO.	TOP Width	Top Height	Angle(°)	Type
2HB	36.1	13.5	40	banded V-belt
3HB	55.2	13.5	40
4HB	74.3	13.5	40
5HB	93.4	13.5	40
2HC	47.9	16.8	40
3HC	73.6	16.8	40
4HC	98.9	16.8	40
5HC	124.1	16.8	40

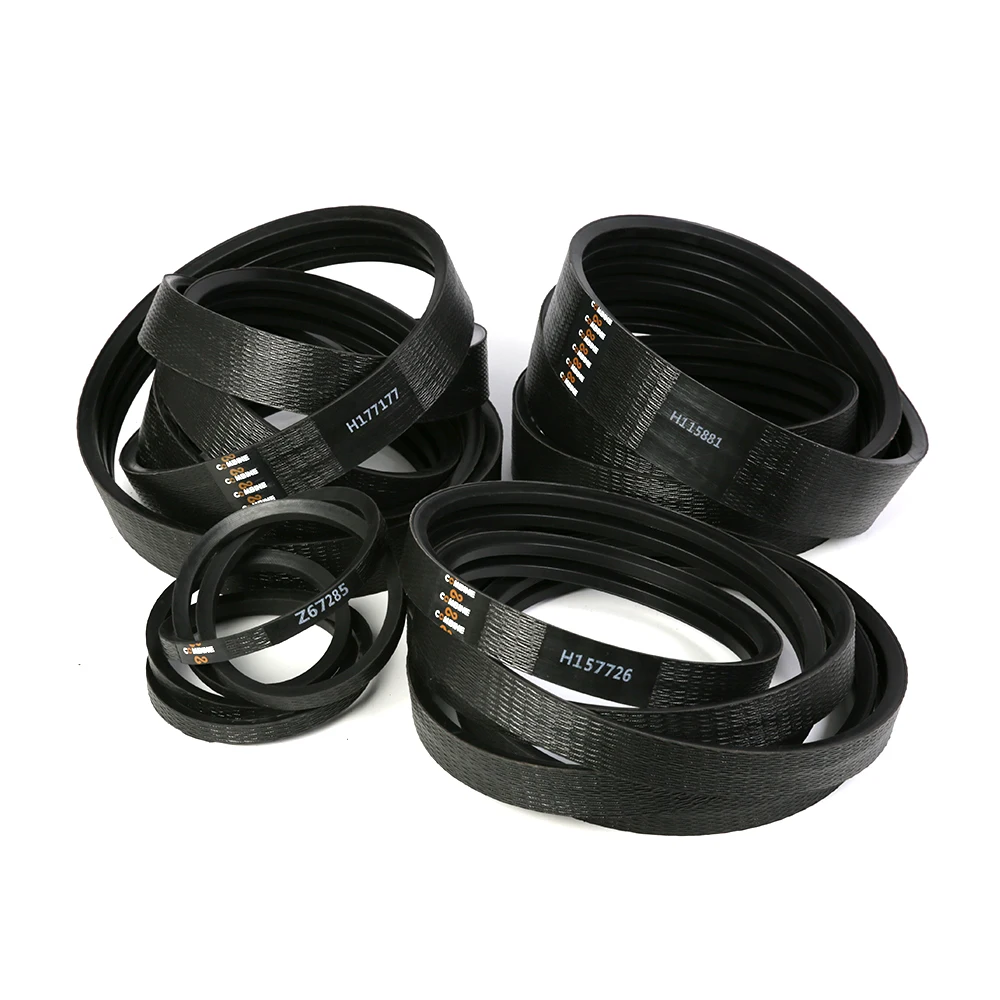

1. Double cogged V-belts replaced for John-Deere** HIGHLY RECOMMENDED ** H152146 HXE15594 H230909 2. Banded V-belts replaced for John-Deere H157726 H115881 H177177 HXE12426 H175434 HXE12425 H176765 H156541 Z59286 3. Classic Aramid V-belts replaced for John-Deere HXE513000 H155998 Z67285 N110085 H221324 Z235564 H218726 H218645 H175587 4. More V-belts replaced for John-Deere

COMBINE No.	Replace JD No.	Application
4G3002	H128234	JD 9500, 9500SH, 9501, 9510, 9510SH, 9550, 9550SH, 9560, 9560SH, 9600, 9610, 9650, 9660
4G3003	AH96333	JD 8820
4G3004	AH80500/H81975	JD 3300, 4400, 4420
4G3005	H132808	JD 9400, 9410, 9450, 9500 , 9600
4G3006	H96408	JD 6620, 6620, 7700, 7700 , 7720, 7720
4G3007	H96423	JD 6600, 6620, 6620, 7700, 7700, 7720, 7720
4G3008	H110375	JD 6620, 6622, 7720, 7721, 8820
4G3009	H96422	JD 6620, 6622, 7720, 7721, 8820
4G3010	H115881	JD CTS, CTS II, 9400, 9410, 9450, 9500, 9500SH, 9501, 9510, 9510SH, 9550, 9550SH, 9560, 9560SH, 9600, 9610, 9650, 9650CTS, 9660,9660CTS
4G3011	H118618	JD CTS, CTS II, 9400, 9410, 9500, 9500SH, 9510, 9510SH, 9550, 9550SH , 9560, 9560SH, 9600, 9610, 9650, 9650CTS, 9660, 9660CTS
4G3012	H145994	JD 9400, 9410, 9450, 9550, 9550SH, 9650CTS, 9660CTS
4G3013	H96421	JD 9400, 9410, 9450, 9550, 9550SH, 9650CTS, 9660CTS
4G3014	H138762/H80103	JD 3300, 4400, 4420, , 6600, 7700
4G3015	H101436	JD 6620, 6622, 7720, 7721, 8820, 9400, 9410, 9450
4G3016	H118730	JD 6620, 7720, 8820
4G3017	H101469	JD 6620, 6622, 7721, 8820
4G3018	H96414	JD 6620, 7720, 8820
4G3019	H27433	JD 6600, 6602, 6620, 6622, 7700, 7701, 7720, 7721, 8820, 9400, 9410, 9450
4G3020	H110300	JD 6620, 6622, 7720, 8820
4G3021	H81222	JD 4400, 4420, 6620 , 7720, 8820
4G3022	H77766	JD 6600, 6620, 7700, 7720
4G3023	E46113	JD 9400
4G3024	H23950	JD 6600, 7700, 7700RH, 6600, 6622, 7700, 7721, 9400, 9500-9500H, 9600 , 9410, 9510, 9510SH, 9610, 9450, 9550, 9550SH, 9560, 9660
4G3025	H103344	JD 6620, 7720, 8820
4G3026	H128010	JD CTS, CTS II, 9400, 9410, 9450, 9500, 9500SH, 9501, 9510, 9510SH, 9550, 9550SH, 9560, 9560SH, 9600, 9610, 9650, 9650CTS, 9660,9660CTS
4G3027	H137830	JD 9400, 9500, 9500SH, 9501
4G3028	H141166	JD 9450, 9550, 9550SH, 9560, 9560SH, 9600, 9600, 9650, 9650CTS, 9660, 9660CTS
4G3029	H141167	JD CTS, 9400, 9500, 9500SH, 9501, 9610
4G3030	H131169	JD CTS, CTS II, 9400, 9410, 9450, 9500, 9500SH, 9501, 9510, 9510SH, 9550, 9550SH, 9560, 9560SH, 9600, 9610, 9650, 9650CTS, 9660,9660CTS

Introduction

An agricultural harvester rubber v belt is a crucial component in agricultural machinery parts and harvester v-belts. It is responsible for transferring power from the engine to various parts of the harvester to carry out various agricultural tasks.

Function and Working Principle

The agricultural harvester rubber v belt is usually located in the harvester's power transmission system. It works by transmitting power from the engine to different parts of the harvester such as the threshing unit, concave, and separation sieve. The belt's design allows it to operate efficiently and transmit power without slipping or breaking.

Our Products

We can produce agricultural harvester rubber v belts that can replace most commonly used models in the market. You can also contact us for custom-made belts that fit your specific needs. Our advantages include:

• High-quality materials
• Excellent durability
• Competitive pricing

Compatible Brands and Models

Our agricultural harvester rubber v belts are compatible with many commonly used harvester brands and models. Here are some examples:

Brand	Model
John Deere	9870 STS
Case IH	Axial-Flow 7088
New Holland	CR8.90

Other Agricultural Machinery Parts

We provide a wide range of agricultural machinery parts, including:

• Agricultural chains
• Agricultural gearbox
• Pulley
• Sprocket
• Coupling
• pto shaft
• Concave

Most Commonly Worn-out Parts

Harvesters have several parts that are prone to wear and tear. Here are some of the most commonly worn-out parts and their functions:

1. Blades/Cutting Components: Including the main cutting blade, skid plate, and cutting belt. These parts are responsible for cutting the crop.
2. Threshing Drum and Concave: These components separate the grain from the rest of the crop.
3. Separation Sieve and Cleaning Fan Blades: These components clean and separate the grain from the chaff.
4. Conveyor Chains and Sprockets: These parts are responsible for moving the crop through the machine.
5. Rubber Tracks or Tires: These parts provide traction and support to the harvester.
6. Hydraulic Components: Including hydraulic cylinders, hoses, and seals. These components are responsible for powering the harvester's hydraulic system.
7. Bearings: These components provide support to the rotating parts of the harvester.
8. Filters: Including the air filter, fuel filter, and oil filter. These components keep the harvester's fluids clean and free from contaminants.

When to Replace Worn-out Parts

Harvesters show several signs when they need parts replacement. Here are some of them:

1. Poor Harvesting Performance: If the harvested crop has a lot of residue or the grains are not properly separated, it could indicate severe wear and tear of the threshing drum and concave, and they need replacement.
2. Decrease in Power or Overheating: If the engine loses power or overheats, it could indicate a clogged air filter or cooling system failure. Replacing the air filter or repairing the cooling system can fix the issue.
3. Decrease in Harvesting Efficiency: Slow cutting blade or crop transportation could indicate stretched chains, worn-out drive gears, or aging transmission belts. These parts require replacement.
4. Difficult Movement or Increased Noise: In case of rubber track harvesters, loose or ruptured tracks indicate a need for replacement, while in tire harvesters, worn-out tires need replacement. Else, unusual noise during operation could indicate worn-out bearings that require replacement.
5. Unstable Hydraulic System: If the harvester's hydraulic system is unable to lift or steer the machine, it could indicate hydraulic pump failure, cylinder damage, or seal damage, which require prompt replacement.
6. Oil Leakage: Oil leakage from the machine indicates damaged seals or other parts that require replacement.
