Agricultural Lawn Mower Gearbox RDF-RC30-193

Agricultural Lawn Mower Gearbox RDF-RC30-193

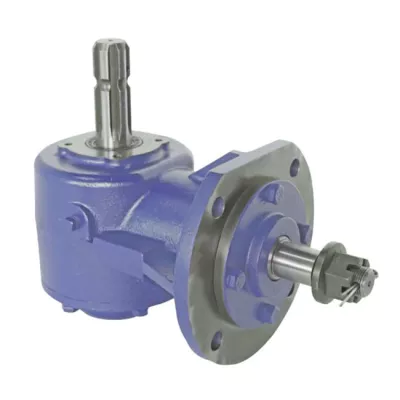

Brand new EP series RC-30 right angle gearbox for lawn mower. Horizontal input and vertical output downward. This gearbox features a 1:1.93 Speed Up gear ratio for use on 4' and larger diameter rotary cutters. Industry-standard 1-3/8" - 6 Spline diameter input shaft with 1/2" shear bolt hole and retaining ring groove and 1.47" diameter 12 tapered spline output shaft allow fitment to most light, standard, and medium-duty rotary cutters.Each gearbox features high-speed ball bearing units and heat-treated gears and shafts to ensure long life. Four bolt mounting matches industry standards. Each gearbox includes a blade carrier mounting nut and cotter pin. Gearboxes are shipped dry and require 16 ounces of 90W or 85w140 gearlube or equivalent.

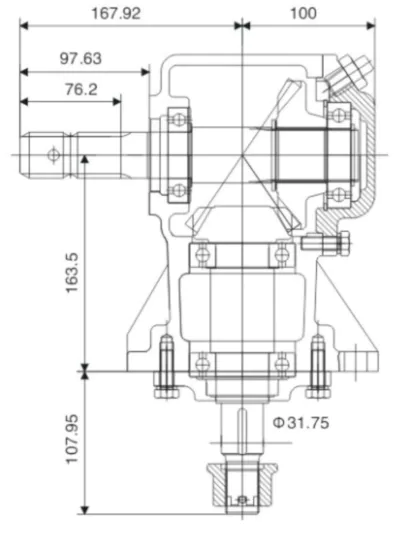

Lawn Mower Gearbox RC30 Gearbox Description

ITEM	Lawnmower Gearbox RDF-RC30-193
Ratio	1:1.93
Teeth	15/29
Module	4.0
Power(HP)	30
Rated Input	540rpm
Input/Output Description	1-3/8 Z6φ31.75 Optic axis
Weight(N.W)	24.5KG

Lawn Mower Gearbox Oil Lubrication Maintenance

After 50 hours of operation of the lawnmower gearbox, the initial oil should be changed under operating loads. Additional oil changes should be performed every 1000 hours or each year, whichever comes first. Shorter oil change intervals may be required if the unit operates at high temperatures or at maximum load conditions. Depending on the load conditions and unit environment, longer oil change intervals may be used. However, if longer oil change intervals are used, oil sampling shall be used to confirm the oil's actual properties and condition. During oil changes, care should be taken to ensure oil is retained properly during draining from the lawnmower gearbox. Waste oil should be disposed of properly and according to local requirements.

Usage Scenario of Lawn Mower Gearbox

RC-30 Gearbox Applications:

• Finishing Mowers
• Rotary Cutters
• Rotary Slashers

Customized Agricultural Lawn Mower Gearbox

Our agricultural gearbox has many items for your choice, and we can produce them as per your drawing or sample to meet your special request.General requirements of the products provided by the customer;1. We recommend appropriate projects according to the needs;2. Our design will make drawings according to your products;3. After confirming your drawing, tell us the color and type you need;4. We will pick it up as soon as we get your confirmation.5. Note: Customers can order all the samples of our products, or you can have your ideas because we are the supplier of customized products, so we can provide different colors and types.

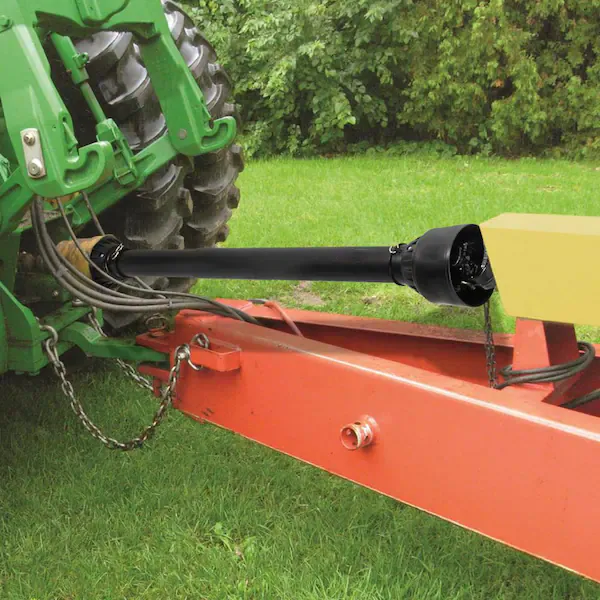

PTO Shafts and Agricultural Gearboxes

Agricultural gearbox and PTO shaft: These components work together to transfer mechanical power between farm tractors. A PTO shaft converts engine energy into hydraulic pressure. This is what allows the tractor to pull heavy loads. When properly functioning, it reduces the risk of damage to the tractor and to the operator. When used properly, it is an important component of a tractor, but it can also become defective. When choosing an agricultural gearbox, consider the durability and mechanism of the product, as well as its materials. A durable gearbox will last for many years, avoiding repeated replacements. A high-quality agricultural gearbox will be durable for many years to come, and you don't want to end up replacing it for a while. This can be costly, so consider your needs when purchasing an agricultural gearbox and PTO shaft.Raydafon offers a wide range of PTO shafts too. Contact us now!

Other Agricultural Gearboxes

Lawn Mower Gearbox Suppliers

Raydafon is a professional in gearbox development and manufacturing. RG and RC series lawn mower gearboxes are used for lawn mower transmission. Our gearboxes have been exported to America, Canada, Australia, Thailand, Germany, etc.

Agricultural Gearbox Production Workshop

Ningbo Raydafon Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Ningbo, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearboxes, spur gearboxes, worm gearboxes, and cylindrical gearboxes. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and hydraulic engineering components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.
