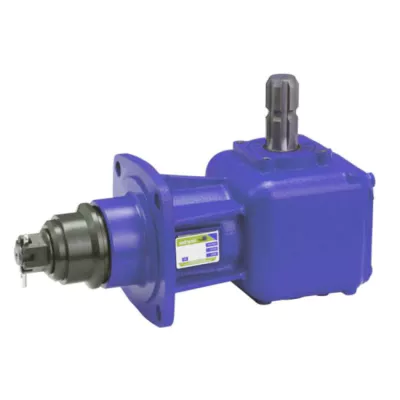

Agricultural Lawnmower Gearbox RDF-LF205

Agricultural Lawnmower Gearbox RDF-LF205

New lawnmower gearbox, LF-205. The gearbox ratio is 1:1.92. The input shaft is 1-3/8" 6 spline. The 12-spline output shaft has tapered splines, and the bushing must be ordered separately (12-spline bushing A-U920580500). The mounting pattern is 171.5 mm. The gearbox is rated at 30 hp at 540 rpm and has a CCW (Counterclockwise) rotation. Fits Replacement of Comer Rotary Cutters.The output shaft has tapered splines, and the bushing must be ordered separately. (12 spline bushing: U0135700000). The mounting pattern is 171.5mm.

Agricultural Lawnmower Gearbox Specifications:

ITEM	RDF-LF205
Ratio	1:1.93/1:1.46
Teeth	23/12 22/15
Module	5.0 / 5.0
Power(HP)	30
Rated Input	540rpm
Input/Output Description	1-3/8 Z6 Optic AxisTaper Spline
Weight(N.W)	19KG

Why Choose Our Agricultural Lawnmower Gearbox?

Our agricultural lawnmower gearbox has many items for your choice, and we can produce as per your drawing or sample to meet your special request.1. Large output torque2. Safe, reliable, economical, and durable3. Stable transmission, quiet operation4. High carrying ability5. Low noise: Because the main parts of the agricultural lawnmower gearbox are processed and tested critically, therefore the noise of the agricultural lawnmower gearbox is low.6. Our agricultural lawnmower gearbox has reached the advanced international level and can replace the same kind of products imported.

Agricultural Lawnmower Gearbox RDF-LF205 Precautions for Use

1. Ensure assembly quality: We should avoid hammering with hammers when installing or removing parts of the agricultural lawnmower gearbox. In the replacement agricultural lawnmower gearbox, should try to choose the original parts of the corresponding. In addition, the use of anti-sticking agent on the hollow shaft to protect against friction and rust.2. select the installation location:Whee we install the agricultural lawnmower gearbox, do not use vertical installation, if you choose to install the vertical, it is necessary to add enough oil, it is likely to cause the gearbox heat and oil spill problems.3. Choose lubricants and additives: Under normal conditions, we can use the lubricant additive, so that the agricultural lawnmower gearbox in the stop running, gear oil can still be attached to the gear surface, form a layer of solid protective film to prevent direct contact when low speed, heavy load, high torque situation.

Fits the Following Makes and Models

Replacement of Comer FINISHING MOWER: LF-205-JReplaces: COMERU9.135.808.10, U9.205.808.00 , U913580810 , 9.135.029.00 , 913502900

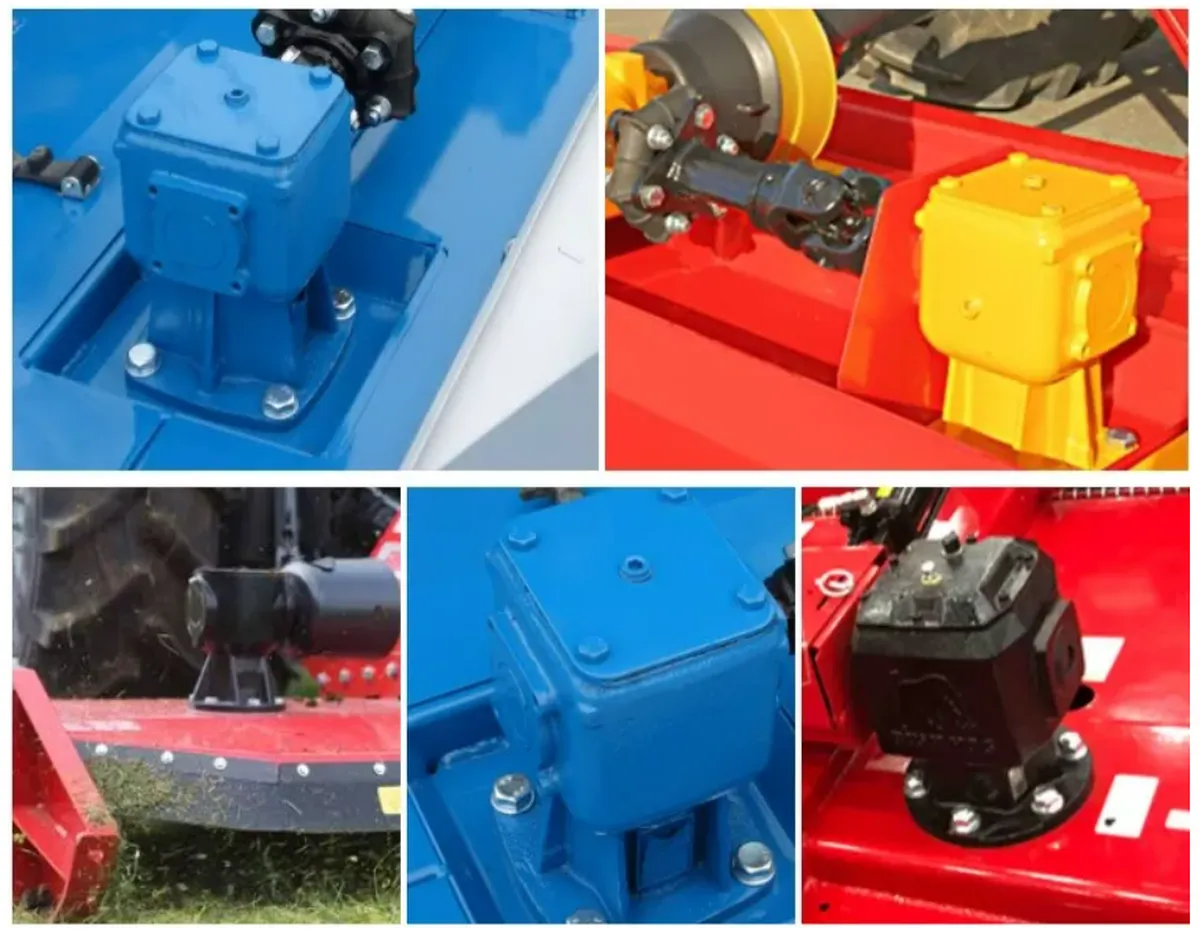

Usage Scenario of Lawn Mower Gearbox

PTO Shafts and Agricultural Gearboxes

Agricultural gearbox and PTO shaft: These components work together to transfer mechanical power between farm tractors. A PTO shaft converts engine energy into hydraulic pressure. This is what allows the tractor to pull heavy loads. When properly functioning, it reduces the risk of damage to the tractor and to the operator. When used properly, it is an important component of a tractor, but it can also become defective. When choosing an agricultural gearbox, consider the durability and mechanism of the product, as well as its materials. A durable gearbox will last for many years, avoiding repeated replacements. A high-quality agricultural gearbox will be durable for many years to come, and you don't want to end up replacing it for a while. This can be costly, so consider your needs when purchasing an agricultural gearbox and PTO shaft.

Other Agricultural Gearboxes

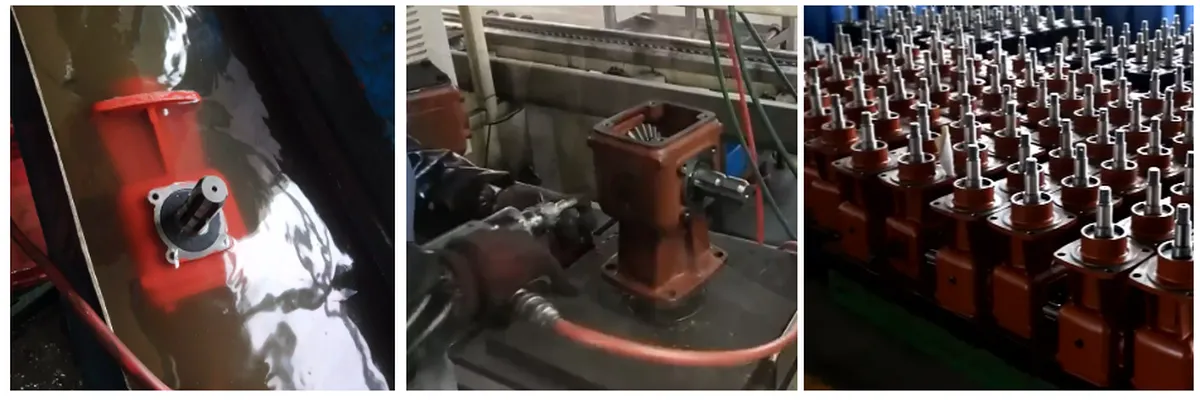

Agricultural Lawnmower Gearbox Production Workshop

Ningbo Raydafon Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Ningbo, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearboxes, spur gearboxes, worm gearboxes, and cylindrical gearboxes. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and hydraulic engineering components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.
