Agricultural Leveling Machinery Heavy Duty Box Blade Scraper for Sale

Agricultural Leveling Machinery Heavy Duty Box Blade Scraper for Sale

Discover Raydafon Group's Agricultural Leveling Machinery Heavy Duty Box Blade Scraper for Sale! Engineered for precision and durability, this scraper features high-grade materials and innovative design to effortlessly level terrain, ideal for farmers and contractors. Experience unmatched efficiency and reliability, solving tough grading challenges with ease. Stand out with our superior build and performance—transform your land today with Raydafon Group's premium solution!
The agricultural leveling machinery heavy duty box scraper, also known as a land leveler, is an essential tool in modern farming and land management. Designed for durability and efficiency, it is primarily used to level and smooth out large tracts of land, making it suitable for agricultural purposes, construction, and landscaping. The box scraper typically features a heavy-duty steel frame with a series of angled blades mounted within a box-like structure. These blades are adjustable and can be set to various depths, allowing the operator to control the amount of soil being moved. The design enables it to cut into the ground, collect soil, and redistribute it evenly across the surface, effectively eliminating uneven terrain, filling in low spots, and removing high spots. Often attached to a tractor, the box scraper is pulled across fields, where it performs tasks such as grading roads, preparing seedbeds, and maintaining pathways. Its robust construction ensures it can handle tough soil conditions, rocks, and debris. The land leveler is an invaluable asset for farmers and contractors seeking to optimize land usability and improve drainage, ultimately enhancing productivity and crop yields. Agricultural Leveling Machinery Heavy Duty Box Blade Scraper for Sale [embed]https://youtu.be/jb-DqBKXXms[/embed]

Specification of 3 Point Hitch Box Scrapers

Model

SBX-4 SBX-5 SBX-6 SBX-7 SBX-8
Working width(mm) 1220 1530 1830 2135 2440
Overall depth(mm) 547
Matched power(hp) 18-25 20-25 25-40 30-40 35-45
Weight(kg) 135 170 206 229 258

Features of the 3 Point Hitch Box Scrapers

3-point hitch box scrapers are versatile and essential tools in agriculture and land management. They offer several features that make them valuable for various leveling and grading tasks:
  • Adjustable Cutting Depth: 3 Point Hitch Box Scrapers offer adjustable cutting depth, allowing operators to control how deeply the blades penetrate the soil. This feature provides flexibility for different tasks, such as shallow surface leveling or deeper soil removal. Adjusting the depth is straightforward, enabling precise work tailored to specific land management needs.
  • Replaceable Cutting Edges: The box scrapers come with replaceable cutting edges, which extend the tool's lifespan and maintain its efficiency. When edges wear down from regular use, they can be easily replaced, ensuring consistent performance. This feature reduces the need for frequent purchases of new equipment, offering a cost-effective solution for long-term land maintenance.
  • Scarifier Teeth: Equipped with scarifier teeth, these scrapers can break up compacted soil and tough surfaces, preparing the ground for leveling. The teeth are adjustable and can be raised or lowered to match the task's requirements. This functionality enhances the tool's versatility, making it ideal for both initial ground preparation and finishing touches.
  • 3 Point Hitch: The standard 3-point hitch system ensures secure attachment to a wide range of tractors. This design provides stability and control during operation, enhancing safety and efficiency. The hitch allows for easy hookup and release, minimizing downtime and enabling quick transitions between different implements on the farm.
  • Compatibility with Tractors: These scrapers are compatible with most tractor models, thanks to their standardized hitch system. This compatibility ensures that farmers and operators can use the equipment with existing tractors, eliminating the need for specialized machinery. It enhances the tool's utility across various operations, making it a versatile addition to any equipment lineup.
  • Multiple Sizes and Configurations: Available in multiple sizes and configurations, 3 Point Hitch Box Scrapers cater to diverse needs and applications. Whether working on small plots or large fields, there's a suitable model to match the scale and scope of the job. This range of options allows users to select the most appropriate tool for their specific tasks.
Agricultural Leveling Machinery Heavy Duty Box Blade Scraper for Sale

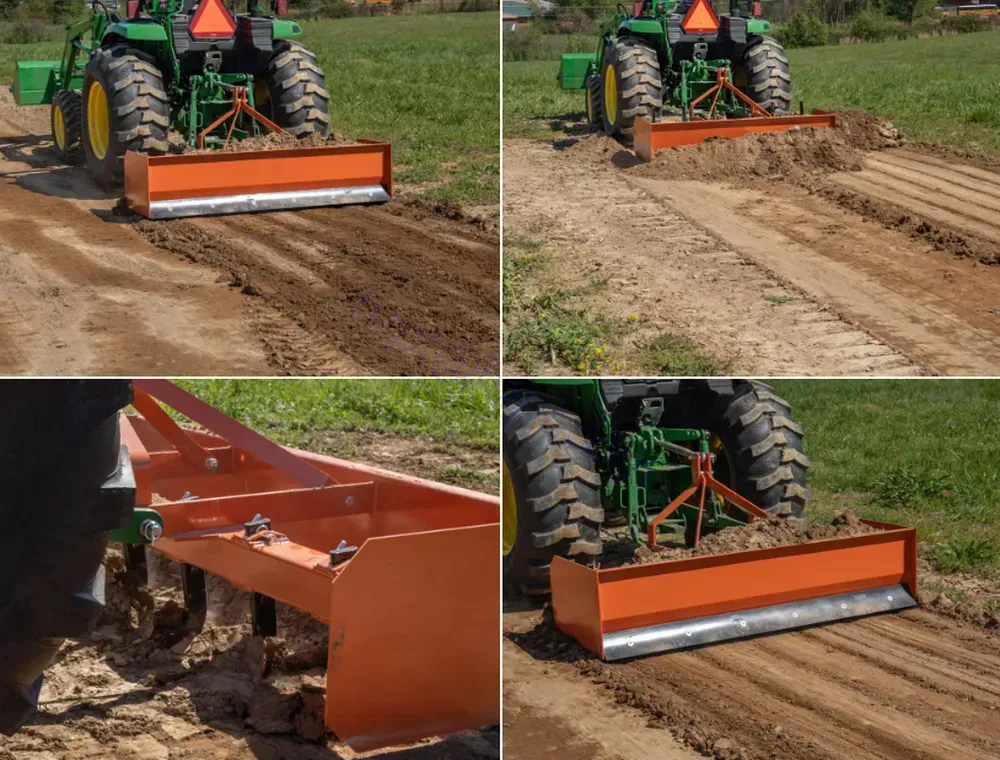

Typical Applications of Land Levelers

Land levelers, also known as land planes or box blades, find a variety of applications in agriculture, construction, landscaping, and other industries. Here are some typical applications of land levelers:
  1. Agricultural Land Preparation: Land levelers are essential in agricultural land preparation, ensuring fields are even and free of dips and bumps. This leveling promotes efficient irrigation and uniform crop growth. By creating a smooth surface, farmers can optimize planting conditions, improve water distribution, and ultimately increase crop yields and productivity.
  2. Landscaping: In landscaping, land levelers help create aesthetically pleasing and functional outdoor spaces. They smooth out uneven terrain, making it easier to plant grass, flowers, and trees. This tool is crucial for establishing a solid foundation for landscape design, ensuring features like patios, walkways, and gardens are both attractive and structurally sound.
  3. Seedbed Preparation: For seedbed preparation, land levelers provide a flat, even surface essential for seed germination. A well-prepared seedbed enhances seed-to-soil contact, improving germination rates and seedling establishment. This process is vital for achieving uniform crop stands and maximizing agricultural productivity, especially in large-scale farming operations.
  4. Construction Site Preparation: In construction, land levelers are used to prepare the ground before building. They ensure the site is even, which is crucial for laying foundations and constructing stable structures. This preparation minimizes the risk of structural issues and helps meet engineering specifications, contributing to the safety and success of construction projects.
  5. Gravel and Dirt Road Maintenance: Land levelers are effective in maintaining gravel and dirt roads by smoothing out ruts and potholes. Regular use keeps roads in good condition, providing safer and more comfortable travel. This maintenance extends the lifespan of roads and reduces the need for costly repairs, making it a cost-effective solution for rural and semi-urban areas.
  6. Garden Maintenance: In garden maintenance, land levelers help create level planting areas and maintain existing gardens. By evening out the soil, they improve drainage and prevent waterlogging, which can harm plants. This tool is invaluable for home gardeners and landscapers aiming to maintain healthy, vibrant gardens with minimal effort.
Agricultural Leveling Machinery Heavy Duty Box Blade Scraper for Sale

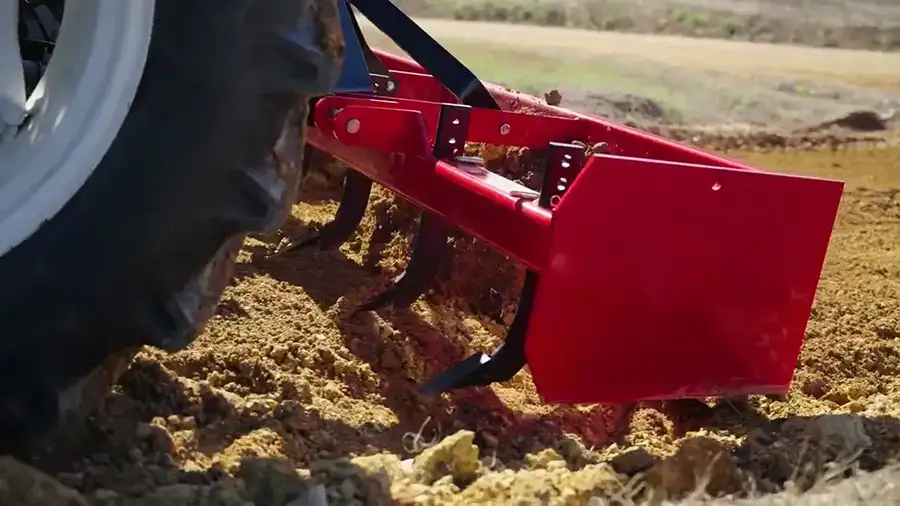

Structural Components of a Box Scraper

A box scraper, also known as a box blade, is a versatile tool commonly used in agriculture, landscaping, and construction for leveling, grading, and shaping terrain. The structural components of a typical box scraper include:
  • Scraping Blades: Scraping blades are the primary components responsible for cutting and moving soil. Positioned at the bottom of the box scraper, these blades are designed to efficiently slice through the ground, collecting soil and debris. Their sharp edges ensure effective leveling and grading, making them essential for preparing land and maintaining smooth surfaces.
  • Scarifiers: Scarifiers are adjustable teeth positioned in front of the scraping blades. They penetrate and break up compacted soil, rocks, and debris, making it easier for the blades to move material. Scarifiers are crucial for initial ground preparation, loosening hard surfaces to improve soil aeration and ensure a more thorough leveling process.
  • Three-point Hitch: The three-point hitch is a standardized connection system that secures the box scraper to a tractor. This hitch provides stability and control, allowing precise operation. It facilitates easy attachment and detachment, enabling quick transitions between tasks. The hitch system is key for ensuring compatibility with a wide range of tractors.
  • Cutting Edge: The cutting edge is the replaceable component at the bottom of the scraping blades. It is designed to withstand wear and tear from constant contact with the ground. By replacing the cutting edge as needed, operators can maintain the scraper's efficiency and extend its lifespan, ensuring consistent performance over time.
  • Moldboard: The moldboard is the curved section behind the scraping blades that aids in soil movement and distribution. It helps direct soil over the blades and into the desired position, allowing for smooth and even leveling. The moldboard's design is crucial for managing the flow of material and achieving uniform surfaces.
  • Frame: The frame is the structural backbone of the box scraper, providing support and stability to all other components. Made from heavy-duty steel, it ensures durability and resistance to bending or breaking during operation. The frame's robust construction is essential for handling the stresses of demanding tasks, ensuring long-term reliability.
Agricultural Leveling Machinery Heavy Duty Box Blade Scraper for Sale

Working Principle:

A tractor 3-point mounted box scraper is a versatile implement used for leveling and grading ground surfaces. The working principle of a tractor-mounted box scraper involves several key steps:
  1. Attachment to Tractor: The box scraper is attached to the tractor using a three-point hitch system, providing a stable and secure connection. This hitch allows for easy adjustments and transfers the tractor's power directly to the scraper. The system ensures precise control and maneuverability, enabling efficient operation across various terrains.
  2. Engaging the Scarifiers: The operator lowers the scarifiers to break up compacted soil. These adjustable teeth penetrate the ground, loosening it to make leveling easier. By addressing hard spots and mixing the soil, the scarifiers prepare the surface for the scraping blades, ensuring a more effective and thorough leveling process.
  3. Scraping and Collecting Soil: Once the ground is loosened, the scraping blades engage with the soil. They cut and collect material into the box-like structure of the scraper. This action smooths out uneven surfaces by removing high spots and filling in low areas, creating a uniform and level ground surface.
  4. Even Distribution of Material: As the tractor moves forward, the collected soil is distributed evenly across the surface. The moldboard helps direct the flow of material, ensuring consistent coverage. This process eliminates ruts and depressions, resulting in a smooth and level finish ideal for agricultural, construction, or landscaping purposes.
  5. Adjusting Blade Depth and Angle: Operators can adjust the depth and angle of the blades to suit specific tasks and conditions. This flexibility allows for precise control over the amount of soil being moved, accommodating varying terrain and project requirements. Adjustments can be made on-the-fly, enhancing the scraper's versatility and efficiency.
  6. Final Smoothing: The box scraper's design allows for the final smoothing of the ground once the primary leveling is complete. By making additional passes, operators can achieve a perfectly flat surface. This final step is crucial for preparing seedbeds, constructing foundations, or maintaining roads, ensuring optimal results.
Agricultural Leveling Machinery Heavy Duty Box Blade Scraper for Sale

Choosing the Right Tractor 3 Point Hitch Land Levelers for Your Need

Selecting the right tractor 3-point hitch land leveler involves considering several factors to ensure that the implement meets your specific needs and works effectively for your intended applications. Here are key considerations to help you choose the right land leveler:
  • Assessing Terrain Requirements: Evaluate the type and condition of the terrain you’ll be working on. Consider whether you need to manage rocky, uneven, or compacted soil. Understanding your specific terrain requirements will help you select a land leveler with appropriate features, such as scarifiers, to effectively handle and prepare the ground.
  • Determining Size and Width: Choose a land leveler that matches the size of your tractor and the scale of your project. Wider levelers cover more ground in less time, ideal for large areas, while narrower ones offer better maneuverability in tight spaces. Ensure the size fits your tractor’s capabilities for efficient and safe operation.
  • Checking Compatibility with Tractor: Ensure the land leveler is compatible with your tractor’s three-point hitch system. Verify that the leveler’s category matches your tractor’s hitch category. Proper compatibility is crucial for stability and control during operation, enabling the leveler to function effectively and prevent potential damage to equipment.
  • Evaluating Material and Build Quality: Opt for a land leveler made from durable materials like high-grade steel. A robust build ensures longevity and performance under demanding conditions. Check for features like reinforced frames and replaceable cutting edges, which enhance durability and allow for easy maintenance, keeping the leveler in optimal working condition.
  • Considering Adjustability and Features: Look for levelers with adjustable blades and scarifiers to customize the depth and angle of operation. These features provide flexibility for various tasks and soil conditions, enhancing the tool’s versatility. The ability to make on-the-fly adjustments ensures precise control and improved efficiency during different phases of land preparation.
  • Assessing Versatility for Multiple Tasks: Choose a leveler that can handle various applications, such as seedbed preparation, road maintenance, and landscaping. A versatile tool maximizes your investment by reducing the need for multiple specialized implements. Ensure the leveler can adapt to different tasks, offering broad utility across your land management needs.
Agricultural Leveling Machinery Heavy Duty Box Blade Scraper for Sale

Why Choose Raydafon's Land Levelers?

Raydafon is a leading manufacturer and supplier specializing in the production and sale of high-quality land levelers. With a robust infrastructure and advanced technology, our company stands at the forefront of the agricultural equipment industry. We boast a team of experienced professionals dedicated to innovation and quality. Our state-of-the-art production facilities are equipped with cutting-edge machinery, ensuring that we deliver superior products that meet international standards. Our land levelers serve as ideal replacements for renowned brands such as John Deere, Land Pride, Kubota, Case IH, New Holland, King Kutter, Bush Hog, Agri-Fab, Caterpillar, Frontier, Mahindra, Befco, Woods Equipment, Kioti, and many others. These products are engineered to provide exceptional performance and durability, making them suitable for a wide range of agricultural applications. The versatility and precision of our land levelers enhance soil preparation, ensuring optimal results for farmers and agricultural professionals worldwide. Agricultural Leveling Machinery Heavy Duty Box Blade Scraper for Sale At Raydafon, we pride ourselves on our expertise and influence in the land leveler sector. Our commitment to excellence is reflected in our comprehensive range of products, which includes PTO shafts, agricultural gearboxes, large round balers, mini round balers, hay square balers, PTO wood chippers, diesel wood chippers, drum mowers, disc mowers, rotary hay rakes, fertilizer spreaders, lawn mowers, sickle bar mowers, flail mowers, rotary mower, rotary tillers, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvesters, corn seeders, wheat seeders, vegetable seeders, post hole diggers, boom sprayers, subsoiler, trailers, finger wheel rake, snow blower, road sweeper, and more. We offer custom solutions tailored to meet the specific needs of our clients. With international certifications and a focus on customer satisfaction, our after-sales service ensures that we maintain long-lasting relationships with our clients. Whether it's through our innovative designs or our reliable support, Raydafon remains a trusted name in the agricultural equipment industry. Agricultural Leveling Machinery Heavy Duty Box Blade Scraper for Sale

FAQs:

Q: What is a land leveler used for? A: A land leveler is used for leveling and grading land, preparing seedbeds, spreading soil or gravel, and maintaining driveways and paths. It is an essential tool for ensuring smooth, even surfaces in agricultural and landscaping applications. Q: How do I attach a land leveler to my tractor? A land leveler is typically attached using a three-point hitch system. First, align the leveler with the tractor’s hitch arms, connect the lower links, and then attach the top link. Ensure all connections are secure before operation. Q: Can a land leveler be used on uneven terrain? A: Yes, a land leveler is designed to work on uneven terrain. Its adjustable blade allows you to cut high spots and fill low areas, creating a smooth and consistent surface. Q: What are the advantages of using a land leveler? A: Land levelers provide efficient soil distribution, improve water drainage, and enhance the appearance and functionality of land. They save time and labor compared to manual methods and ensure precise control over terrain shaping. Q: How do I maintain my land leveler? A: Regularly inspect the blade for wear and damage, tighten all bolts and connections, and lubricate moving parts. Proper maintenance extends the lifespan of the equipment and ensures optimal performance. Q: Can land levelers replace other brands? A: Yes, our land levelers are designed to be compatible replacements for brands like John Deere, Kubota, and others. They offer similar performance and durability, making them versatile for various equipment types. Q: Are customizations available for land levelers? A: Yes, many manufacturers, including us, offer customization options to meet specific requirements. This can include different blade sizes or configurations to suit particular tasks or terrains. Q: What other equipment can be used with a land leveler? A: In addition to land levelers, we offer a wide range of agricultural equipment, including PTO shafts, gearboxes, mowers, and seeders, to complement your land management needs. Author: Yjx
