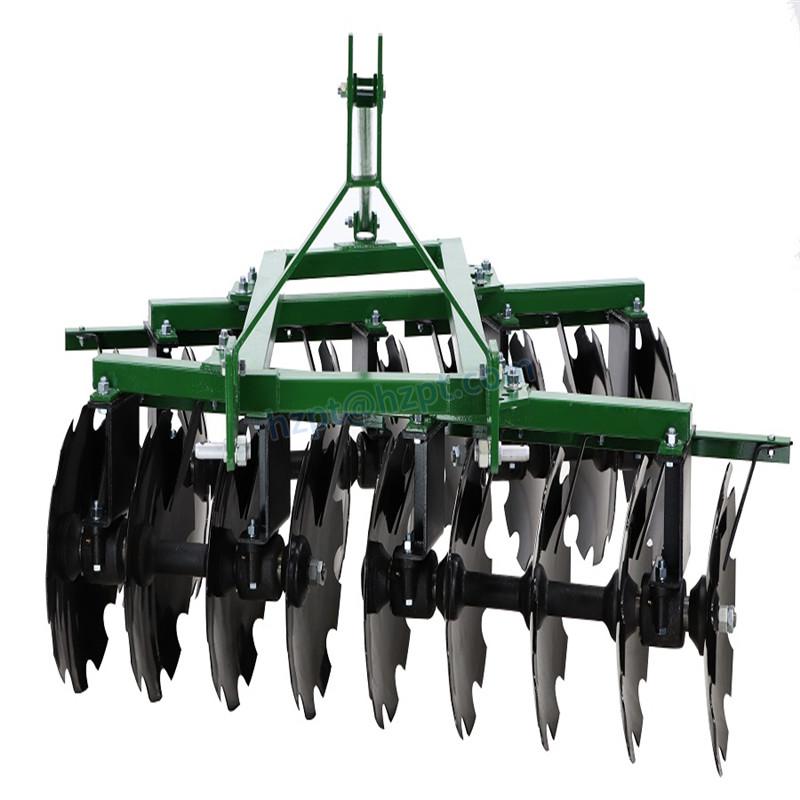

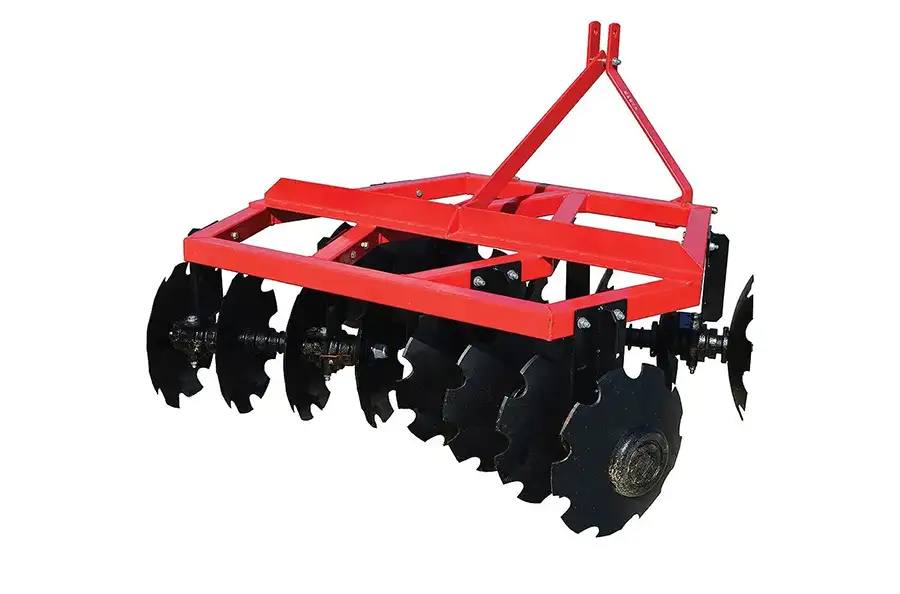

Introducing the Agricultural Machinery 3 Point Hitch Disc Harrow, a new and innovative solution for farm cultivation. This machine is a disc harrow type, powered by diesel, and is designed specifically for breaking the hardened field surface. The disc harrow is brand new, comes with a one-year warranty, and weighs about 200 KG. The dimensions of this machine are 1905*1550*1118mm and its key selling point is its high productivity. The model number for this harrow is 1BQX-1.1.
The Agricultural Machinery 3 Point Hitch Disc Harrow, as the name suggests, is an implement that is hitched to the three-point linkage of a tractor. This disc harrow is designed to break up the hardened surface of the field and to cut through the old crops remaining in the field. The machine is equipped with disc blades made up of 65Mn Spring Steel, providing excellent durability and wear resistance. The disc blades have a diameter of 18'' (460mm) and the machine has 12 such blades. The machine is capable of working at a width of 1100mm and a depth of 10-18CM, which can be adjusted according to the requirement. The machine is designed to be coupled with a tractor of 12-15hp power.
Our Agricultural Machinery 3 Point Hitch Disc Harrow is also easy to install and uninstall, thanks to the three-point suspension linkage. Regarding its maintenance, the disc harrow comes with a sealed bearing pedestal that ensures prolonged working life without frequent maintenance needs. However, it is recommended to regularly check the disc blades for any potential damage and replace them if necessary. Also, make sure to keep the machine clean and dry when not in use to prevent any rusting or corrosion.
At Raydafon, we understand the complexities and challenges of modern farming. That??s why we have designed our disc harrow products to be robust, efficient, and easy to use. With the Agricultural Machinery 3 Point Hitch Disc Harrow, you can significantly increase your farm??s productivity and reduce the time and effort required for field preparation. This harrow is not just a machine, but an investment for your farm that will serve you reliably for many years.
We encourage you to learn more about our disc harrow products and see how they can benefit your farming needs. We are confident that once you experience the high performance and durability of our products, you will not settle for anything less. So why wait? Contact us today to purchase the Agricultural Machinery 3 Point Hitch Disc Harrow and take the first step towards transforming your farming operations.
| Items | Unit | 1BQX-1.1 |
| Working width | Mm | 1100 |
| Working depth | Mm | 100~140 |
| Diameter Of harrow disc | Mm | 460 |
| No. of disc blade | Pcs | 12 |
| Matched power | Hp | 12-15 |
| Linkage | three-point mounted | |
| Productivity | Ha/h | 0.5 |
1. Disc blade : Made of 65Mn Spring Steel, with quenching and tempering, it has 38-46HRC hardness, excellent toughness and wear resistance.
2. Square shaft : Made of 45# steel, with tempering, it has great hardness.
3. Bearing : Comes with a sealed bearing, you can add oil to it, enabling it to work for a long time.
We offer a 2-year warranty on our products and we also provide spare parts along with the product. In the warranty period, if the spare part fails due to quality issues, we will send you new parts for free. We accept T/T 30% in advance, and 70% T/T after shipping. We also accept L/C at sight. Contact us for more information.
