The Agricultural Belt is a vital component in agricultural machinery, responsible for transmitting power from the engine to various parts of the machine. It has a raw edge construction that provides greater grip and stability, making it ideal for use in high-torque applications.
Here are some of the common applications of Agricultural Belts in various agricultural machinery:

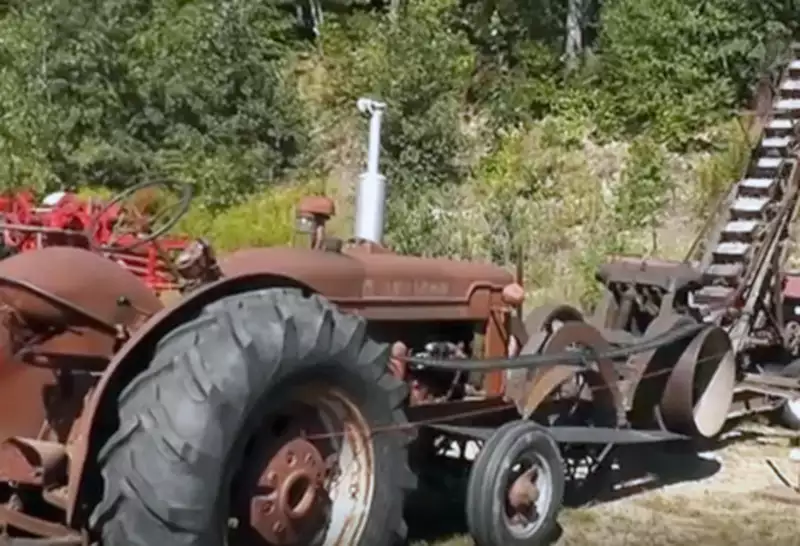

The belt is primarily used in the PTO section of the tractor, connecting it with external farming tools such as plows, seed drills, harvesters, crushers, water pumps, etc.
The Agricultural Belt is used in the main drive system of combine harvesters, transmitting power from the engine to threshing cylinders, cutting tables, cleaning systems, and other moving components.
The belt is used in rotary tillers, plows, deep tillage machines, and other agricultural machines, transmitting power from the tractor to the working components of the machines.
In power-driven water pumps and rotating irrigation systems, the belt transmits power from the tractor to the pump or other driving components.
In feed mixers, silage cutters, and other equipment, the Agricultural Belt is used to drive mixing, cutting, and other functional modules.

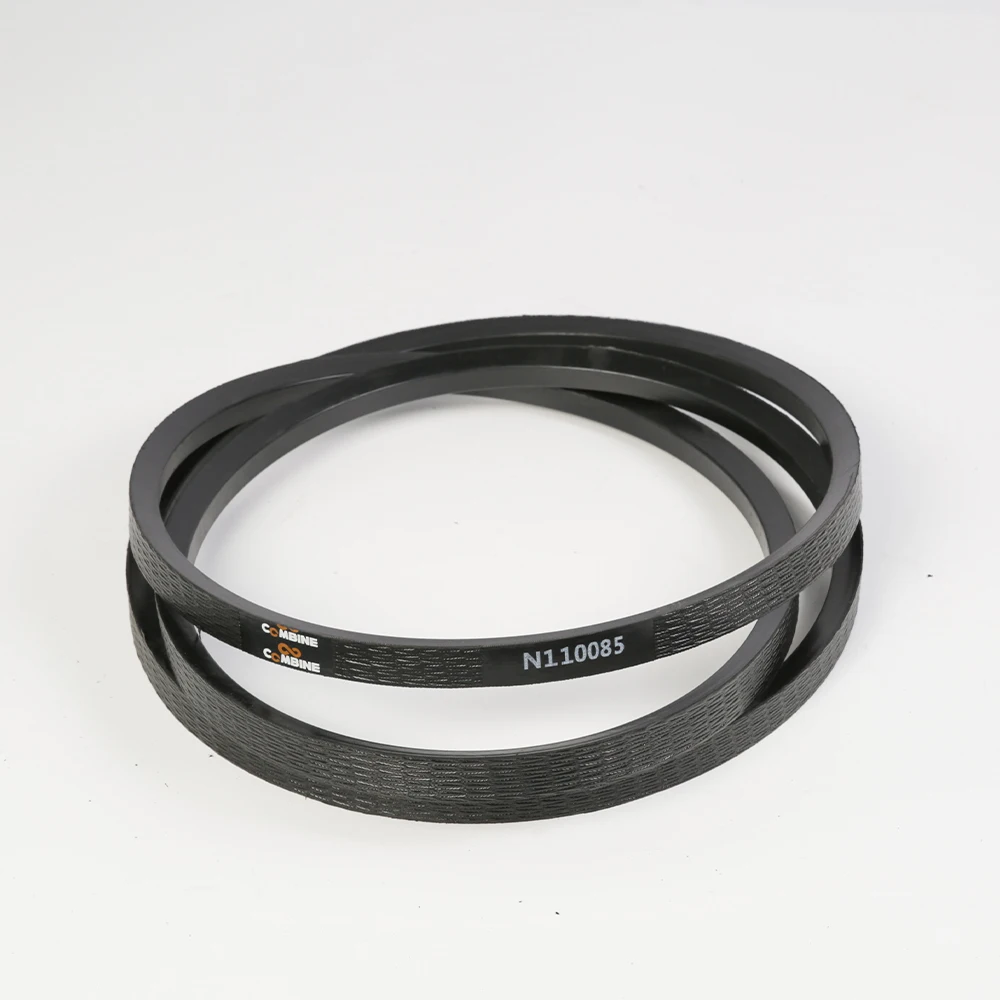

The Agricultural Raw Edge V Belts N110085 Replacement for John Deere Parts can be fitted into several models of agricultural machinery, including:
| Brand | Model |
|---|---|
| John Deere | 4030, 4040, 4050, 4230, 4240, 4250, 4440, 4450, 4650, 4840, 4850, 8430 |
| Case IH | 8910, 8920, 8930, 8940, 8950, 9210, 9230, 9240, 9250, 9260, 9270, 9280 |
| New Holland | T8010, T8020, T8030, T8040, T8050, TG210, TG215, TG230, TG245, TG255, TG275, TG305 |
At our store, we offer a wide range of agricultural machinery parts, including Agricultural Chains, Agricultural Gearbox, Pulleys, Sprockets, Couplings, PTO Shafts, and Concaves. Whatever you require, we have it all!
It is essential to replace the Agricultural Belt in your agricultural machinery when you notice the following signs:
If the belt has cracks, frayed edges, thinning, or rubber blocks falling off the surface, it indicates severe wear and tear, loss of strength and stability, and must be replaced immediately.
The belt should run in a suitable tension state. If the belt is too loose, hangs down more than the specified value when pressed by hand, or cannot maintain the original tension due to elongation after continuous use, it means that the belt has lost its elasticity and tension and needs to be replaced.
If you hear a sharp whistling sound at the belt location during agricultural machinery operation or feel that the machine's power output is insufficient and the speed is reduced, it is likely due to belt slippage. In this case, check the tension and the friction force of the belt. If necessary, replace the belt.
The normal operation of the belt will generate some temperature rise, but if it feels extremely hot or even scalding, it may be due to excessive fatigue of the belt, internal structural damage, or excessive tension accumulation. This condition can accelerate the aging and damage of the belt and should be immediately stopped for inspection and replacement.
When the belt is about to fail or has failed, it may cause additional vibration or noise during machine operation due to unstable transmission. You should stop and check it, identify the cause, and replace the problematic belt promptly.
Here are the factors to consider when selecting the right Agricultural Belt:
The commonly used Agricultural Belt in farm machinery is the V-belt (also known as the triangle belt), with various models such as A, B, C, D, etc., depending on the width and thickness. When selecting a belt, match it with the original equipment belt or refer to the manufacturer's specifications.
Measure or calculate the exact length of the required belt according to the farm machinery manual, ensuring that the new belt can be smoothly installed and maintain the appropriate tension level.
The Agricultural Belt needs to bear the engine's output power of the agricultural machinery, so it is crucial to ensure that the new belt's rated power is greater than or equal to the power required by the transmission system.
Agricultural Belts made of high-quality rubber mixes have better wear resistance, high-temperature resistance, oil resistance, and aging resistance.
The Agricultural Belt must match the groove width and depth of the belt pulley to ensure proper engagement, avoid slippage or premature wear.
