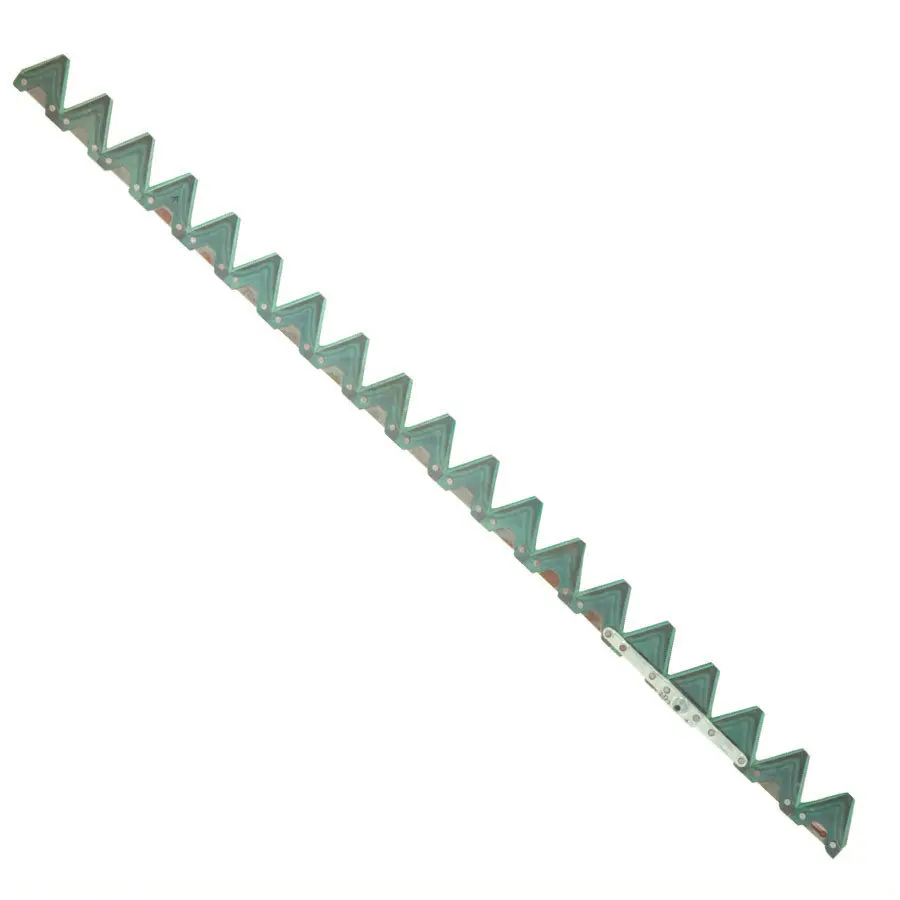

Agricultural Spare Parts High quality harvester blade knife section

PRODUCT SPECIFICATIONS

No	No.	Ref. No.	Description	Application
1	4A1006	191256A1	Teeth: top serrated Teeth Nos: 17 Thickness: 2.8 Surface: white zinc plating WT(kg/pc): 0.090	CA SE 820, 1010, 1020; N H 71C, 72C, 73C, 74C
2	4A1026	80365110	Teeth: top serrated Teeth Nos: 19 Thickness: 2.8Surface: red varnishing WT(kg/pc): 0.095	N H 1530,1540,1545,1550,8030,8040,8050,8055,8060,8070,8080,TC52,TC54,TF42,TF44,TF46,TX30,TX32,TX34,TX36
3	4A1035	86616588122074A1	Teeth: top serrated Teeth Nos: 14 Thickness: 2.8 Surface: sand blasting WT(kg/pc): 0.090	N H 12HS,14HSSPL,18HS,2300H,16HS CA SE-IH 820,1010,1020,2010,2020
4	4A1054	87037972	Teeth: top serrated Teeth Nos: 16 Thickness: 2.8 Surface: black varnishing
5	4A1073	826722C11036362M1	Teeth: top serrated Teeth Nos: 26 Thickness: 2.8 Surface: red varnishing	N H TR89,TR98,TR99,880,460,461,467,469,474,477,478,479,489,490,44,45,450,455 ,46,47,725,M F 925
6	4A1075	86617759	Teeth: top serrated Teeth Nos: 27 Thickness: 2.8 Surface: clear varnishing
7	4A1076	86615988	Teeth: top serrated Teeth Nos: 28 Thickness: 2.8 Surface: clear varnishing	CA SE 1010,1020,820, Hesston 1100
8	4A1077	86615986	Teeth: top serrated Teeth Nos: 28 Thickness: 2.8 Surface: clear varnishing
9	4A1078	86615987	Teeth: top serrated Teeth Nos: 28 Thickness: 2.8 Surface: clear varnishing
10	4A1079	86617760	Teeth: top serrated Teeth Nos: 27 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.090	N H 72C,18HB,21HB,25HB,30HB, 36HB,12HS,14HS,16HS, 2300H,1465,1495,1496,1499,469,472,474,488,489,492,495,499
11	4A1084	700705300	Teeth: top serrated Teeth Nos: 28 Thickness: 2.8 Surface: white zinc plating WT(kg/pc): 0.087	CA SE 525,625,8820,8830, 8840,SC412,SC414,SC416,8320,8330,8340,8350,8360,8370,8380,NH72C,74C,12HS,14HS,16HS,18HS,2200H,2300H,1499,499
12	4A1085	457607R3	Teeth: top serrated Teeth Nos: 31 Thickness: 2.8 Surface: white zinc plating WT(kg/pc): 0.092	CASE 1290,CUB 22,L22,201 ,210,225,230,275,375,NH 1465,1495,469,472,474,477,478,479,488,489,492,505,507
13	4A1087	86616945	Teeth: top serrated Teeth Nos: 28 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.090	N H 1469,472,477,478,479,488,490
14	4A1088	67630	Teeth: top serrated Teeth Nos: 28 Thickness: 2 Surface: clear varnishing WT(kg/pc): 0.062	CA SE 1100,1200,1300,N H 1880,1116H,1116NH,919S,116,1100,1112,1114,1116,1118,114,903,907,909,910,912
15	4A1089	112074A1	Teeth: top serrated Teeth Nos: 17 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.086	CASE 1010,1020,820
16	4A1090	826720C3	Teeth: top serrated Teeth Nos: 25 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.088	CA SE 820,1010,1020,2010,2020,NH 71C,72C,73C,74C
17	4A1091	826724C2	Teeth: top serrated Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.092	CASE 1010,1020,820
18	4A1092	826722C2	Teeth: top serrated Teeth Nos: 31 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.090	CASE 222,816,990,100,1000,105,110,1100,1110,115,120,1200,1300,200,22,230,3110
19	4A1093	823711C3	Teeth: top serrated Teeth Nos: 31 Thickness: 2.8 Surface: white zinc plating WT(kg/pc): 0.093	CNH 12HS,1499,2200H,14HS,18HS,1465,2300H,16HS,74C,72C
20	4A1094	823713C3	Teeth: top serrated Teeth Nos: 25 Thickness: 2.8 Surface: white zinc plating WT(kg/pc): 0.086
21	4A1095	596321R4	Teeth: top serrated Teeth Nos: 25 Thickness: 2.8 Surface: white zinc plating WT(kg/pc): 0.087	CA SE 2010,2020,SMX91,HDX121,HDX122,HDX141,HDX142,HDX161,HDX181,HDX182,N H 72C,74C,12HS,14HS,16HS,18HS,2200H,2300H,1465
22	4A1096	604810	Teeth: top serrated Thickness: 2 Surface: white zinc plating WT(kg/pc): 0.066	CA SE 907,1118,905,910,1116,1112,1114,909,912,903,900,1116,N H 1100,1116H,849,850,851,858,855,846,845
23	4A1097	604800	Teeth: top serrated Teeth Nos: 28 Thickness: 2 Surface: white zinc plating WT(kg/pc): 0.063	N H 116,1100,1112,1114,1116,1118
24	4A1104	87728905	Teeth: top serrated Teeth Nos: 19 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.080
25	4A1116	87470186	Teeth: top serrated Teeth Nos: 19 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.080
26	4A1117	87470187	Mounting holes:Ø 6.2 C-C spaced: 51.5 Thickness:76 WT(kg/pc):0.09	Ca se-IH 3020-20,3020-25,3020-30,3020-35,2142,2152,2162,3152,3162

Product packaging Packing way- 25pcs /box- 200pcs (8 boxes) /carton- 10000pcs (50 cartons)/ wooden case Why Choose Us 1??Guarantee Quality and Avoid your lossCOMBINE guarantees quality 100% - for any parts failing to meet the agreed standards, we offer 100% refund or free replacement. This can apparently avoid your loss and save your time to solve disputes. 2??Deliver Your Order In timeOur own production and regular stock in the warehouse can well manage your order and deliver them in time for the selling season. 3??Reduce Your CostWith experience since 2001, our genuine supply of over 6000 distinct wearing parts, can greatly reduce both selection risk and costs associated with time-sensitive, decentralized global purchasing.OEM quality but China price can optimize the cost performance to the best. Contact Us

Agricultural Spare Parts High Quality Harvester Blade Knife Section

Introduction

Harvester blade knife section is a crucial part of a harvester used for cutting crops. It plays an important role in ensuring the efficiency of the harvester and the quality of the harvested crops. Our agricultural spare parts are of high quality and can replace most common models of harvester parts. We also offer customizations to meet your specific needs.

Function and Working Principle

Harvester blade knife section is located in the cutting part of the harvester and works by cutting the crops during the harvesting process. The section is made of high-quality steel materials and undergoes precise heat treatment to ensure its durability and sharpness. The blade knife section is designed in a way that it can be easily replaced when it becomes dull.

Our Advantages

• We provide high-quality agricultural spare parts
• We offer customization services for specific needs
• Our parts are cost-effective compared to other brands

Compatible Brands and Models

Brand	Model
John Deere	9650 STS, 9750 STS, 9560 STS, 9660 STS
Case IH	Afx8010, 7010, 8010, 7120, 8120, 9120
New Holland	CR960, CR970, CR9070, CR9080, CR920, CR940, CR960, CR970, CR9070, CR9080, CR920, CR940

Other Agricultural Spare Parts

We also provide other agricultural machinery parts, including agricultural chains, agricultural gearbox, pulley, sprocket, coupling, pto shaft, and concave.

Commonly Worn Harvester Parts

Harvesters have several parts that are prone to wear and tear. These include:

1. Blade knives and sections: including main cutting blades, skid plates, and cutter drive belts, etc.
2. Threshing drum and concave
3. Separator grate and fan blades
4. Conveyor chains and sprockets
5. Rubber tracks or tires
6. Hydraulic components: including hydraulic cylinders, hydraulic hoses, and seals, etc.
7. Bearings
8. Filters: including air filters, fuel filters, and oil filters, etc.

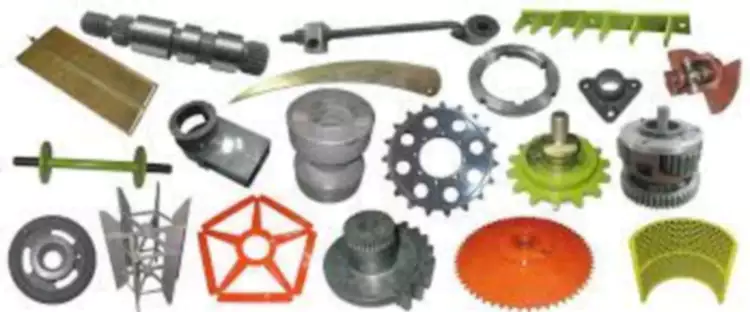

Here is an image of the commonly worn harvester parts:

When to Replace Worn-Out Parts

It is important to replace worn-out parts in a timely manner to ensure the efficiency of the harvester. Here are some signs that indicate which parts need to be replaced:

1. Poor harvest results: if there are a lot of crop residues left after harvesting or the grain separation is not clean, it may indicate that the threshing drum and concave are worn out and need to be replaced.
2. Decreased power or overheating: if the engine power is insufficient or the operating temperature is too high, it may be due to a clogged air filter or a cooling system failure. The air filter needs to be replaced or the cooling system needs to be repaired.
3. Reduced harvesting efficiency: if the cutting blade speed is slow or the material conveying speed is slow, it may be due to aging and loosening of the drive belt, chain stretching, or gear wear. The corresponding belt, chain, or gear needs to be checked and replaced.
4. Difficulties in movement or increased noise: If it is a rubber track harvester, loose or cracked tracks need to be replaced; if it is a tire harvester, worn out tires need to be replaced. In addition, if there is abnormal noise during movement, it may be due to bearing wear or damage, and the relevant bearings need to be replaced.
5. Unstable hydraulic system operation: if the lifting or steering is slow or weak, it may be due to problems with hydraulic pumps, cylinders, valves, or seals. The relevant components need to be checked and replaced in a timely manner.
6. Significant oil leakage: whether it is engine oil, hydraulic oil, or fuel oil leakage, it indicates that the seal is damaged or other components are damaged. The damaged seal or component needs to be replaced in a timely manner.

Author: Miya
