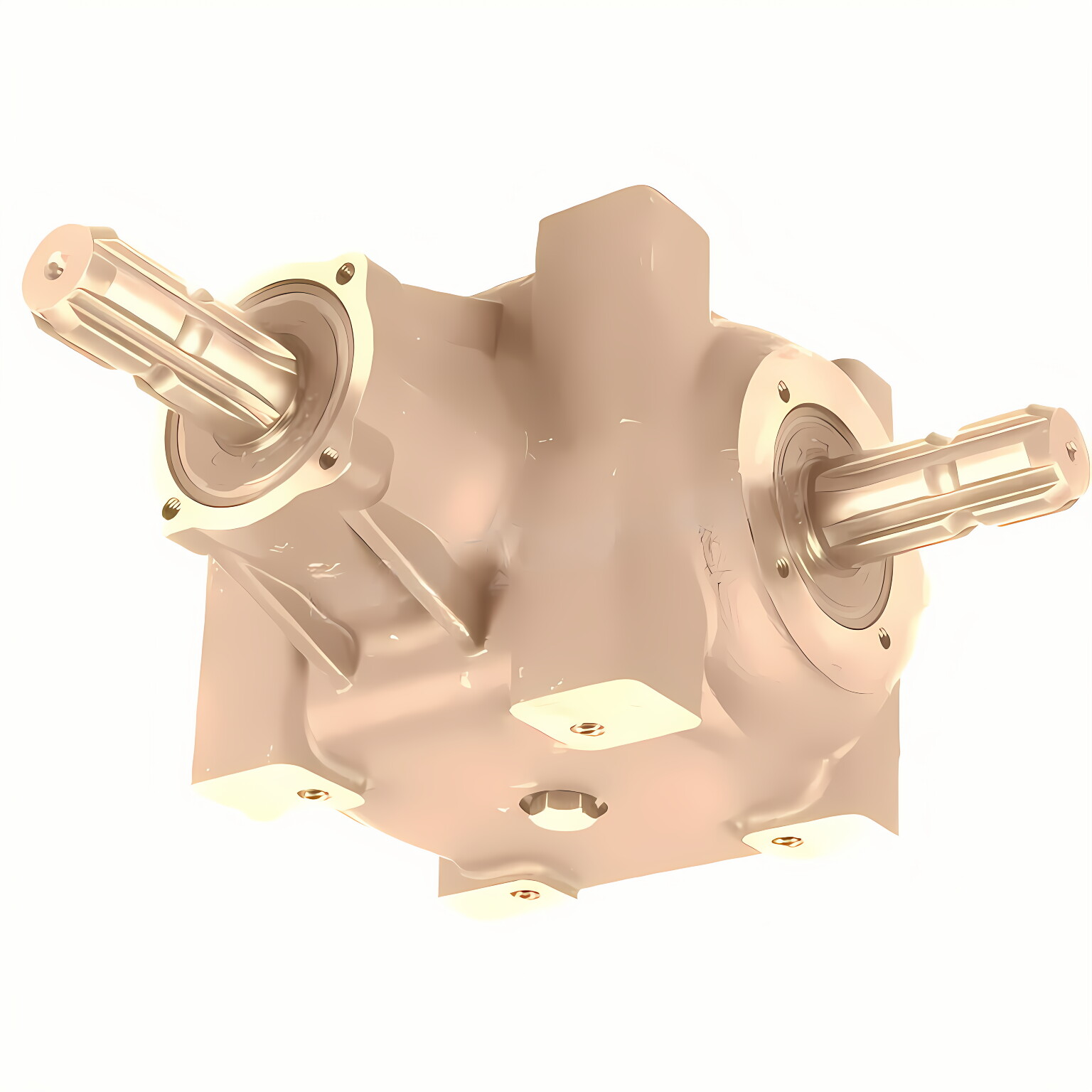

Angular Gearboxes - Replacement of Comer Code T-27A

Upgrade your machinery with Raydafon Group's Angular Gearboxes, the reliable replacement for Comer Code T-27A. Engineered with durable materials and precision design, these gearboxes ensure smooth torque transmission for industrial applications, saving time and reducing downtime. Experience unmatched performance and long-term reliability, setting a new standard in efficiency. Perfect for engineers and maintenance teams seeking robust solutions—enhance your operations today!

Send Inquiry

Product Description

Angular Gearboxes - Replacement of Comer Code T-27A

Description	Angular Gearboxes - Replacement of Comer Code T-27A
Application	Various (agricultural) applications Fertilizer spreaders Multi-row rotary tillers Band saws
Consists of	Gearbox Without oil
Technical information	If you have any questions regarding performance at different speeds, please do not hesitate to contact us When using for the first time, replace the oil after 50 operating hours
Max. output torque	73.6 daNm
Contains oil	No
Max. oil capacity	1.2 l
Max. oil change interval	500 h
Oil SAE viscosity grade	80W-90
Housing material	Cast iron GG25
Weight	21 kg
Gear arrangement Increasing	33 - 34
Gear arrangement Reducing	11 - 12 - 13 - 14
Input power kW / HP Increasing	38.3 / 52 kW/HP
Input shaft Increasing	Z
Input shaft Reducing	X - Y
Input power KW / HP Reducing	29.4 / 40 kW/HP
Output Torque DaNm Increasing	44.9 daNm
Ratio Increasing	1 : 1,46
Ratio Reducing	1,46 : 1
Shaft X	1 3/8" (6) (C)
Shaft Y	1 3/8" (6) (C)
Shaft Z	1 3/8" (6) (F)
