AR-250 Hydraulic and Pneumatic Tailstock for CNC Lathe

Introducing the AR-250 Hydraulic and Pneumatic Tailstock for CNC Lathe

The AR-250 Hydraulic and Pneumatic Tailstock, produced by Raydafon, is an essential component of any CNC lathe setup. This robust and reliable equipment plays a pivotal role in the mechanical machining process, particularly when it comes to working with CNC rotary tables.The tailstock is used in conjunction with a CNC rotary table to ensure accurate and efficient machining processes. It functions as a support mechanism, providing stability and precision during operations.

Structure and Components of the AR-250 Tailstock

The AR-250 tailstock is composed of several essential components, including the pressure regulation device, the fixing device, and the support device. These components work in harmony to secure workpieces in place, adjust their position accurately, and facilitate seamless operation with other mechanical parts of the CNC rotary table.

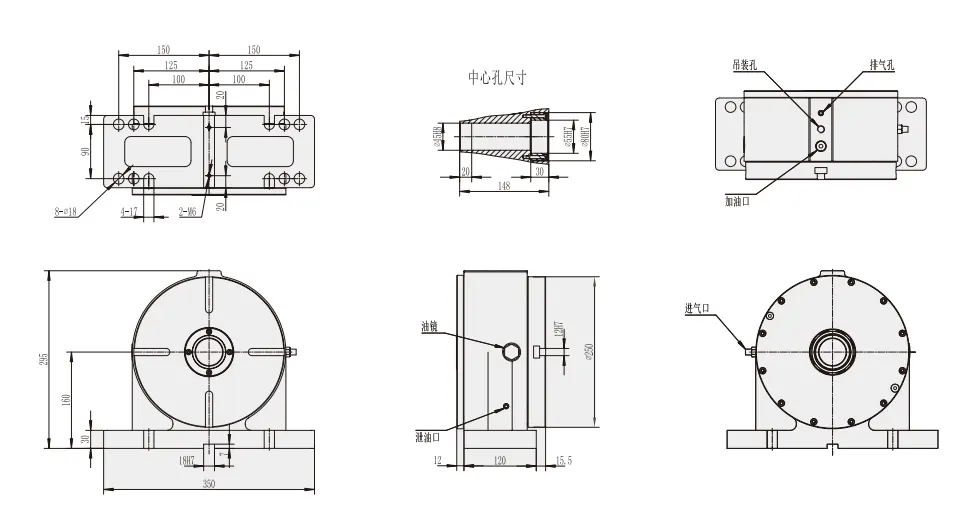

Product Model	Disk Diameter	Center Diameter	Spindle Hole	Center Height	T-Slot Width	Width of bottom guide key	Weight
AR-250	φ250mm	φ55mm	φ45mm	160mm	12H7mm	18H7mm	40Kg



Working Principle of the AR-250 Tailstock

The tailstock works by firmly holding the workpiece in place, allowing for precise adjustments to the workpiece's position. It works in tandem with other mechanical components of the CNC rotary table to perform complex machining tasks with high precision and efficiency.

Manufacturing Process and Materials

The AR-250 tailstock is typically made of durable stainless steel. The manufacturing process involves a series of techniques including casting, machining, and heat treatment to ensure its high durability and excellent performance.

Applications and Advantages of the AR-250 Tailstock

The tailstock is widely used in various industrial production scenarios. Its key advantages include its ability to handle different sizes and shapes of workpieces, its robust and durable construction, and its capacity to meet different process requirements.

Choosing the Right Tailstock

When selecting a tailstock, it's important to consider factors such as the size and shape of the workpiece, the material of the workpiece, the process requirements, and your budget. The AR-250 tailstock offers excellent versatility and value for money.

Why Choose Raydafon's AR-250 Tailstock?

Raydafon is a leading supplier of CNC turntables with a strong commitment to R&D innovation and production technology. Our AR-250 tailstock is a testament to our innovation and manufacturing capabilities. We strive to provide high-quality products that meet the rapidly changing needs of our customers.At Raydafon, we adhere to the business philosophy of "honesty-based, harmony-based, technology-based, industry competitive". Our products are widely used in various processing equipment, such as non-standard automatic special machines, metal cutting machines, etc., in 3C, automotive, energy, military, aerospace and other fields.We encourage you to explore our AR-250 tailstock and contact us for your purchase needs. We are committed to providing you with the best product quality, competitive prices, and excellent service.

Frequently Asked Questions

Q: Is Raydafon a manufacturer or a trading company?A: Raydafon is a manufacturer with more than 15 years of experience in the industry.Q: Can I customize the AR-250 tailstock?A: Yes, we offer customization options to meet your specific requirements.Q: What's the quality guarantee for the AR-250 tailstock?A: We offer a one-year quality guarantee for our products.Edited by Zqq.
