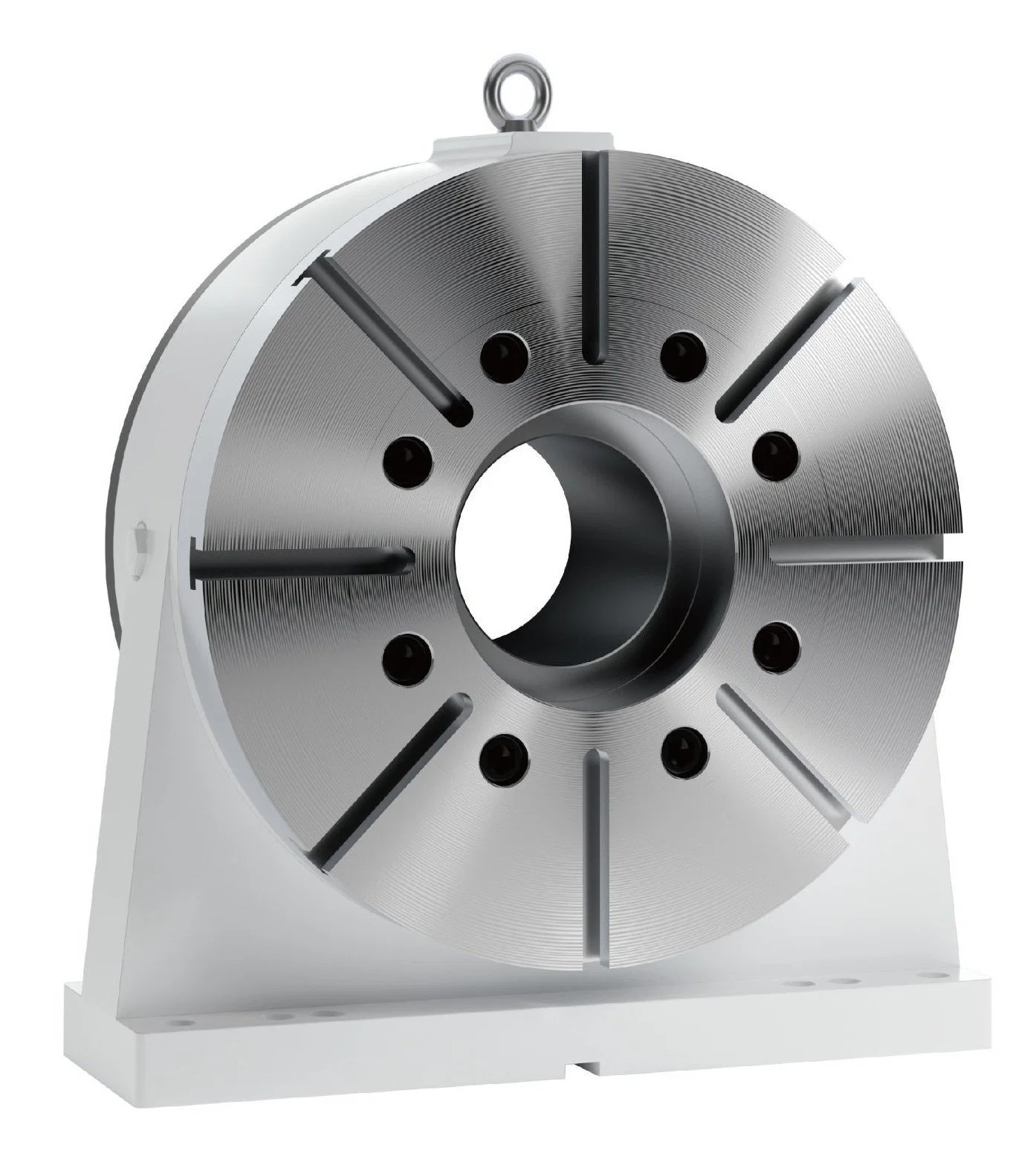

AR-400 4th Axis Rotary Table Use Rotary Tailstock for CNC Lathe

Comprehensive Introduction to CNC Rotary Table Tailstock

The CNC Rotary Table Tailstock, a vital component in the mechanics of machining, is specifically designed to work in conjunction with the CNC Rotary Table. Its primary function is to ensure the stability of the workpiece during the machining process. The Tailstock is a movable casting, positioned opposite the headstock, that can be adjusted along the bed's length to accommodate workpieces of varying lengths.

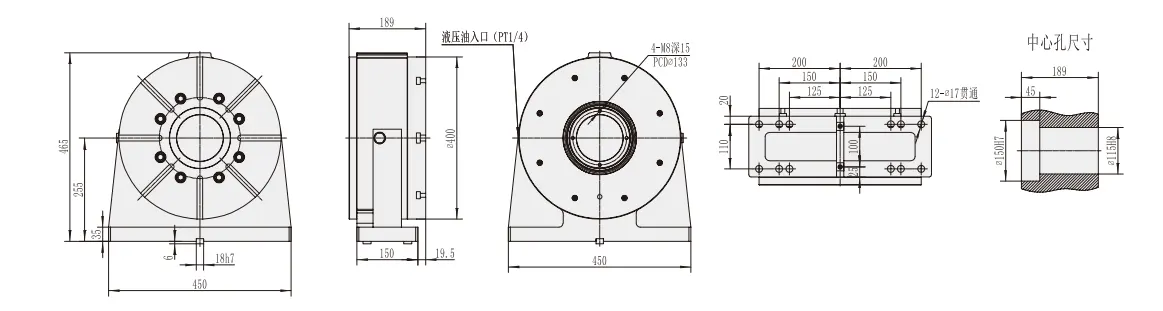

Product Model	Disk Diameter	Center Diameter	Spindle Hole	Center Height	T-Slot Width	Width of bottom guide key	Weight
AR-400	φ400mm	φ150H7mm	φ115mm	255mm	14H7mm	18H7mm	165Kg

Structure of the Tailstock

The Tailstock is composed of several key components, each performing a unique function. The pressure adjustment device ensures the correct application of pressure to hold the workpiece in place. The fixed device tightly secures the tailstock to the bed, ensuring stability during operation. The support device helps in maintaining the position of the workpiece.

Working Principle of the Tailstock on CNC Rotary Table

The Tailstock operates by securing the workpiece, adjusting its position, and working in unison with the other mechanical components of the CNC Rotary Table. This coordination is vital for accurate and efficient machining.

Materials and Manufacturing Process

The Tailstock is typically made from high-quality stainless steel, ensuring durability and longevity. The manufacturing process involves rigorous procedures such as casting, machining, and heat treatment.

Applications and Advantages

The Tailstock finds extensive use in various industrial production scenarios due to its versatility and value. It offers numerous advantages, such as improved machining accuracy, increased stability, and enhanced efficiency.

Choosing the Right Tailstock

When choosing a Tailstock, several factors need consideration. The size and shape of the workpiece, the material of the workpiece, the technical requirements, and the budget are all critical in making the right choice.

Raydafon: Your Trusted Supplier for CNC Rotary Table Tailstock

As one of the premier suppliers of CNC Rotary Tables, Raydafon takes pride in its R&D innovation, production technology, and commitment to customer satisfaction. Committed to the philosophy of "honesty, harmony, technology, and competitiveness," Raydafon collaborates with machine tool manufacturers worldwide to develop high-precision 4-axis and 5-axis rotary tables that meet diverse processing needs.With its wide range of products including the 4-axis, 5-axis CNC turntables, and horizontal 4-axis turntables for tool machine tools, Raydafon has etched its name in various industrial sectors such as 3C, automotive, energy, military, and aerospace.We strongly encourage you to explore the AR-400 4th Axis Rotary Table Use Rotary Tailstock for CNC Lathe. Reach out to us for more information and make your purchase today!

Frequently Asked Questions

Q: Can the Tailstock accommodate different sizes and shapes of workpieces?A: Yes, the Tailstock is adjustable and can accommodate workpieces of various sizes and shapes.Q: What material is the Tailstock made of?A: The Tailstock is typically made from high-quality stainless steel.Q: Can the Tailstock meet different technical requirements?A: Yes, the Tailstock is designed to meet various technical requirements, including providing indexing functionality.Edited by Zqq.
