| Model | Normal torque(N.m) | Max. intermittent torque(N.m) | Maximum axial force of output shaft(KN) | Maximum radial force at the midpoint of the output shaftn2*h=30000(KN) | Output shaft | Reduction ratio | |||

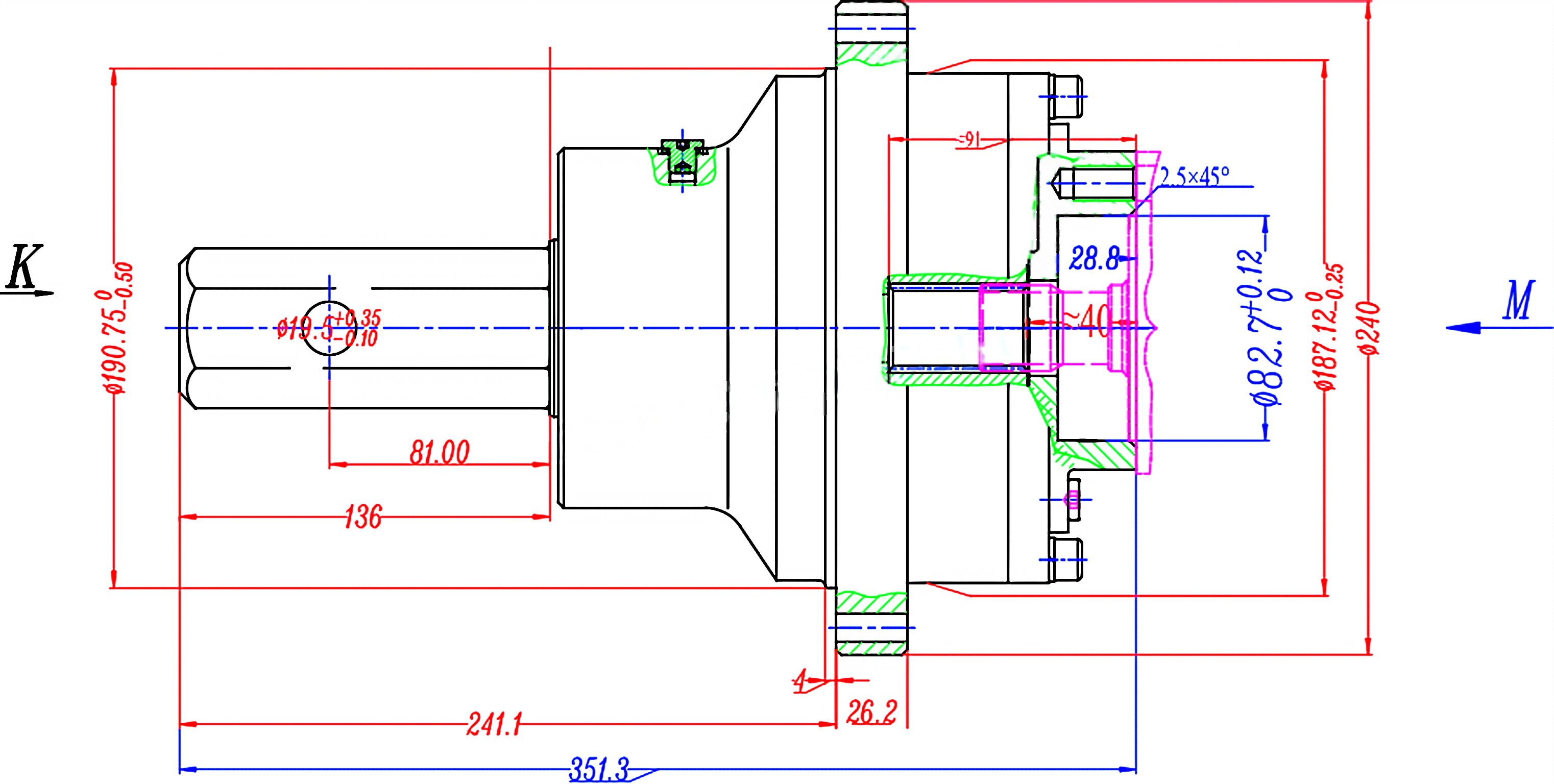

| EPT-780A | 2400 | 4500 | 81 | 25 | 2" hex shaft | 3.67:1 | |||
| * NORMAL INPUT SPEED 1000rpm | |||||||||
| * INPUT MOTOR: SAE A FLANGE(magneto), DP12/24, Z14, 4 HOLES | |||||||||
| * WITHOUT LUBRICANTS | |||||||||
| * ONLY WITH PRIMER, WITHOUT TOP COAT | |||||||||
| * OUTPUT SHAFT DOWN MOUNTED | |||||||||
Applications:
