AZ29047/AZ23688 Spindle For John Deere Combine

AZ29047/AZ23688 Spindle For John Deere Combine

▍Application Of AZ23688 Spindle

A spare part for the suspension system of the John Deere combine harvesters.

▍Destination Of AZ23688 Spindle

Providing the ability to withstand the loads arising in the suspension and creating conditions for turning the wheel during the movement of the vehicle. This spare part is used for replacing worn out or damaged parts during repairs.

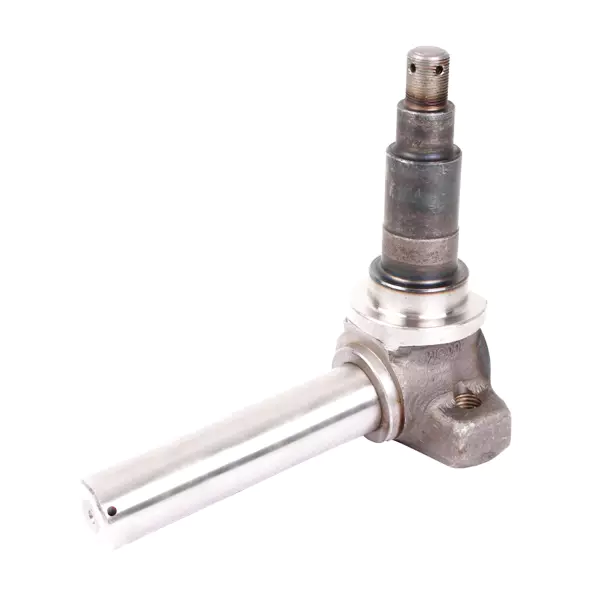

▍Properties Of AZ23688 Spindle

A steel product with a complex spatial shape with fastening elements for the wheel hub, tie rod end and additional parts. Part of the surface of the part is painted to prevent weathering.

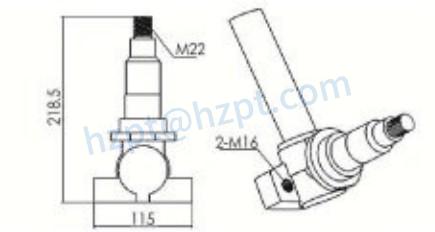

▍Parameters Of AZ23688 Spindle

Weight , W	kg	5.79
Outer diameter , D	mm	77
Number of mounting holes , N		2
Length , L	mm	218.5
Height , H	mm	115
Thread , M		M22x1.5
Outside diameter , D1	mm	58
Length screw thread , Lc	mm	26
Diameter of shaft , Ds	mm	40
Diameter of shaft , Ds1	mm	30
Thread , M1		M18x2,5
Length screw thread , Lc1	mm	75
Diameter of shaft , Ds2	mm	55
Width , B	mm	220
Diameter for cotter pin hole , d0	mm	5

Combine Harvester Spare Parts , Biçerdöver Yedek Parçası , New Holland , TC56,5070,5.80,CS540,CS640 , John Deere , 630,955,1074, Claas ,Dominator,Lexion , Laverda

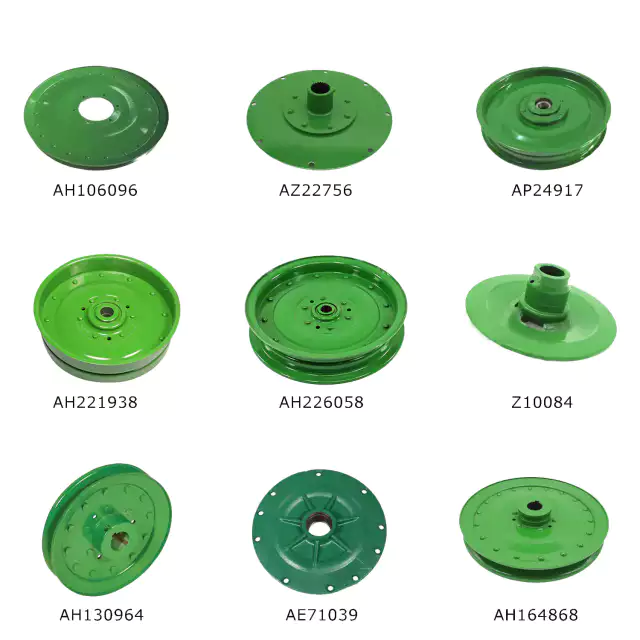

▍Related Products

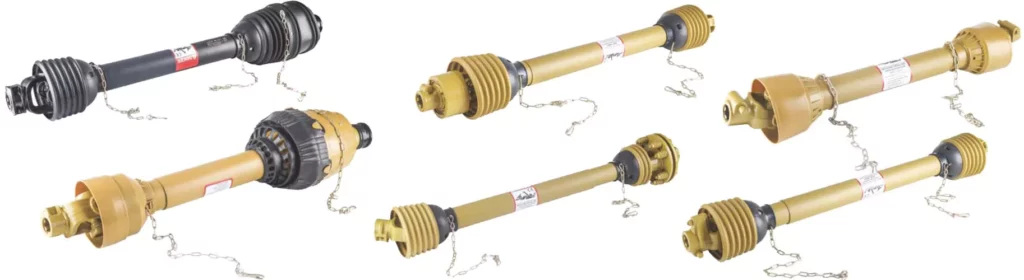

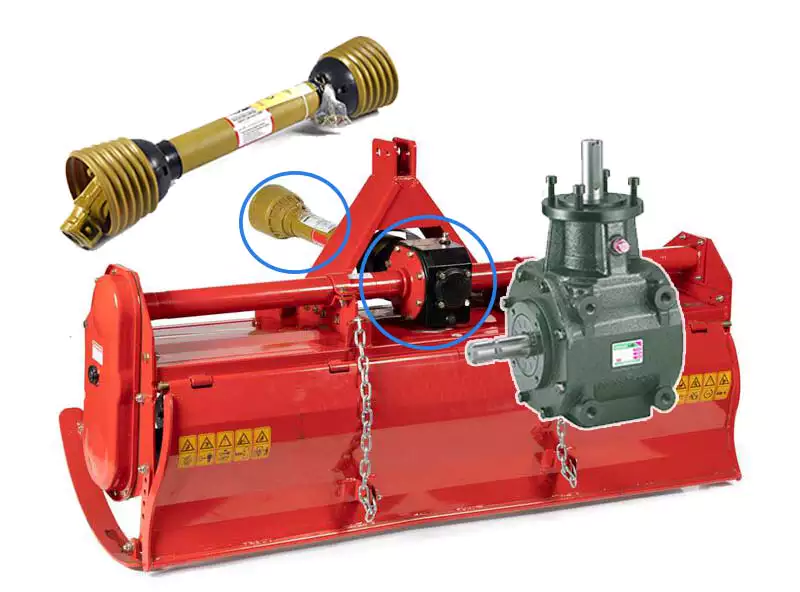

▍We Also Supply PTO Shafts & Agricultural Gearboxes
