B Series Bridge Type Gantry Machining Center Cnc Machine CNC Turning

B series bridge gantry machining center CNC machine tools represent a major advancement in the field of CNC machining, especially for medium and large aluminum alloy structural parts. The machine tool stands out for its exceptional ability to handle complex and wide-ranging machining tasks, making it a valuable asset in industries such as automotive manufacturing, especially in the rapidly developing new energy vehicle sector. B series bridge gantry machining center CNC machine tools integrate precision, efficiency and multi-function, and are important tools in modern manufacturing, especially in the field of new energy vehicles. Its ability to process large aluminum alloy structural parts at high speed and precision makes it ideal for producing key components for electric vehicles. The machine’s rugged design coupled with advanced machining capabilities make it a vital asset in industries where large-scale, high-precision and efficient production are critical.

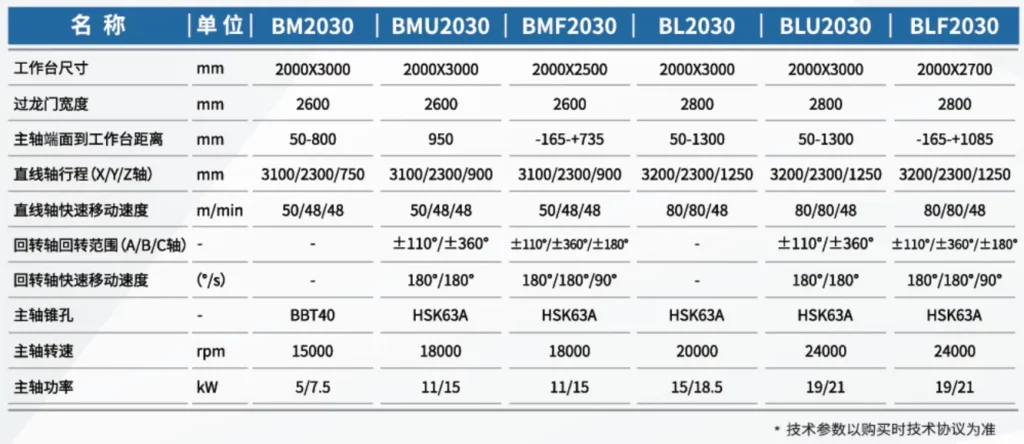

Parameter

High speed: the rapid moving speed can reach 80m/min, and the maximum acceleration can reach 0.7g;High efficiency: It can be equipped with up to three linear axes and three rotating axes to complete six-sided processing at one time;High-precision: X-axis 3200mm travel, full-stroke positioning accuracy up to 0.008mm;

Design and Structure

1. Bridge Type Gantry Design: The B Series features a bridge-type gantry structure, known for its robustness and stability. This design allows for large parts to be machined with high precision and minimal vibration.
2. Large Working Area: The machine offers a spacious working area, accommodating medium to large-sized aluminum alloy structural parts, which is essential for automotive and aerospace components.
3. High Rigidity and Stability: The gantry structure provides increased rigidity and stability during machining processes, ensuring accuracy and consistency, especially in prolonged operations.

Advanced Machining Capabilities

1. Aluminum Alloy Structural Parts: The machine is specifically adept at processing aluminum alloys, which are widely used in the automotive industry for their strength-to-weight ratio and corrosion resistance.
2. All-Directional Processing: It can perform all-directional ironing, drilling, boring, and other machining processes. This capability allows for complex geometries and intricate details to be machined efficiently in one setup.
3. One-Clamping Process: The ability to complete multiple processes in a single clamping reduces setup times and enhances production efficiency. This is particularly beneficial for high-volume production environments.

High-Speed, Precision, and Efficiency

1. High-Speed Machining: The machine is capable of high-speed operations, reducing cycle times and increasing throughput, which is crucial in mass production settings.
2. High Precision: Precision is a key attribute of the B Series, making it suitable for components that require tight tolerances and high-quality surface finishes.
3. Efficiency: The combination of speed, precision, and the ability to perform multiple processes in one clamping makes the machine highly efficient and cost-effective.

Applications in New Energy Automobile Industry

1. New Energy Automobile Components: The machine is particularly suited for manufacturing components related to new energy vehicles, such as battery pack chassis and other structural parts.
2. Welded/Die-Cast Aluminum Parts: It excels in processing welded or die-cast aluminum parts, common in electric vehicle construction.
3. Battery Pack Chassis Parts: The precision and capability of the B Series make it ideal for machining battery pack chassis parts, which are critical in new energy vehicles.

Suitability for Other Industries

While the B Series is particularly suited for the new energy automobile industry, its capabilities also make it suitable for:

1. Aerospace Industry: For manufacturing large, precision components used in aircraft construction.
2. Industrial Machinery: In creating large-scale machinery components where precision and rigidity are required.
3. Marine and Defense: For producing large and complex parts used in marine vessels and defense equipment.

About Raydafon

Raydafon has complete casting production lines, intelligent machine tool equipment assembly lines, intelligent testing equipment, and professional R&D, manufacturing, and sales teams, aiming to provide high-quality CNC machine tools and intelligent equipment solutions to the industry. Relying on its strong CNC machine tool R&D and manufacturing capabilities, Raydafon not only provides customers with high-quality machine tool equipment but also integrates and optimizes the industrial chain to provide customer partners with shared machine tools, smart tool cabinets, automation integration solutions, tool health monitoring systems, and other comprehensive solutions. Industrial chain equipment and life cycle industrial services empower enterprises in all aspects and become industry leaders with high-quality products and professional services.

The Raydafon manufacturing base has advanced lathe flow assembly lines, standard vertical assembly lines, and medium and large equipment assembly lines. It is also equipped with constant temperature inspection rooms such as three-coordinate inspection and precision inspection, equipped with Zeiss high-performance coordinate measuring machines, Weir profilometers, and Ray High-end inspection equipment such as Nisho laser interferometer provides the industry with high-quality CNC machine tools and automated integration solutions.

While opening up the industrial chain of casting, key components, and complete machine assembly, Raydafon is committed to providing customers with flexible equipment purchase models such as shared machine tools, machine tool leasing, and sales-to-lease-to-purchase.

Accessories of CNC Machine Center

CNC Machine Center comes equipped with an array of standard accessories to meet diverse machining demands. Choose from leading controllers like the Siemens controller (optional for those seeking advanced customization), the GSK controller (a standard feature known for its reliability and user-friendliness), and the Fanuc controller (optional for its high performance in complex machining tasks). Additionally, our machine center is designed with a 24ATC (Automatic Tool Changer), enhancing your productivity by minimizing manual tool changing time.

Understanding the unique needs of our clients, Raydafon also offers an exclusive range of optional accessories. Enhance your machining capabilities with our 4th-axis CNC rotary table, allowing for precise and intricate multi-angle machining. To maintain a clean and efficient workspace, consider integrating the Chain-type chip conveyor, a must-have accessory for efficient chip management and removal.

Choose Raydafon’s CNC Machine Center for its commitment to quality, versatility, and precision. Whether standard or optional, each accessory is designed to elevate your machining process, ensuring optimal performance and outcomes. Trust Raydafon to provide the tools and support you need to keep your operations running smoothly and efficiently.



Application of CNC Machine Center

Raydafon's CNC Machine Center stands as a paradigm of versatility and precision in modern manufacturing. Primarily engineered for machining a diverse range of axial and disc parts, this machine showcases its prowess by adeptly turning various threads, arcs, and cones, and intricately machining both the internal and external surfaces of cylindrical parts. Its capability to meet the high-speed requirements of both ferrous and non-ferrous metals marks it as a preferred choice for industries aiming for utmost precision and efficiency.The machine's high-speed operation is a cornerstone feature, making it an indispensable asset in industries where time is of the essence. It's not just about speed; the CNC Machine Center excels in delivering high-quality, precision-machined parts consistently. With a processing accuracy that reaches up to the 7th level, it sets a high standard for precision.Industries such as agriculture, food, automotive, motorcycle, and electronics find this machine a game-changer, particularly in scenarios that demand high efficiency, large-scale production, and precision part machining. Whether it's creating intricate components for the latest electric vehicles or manufacturing robust parts for agricultural machinery, our CNC Machine Center is designed to deliver top-notch performance, meeting the stringent quality demands of various sectors.Embrace the future of manufacturing with our CNC Machine Center, where speed, precision, and versatility converge to revolutionize your production processes. Discover how our machine can transform your operations, ensuring that every component you create is a testament to excellence and innovation.

Why Choose Us？

 Choose our CNC Machine Center for its unmatched quality and precision, ensured by premium components sourced globally from Taiwan, Japan, and Germany. Each part, from the high-precision HIWIN or PMI Guide Rails and Lead Screws to the top-quality FAG or NSK bearings, is meticulously inspected to guarantee machine accuracy and stability. Our CNC Machine Center features a Sanjie brand tool magazine for efficient tool storage and changes, and a high-performance Taiwan Spindle, ensuring high speed, precision, and low noise operation. Trust in our dedication to excellence and let our machine elevate your manufacturing standards.
