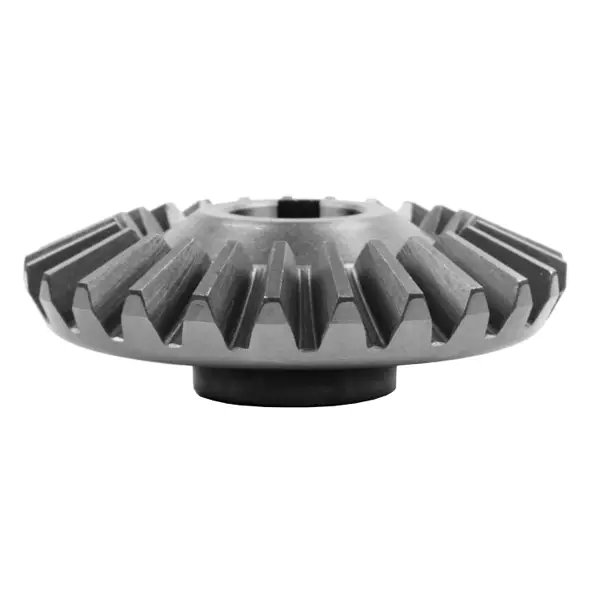

Bevel Gears For John Deere Combine

Bevel Gears For John Deere Combine

▍Application

A spare part for unloading unit of John Deere combine harvesters.

▍Destination

The transfer of torque between the shafts of nodes with perpendicular axes. This spare part is used for replacing worn out or damaged parts during repairs.

▍Properties

Bevel gear gear in the central hole of which splines (or a keyway) are made for connecting with the shaft. The surface is thermally processed in order to enhance its strength and wear resistance.

▍Parameters Of bevel gears



Weight , W	kg	0.87
Inner diameter , d	mm	25
Outer diameter , D	mm	100
Height , H	mm	34
Quantity of gear tooth , Zg		25
Key slot	mm	34x8x4

▍Fits Models Of bevel gears

Bevel gear can be adapted to combine harvester John Deere: 2054 2056 2058 2064 2066 2254 2256 2258 2264 2266 2266 EXTREA

▍Related Products

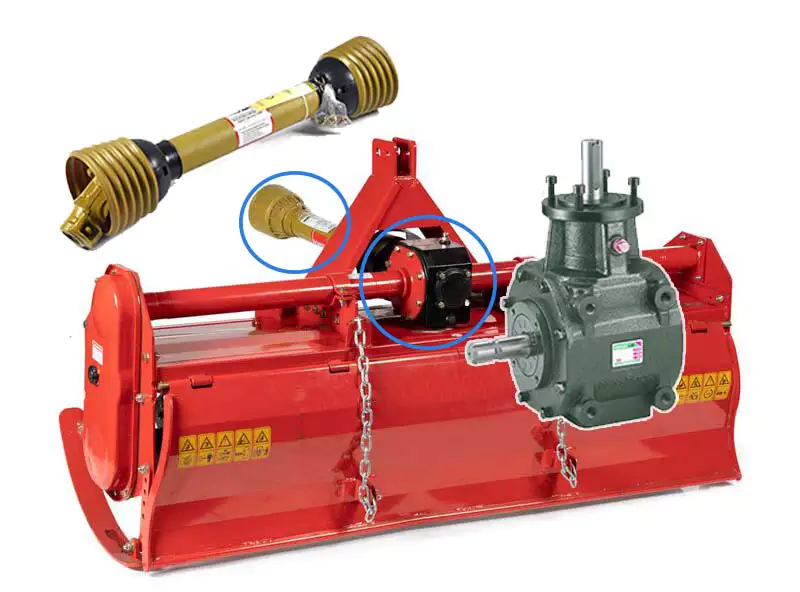

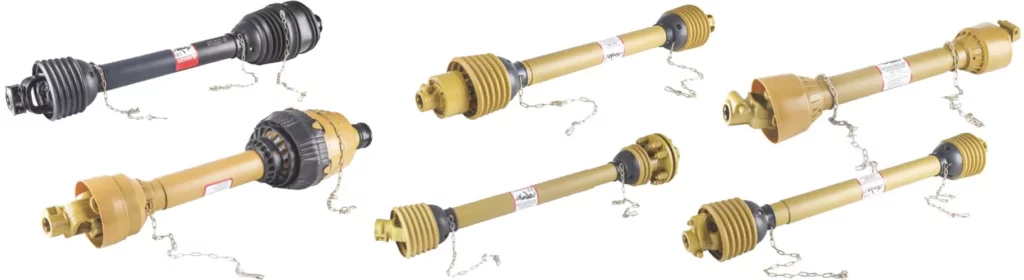

▍We Also Supply PTO Shafts & Agricultural Gearboxes
