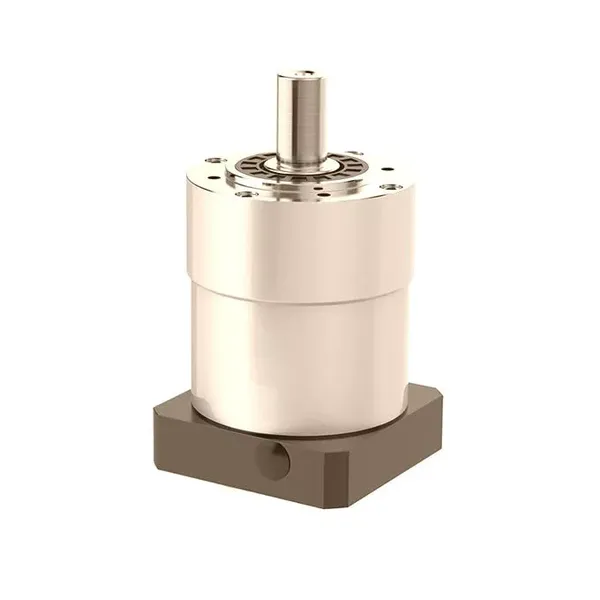

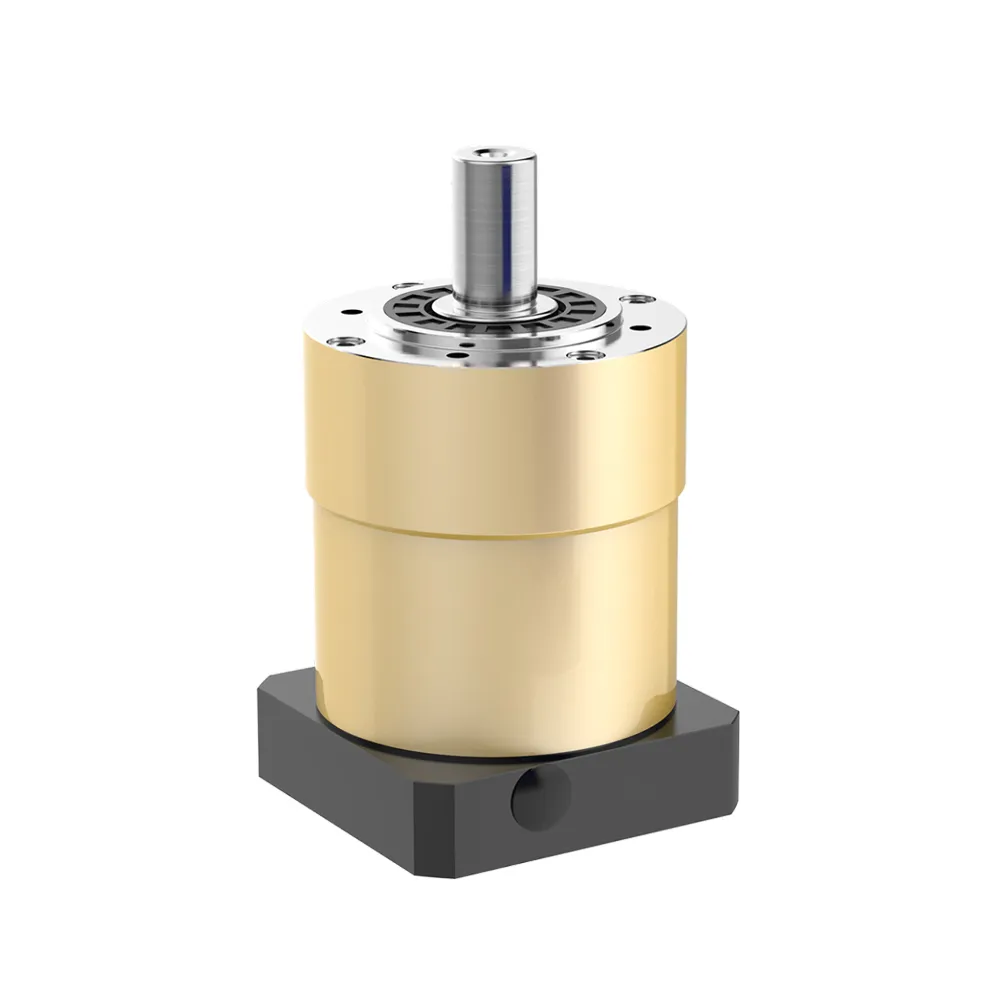

BPG Series High Precision High Speed Planetary Gearbox (Planetary Gear Reducer)

BPG Series High Precision High Speed Planetary Gearbox (Planetary Gear Reducer)

The BPG series high speed planetary gearbox is a type of gearbox that uses planetary gears to provide high torque and high-speed reduction ratios in various industrial applications. It is designed to handle high power and high-speed applications, and it is commonly used in automation equipment, robotics, machine tools, and other high-performance machinery.The BPG series high speed planetary gearbox is known for its compact size, high efficiency, and low backlash. It has a modular design that allows for easy customization and installation, and it can be configured with different input and output shaft options to fit specific application requirements. The high speed planetary gearbox is also available in different ratio options, allowing for precise speed control and torque multiplication.Overall, the BPG series high speed planetary gearbox is a reliable and versatile gearbox solution for industrial applications that require high power and speed reduction capabilities.

▍BPG Series High Speed Planetary Gearbox Design:

BPG series high speed planetary gearbox is designed with a compact and efficient structure that allows it to transmit high torque and speed in a small envelope size. The planetary gearbox features a planetary gear system with a sun gear, planet gears, and a ring gear which provides high power density and smooth operation.The design of the BPG series high speed planetary gearbox includes precision machining and high-quality materials to ensure optimal performance and durability. The planetary gearbox housing is made of high-strength aluminum alloy, which provides excellent heat dissipation and corrosion resistance. The gears are made of case-hardened alloy steel, which offers high wear resistance and strength.The BPG series high speed planetary gearbox is available in a wide range of ratios and input/output configurations to meet various application requirements. The planetary gearbox can be coupled with various motors, including AC, DC, and servo motors, to provide precise control and high efficiency.The BPG series high speed planetary gearbox also offers several features to enhance its performance, including low backlash, high torsional stiffness, and low noise. The planetary gearbox is lubricated with synthetic oil, which provides excellent lubrication and extends the life of the gearbox.Overall, the BPG series high speed planetary gearbox is a reliable and efficient solution for various applications that require high torque and speed in a compact design.

▍BPG Series High Speed Planetary Gearbox Model:

BPG Series Model No.: BPG040, BPG060, BPG080, BPG120, BPG160
7 Sices		40mm-160mm
Output Torque		9N.m-423N.m
Ratio	1-stage	3/4/5/7/8/9/10
	2-stages	12/15/20/25/35/40/50/70/100
Backlash	1-stage	≤6，≤8 arcmin
	2-stages	≤8，≤10 arcmin

▍BPG Series High Speed Planetary Gearbox Outline Dimension:

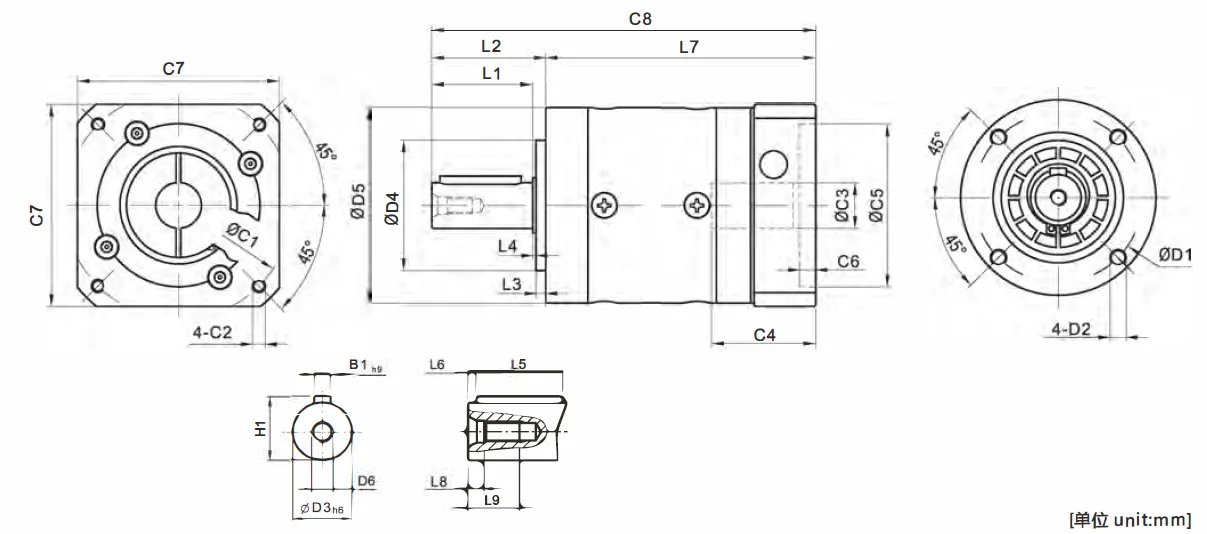

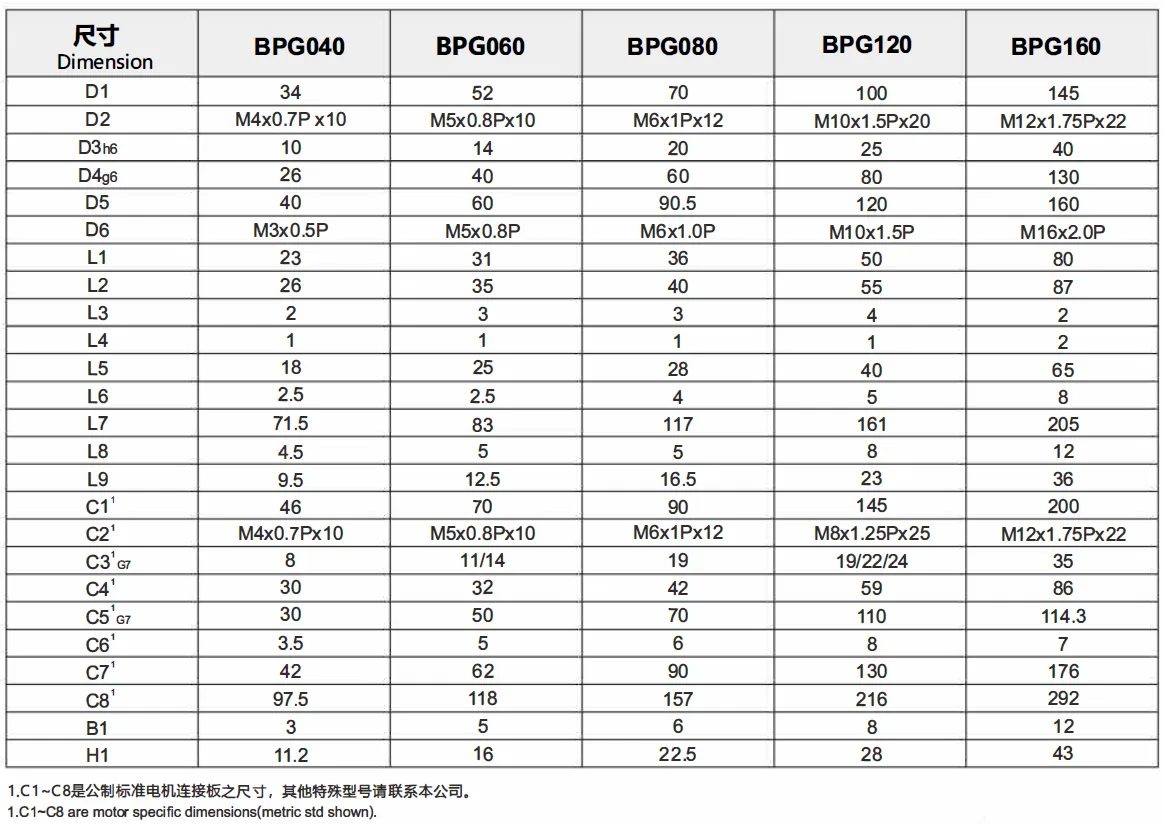

▍Single Stage Planetary Gearbox (Ratio i=3~10)

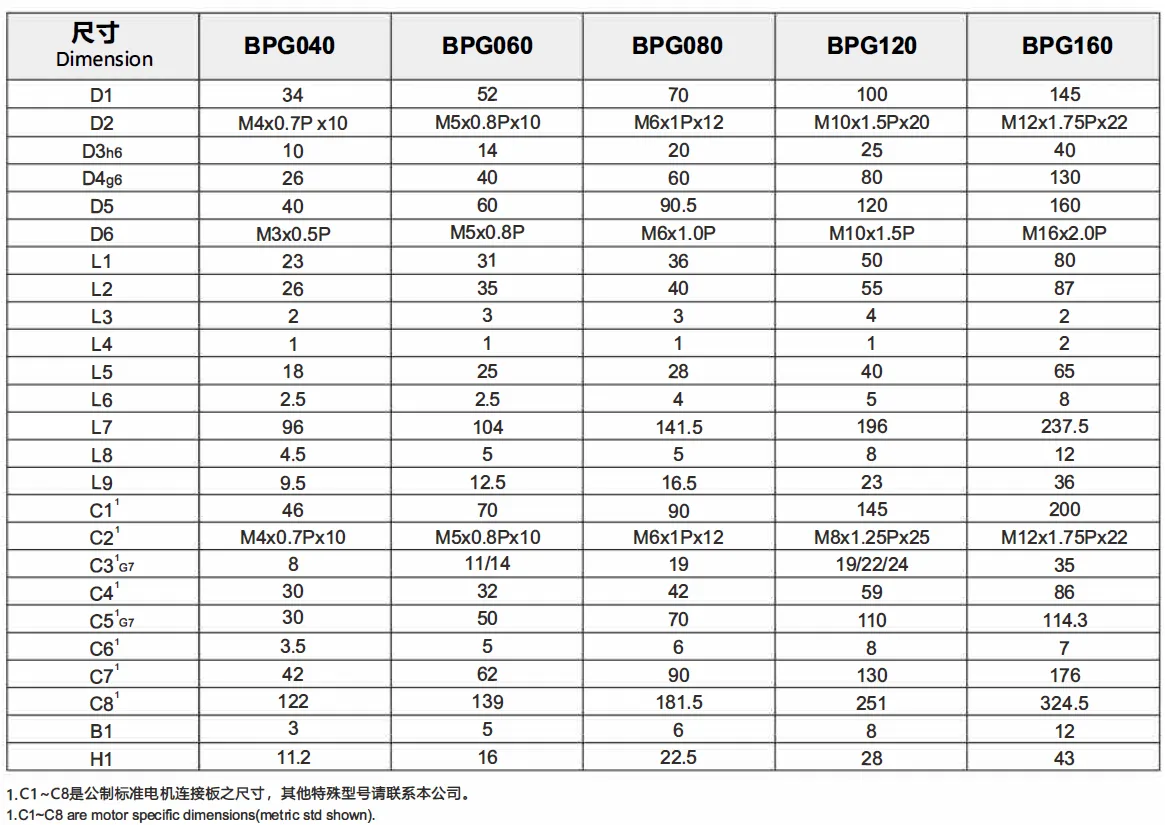

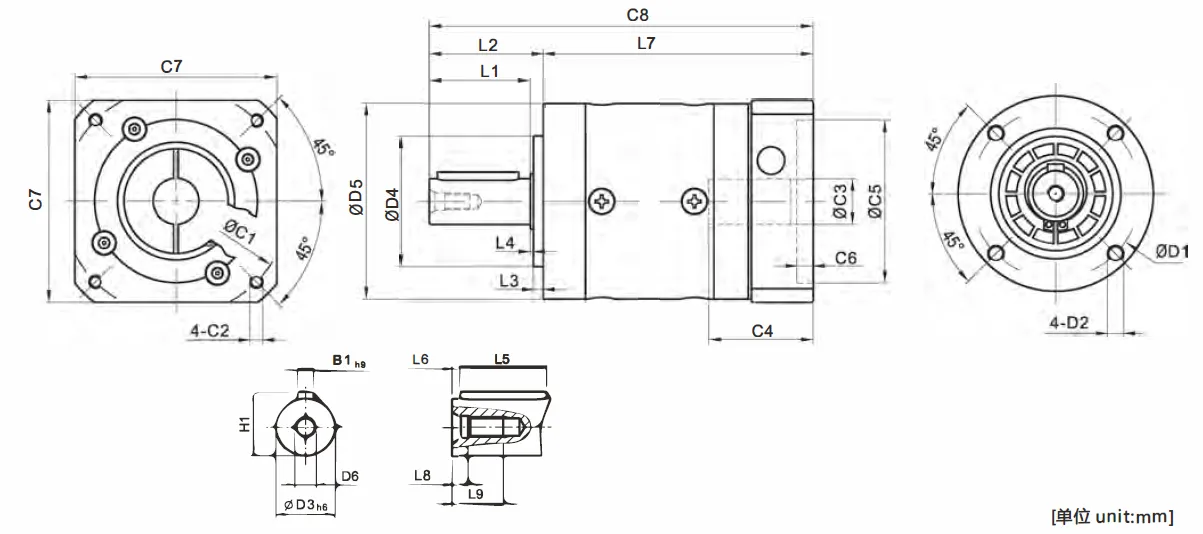

▍Two Stage Planetary Gearbox (Ratio i=12~100)

▍Features of BPG Series High Speed Planetary Gearbox:

The BPG series high speed planetary gearbox is a type of gear reducer that is designed to provide high torque and high precision in a compact and lightweight package. Some of the key features of the BPG series planetary gear reducer include:1. High Torque Capacity: The BPG series high speed planetary gearbox is capable of transmitting high torque loads, which makes it suitable for a wide range of industrial applications.2. High Precision: The planetary gear design of the BPG series high speed planetary gearbox provides high accuracy and repeatability, which is essential for applications that require precise positioning and control.3. Compact and Lightweight: The BPG series high speed planetary gearbox is designed to be compact and lightweight, which makes it easy to install and use in a variety of applications.4. High Efficiency: The BPG series high speed planetary gearbox is designed for high efficiency, which means that it can provide maximum power transmission with minimal energy loss.5. Low Noise: The BPG series high speed planetary gearbox is designed to operate quietly, which makes it suitable for use in noise-sensitive environments.6. Wide Range of Ratios: The BPG series high speed planetary gearbox is available in a wide range of ratios, which makes it suitable for a variety of applications that require different torque and speed requirements.7. High Overload Capacity: The BPG series high speed planetary gearbox is designed with a high overload capacity, which means that it can withstand sudden shocks and overloads without damage.8. Easy Maintenance: The BPG series high speed planetary gearbox is designed for easy maintenance, which means that it can be easily disassembled and reassembled for repairs and maintenance.9. High Durability: The BPG series high speed planetary gearbox is constructed with high-quality materials and components, which makes it highly durable and able to withstand harsh operating conditions.Overall, the BPG series high speed planetary gearbox is a versatile and reliable gear reducer that is suitable for a wide range of industrial applications that require high torque, high precision, and compact design.

▍BPG Series High Speed Planetary Gearbox Application Scenario:

The BPG series high speed planetary gearbox is suitable for a wide range of industrial applications that require high torque and high precision in a compact and lightweight package. Here are some application scenarios where the BPG series high speed planetary gear reducer can be used:(1) Robotics: The BPG series high speed planetary gearbox can be used in robot joints and other robotic applications that require high precision and high torque. The compact design of the gearbox makes it easy to integrate into robotic systems.(2) Machine Tools: The BPG series low backlash planetary gearbox can be used in machine tools such as milling machines, lathes, and grinders to provide high torque and high precision. The gearbox can be used to drive the spindle or other components of the machine tool.(3) Packaging Machinery: The BPG series high speed planetary gearbox can be used in packaging machinery such as filling machines, labeling machines, and wrapping machines to provide high torque and high precision. The gearbox can be used to drive the conveyor or other components of the packaging machinery.(4) Material Handling Equipment: The BPG series high torque planetary gearbox can be used in material handling equipment such as conveyors, elevators, and cranes to provide high torque and high precision. The gearbox can be used to drive the conveyor or other components of the material handling equipment.(5) Printing Machinery: The BPG series high speed planetary gear reducer can be used in printing machinery such as printing presses, label printers, and digital printers to provide high torque and high precision. The gearbox can be used to drive the printing cylinder or other components of the printing machinery.(6) Medical Equipment: The BPG series high speed planetary gearbox can be used in medical equipment such as surgical robots, imaging machines, and laboratory equipment to provide high precision and high torque. The gearbox can be used to drive the motor or other components of the medical equipment.(7) Aerospace and Defense: The BPG series high precision planetary gearbox can be used in aerospace and defense applications such as drones, satellites, and missile guidance systems to provide high precision and high torque. The gearbox can be used to drive the propulsion system or other components of the aerospace and defense equipment.(8) Automotive: The BPG series high speed planetary gearbox can be used in automotive applications such as electric and hybrid vehicles to provide high torque and high precision. The gearbox can be used to drive the motor or other components of the automotive system.
