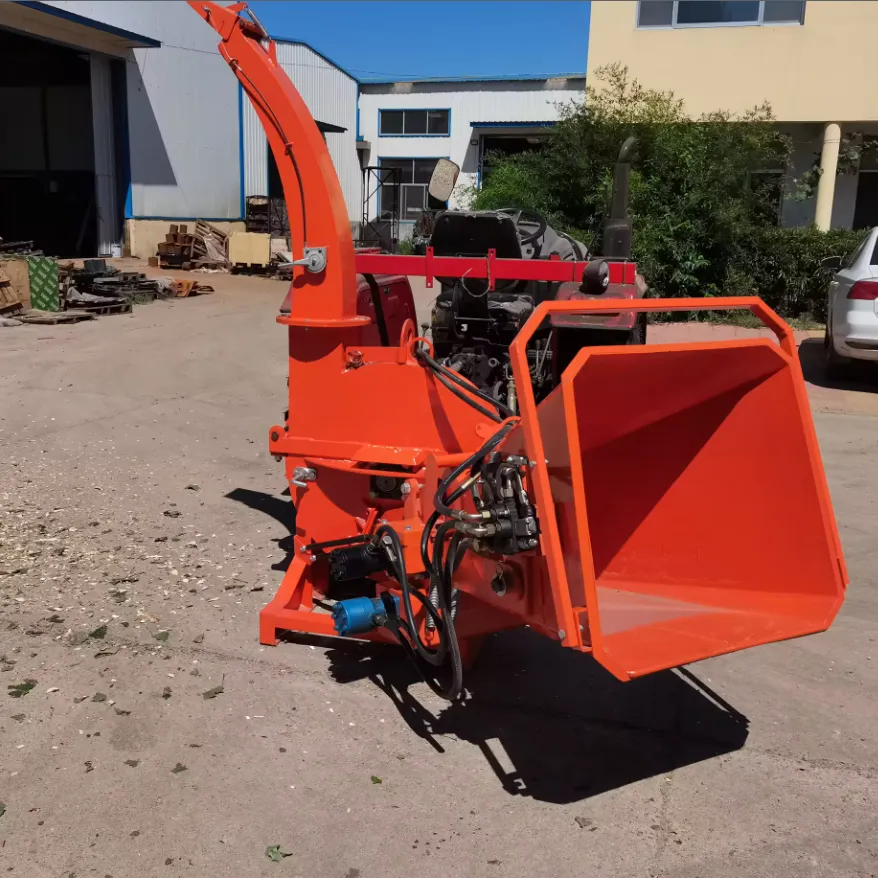

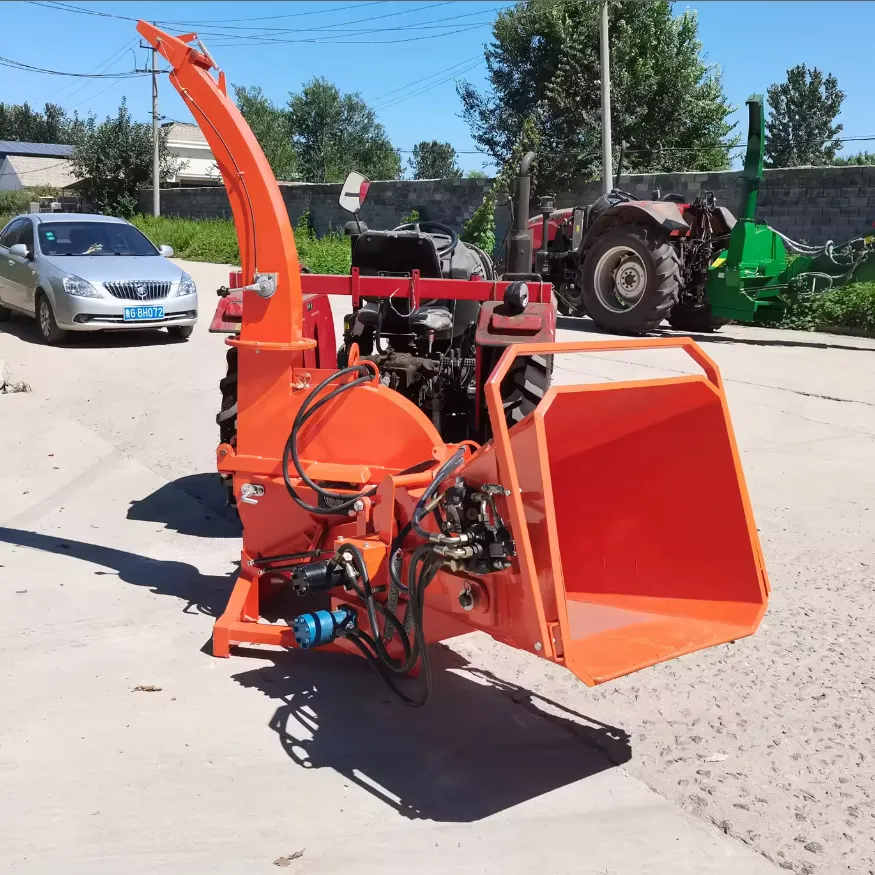

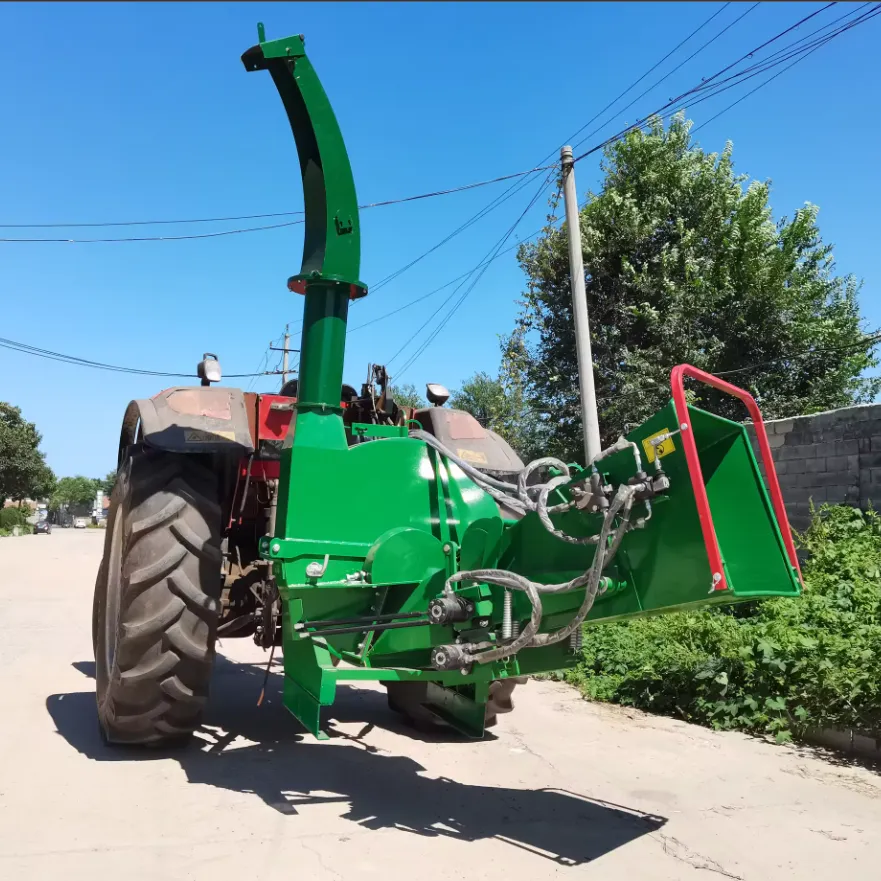

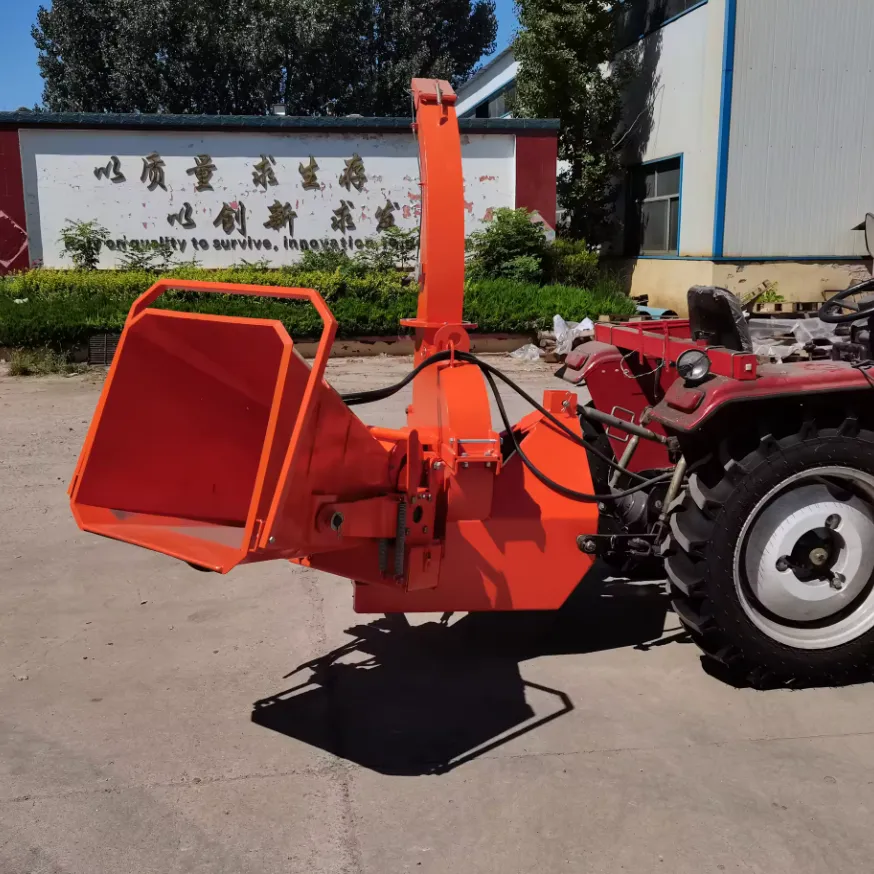

BX92 3 Point Hitch Wood Chipper for Chipping Wood and Tree Branch

[embed]https://youtu.be/j3Wm-RDreEc[/embed] A 3-point hitch wood chipper is a robust and efficient machine designed for chipping wood, including tree branches and trunks, into smaller, more manageable pieces or chips. This type of wood chipper is especially suited for use in agricultural, landscaping, forestry, and garden management applications. It connects to the three-point hitch of a tractor and utilizes the tractor's power take-off (PTO) to operate, eliminating the need for its own engine. This system allows for the easy attachment of the chipper to the rear of a tractor, utilizing the tractor's hydraulic system to lift and lower the chipper for transport or when adjusting for operation. The chipper is powered directly by the tractor’s PTO, which drives the chipper’s cutting mechanism. This design harnesses the substantial power output of the tractor, making the chipper capable of handling larger, tougher pieces of wood. Typically, a heavy-duty steel disc or drum equipped with sharp blades rotates at high speeds to chip wood fed into the machine. The design and number of blades can vary, affecting the size and quality of the chips produced. The BX92 3 point hitch wood chipper is a cutting-edge product designed to cut wood into pieces effectively. It is ideal for farms and is powered by a tractor PTO. The chipper boasts a weight of 780 KG and comes with a one-year warranty. It is available in vibrant colors - green, red, and blue. The machinery test report and video outgoing-inspection are provided to ensure the quality and reliability of the product. The core components, including Bearing and Gear, have a warranty of 1 Year. This chipper is CE and ISO certified, adding an extra layer of trust for potential buyers.

Specifications of BX92 3 Point Hitch Wood Chipper

Model	BX42S/BX42R	BX62S/BX62R	BX92R
Drive system	Direct drive, pto with shearbolt	Direct drive, pto with shearbolt	Direct drive, pto with shearbolt
HP Range	35-60	60-80	75-100
Capacity	4” diameter	6” diameter	10” diameter
Max. of wood	4" x 10"	6.5" x 12"	10" x 14”
Dia. of rotor	630mm	740mm	940mm
Thickness of rotor	18mm	25mm	35mm
No. of Knives	4	4	4
Rotor Weight	50kg	80kg	170kg
Feeding System	Self feed / Hydraulic feed	Self feed / Hydraulic Feed	Hydraulic Feed
Dimensions(hopper folded)	40" L x 42"W x 60" H	50"L x 52"W x74" H	52"L x 50"W x90" H
Infeed hopper Opening	500*500mm	580*580mm	620*620mm
Discharge Hood Rotation	360	360	360
Discharge Hood Height	60"	74"	90"
Rated RPM	540-1000	540-1000	540-1000
Weight	225kg / 430kg	435kg / 560kg	780kg

Benefits of Using the BX92 3 Point Hitch Wood Chipper

The BX92 3-point hitch wood chipper offers several benefits for users. Here are some of the advantages of using this particular wood chipper model:

• Versatility: The BX92 wood chipper is designed to handle a wide range of wood materials, including branches, logs, and tree limbs. Its powerful cutting mechanism can efficiently chip wood up to 9 inches in diameter, making it suitable for both residential and commercial applications. This versatility allows users to process various types of wood waste, providing flexibility in landscaping, farming, or forestry operations.
• High Productivity: With its robust construction and powerful performance, the BX92 wood chipper enables high productivity. The machine's cutting system, driven by the tractor's power take-off (PTO), ensures efficient and continuous chipping of wood materials. Its large hopper capacity allows for the processing of significant amounts of wood in a short amount of time, reducing downtime and increasing overall productivity.
• Easy Attachment and Operation: The BX92 wood chipper is specifically designed for easy attachment and operation with tractors equipped with a 3-point hitch. The standardized attachment system enables quick and secure connection, ensuring stability during operation. The chipper's controls and feeding mechanisms are user-friendly, allowing operators of varying experience levels to use the machine effectively.
• Safety Features: Safety is a paramount concern when operating any wood chipper, and the BX92 model incorporates several safety features. It includes a hopper safety bar or lever that must be engaged to activate the chipper, preventing accidental operation. The reversible blades help clear any jams, reducing the risk of accidents. Additionally, the design of the discharge chute ensures safe chip ejection and minimizes the chance of debris flying in unintended directions.
• Durability and Reliability: Built with sturdy materials and durable components, the BX92 wood chipper is designed to withstand heavy-duty use and harsh working conditions. It is engineered for long-term reliability, ensuring consistent performance and minimizing maintenance requirements. Investing in a reliable wood chipper like the BX92 can save time and money in the long run.

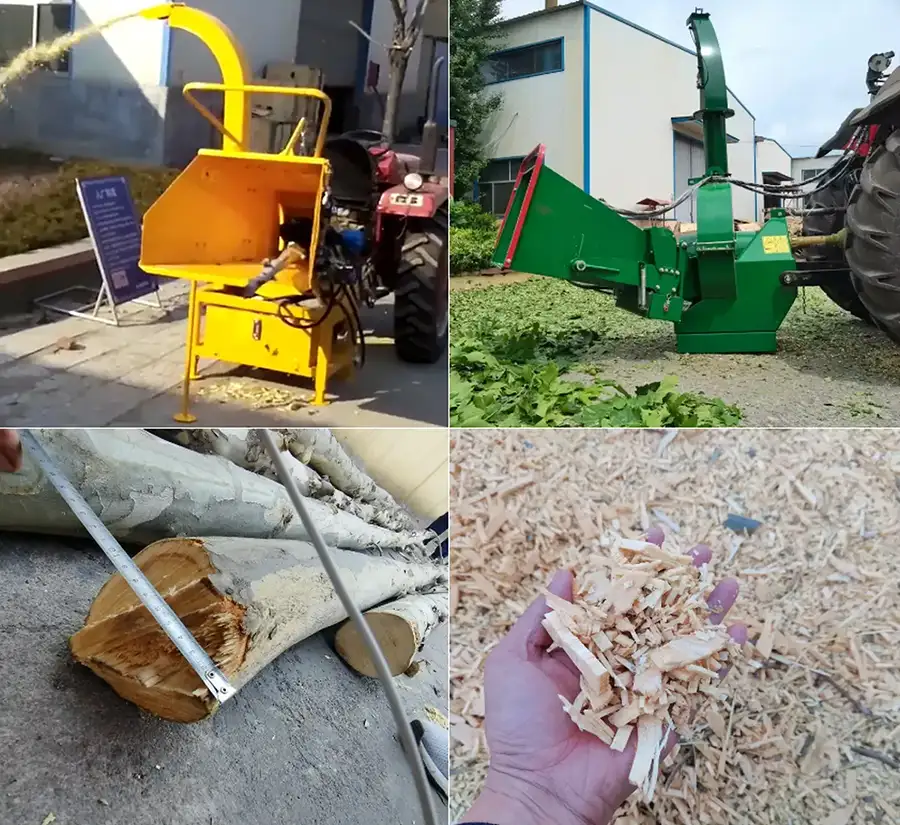

BX92 3 Point Hitch Wood Chipper Common Applications

The BX92 3-point hitch wood chipper finds applications in various industries and settings. Here are some common applications where the BX92 wood chipper is often used:

1. Farms and Agriculture: Farms can benefit from the BX92 wood chipper for a range of tasks. It can be used to chip branches and tree limbs, clearing fields and pastures of debris. The resulting wood chips can be utilized as animal bedding, composting material, or as biomass fuel for heating or energy generation.
2. Landscaping and Grounds Maintenance: Landscaping companies, parks, golf courses, and other organizations involved in grounds maintenance can employ the BX92 wood chipper to maintain the aesthetic appeal of outdoor spaces. It can be used to chip tree branches, hedge trimmings, and other green waste, producing wood chips that can be used as mulch or ground cover for landscape beds, pathways, or playgrounds.
3. Forestry and Tree Services: In forestry and tree service operations, the BX92 wood chipper is useful for processing tree branches, logs, and other wood debris generated during tree removal or forest management activities. It simplifies the disposal of wood waste and enables the utilization of the resulting wood chips for erosion control, trail surfacing, or as a byproduct for the wood industry.
4. Municipalities and Public Works: Municipalities often utilize wood chippers for maintaining public parks, roadways, and green spaces. The BX92 wood chipper can be employed for chipping fallen branches, tree trimmings, or storm debris, reducing the volume of waste and facilitating their management and disposal.

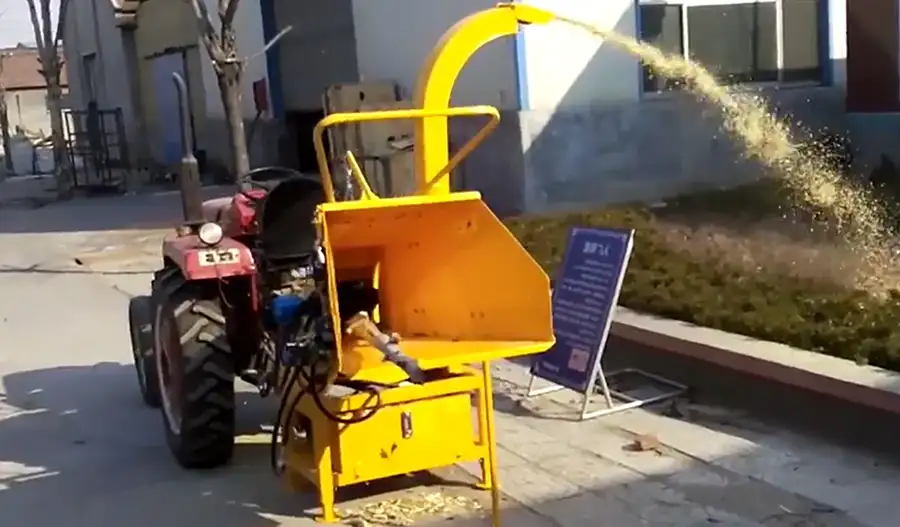

How Does the Tractor 3 Point Hitch Wood Chipper Work?

A tractor 3-point hitch wood chipper works by utilizing the power from a tractor's Power Take-Off (PTO) to mechanically chip wood into smaller pieces. This type of chipper is designed to be attached to the three-point hitch at the back of a tractor, making it an efficient tool for processing branches, limbs, and sometimes even whole trees depending on the chipper's capacity. Here’s a step-by-step explanation of its working principle: 1. Attachment to the Tractor: The wood chipper is mounted to the tractor using the three-point hitch system. This system consists of two lower arms and a top link, providing a stable and secure attachment to the tractor. 2. Power Take-Off (PTO) Connection: The chipper is powered by the tractor's PTO shaft. The PTO is a splined drive shaft that connects from the tractor to the chipper, transferring the tractor engine’s power to the chipper. 3. Feeding the Wood: Operators feed wood (branches, limbs, etc.) into the chipper's hopper or feed chute. For safety and efficiency, the size of the wood should be within the chipper's specified capacity. 4. Chipping Mechanism: Inside the chipper, a rotating cutting mechanism (usually a drum or disc equipped with blades) receives power from the PTO shaft. As wood is fed into the chipper, this cutting mechanism chops the wood into small chips. The mechanism's rotation speed and the sharpness of the blades are crucial for efficient chipping. 5. Discharging the Chips: The chipped wood is then expelled from the chipper through a discharge chute. The direction and distance of the discharge can often be adjusted, allowing the chips to be directed into a specific area or container.

How to Install the 3 Point Hitch PTO Wood Chipper to Tractor?

Installing a 3-point hitch PTO wood chipper to a tractor involves a few steps to ensure a secure and proper attachment. Here's a general guide on how to install a 3-point hitch PTO wood chipper to a tractor:

1. Prepare the Chipper and Position the Tractor: Before attaching the chipper to the tractor, make sure it is on a level surface and in a position that allows easy access to the attachment points. Park the tractor on a level surface, engage the parking brake, and turn off the engine. Ensure the tractor's hitch is in the lowered position.
2. Align the Chipper: Position the chipper behind the tractor, aligning the lower arms of the tractor's 3-point hitch with the attachment points on the chipper. The attachment points are typically located on the chipper's frame.
3. Attach the Lower Arms: Connect the lower arms of the tractor's 3-point hitch to the attachment points on the chipper. Insert the pins or latches through the holes in the arms and attach them securely. Make sure the pins or latches are properly inserted and locked in place.
4. Adjust the Top Link: The top link of the tractor's 3-point hitch should be adjusted to match the height of the attachment point on the chipper. Extend or retract the top link as needed to align the holes on the top link with the attachment point on the chipper. Insert the pin or latch and secure it tightly.
5. Connect the PTO Shaft: Locate the PTO shaft on the chipper and the PTO output shaft on the tractor. Line up the splines on both shafts and slide them together. Ensure the locking mechanism engages properly and secures the PTO shaft in place.
6. Check the Attachment: Once all the connections are made, visually inspect the attachment to ensure it is secure and properly aligned. Shake the chipper slightly to check for any excessive movement or looseness.
7. Test the Operation: Start the tractor's engine and engage the PTO according to the manufacturer's instructions. Observe the chipper's operation to ensure it is functioning correctly and that there are no unusual vibrations or noises. Check the feeding, cutting, and discharge mechanisms for smooth operation.

Operation Precautions of Tractor 3 Point Hitch Wood Chipper

Operating a tractor 3-point hitch wood chipper requires adherence to specific precautions to ensure both operator safety and the efficient functioning of the equipment. Below are key operational precautions to consider:

Before Operation

• Inspect the Equipment: Check the wood chipper and tractor for any signs of wear, damage, or missing parts. Ensure all safety guards and devices are in place and functioning properly.
• Review the Area: Clear the area of any debris, rocks, or materials that could interfere with the operation or be accidentally ingested by the chipper.
• Know Your Equipment: Be familiar with the operation of both the tractor and the wood chipper. Understand how to stop the tractor and disengage the PTO quickly in an emergency.

During Operation

• Keep Clear of Moving Parts: Never attempt to make adjustments or clear jams while the chipper is running. Always disengage the PTO and wait for all moving parts to stop before approaching the chipper.
• Feed Material Correctly: Only feed material into the chipper that is within the manufacturer's specified size range. Use a push stick or another tool to feed material into the chipper, keeping hands and feet away from the feed chute.
• Stability is Key: Operate the tractor and chipper on stable, level ground to prevent tipping. Avoid steep slopes and uneven terrain.
• Stay Alert: Always be aware of your surroundings and keep bystanders, especially children and pets, at a safe distance while the chipper is in operation.

PTO and 3-Point Hitch Safety

• Correct PTO Speed: Operate the PTO at the speeds recommended by the wood chipper manufacturer. Excessive speeds can cause damage or failure.
• Hitch Security: Ensure the 3-point hitch is properly secured, and the chipper is correctly attached to the tractor before starting.

After Operation

• Cool Down: Allow the chipper to come to a complete stop naturally. Do not attempt to force it to stop.
• Disconnect and Inspect: After use, disconnect the chipper from the tractor, inspect it for damage or clogs, and perform any necessary maintenance.

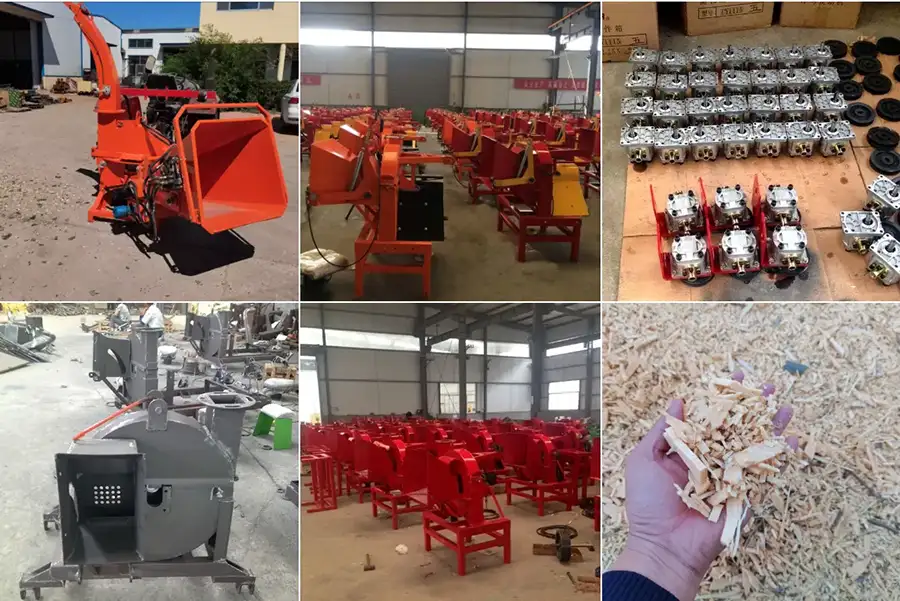

Why Choose Raydafon's PTO Wood Chipper?

Raydafon Agricultural Machinery Co., Ltd. is a renowned name in the industry, offering a wide range of agricultural machinery, including PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Here's why you should choose Raydafon's PTO Wood Chipper:

• Professionalism: With more than 100 employees, including 20 technical staff and five senior R&D personnel, Raydafon ensures top-notch professionalism in its products.
• International Certifications: Raydafon is a globally recognized brand with international certifications, ensuring the delivery of high-quality products.
• Customized Services: Raydafon offers customized services, catering to the specific needs of its customers.
• Advanced Production Facilities: Raydafon boasts advanced casting, forging, machining, heat treatment, and lacquering production lines, ensuring the manufacturing of superior products.
• After-Sales Services: Raydafon provides excellent after-sales services, ensuring customer satisfaction.

With a decade-long experience in the industry, Raydafon has gained significant expertise in producing farming machinery, planting machinery, harvesting machinery and its accessories. Their products are set up by the main tractor manufacturers in China. Raydafon's main products, including BX92 3 point hitch wood chipper, are complete in specifications, excellent in performance, and reliable in quality. Their products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. Author: Yjx
