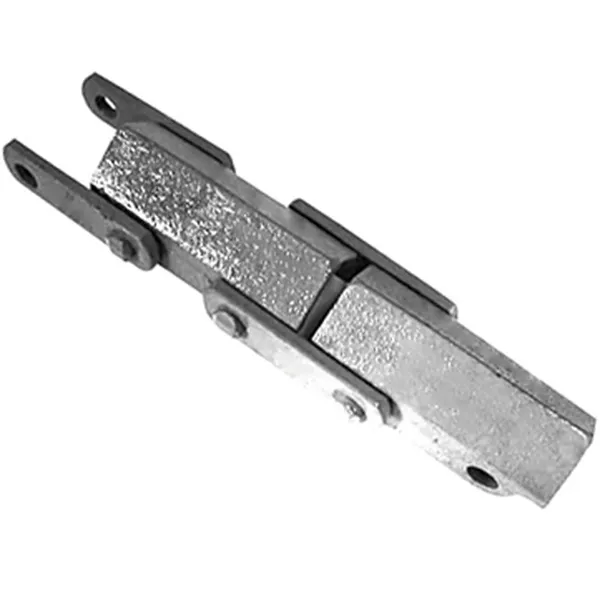

C55A Combination Transfer Chains

Chain No.	C55A? Combination Transfer Chain
Pitch In Inches	1.631
Style of Top	A
Links Per 10 Feet	74
Weight Per Foot LBS	3.2
Average Ultimate Strength	11700
Recommended Maximum Working Load LBS.	1400

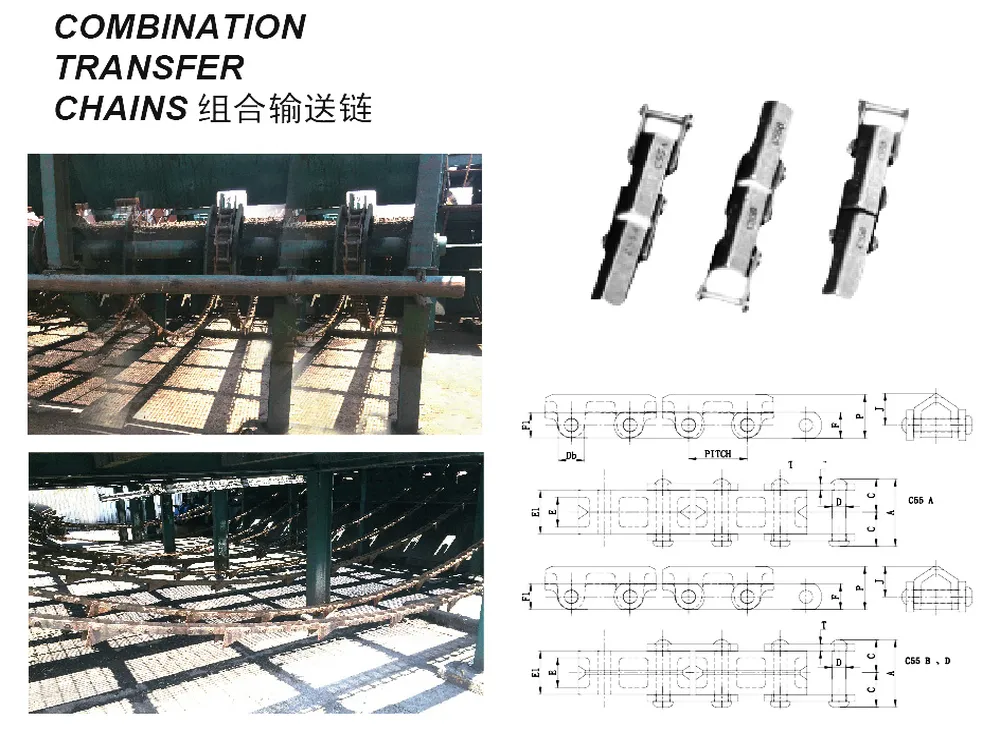

A	2
C	1
Db	0.72
D	0.375
E	0.69
E1	1.25
F	0.75
F1	0.75
J	0.88
P	1.25
T	0.19

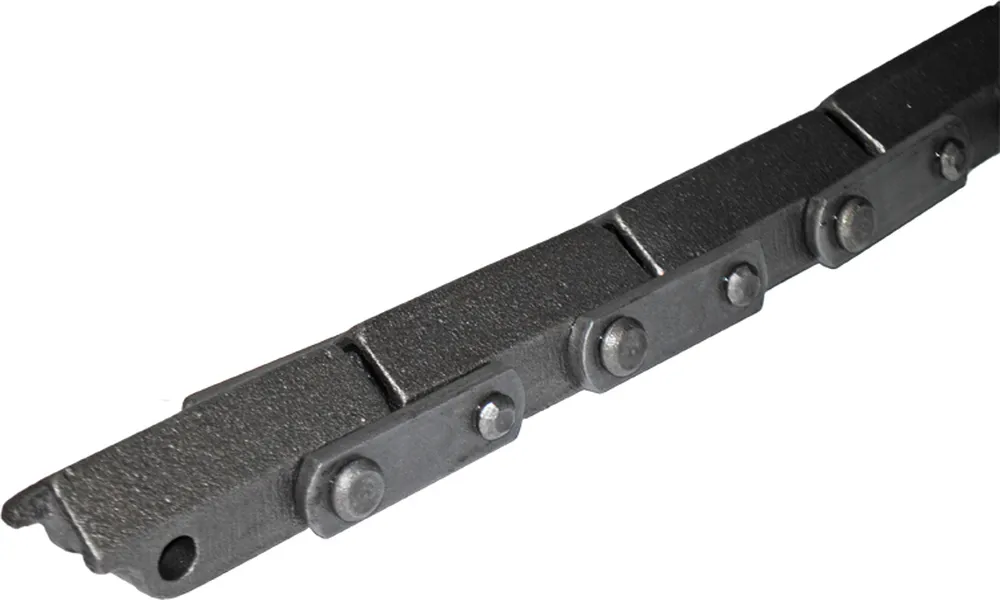

C55A Combination Transfer Chain Features:

Here are the features of the C55A combination transfer chain:

1. High load capacity: C55A combination transfer chains can carry more weight than other types of chains, making them ideal for applications where there are heavy loads.2. Improved load distribution: The raised center section of the links helps to distribute the load more evenly over the C55A rooftop chain, reducing wear and tear.3. Durable construction: C55A combination transfer chains are made from high-quality materials and are riveted for added strength.4. Wide range of sizes and materials: C55A combination transfer chains are available in a variety of sizes and materials to meet the specific needs of each application.5. Camelback design:?The raised center section of the links is also called the "camelback" design. This design helps to distribute the load more evenly over the chain and prevents the C55A rooftop chain from sagging.6. High tensile strength: C55A combination transfer chains have a high tensile strength, which means they can withstand a lot of force without breaking.7. Good wear resistance: C55A combination transfer chains are resistant to wear and tear, making them a good choice for applications where the chain will be subjected to a lot of friction.8. Low noise emission: C55A combination transfer chains are designed to emit low noise, making them a good choice for applications where noise is a concern.

Overall, C55A combination transfer chains are a versatile and reliable solution for a variety of heavy-duty applications. They are available from a variety of manufacturers, so you can find the right chain for your specific needs.

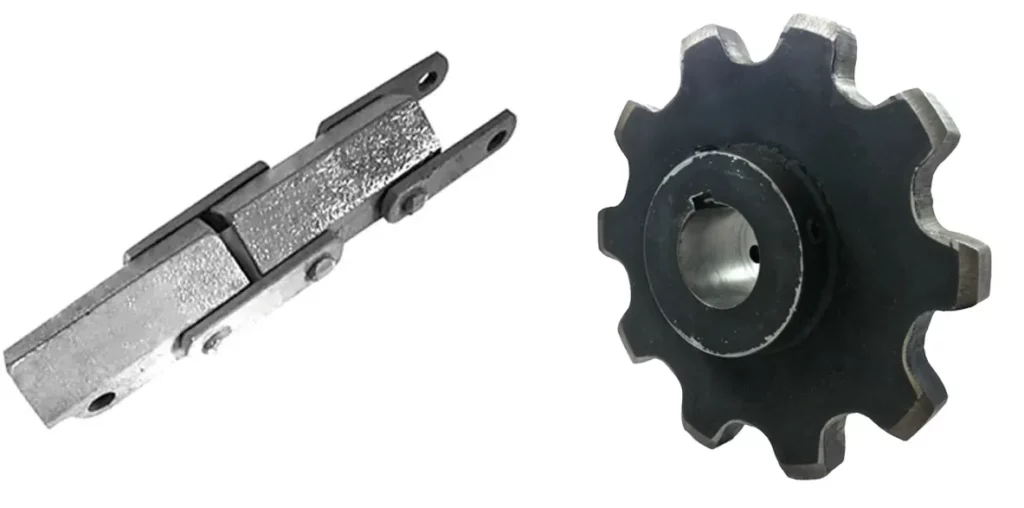

C55 Chain Sprockets for C55A Combination Transfer Chains:

C55 chain sprockets and C55A combination transfer chains are a type of roller chain drive that is used in a variety of applications, including conveyors, elevators, and material handling equipment. They are characterized by their high strength and durability, making them ideal for use in demanding environments.

C55 chain sprockets are made of steel and have a concave tooth profile. This design helps to distribute the load evenly across the teeth, reducing wear and tear. The sprockets are also heat-treated to improve their strength and resistance to fatigue.

Here are some additional things to keep in mind when choosing C55 chain sprockets and C55A combination transfer chains:

• The pitch of the chain must match the pitch of the sprockets.
• The number of teeth on the sprockets must be the same as the number of links in the chain.
• The sprockets must be aligned properly to avoid misalignment and premature wear.
• The chain and sprockets must be lubricated properly to extend their service life.

By following these guidelines, you can ensure that your C55 chain sprockets and C55A combination transfer chains will provide years of reliable service.
