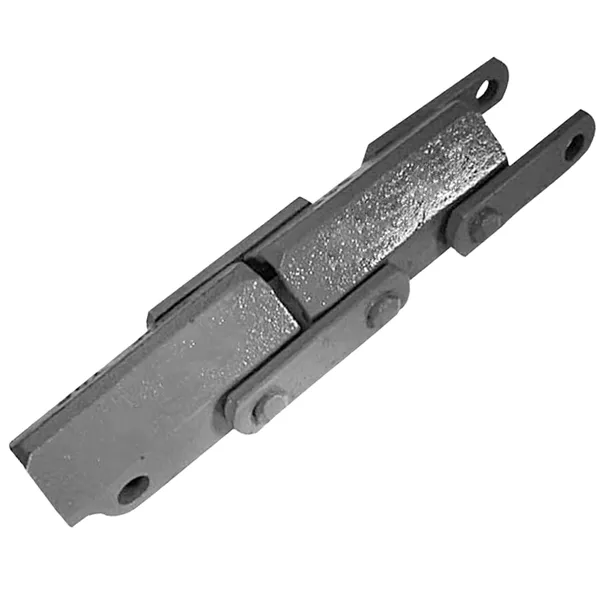

C55B Combination Transfer Chains

Chain No.	C55B? Combination Transfer Chain
Pitch In Inches	1.631
Style of Top	B
Links Per 10 Feet	74
Weight Per Foot LBS	3.2
Average Ultimate Strength	11700
Recommended Maximum Working Load LBS.	1400

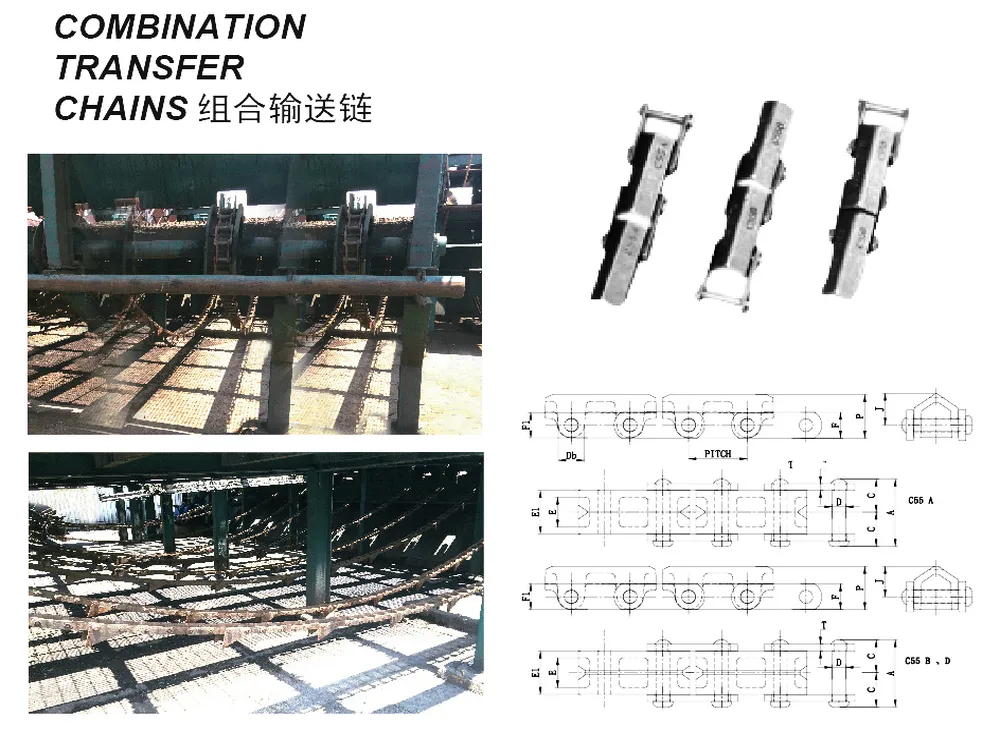

A	2
C	1
Db	0.72
D	0.375
E	0.69
E1	1.25
F	0.75
F1	0.75
J	0.88
P	1.25
T	0.19

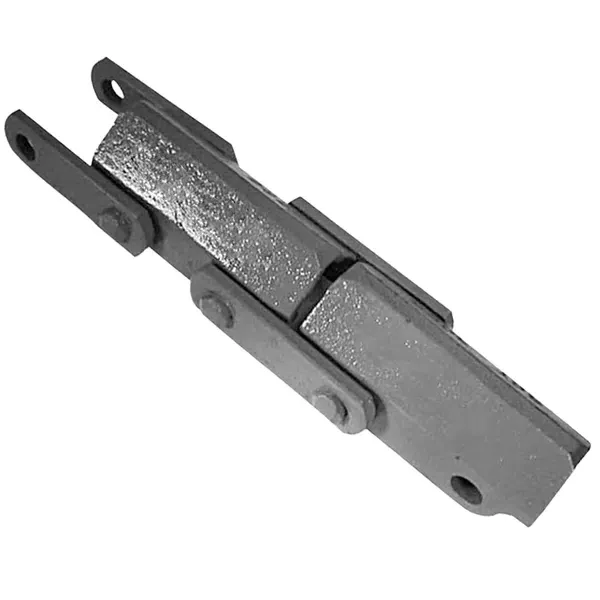

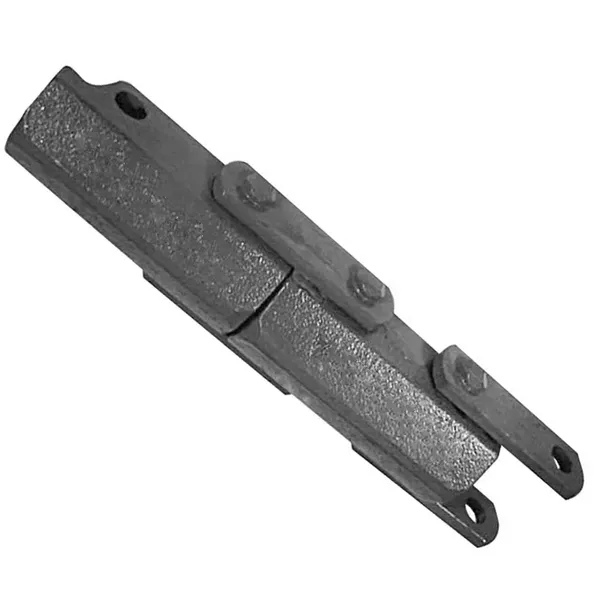

C55B Combination Transfer Chain Advantages:

The C55B rooftop chain is a cast combination chain that has a variety of uses. It is a high-quality, durable, long-lasting conveyor chain manufactured using high-quality components. The C55 rooftop chain is used in a wide range of applications, such as bucket elevators, flight conveyors, forest products, grain handling, and sugar processing. Here are some of the advantages of the C55B combination transfer chain:

1. Smooth operation: The rollers on the chain help to reduce friction, which results in smooth operation. This is especially beneficial in applications where the C55B rooftop chain is moving over a long distance or where there are frequent stops and starts.2. Efficient power transmission: The combination of rollers and drags on the chain allows for efficient power transmission. This is important in applications where the C55B combination transfer chain is carrying heavy loads or where there is a need for high-speed operation.3. High load capacity: C55B combination transfer chains can carry heavy loads with ease. This makes them ideal for applications where there is a lot of weight to be moved, such as in lumber mills, box factories, and warehouses.4. Durability: The C55B combination transfer chain is made from high-quality materials and is designed to withstand harsh environments. This makes it a good choice for applications where the chain is exposed to dust, dirt, moisture, or extreme temperatures.5. Versatility: The C55B combination transfer chain can be used in a variety of applications, including material handling, packaging, and manufacturing. This makes it a cost-effective and versatile solution for many industrial needs.

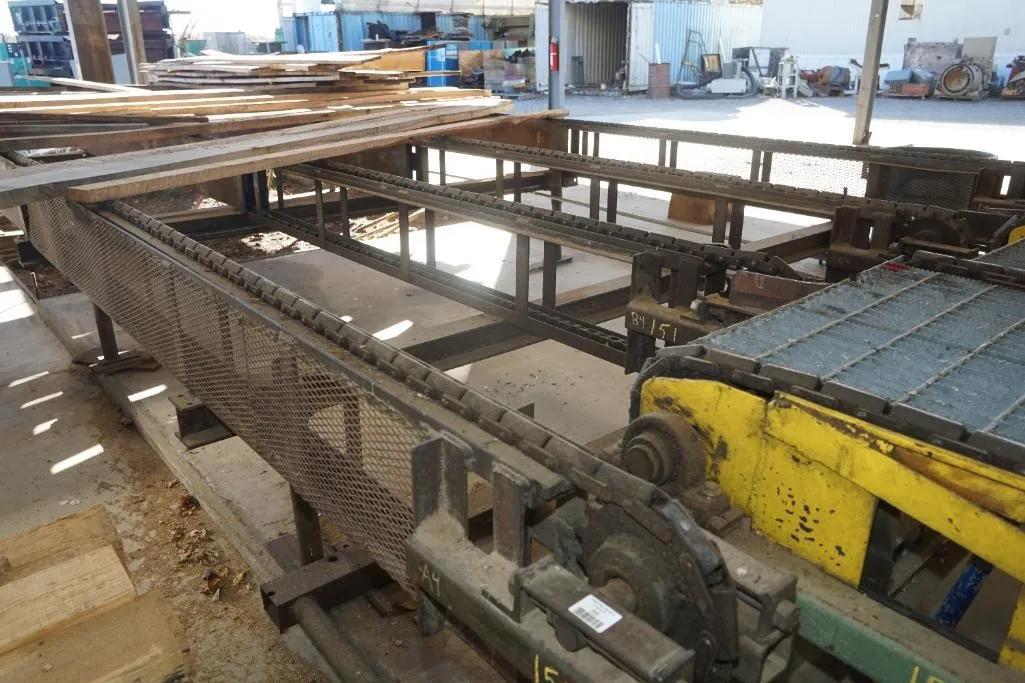

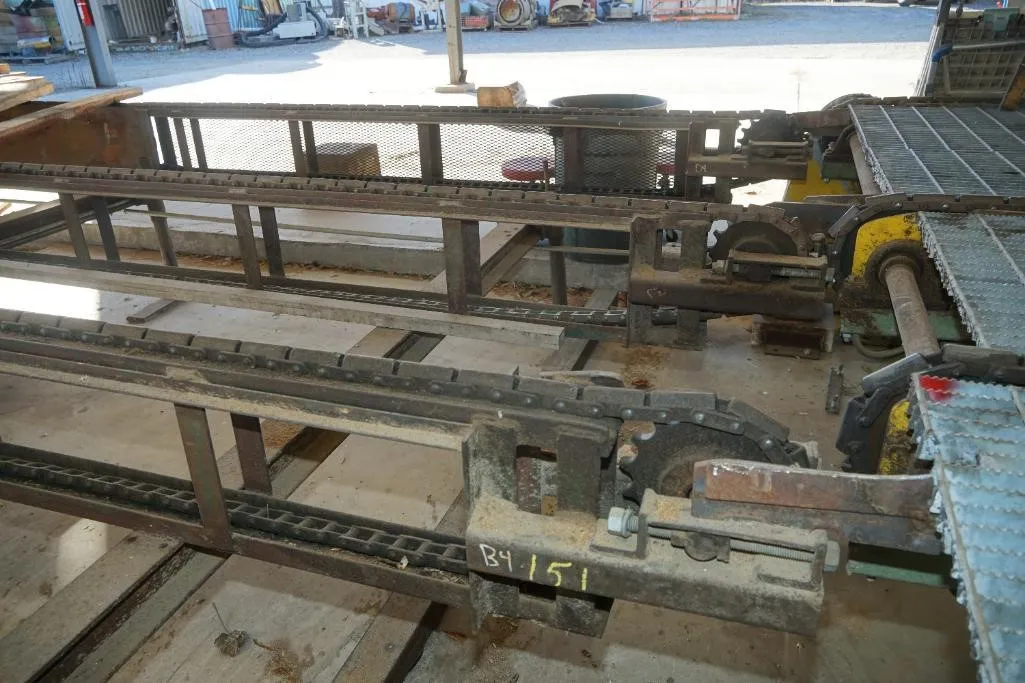

C55B Combination Transfer Chain Applications:

C55B combination transfer chains are used in a wide variety of applications where there is a need to move heavy loads. Some of the most common applications include:

(1) Lumber mills: C55B combination transfer chains are used to move heavy logs and lumber in lumber mills. The chains' high load capacity and even weight distribution make them ideal for this application.(2) Box factories: C55B rooftop chains are used to move heavy boxes and cartons in box factories. The chains' durability and resistance to wear and tear make them a good choice for this application.(3) Warehouses: C55B combination transfer chains are used to move heavy pallets and other loads in warehouses. The chains' versatility and cost-effectiveness make them a good value for this application.(4) Conveyor systems: C55B rooftop chains are used in conveyor systems to move heavy materials. The chains' smooth operation and ability to withstand harsh conditions make them a good choice for this application.(5) Material handling equipment: C55B combination transfer chains are used in material handling equipment, such as forklifts and cranes, to move heavy loads. The chains' high load capacity and durability make them a good choice for this application.(6) Mining: C55B rooftop chains are used in mining to move heavy rocks and minerals. The chains' strength and durability make them a good choice for this application.(7) Agriculture: C55B combination transfer chains are used in agriculture to move heavy equipment, such as tractors and harvesters. The chains' durability and resistance to wear and tear make them a good choice for this application.

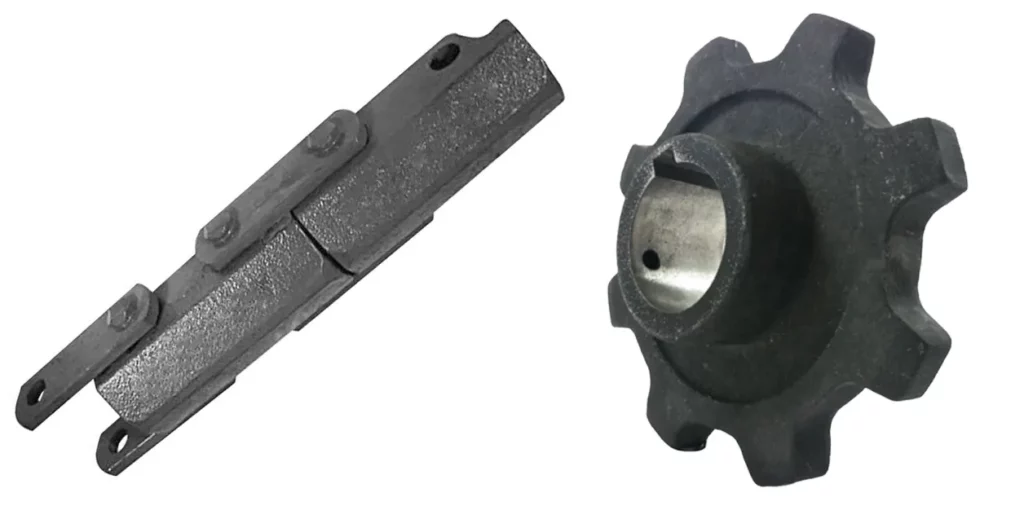

C55 Chain Sprockets for C55B Combination Transfer Chain:

To choose the right C55 chain sprockets for the C55B combination transfer chain, you need to consider the following factors:

• Pitch:?The pitch is the distance between the centers of adjacent pins. The C55B chain has a pitch of 1.631 inches. Make sure the sprockets you choose have the same pitch as the chain.
• Number of teeth:?The number of teeth on the sprocket determines the speed of the chain. The more teeth, the slower the chain will move.
• Face width:?The face width is the width of the sprocket where the chain rides. The face width of the sprockets must be at least as wide as the width of the chain.
• Material:?The sprockets can be made of steel, cast iron, or aluminum. Steel sprockets are the most durable, but they are also the heaviest. Cast iron sprockets are less durable than steel sprockets, but they are also lighter. Aluminum sprockets are the lightest, but they are also the least durable.
• Load capacity:?The load capacity of the sprockets is the maximum weight that they can support. The load capacity of the sprockets must be at least as great as the load capacity of the chain.

In addition to these factors, you should also consider the type of application the sprockets will be used in. For example, if the sprockets will be used in a high-speed application, you will need to choose a sprocket with a material that can withstand heat and wear.

China Combination Transfer Chain?Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains,?81X conveyor chains, agricultural chains,?CA550 roller chains,?S55 roller chains, silent chains,?X458 conveyor chains,?grip chains (film gripper chains), PIV chains,?stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain,?steel pintle chain, welded steel chain, drop forged chain, malleable iron chain,?“H” Class mill chain, CC Class crate conveyor chain, ?“H” Class refuse drag chain,?"H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
