China Factory Supply Farm Tractor Trailed Wheat Seeder No Tillage Seed Drill Wheat Planter

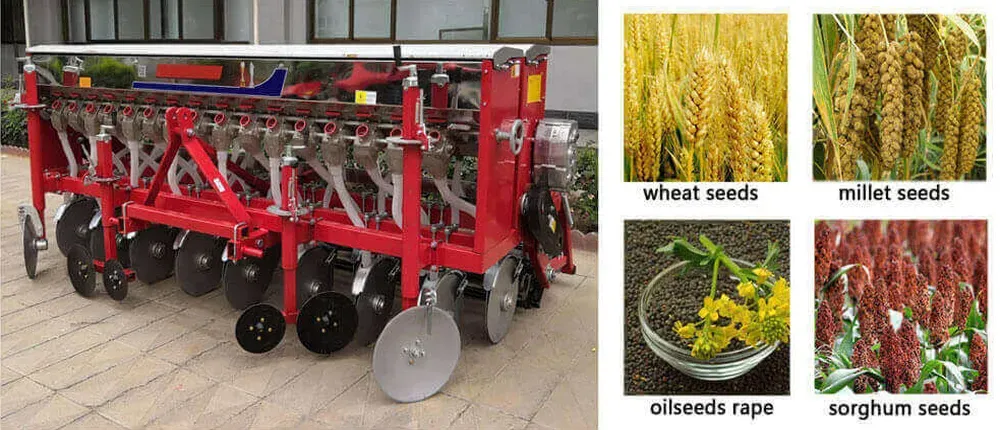

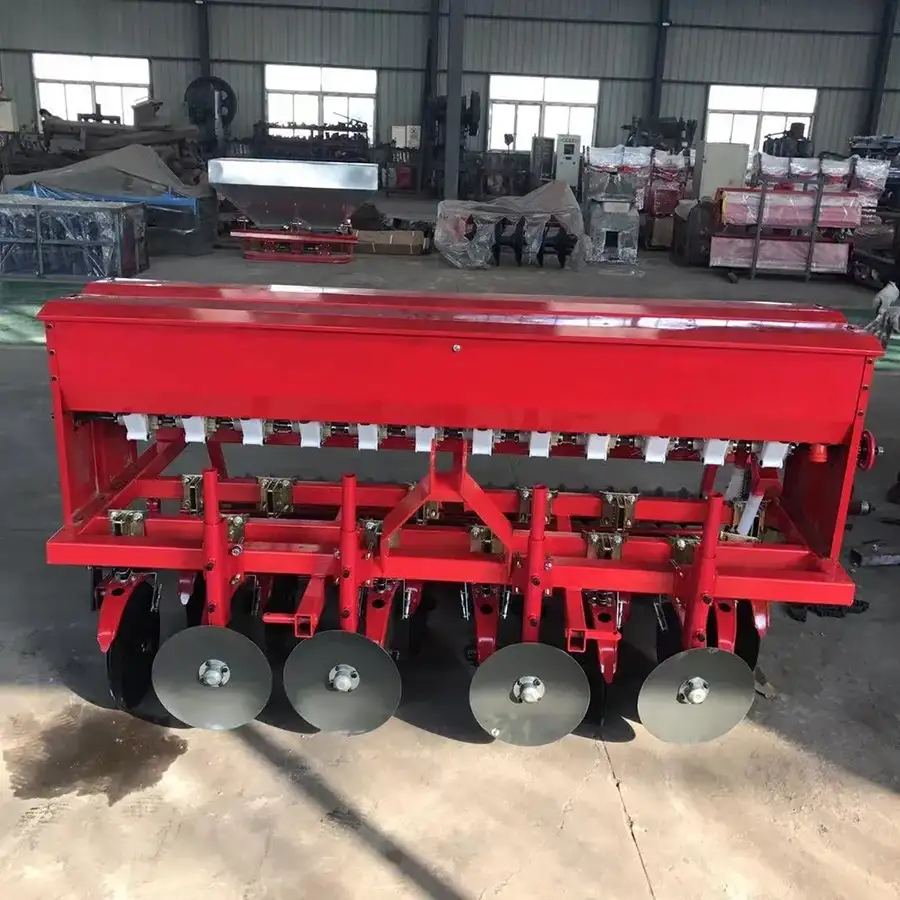

[embed]https://youtu.be/ZtL8wH77i9I[/embed] 2BXF series wheat seed drill( disc wheat seeder) is a functionalism seeder suitable for drilling wheat, millet, sorghum, grass, sesame, and other crops, combining the function of leveling and furrowing, sowing, fertilizing, and covering at the same time. This disc wheat seeder (wheat seed drill ) can be hitched to a tractor of 15-100hp. it drills seeds and fertilizer together but delivers them separately in a single drive. Seeds and fertilizer are drilled at different depths, thus improving germination. Wheat planters use rubber tires driven by the chain in the drive part, and they also have the feature of seeding uniformity, high working efficiency, saving seeds, and the depth of seeding, which can be regulated and controlled, and the row spacing is stable.

Specifications of 2BXF Series Wheat Planter

Models	Unit	2BXF-9	2BXF-12	2BXF-14	2BXF-16	2BXF-18	2BXF-24
Matched power	Hp	15-18	15-30	18-30	50	60-80	70-100
Net weight	Kg	220	285	310	650	680	1080
Seeding width	Mm	1350	1800	2100	2400	2700	3600
Seeding rows	Row	9	12	14	16	18	24
Row spacing	Mm	150	150	150	150	150	150
Seeding depth	mm	40-80
Linkage		Three-pointed mounted

Features of 2BXF Series Precision Wheat Seeder

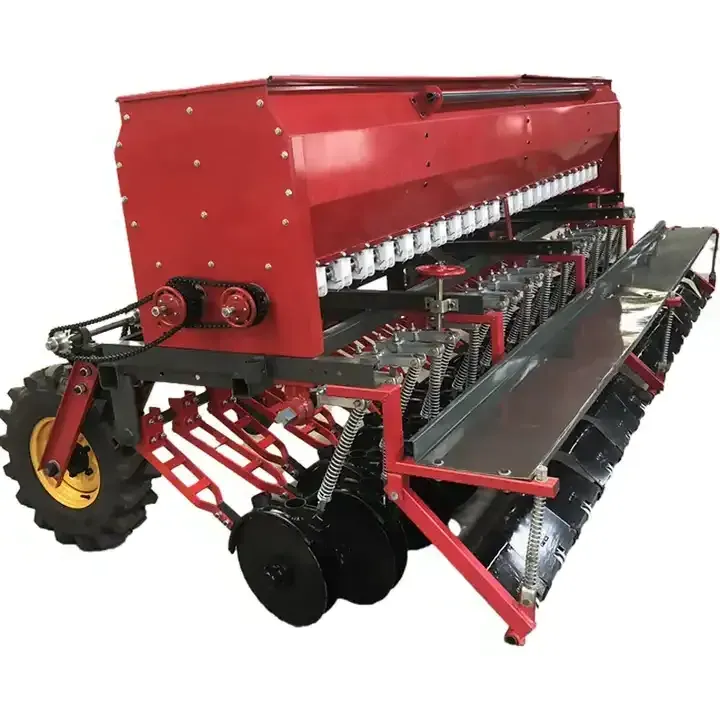

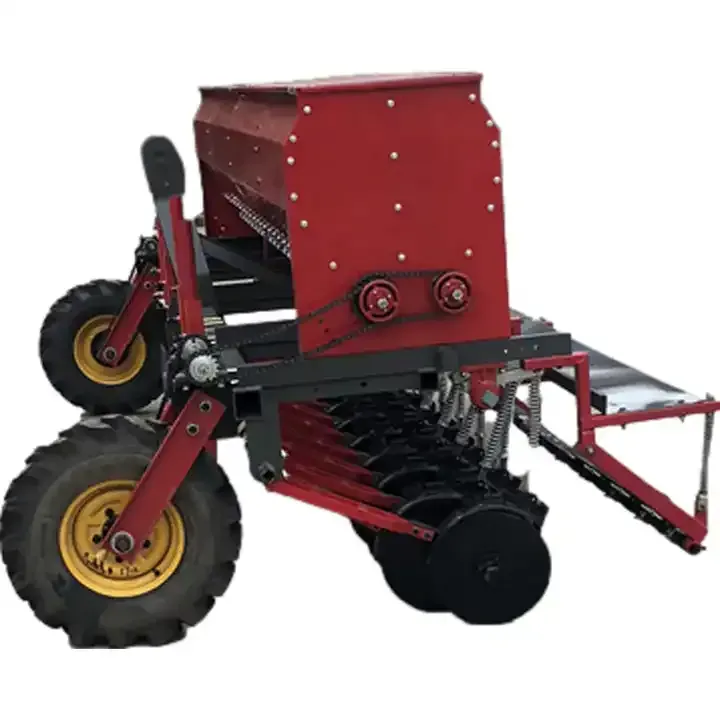

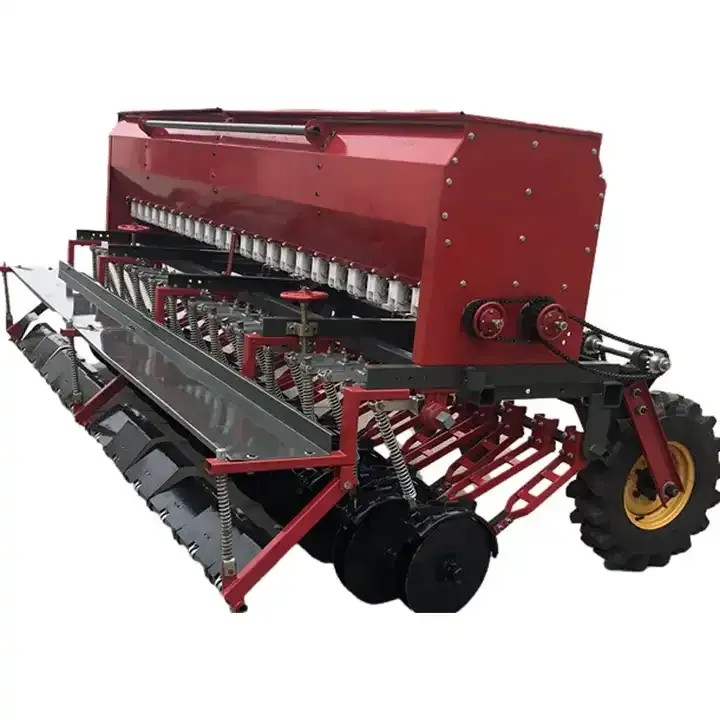

The wheat seeder no-tillage seed drill is a tractor-mounted device specifically designed to plant wheat and barley, although it can be adapted for other crops. This high-productivity seeder boasts 24 rows, making it perfect for large-scale farming operations. The row spacing is adjustable between 50-70cm, while plant spacing can be adjusted between 15-30cm, allowing for customization based on the specific crop and field conditions. The seeder weighs 1100 KG and has dimensions of 4000*3150*1500mm, making it a robust and durable piece of machinery. 1.2BXF series disc precision wheat planters are suitable for sowing (drilling) wheat in flat areas & hilly ground. 2.This kind of seeders is matched with small four-wheeled & middle horsepower tractor for working. Adopting three-points hanging, using hydraulic to do rising and falling, the seeds charging system is driven by ground wheel, which is quite convenience. 3.Light type double-disc opener can do furrow easily in the field where the corn straw are cut into pieces and returned to the field. 4. If the customer uses the seeder to work in the no-tillage field, the disc openers can be used instead of shovel-type furrows. 5. The sowing depth and sowing quantity can be adjusted. 6.This kind of seeders can do leveling ground, furrowing, sowing seeds, fertilizing, covering soil and make ridges at one time. 7.Disc openers adopt spring floating mechanism, which can avoid miss-seeding effectively because of suffocation of single disc opener. The spare parts of every model of 2BXF series seeders have strong generality and interchangeability.

Key Advantages:

Using a tractor trailed wheat seeder for drilling wheat offers several significant advantages, particularly when employing the no-tillage method. Here are some key benefits: 1. Soil Conservation: The no-tillage method used by tractor trailed wheat seeders is highly beneficial for soil conservation. By minimizing soil disturbance, these seeders help maintain the natural soil structure, which is crucial for long-term soil health. This approach reduces erosion, prevents the breakdown of soil aggregates, and preserves organic matter, leading to improved soil fertility and sustainability. 2. Water Retention: One of the significant benefits of using a no-tillage wheat seeder is enhanced water retention. Since the soil is not turned over, moisture is preserved within the soil profile. This is particularly advantageous in arid regions or during dry spells, as it ensures that the seeds have sufficient moisture to germinate and grow, ultimately leading to better crop yields. 3. Reduced Labor and Fuel Costs: Traditional tillage methods often require multiple passes over the field, which increases both fuel consumption and labor costs. In contrast, the no-tillage method employed by these seeders reduces the number of field passes needed. This efficiency translates into significant savings on fuel and labor, making the planting process more cost-effective and time-efficient. 4. Improved Soil Biodiversity: Minimal soil disturbance is a key advantage of no-tillage seeders, as it helps maintain the habitat for various soil organisms. These organisms play a vital role in soil fertility and structure. By preserving this biodiversity, farmers can enhance soil health, leading to more productive land over time and reducing the need for chemical inputs. 5. Enhanced Planting Precision: Modern wheat seeders are equipped with advanced features such as adjustable seeding rates and depth control. These technologies ensure that seeds are planted at the optimal depth and spacing, which is crucial for uniform germination and crop stands. This precision planting leads to better crop performance and higher yields. 6. Reduced Soil Compaction: With no-tillage seeders requiring fewer passes over the field, soil compaction is significantly reduced. Less compaction means better soil aeration and water infiltration, which are crucial for healthy root development. Improved root penetration leads to stronger and more resilient plants, ultimately enhancing overall crop health and productivity. 7. Flexibility in Planting Conditions: Tractor trailed wheat seeders are highly versatile and can operate effectively in various soil conditions, including fields with crop residues from previous harvests. This flexibility makes them suitable for different farming environments and crop rotations. Farmers can use these seeders in diverse conditions, ensuring consistent and reliable planting performance across different seasons and soil types.

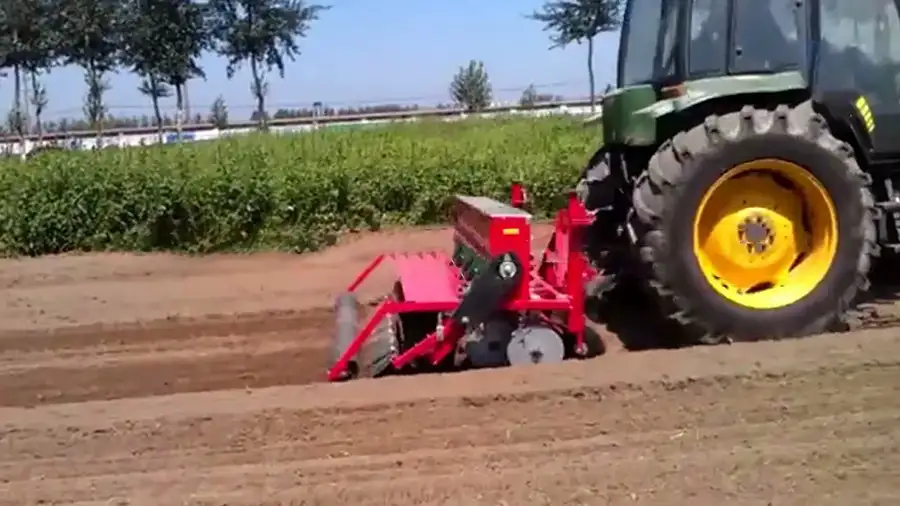

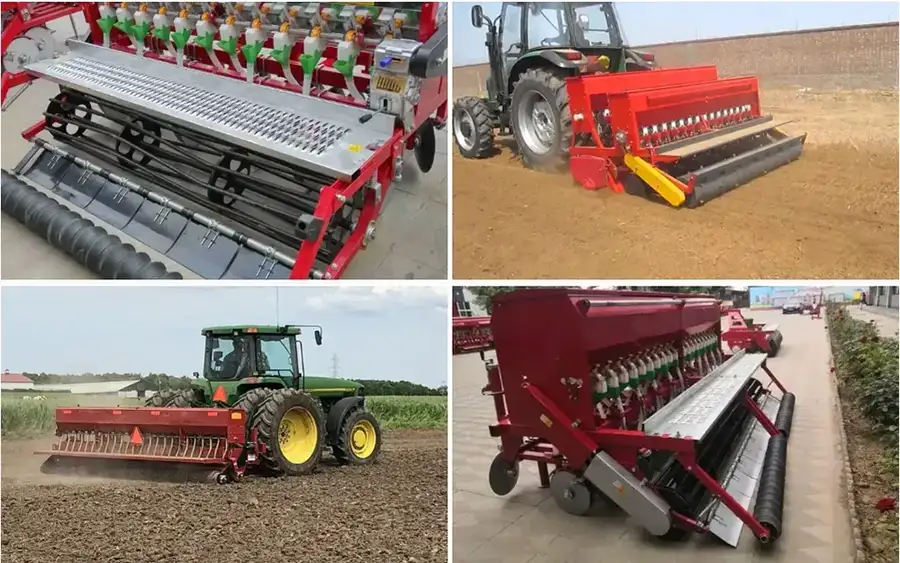

Common Applications of Wheat Planter Machine

The wheat planter machine, commonly known as a tractor trailed seeder, is a versatile agricultural implement designed for planting various types of seeds with high precision and efficiency. Here are the detailed applications of this machine for planting different crops: (1) Planting Wheat: The primary application of the wheat planter machine is for planting wheat. It ensures precise seed placement and depth, leading to uniform germination and optimal crop stands. The machine can handle large areas efficiently, making it ideal for commercial wheat farming. Its ability to work in no-tillage conditions conserves soil moisture and structure, enhancing wheat yields. (2) Planting Millet: Millet, being a small-seeded cereal, requires careful handling during planting. The wheat planter machine can be adjusted to accommodate the smaller seed size of millet, ensuring accurate seed distribution and planting depth. This precision helps in achieving uniform crop emergence and growth, which is crucial for maximizing millet production, especially in semi-arid regions where millet is commonly grown. (3) Planting Sorghum: Sorghum is another crop that can be effectively planted using the wheat planter machine. The machine’s adjustable settings allow for proper seed spacing and depth, which are essential for sorghum’s robust growth. Sorghum, being a drought-resistant crop, benefits from the no-tillage planting method as it helps retain soil moisture, thereby supporting better germination and early growth stages. (4) Planting Sesame: Sesame seeds are small and require precise planting to avoid wastage and ensure proper crop establishment. The wheat planter machine can be fine-tuned to handle sesame seeds efficiently. By providing consistent seed placement and optimal depth, the machine enhances sesame germination rates and uniformity, leading to better crop stands and increased yields. (5) Planting Barley: Barley can also be sown effectively using the wheat planter machine. The machine’s adjustable features cater to the specific needs of barley, such as seed spacing and planting depth. This precision planting helps in achieving uniform barley stands, essential for both grain production and forage. The no-tillage capability of the machine also benefits barley by preserving soil structure and moisture, which are crucial for its growth.

Working Principle:

The tractor mounted disc wheat seeder is a sophisticated agricultural implement designed to plant wheat efficiently and with high precision. Its working principle involves several key components and steps that ensure optimal seed placement and soil conditions for germination and growth. Here is a detailed description of its working principle: 1. Hitching to the Tractor: The seeder is mounted to the tractor using a three-point hitch system. This secure attachment allows the seeder to be lifted, lowered, and maneuvered effectively as the tractor moves through the field. 2. Seed Metering System: The seed metering system is crucial for controlling the flow of seeds from the hopper to the soil. It typically consists of a series of adjustable metering mechanisms that regulate the seed rate. This ensures that the seeds are dispensed uniformly and at the desired rate, which is essential for achieving uniform crop stands. 3. Disc Openers: The disc openers are one of the most important components of the seeder. These are circular, sharp-edged discs that cut through the soil to create narrow furrows or slots. The discs are mounted on individual arms that can adjust to varying soil conditions and contours, ensuring consistent furrow depth and width. 4. Seed Placement: As the discs create furrows, the seeds are directed from the seed hopper through delivery tubes into these furrows. The precision of this process ensures that seeds are placed at the correct depth and spacing, which is critical for uniform germination and growth. 5. Press Wheels: Following the seed placement, press wheels or closing wheels come into play. These wheels press the soil back over the seeds, ensuring good soil-to-seed contact. This contact is vital for moisture absorption and seed germination. The press wheels also help close the furrows, protecting the seeds from being exposed to the elements or eaten by birds. 6. No-Tillage Capability: The no-tillage feature of the disc wheat seeder allows it to plant seeds without the need for prior soil tillage. This means that the disc openers can cut through crop residues and undisturbed soil, placing the seeds directly into the ground. This method conserves soil moisture, reduces erosion, and preserves soil structure and organic matter. 7. Fertilizer Application (Optional): Some tractor mounted disc wheat seeders come equipped with integrated fertilizer application systems. These systems allow for the simultaneous placement of fertilizer with the seeds, ensuring that nutrients are available to the seedlings right from the start. This integrated approach can promote better root development and overall plant health.

Operation Tips:

Operating a tractor 3-point mounted disc wheat seeder effectively requires attention to detail and adherence to best practices to ensure optimal performance and crop yields. Here are some operation tips to help you get the best results: (1) Pre-Operation Inspection: Before starting, conduct a thorough inspection of the seeder. Check for any worn or damaged parts, ensure all bolts and nuts are tightened, and verify that the disc openers, seed metering system, and press wheels are in good condition. Lubricate moving parts as needed. (2) Proper Hitching: Securely attach the seeder to the tractor using the three-point hitch system. Ensure that the seeder is level and properly aligned with the tractor to maintain consistent seeding depth and spacing. Adjust the top link of the hitch to achieve the correct angle for the disc openers. (3) Calibrate the Seed Metering System: Calibrate the seed metering system to dispense seeds at the desired rate. This involves setting the metering mechanism according to the seed size and the recommended seeding rate for your specific crop. Conduct a test run on a small section of the field to verify the calibration before proceeding. (4) Adjust the Disc Openers: Set the depth of the disc openers according to the optimal planting depth for wheat. This is typically around 1 to 1.5 inches (2.5 to 3.8 cm), but it can vary based on soil conditions and seed size. Ensure that all disc openers are set to the same depth to achieve uniform seed placement. (5) Check Soil Conditions: Ideal soil conditions for seeding are moist but not waterlogged, and free of large clods or debris. Avoid seeding in excessively dry or compacted soil, as this can hinder seed-to-soil contact and germination. If necessary, prepare the soil with light tillage or residue management to create a suitable seedbed. (6) Monitor Seed Hopper Levels: Keep an eye on the seed hopper levels to ensure a continuous supply of seeds during operation. Refill the hopper as needed to prevent interruptions and ensure even seeding across the entire field. (7) Maintain Consistent Speed: Operate the tractor at a consistent speed to ensure uniform seed distribution. Sudden changes in speed can result in uneven seed placement and inconsistent crop stands. Refer to the seeder’s manual for the recommended operating speed, typically around 4-6 mph (6.4-9.7 km/h). (8) Regularly Check for Blockages: Periodically stop and inspect the seed delivery tubes and disc openers for blockages. Clear any obstructions promptly to ensure continuous and even seed flow. Blockages can lead to skipped rows or uneven seeding.

Choosing the Right Tractor Mounted Disc Wheat Planter for Planting Wheat

Choosing the right tractor mounted disc wheat planter is critical for ensuring efficient and effective planting, leading to optimal wheat yields. Here are several factors to consider when selecting the appropriate planter for your needs:

1. Field Size and Type

• Field Size: The size of your field will influence the width and capacity of the planter you need. Larger fields may benefit from wider planters that can cover more ground quickly.
• Field Type: Consider the terrain and soil conditions of your field. Some planters are better suited for hilly or uneven terrain, while others are designed for flat fields.

2. Planter Width and Number of Rows

• Planter Width: Choose a planter width that matches the size of your tractor and the row spacing requirements of your crop. Wider planters can increase efficiency but require more powerful tractors.
• Number of Rows: Ensure the planter has the appropriate number of rows for your field layout and planting strategy. Common configurations range from 4 to 12 rows or more.

3. Seed Metering System

• Accuracy: A precise seed metering system is crucial for uniform seed distribution and optimal plant stands. Look for planters with adjustable and reliable metering mechanisms.
• Adjustability: The ability to adjust the seed rate and handle different seed sizes is important for versatility and precision.

4. Disc Openers

• Type of Discs: Disc openers should be sharp and durable to cut through soil and residue effectively. Look for high-quality, replaceable discs that can handle various soil conditions.
• Adjustability: Ensure the disc openers can be adjusted for different planting depths to suit your specific crop requirements.

5. Press Wheels

• Functionality: Press wheels should provide good soil-to-seed contact and properly close the furrow. Check for adjustable pressure settings to cater to different soil types.
• Durability: Ensure the press wheels are made from durable materials to withstand prolonged use and various soil conditions.

6. No-Tillage Capability

• Residue Management: If you plan to use no-tillage practices, ensure the planter can handle crop residues without clogging. This feature helps preserve soil structure and moisture.
• Soil Health: No-tillage planters help maintain soil health by minimizing disturbance, which can be beneficial for long-term soil fertility and structure.

7. Fertilizer Application (Optional)

• Integrated Systems: Some planters come with integrated fertilizer application systems. This feature can save time and ensure that seeds have immediate access to nutrients.
• Adjustable Rates: Look for planters that allow you to adjust the fertilizer application rate to match the specific needs of your crop and soil conditions.

8. Compatibility with Tractor

• Horsepower Requirements: Ensure your tractor has sufficient horsepower to handle the width and weight of the planter, especially in challenging field conditions.
• Three-Point Hitch Compatibility: Verify that the planter is compatible with your tractor’s three-point hitch system for secure and stable attachment.

Why Choose Raydafon's Wheat Seeders?

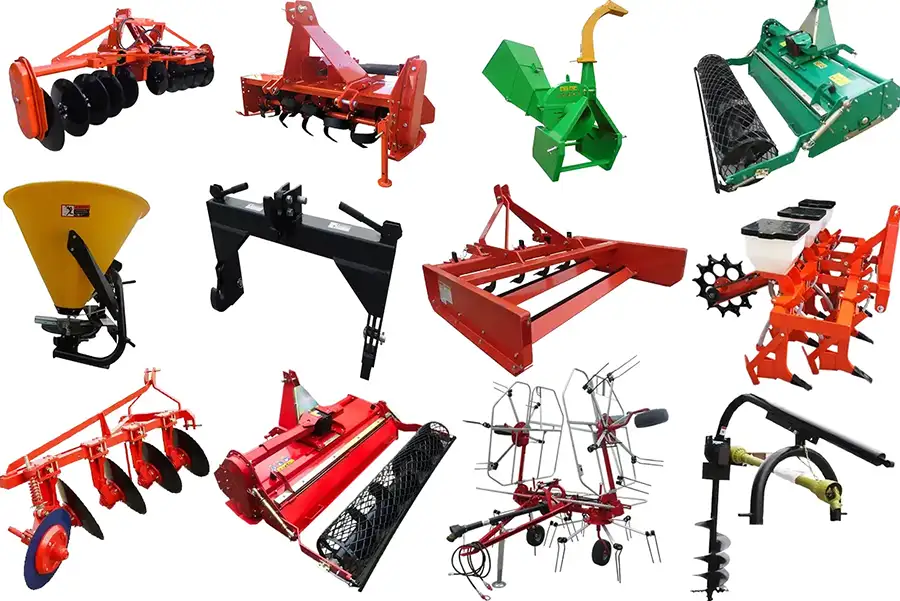

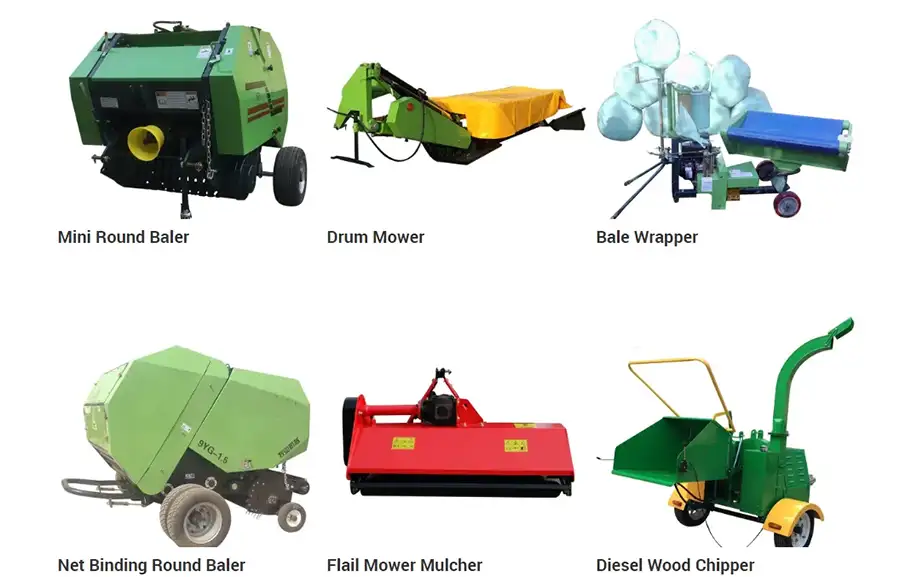

Raydafon's commitment to excellence in the wheat seeder industry is evident through our rigorous quality control processes and adherence to international standards. We offer customized solutions to cater to specific agricultural needs, backed by our advanced production facilities and comprehensive after-sales service. Our extensive product range, which includes PTO shafts, agricultural gearboxes, large round balers, mini round balers, hay square balers, PTO wood chippers, diesel wood chippers, drum mowers, disc mowers, rotary hay rakes, fertilizer spreaders, lawn mowers, sickle bar mowers, rotary mowers, flail mowers, rotary tillers, land levelers, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvesters, corn seeders, vegetable seeders, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, finger wheel rake, snow blower, road sweeper, and more, highlights our versatility and expertise in the agricultural sector. Our professional approach, coupled with our international certifications, ensures that we remain a trusted and influential player in the global market, delivering unparalleled value and support to our customers. Author: Yjx
