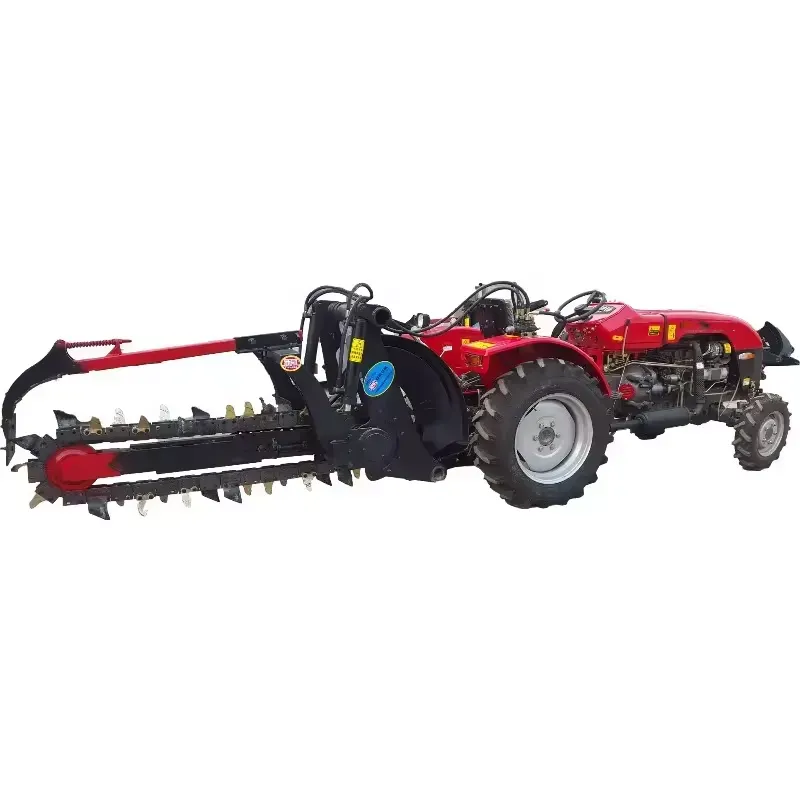

China trencher digger machine for sale

Discover the power and versatility of our China trencher digger machine for sale, designed for high productivity and exceptional performance in agricultural trenching operations. Equipped with a single chain trencher and a gearbox as its core component, this machinery is perfect for farms and other agricultural industries. With a weight of 800 KG and a trenching width and depth of 15-20 cm and 1.5 m respectively, this machine is built to withstand demanding tasks. It's powered by a 50-80hp engine and utilizes robust 65Mn Spring steel or carbide blades for trenching.

Advantages of China Trencher Digger Machine

This trencher digger machine offers numerous advantages that make it a valuable addition to your agricultural equipment arsenal:

• High Productivity: The machine is designed for efficient and fast trenching, contributing to increased farm productivity.
• 1-Year Warranty: Comes with a one-year warranty, ensuring you're covered in case of any technical issues or faults.
• Robust Components: The core components, including the gearbox, are durable and reliable, designed for long-term use.
• Versatile Use: Perfect for various agricultural trenching operations, from irrigation systems to land drainage.
• Powerful Performance: The 50-80hp engine ensures powerful performance even in demanding conditions.
• User-friendly: Easy to operate, reducing the learning curve for new users.

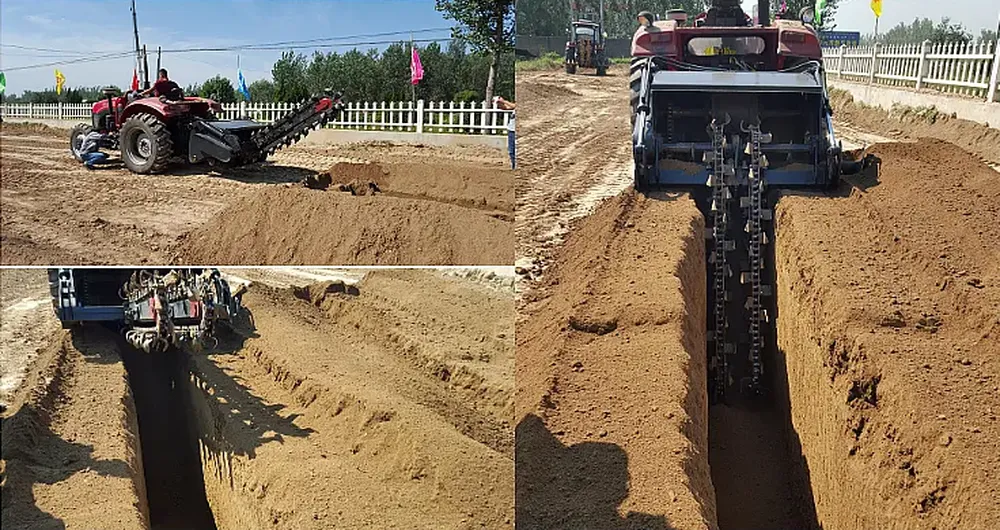

Applications of China Trencher Digger Machine

This trencher digger machine is versatile and can be used in a wide range of applications:

• Irrigation Systems: Perfect for digging trenches for irrigation pipes in agricultural fields.
• Land Drainage: Useful for creating drainage systems to prevent waterlogging in farms.
• Installation of Underground Utilities: Ideal for installing underground utilities like cables and pipes.

• Soil Preparation: Can be used for preparing soil for planting, especially in large-scale farming.
• Construction: Applicable for construction purposes that require trench digging, such as foundation laying.
• Landscaping: Useful for landscaping tasks like creating garden paths and installing outdoor lighting.

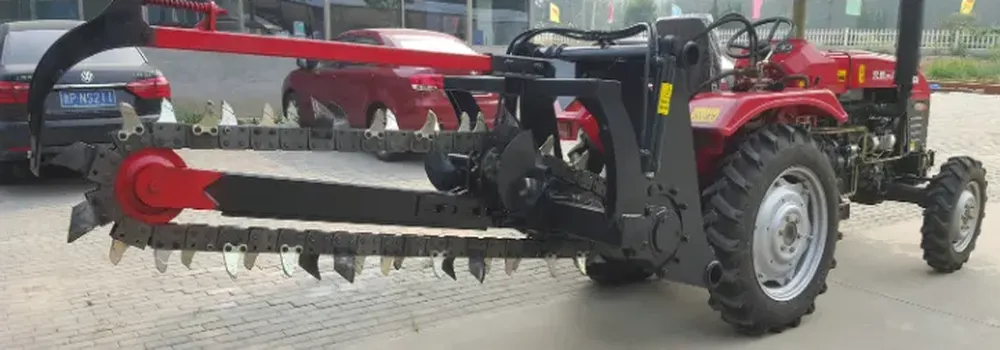

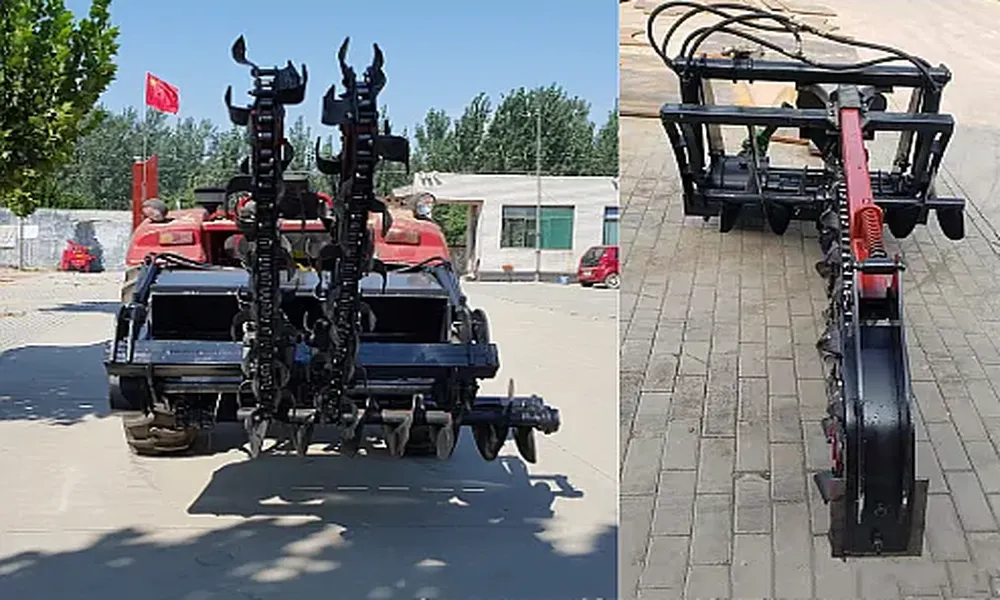

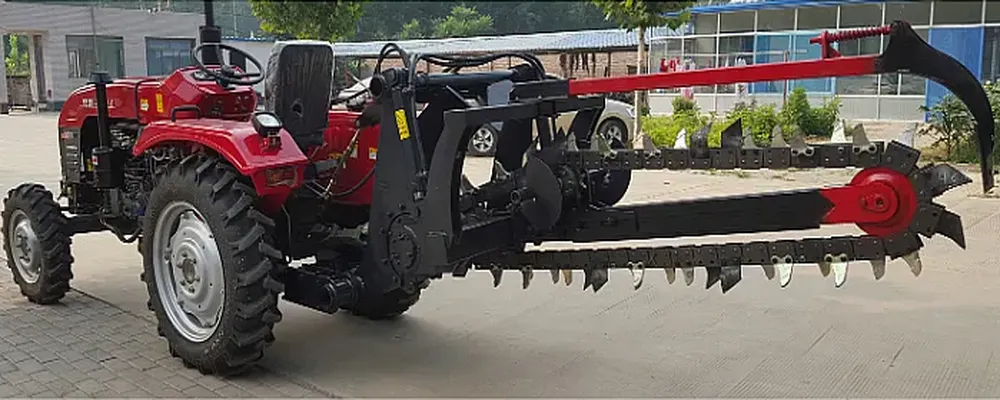

Key Components of the Tractor 3 Point Mounted Chain Trencher

The tractor 3-point mounted chain trencher is a versatile and powerful tool for digging precise trenches. Its design allows it to be attached to and powered by a tractor, leveraging the tractor's power for trenching operations. Understanding the key components of this equipment can help users operate it more efficiently and maintain it properly. Here are the essential parts of a 3-point mounted chain trencher:

1. Three-Point Hitch: Allows the trencher to be attached to the tractor. The three-point hitch is a standard type of linkage system used on tractors to attach implements in a flexible manner. Typically includes two lower arms and one upper arm (the top link), which connect to corresponding points on the trencher.
2. Power Take-Off (PTO) Shaft: Transfers mechanical power from the tractor to the trencher. The PTO shaft is crucial for driving the trencher's chain mechanism. Comes with a protective shield to prevent accidents and ensure safety during operation.
3. Chain with Digging Teeth: The primary digging component, this chain rotates around a metal frame or boom, equipped with teeth that cut through the soil. The teeth can vary in design to suit different soil types and trenching requirements.
4. Boom: Supports the chain and determines the depth of the trench. The boom length can often be adjusted to change the trench depth. Some trenchers allow for boom angle adjustments to control the slope of the trench bottom.
5. Drive System: Includes a gearbox and possibly a hydraulic motor, depending on the trencher model. This system translates the power from the PTO shaft to the movement of the chain. Ensures efficient power transfer and controls the speed of the chain rotation.
6. Soil Ejection System: Removes excavated soil from the trench path. This system often consists of a conveyor or auger mechanism, though simpler models may rely on the design of the chain and teeth to throw soil to the side. Optimized to minimize the amount of soil falling back into the trench.

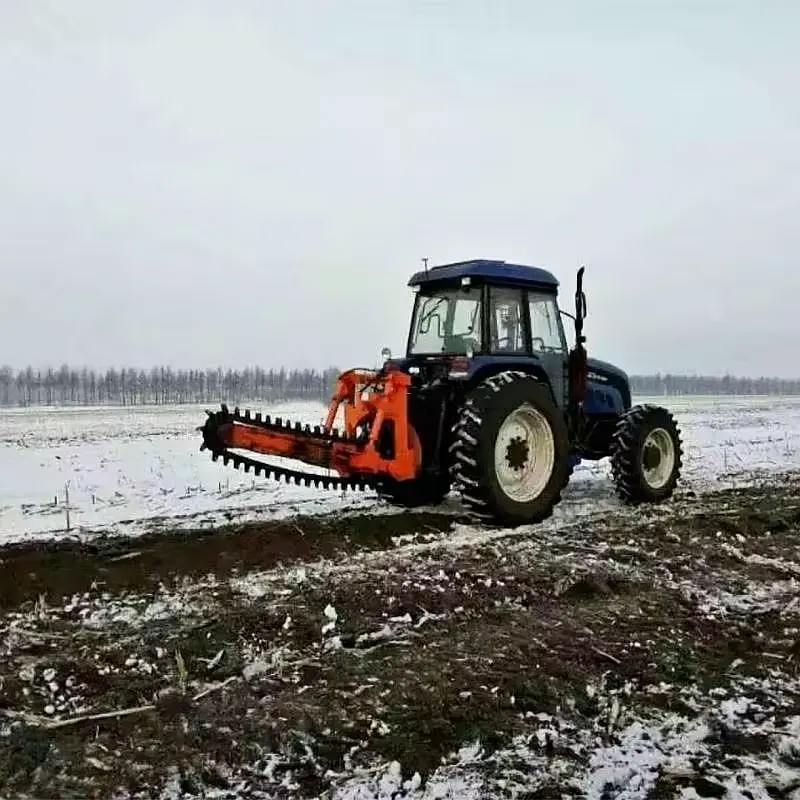

How Does the Tractor 3 Point Mounted Chain Trencher Work?

The tractor 3-point mounted chain trencher works through a combination of tractor power and specialized trenching equipment design. It utilizes the tractor's power take-off (PTO) system and is mounted to the tractor's three-point hitch, enabling it to dig trenches efficiently. Here??s a step-by-step breakdown of how it operates:

1. Attachment and Power Source: The trencher is attached to the tractor via the three-point hitch, a standard linkage system on the rear of the tractor that provides a secure and adjustable means of attachment for various implements. Once PTO mounted, the trencher is powered by the tractor??s PTO shaft. The PTO is a splined drive shaft that extends from the tractor and provides a method for transferring power from the tractor??s engine to the trencher.
2. Chain and Boom Operation: When the PTO is engaged, it drives the trencher's chain mechanism. The trencher??s chain is looped around a metal boom and is equipped with cutting teeth. As the chain rotates around the boom, the teeth cut into the soil, breaking it up and removing it from the trench path. The design of the teeth and their arrangement on the chain are critical for efficient cutting and soil removal.
3. Depth Control: The depth of the trench is controlled by the length of the boom and the adjustment mechanism on the trencher. This can be set manually or through a hydraulic system, depending on the trencher model. Adjusting the depth ensures that the trench reaches the required depth for its intended purpose, such as laying cables or pipes.

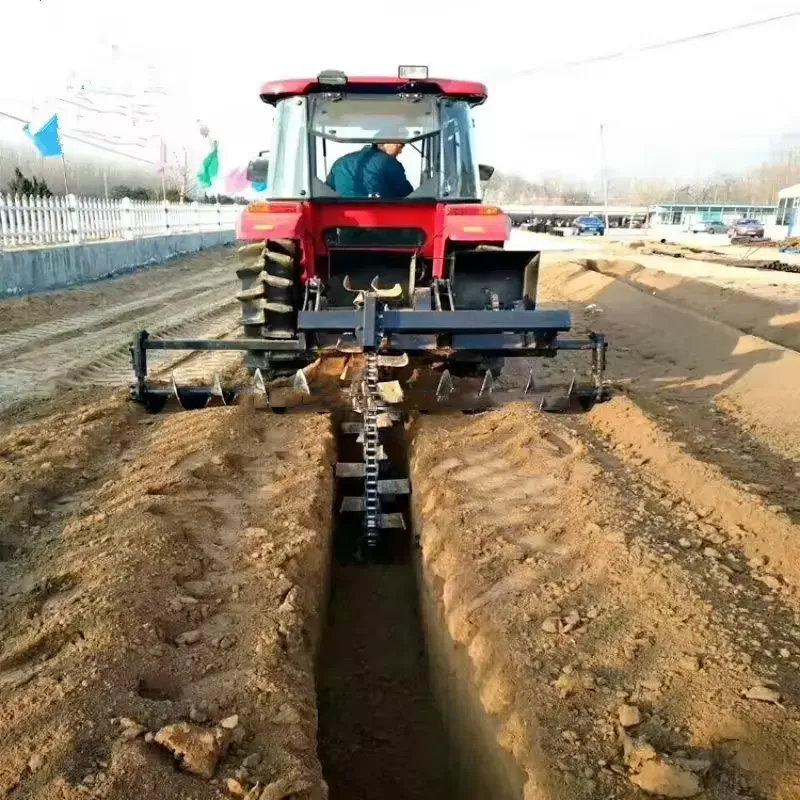

4. Movement and Trench Formation: As the tractor moves forward, the rotating chain digs a continuous trench in the soil. The speed of the tractor??s movement and the PTO rotation speed are factors that can affect the quality and uniformity of the trench. The design of the trencher allows for the excavated soil to be ejected to one side of the trench, creating a clean path for whatever is being installed in the trench, such as irrigation piping or electrical cables.

How to Install the 3 Point Mounted Chain Trencher to Tractor

Installing a 3-point mounted chain trencher to a tractor involves several steps to ensure a secure and proper connection. This process requires attention to detail and adherence to safety guidelines. The following steps provide a general overview of how to attach a chain trencher to a tractor using the three-point hitch system. Remember, it's essential to consult the operator's manual for both your tractor and the trencher for any specific instructions or precautions.

1. Read Manuals: Start by thoroughly reading the operator's manuals for both the tractor and the trencher. Familiarize yourself with any specific mounting instructions and safety precautions. Check the tractor and trencher for any signs of wear or damage. Ensure that all parts, especially the PTO shaft, are in good condition.
2. Positioning the Tractor and Trencher: Position the tractor close to the trencher so that the three-point hitch arms of the tractor are near the trencher's mounting points. Ensure that the trencher is stable and securely positioned on the ground. It may help to have an assistant guide you during the alignment and attachment process.
3. Attaching the Trencher: Use the tractor's controls to lower the three-point hitch to a height that aligns with the trencher's mounting brackets. Attach the lower arms of the three-point hitch to the corresponding mounts on the trencher. Secure them with the locking pins provided. Connect the top link between the tractor and the trencher. Adjust the length of the top link to level the trencher as needed for operation. Double-check that all pins and clips are securely in place to prevent accidental detachment.
4. Connecting the PTO Shaft: Align the PTO shaft on the trencher with the PTO stub on the tractor. Slide the PTO shaft onto the tractor's PTO stub. Ensure that the locking pin snaps into place, securing the shaft. Verify that the PTO guard is correctly positioned and secure, covering the shaft to prevent entanglement.
5. Final Checks: Walk around the tractor and trencher to make a final inspection. Ensure everything is correctly attached and secure. Before starting your trenching work, test the attachment in a safe, clear area to ensure it operates as expected.

Common Troubleshooting of the Tractor 3-Point Mounted Chain Trencher

Troubleshooting a tractor 3-point mounted chain trencher involves identifying and resolving common issues that may arise during its operation. Proper maintenance and handling can prevent many problems, but when issues do occur, knowing how to address them is crucial. Here are some common troubleshooting tips for dealing with typical trencher problems:

1. Trencher Won't Start or Operate: Ensure the PTO shaft is properly connected to both the tractor and the trencher. A loose or incorrect connection can prevent operation. For models with hydraulic adjustments, check the hydraulic fluid levels and look for leaks in the lines.
2. Trencher Chain Doesn??t Move: Verify that the tractor's PTO is engaged and the tractor is running at the correct RPM. An overly tight or loose chain can hinder movement. Adjust the chain tension according to the manufacturer's specifications. Debris or rocks stuck in the chain can prevent movement. Turn off the trencher and tractor, and carefully remove any blockages.
3. Inefficient Trenching or Poor Trench Quality: Inspect the chain for worn or missing teeth. Replace them as needed to maintain effective trenching. Ensure the trench depth is correctly set for the soil conditions and the task at hand. Adjust as necessary. Moving too fast or too slow can affect trench quality. Adjust the tractor's speed to match the soil conditions and trencher capacity.
4. Trencher Vibrates Excessively: Check if the chain is evenly tensioned and not missing any teeth, which can cause imbalance. Inspect the trencher for any loose parts or connections that could be causing instability. Tighten as necessary. Components in the drive system may be worn or damaged, requiring inspection and repair.
5. Excessive Wear on Chain or Teeth: Hard, rocky, or abrasive soil can increase wear. Consider using teeth and chains designed for specific soil types. Incorrect chain tension can lead to increased wear. Adjust according to the manufacturer's guidelines. Adjust your speed based on soil conditions; moving too quickly in tough conditions can increase wear.

Why Choose Raydafon's Tractor Mounted Chain Trencher?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery. Our main products are PTO shafts, agricultural gearboxes, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, corn seeder, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, log splitter, front end loader, backhoe, snow blower, road sweeper, etc.

The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. We pride ourselves in our professionalism, international certifications, customized services, state-of-the-art production facilities, and exceptional after-sales services. With Raydafon, you are guaranteed top-quality agricultural machinery that boosts productivity and efficiency in your farming operations.

Watch our China trencher digger machine in action:
