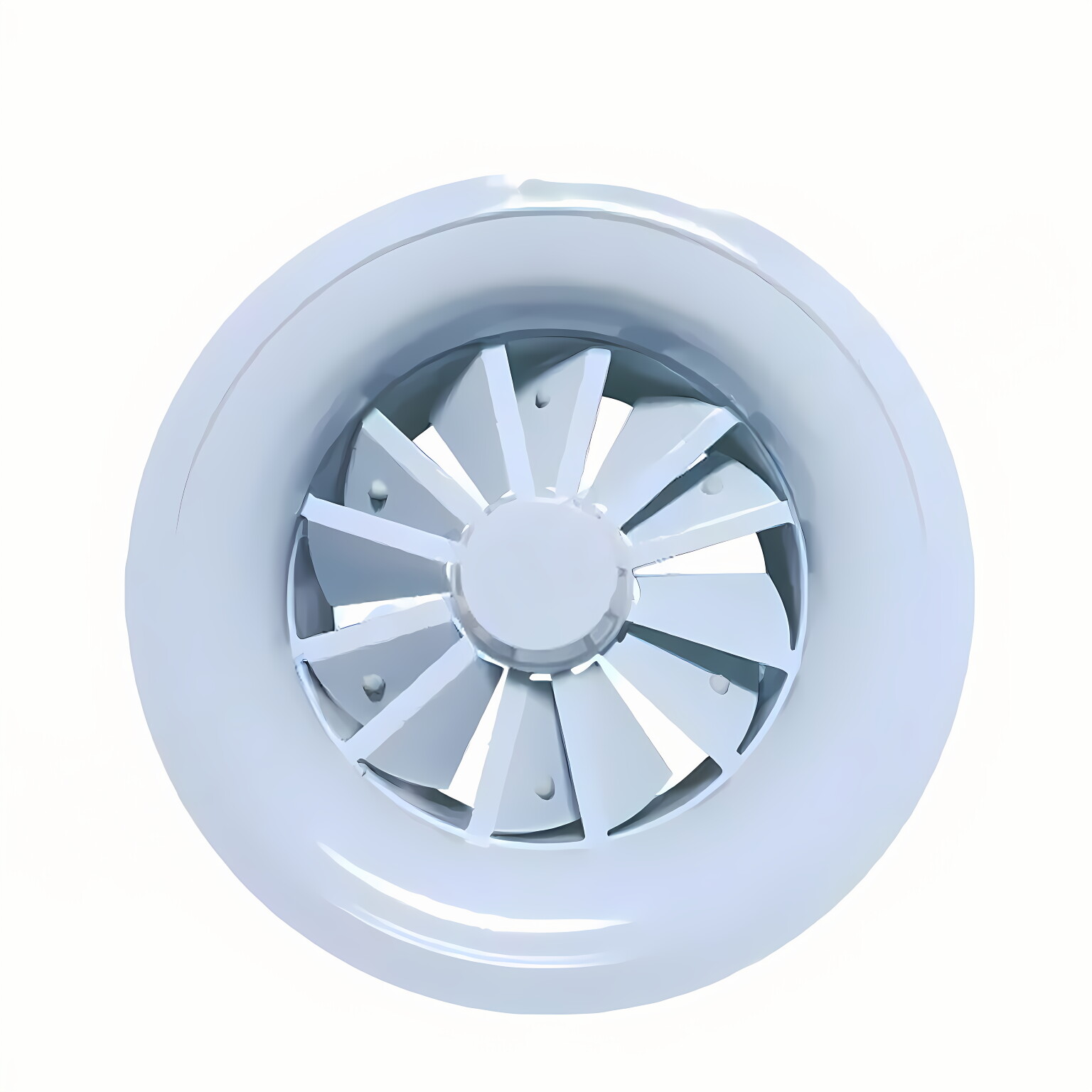

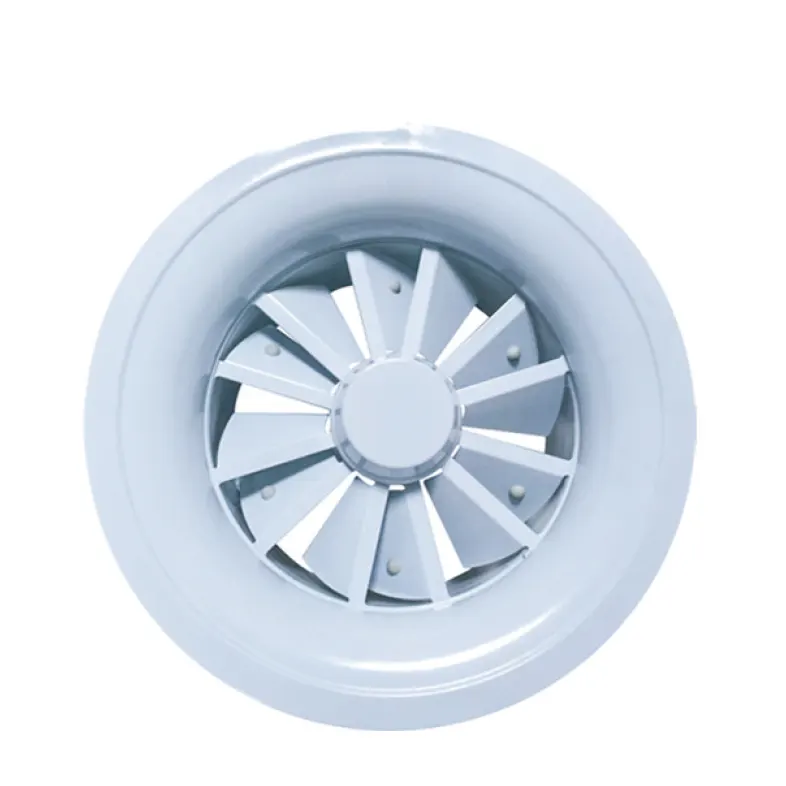

Circular Diffuser

Circular Diffuser

The Circular Diffuser plays a pivotal role in contemporary HVAC systems, engineered to provide efficient and uniform air distribution throughout any space. This advanced device significantly improves indoor air quality and comfort by enabling precise control of airflow. Its elegant design and versatile applications make it ideal for a variety of settings, including both residential and commercial environments.Recognized as a key element for effective air distribution, the Circular Diffuser offers several advantages. Its ability to deliver consistent airflow, coupled with adjustable settings and robust construction, makes it a superior choice for enhancing both comfort and air quality. By integrating a circular diffuser into your HVAC system, you create a more pleasant indoor environment while maximizing energy efficiency. Discover the advantages of improved airflow and elevate your space today!

Circular Diffuser Parameter:

Contact Us For Detailed Dimensions

Key Characteristics of Circular Diffuser:

1. Select the Location

Identify the most effective location for the diffuser to maximize airflow efficiency. Consider areas that typically experience temperature fluctuations or insufficient air distribution. Ideal spots include:

• Central Locations: Position the diffuser in the center of the room for uniform air distribution.
• Near Heat Sources: Place it close to heat-generating appliances to counteract excess warmth.
• High-Traffic Areas: Ensure common areas, like living rooms or conference rooms, receive adequate airflow for comfort.

2. Prepare the Ductwork

Before installation, thoroughly inspect and prepare the ductwork:

• Clean the Ducts: Remove any dust, debris, or blockages to ensure optimal airflow.
• Check for Leaks: Inspect for any existing leaks that might impact performance. Seal any gaps with duct tape or mastic.
• Measure Accurately: Use a measuring tape to mark the exact dimensions where the diffuser will be installed, ensuring alignment with the ductwork for a snug fit.

3. Cut the Opening

Once the location is chosen and the ductwork prepared:

• Use the Right Tools: Equip yourself with a drywall saw or utility knife to create a precise opening.
• Follow Safety Protocols: Wear safety goggles and a mask to protect yourself from dust and debris.
• Create the Opening: Cut an opening in the ceiling or wall that matches the size of the circular diffuser, ensuring clean edges for easy installation.

4. Attach the Diffuser

With the opening prepared, it’s time to secure the diffuser:

• Align the Diffuser: Position the circular diffuser over the cut opening, aligning it with the ductwork.
• Follow Manufacturer’s Instructions: Adhere to the specific guidelines provided by the manufacturer for securing the diffuser.
• Ensure Tight Connections: Use screws or clips to secure the diffuser firmly, making sure all connections are tight to prevent air leaks, which can reduce efficiency.

5. Adjust the Airflow

After installation, fine-tuning the airflow is essential for comfort:

• Modify the Vanes: Adjust the adjustable vanes on the diffuser to direct airflow toward desired areas. This customization enhances comfort based on room usage.
• Test the Airflow: Turn on the HVAC system and check the airflow. Make further adjustments to the vanes as necessary to achieve an even distribution.
• Monitor Performance: Over the following days, observe the temperature and airflow in the room. Make additional adjustments if necessary to ensure consistent comfort.

Conclusion

Installing a Circular Diffuser properly involves careful planning and execution. By selecting the right location, preparing the ductwork, making precise cuts, securely attaching the diffuser, and adjusting the airflow, you can significantly enhance air distribution and comfort in any space. This attention to detail ensures that the diffuser operates at peak efficiency, providing a pleasant indoor environment for all occupants.

Usage Method of Circular Diffuser:

Installation Steps

1. Select the Location:Choose the optimal position for the diffuser to ensure adequate airflow. Focus on areas that need enhanced air distribution for maximum comfort.
2. Prepare the Ductwork:Inspect the ductwork to confirm it is clean and free from obstructions. Accurately measure and mark the installation area for the diffuser.
3. Cut the Opening:Using the appropriate tools, create an opening in the ceiling or wall that matches the dimensions of the circular diffuser.
4. Attach the Diffuser:Secure the circular diffuser to the ductwork according to the manufacturer's instructions. Ensure all connections are tight to prevent air leaks.
5. Adjust the Airflow:Once installed, adjust the vanes to direct the airflow as needed, optimizing comfort throughout the space.

Operational Use

The Circular Diffuser efficiently draws air from the HVAC system and distributes it evenly across the room. Users can easily adjust both the direction and volume of airflow, making it adaptable for various spaces and preferences. This flexibility is especially valuable in larger areas, where maintaining consistent temperature control is essential for overall comfort.

Circular Diffuser Application:

The Circular Diffuser is a versatile component widely used in various settings to enhance air distribution and improve indoor comfort. Its design and functionality make it suitable for multiple applications. Here’s a closer look at where and how circular diffusers are effectively employed:

1. Residential Applications

• Living Rooms: Ensures even airflow, preventing temperature inconsistencies and enhancing comfort for family gatherings.
• Bedrooms: Provides tailored airflow for a restful sleep environment, allowing for customized temperature settings.
• Kitchens: Helps dissipate heat and cooking odors, maintaining a pleasant cooking atmosphere.

2. Commercial Spaces

• Offices: Distributes air uniformly in open-plan offices, promoting employee productivity and comfort.
• Conference Rooms: Delivers focused airflow to maintain a comfortable meeting environment, ensuring optimal concentration.
• Retail Stores: Enhances customer experience by regulating temperature and air quality, making shopping more enjoyable.

3. Industrial Environments

• Manufacturing Facilities: Maintains air circulation in production areas, contributing to a safer and more comfortable working environment.
• Warehouses: Provides consistent ventilation, preventing heat buildup and ensuring a more pleasant atmosphere for workers.

4. Healthcare Facilities

• Hospitals: Delivers clean, filtered air to patient rooms and surgical areas, crucial for maintaining a sterile and safe environment.
• Clinics: Improves air quality in waiting and treatment areas, enhancing patient comfort and satisfaction.

5. Educational Institutions

• Classrooms: Ensures optimal ventilation and temperature regulation, fostering a conducive learning environment for students.
• Auditoriums: Maintains comfortable airflow during lectures and events, enhancing the overall experience for both speakers and audiences.

6. Data Centers

• Cooling Solutions: Plays a critical role in managing the temperature of servers and equipment, preventing overheating and ensuring reliable performance.

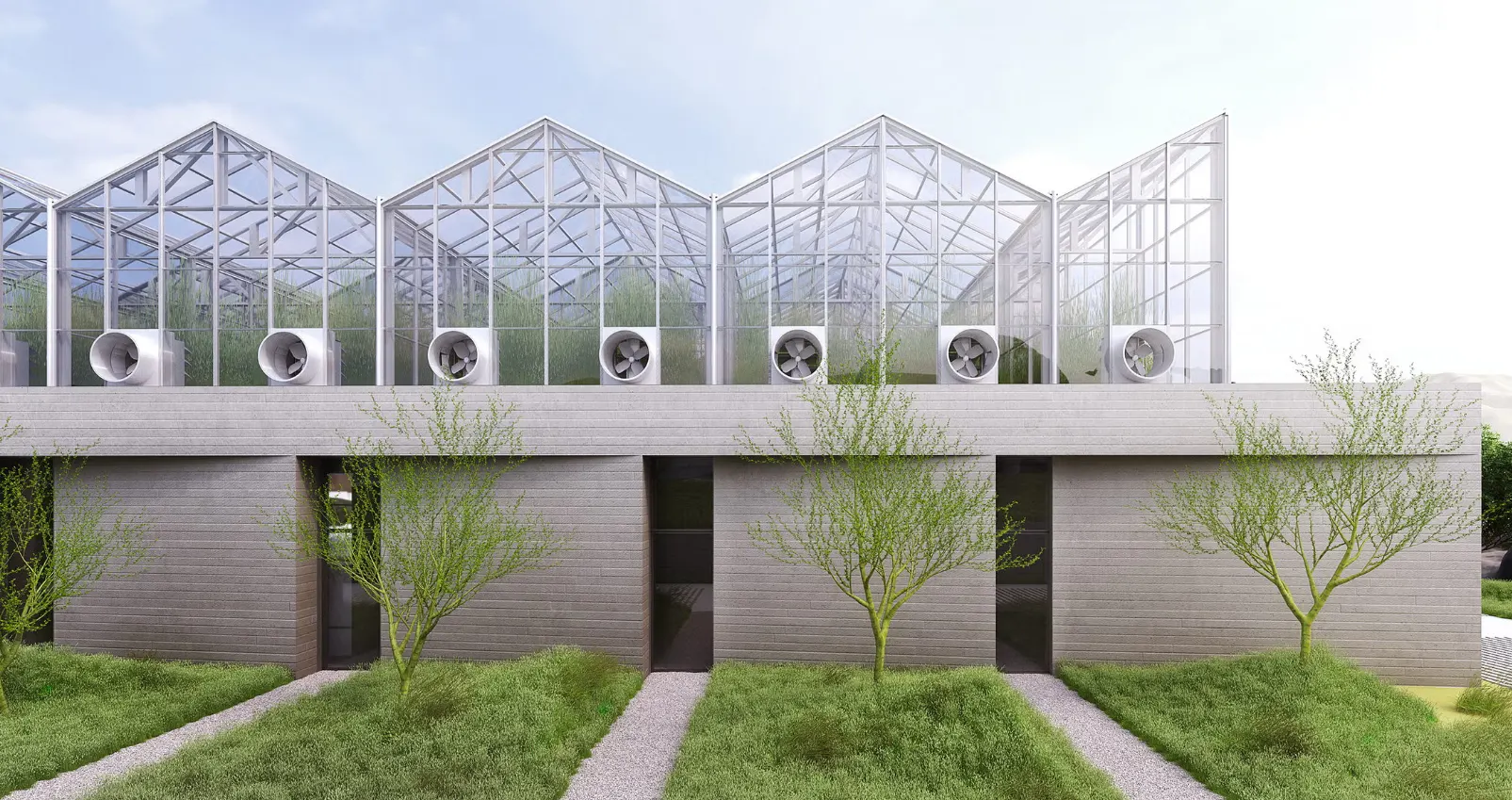

7. Agricultural Applications

• Greenhouses: Regulates humidity and temperature levels, promoting healthy plant growth and maximizing agricultural yield.

Fans Type:

General centrifugal fans can be divided into low pressure (P≤1000Pa), medium pressure (P=1000-5000Pa), and high pressure (P=5000-30000Pa) according to the pressure. Low-pressure fans are generally 4-72, 4-73, 4-68, 4-79, and other backward blade series. Medium pressure fans are generally 5-51, 6-30, 6-41, 6-51, and other series; High pressure is generally 9-19, 9-26, 9-12, and 8-09 series. The low-pressure fan blades are mostly backward inclined blades, generally about 45 degrees. The outlet Angle of medium pressure fan is larger than that of low pressure fan. It is generally about 50 degrees, and the blades of the high-pressure fan are generally tilted forward less than 90 degrees. The advantages of medium and low-pressure fans are large flow, low noise value, not easy to overload, relatively stable operation, and use in general ventilation. High-pressure fans are used to supply forced air.From the direction of the drive side (motor), the counterclockwise rotation is left, and the clockwise rotation is right.The Angle is generally divided into 0 degrees, 45 degrees, 90 degrees, 135 degrees, 180 degrees, 225 degrees, and 270 degrees.

Type A Direct Transmission:

Type D Direct Transmission:

Type C Belt Transmission:

Type E Belt Transmission:

Type E Direct Transmission:

Low Pressure Fans:

Low-pressure fan series are 4-72 series, 4-73 series, and 4-79 series. Generally used for indoor ventilation in general factories and large buildings, it can be used as input gas, it can also be used as output gas, it can also be used as output gas, it can also be used for forced ventilation of boilers, forging furnaces, etc.It is characterized by smooth operation, tight structure, low noise, flexible use, small footprint, high efficiency, and good performance in conveying air and other unnatural, harmless to the human body and non-corrosive gases.Low-pressure fans are mostly used in garage air supply and exhaust systems, civil air defense ventilation systems, textile exhausts, grain warehouse dry exhausts, and other total air supply and exhaust systems.

Medium Pressure Fans:

The basic models of medium-pressure fans are 5-51 series, 6-51 series, 5-47/5-48 series, and 6-41 series. These models' air volume and pressure are lower than those of the low-pressure series. Good aerodynamic performance, high efficiency, low noise, smooth operation.G, Y6-51 type boiler feed fan is mainly used for 2~670t/h steam in thermal power plants.The air supply system of the boiler also meets the requirements of the performance parameters of the high-pressure head of the fluidized bed furnace. changeSeries fans can also be used for dust removal, mine ventilation, and general ventilation systems.The blower transports air, and the induced draft fan transports gas containing impurity particles.When the impurity concentration is less than 200mg/m³, it can be used for over 4 years. If the dust content is too large, the blade should be treated with wear-resistant treatment to extend its service life. G series fans are generally normal temperature; The maximum temperature of Y series induced draft fan shall not exceed 250℃. If more than 250℃. The impeller material should be changed.

High Pressure Fans:
