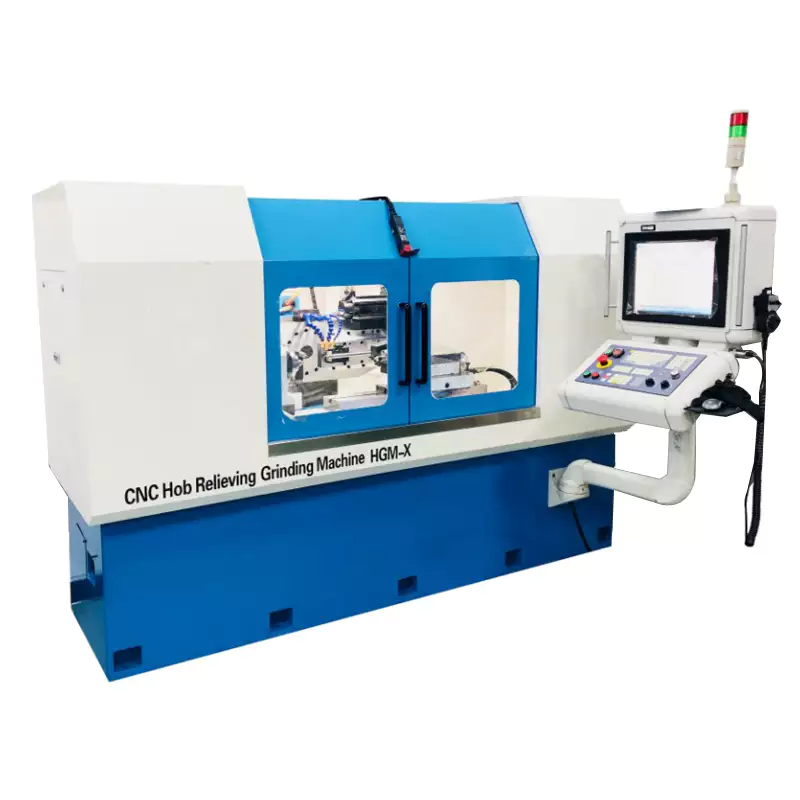

CNC Hob Relieving Grinder Machine

Introduction to the CNC Hob-Relieving Grinder Machine

The CNC Hob Relieving Grinding Machine integrates the cutting-edge LYNUC G-Speed U5E system, enabling advanced five/four-axis triaxial control. This state-of-the-art control system ensures precision and efficiency in the grinding process. The machine utilizes linear motors paired with direct linear encoders for its linear axes, ensuring high accuracy and smooth motion. Additionally, the indexing head is driven by an imported high-stability direct-drive torque motor assembly, achieving a fully closed-loop control. This configuration simplifies the transmission system by combining the torque motor with linear motors, featuring electronic cam and gear functions. This not only guarantees machining accuracy but also maintains grinding speed.Diamond dressing wheels, complemented by dual-axis interpolation and our independently developed GPM dressing software, enable online dressing of the grinding wheel to precisely shape various tooth profiles. In particular, the HGM-L model's X-axis employs a design that combines high-strength, high-rigidity ball screws with encoders for closed-loop control, enhancing both precision and rigidity.This machine exemplifies the fusion of advanced technology and engineering, designed to meet the demanding needs of modern gear grinding. Its capabilities ensure high precision and speed, making it a valuable asset for industries requiring the utmost in machining accuracy and efficiency.Designed for those who demand the best in machining precision and reliability, Raydafon CNC Hob Relieving Grinding Machine is built to exceed expectations. It represents our commitment to excellence in quality, matched with competitive pricing to provide exceptional value to our customers. We invite inquiries from all interested parties and look forward to serving your machining needs with our top-tier products. Trust Raydafon for your gear grinding solutions and experience the difference that high-quality equipment makes.

CNC Hob Relieving Grinder Machine Technical Specifications

CNC Hob Relieving Grinding Machine Key Features

• Five/four-axis three-linkage control system for optimal grinding performance.
• Linear motor and straight grating configuration for precise linear axis movement.
• Imported high-stability direct-drive torque motor assembly for indexing head, ensuring a fully closed-loop control.
• Simplified transmission system with torque motors and linear motors, featuring electronic cam and electronic gear functions.
• Diamond roller with biaxial interpolation capability for online dressing of various tooth profiles of the grinding wheel.
• Closed-loop control design for the X-axis, combining high-strength and high-rigidity screw rods with gratings.

CNC Hob Relieving Grinder Machine Applications

The Hob Relieving Grinder Machine is suitable for a wide range of gear hobbing operations, including:

• High-speed steel/tungsten carbide gear hobs (finish rolling, pre-shaving, pre-grinding, scraping).
• Worm gear hobs, including tangential designs.
• Involute, triangular, and rectangular spline hobs.
• Sprocket hobs.
• Synchronous pulley and die hobs.
• Insert hobs.
• Ring buckle hobs.
• Multi-section arc gear hobs.
• Formed special hobs and milling cutters.

Why Choose Raydafon's CNC Hob Relieving Grinding Machine?

Raydafon is a leading manufacturer specializing in the production of CNC Hob Relieving Grinder Machines. With a team of experienced engineers, operators, and dedicated pre-sales and after-sales professionals, we offer top-quality products and excellent service.

Product Quality and Design

Our products are designed using computer-optimized techniques to ensure optimal performance and precision. We employ full CNC processing technology and adhere to a comprehensive quality control system (ISO9001 certification) to meet the diverse needs of our customers.

Production Capacity and Customer Base

With a hob production capacity of up to 30,000 pieces per year, we continuously supply products to over 1,500 customers. Our commitment to quality and competitive pricing has led to a steady growth rate of 10 new customers per month.

Product Range

Our hob range includes a comprehensive selection of high-speed steel hobs (M0.6-M20) and solid carbide hobs (M0.1-M6.0) with various specifications, such as fine hobs, pre-grinding, pre-shaving, and scraping. Additionally, we produce synchronous pulleys, sprocket hobs, involute/triangular/rectangular spline hobs, hole type/rod type worm gear hobs, disc milling cutters, and various special-shaped non-standard hobs.

Specialized Machine Tools

In addition to gear hobbing tools, we also manufacture a range of specialized CNC machine tools, including CNC shovel grinders, CNC shovel tooth lathes, CNC hob sharpening machine and CNC grinding wheel dressing machines, as well as CNC spline grinding and CNC broach production equipment. Our machines are known for their efficiency, high precision, and cost-effectiveness, and we have developed fully self-developed software to enhance their performance.

Superior Quality, Competitive Pricing, and Excellent Service

At Raydafon, we take pride in delivering excellent quality, competitive pricing, effective supply, and high-quality service. Our products are widely sold nationwide and exported abroad, gaining recognition and trust from customers around the world.

Testing Equipment

Explore the Hob-Relieving Grinder Machine Today

Discover the cutting-edge capabilities of our Hob Relieving Grinder Machine and unlock new levels of precision and productivity in your gear manufacturing processes. Contact us now to explore our range of products and experience the exceptional quality and performance we offer.[embed]https://youtu.be/7_A820zbGik[/embed]

Q&A

1. Can the Hob Relieving Grinder Machine handle different gear materials?

Yes, the Hob Relieving Grinder Machine is designed to work with gear hobs made of high-speed steel, tungsten carbide, and other materials commonly used in gear manufacturing.

2. Does your company provide after-sales support for the Hob Relieving Grinder Machine?

Absolutely. At Raydafon, we have a dedicated after-sales team that offers comprehensive support and assistance to ensure your satisfaction with our products. We provide maintenance services, spare parts, and technical guidance to keep your machine running smoothly.

3. Can the Hob Relieving Grinding Machine be customized to meet specific requirements?

Yes, we understand that different customers may have unique needs. Our company has the capability to customize the Hob Relieving Grinder Machine according to specific requirements, ensuring it meets your exact specifications and manufacturing processes. posted: CZH / edited: Jek/Zqq
