CNC Hob Relieving Lathe

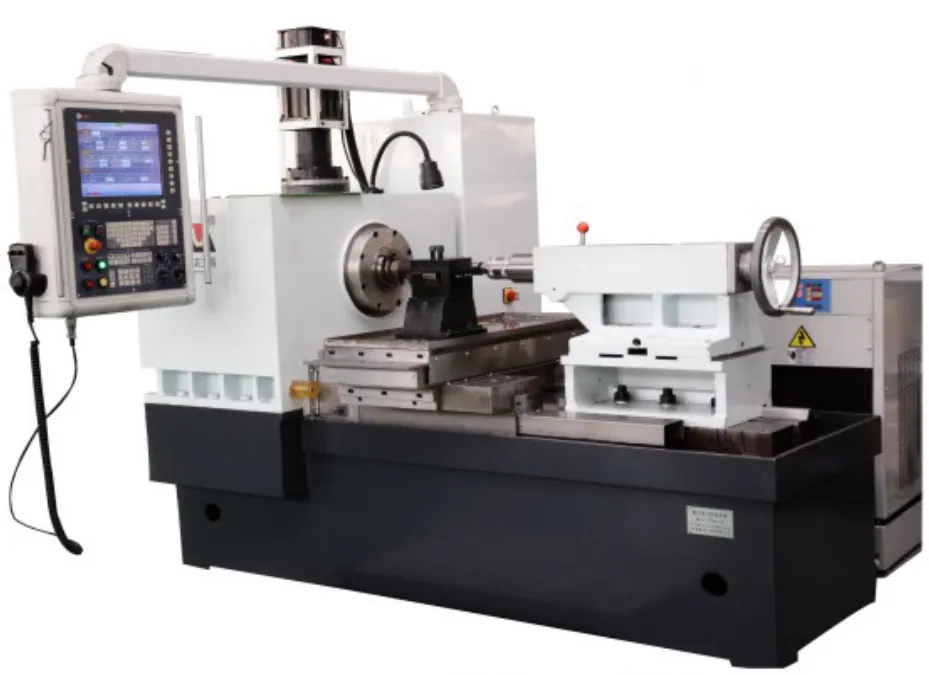

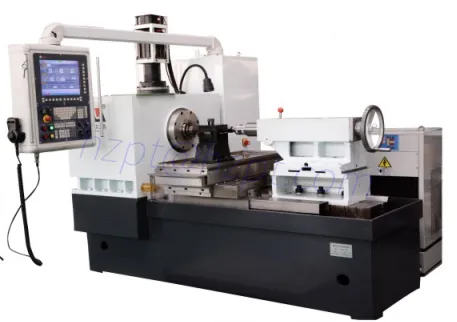

Introducing the CNC Hob-Relieving Lathe

The Hob Relieving Lathe is a cutting-edge CNC machine tool equipped with the LYNUC U3E system for three-axis three-linkage control. It features a self-developed high-torque and high-rigidity design in the bed head, while the shovel back incorporates a high-thrust linear motor with a straight grating for fully closed-loop control. This lathe offers exceptional speed, precision, and cooling capabilities, making it an ideal choice for various gear hobbing applications.

CNC Hob Relieving Lathe Technical Specification

CNC Hob Relieving Lathe Key Features

• LYNUC U3E system for three-axis three-linkage control, ensuring high-speed and high-precision performance.
• Self-developed high-torque and high-rigidity design in the bed head for enhanced stability during operation.
• High-thrust linear motor with a straight grating for precise and reliable shovel back control.

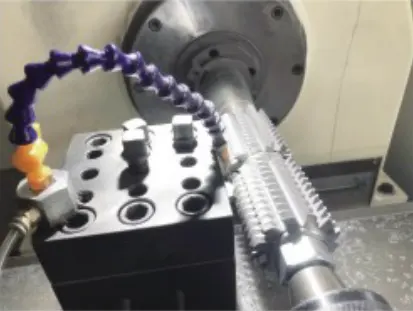

• Dry cutting air cooling system and internal circulation cooling device for effective cooling and extended tool life.

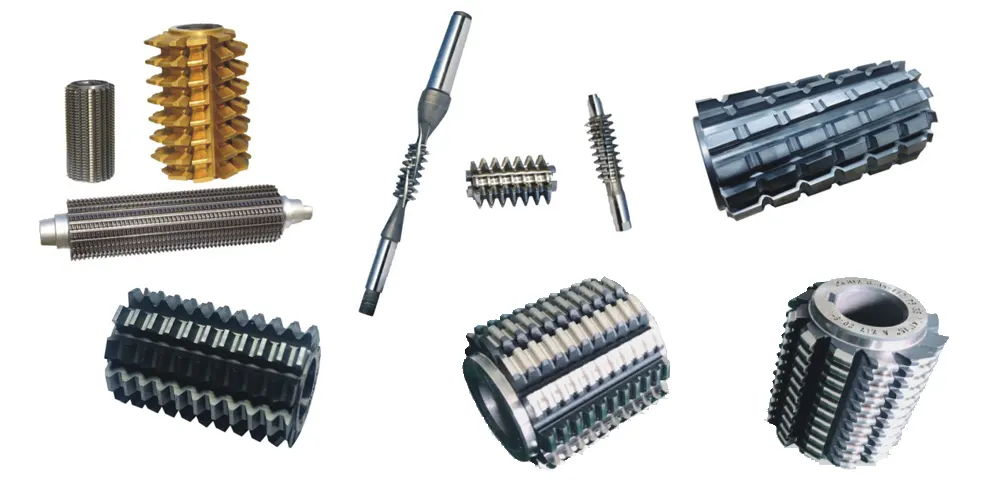

CNC Hob Relieving Lathe Applications

The Hob Relieving Lathe is suitable for a wide range of gear hobbing applications, including:

• Finishing, before shaving, and before grinding of gear hobs.
• Worm gear hobs and involute/triangular/rectangular spline hobs.
• Sprocket hobs and synchronous pulleys/die hobs.
• Insert hobs and rough tooth processing of multi-section arc gear hobs.
• Formed special hobs and milling cutters.

About Raydafon

Raydafon stands as a beacon of excellence in the manufacturing of gear hobbing tools and CNC machine tools, bolstered by a seasoned team of engineers and operators dedicated to providing unparalleled quality and service. Our cutting-edge products are conceived through advanced computer-optimized design techniques and crafted using full CNC technology, all under the stringent ISO9001 quality control system to satisfy our diverse clientele's needs. Boasting an impressive production capacity of 30,000 hobs annually, we serve over 1,500 customers and continue to grow, welcoming 10 new customers each month. Our extensive product lineup includes high-speed steel and solid carbide hobs, alongside specialized tools such as synchronous pulleys, sprocket hobs, and various non-standard hobs. Further enriching our portfolio are specialized CNC machines like CNC worm thread grinding machines, CNC forming gear grinding machines, CNC hob relieving grinders, CNC hob sharpening machines, grinding wheel dressing machines, and hob relieving lathes, known for their efficiency and precision, all backed by our self-developed software. Raydafon commits to superior quality, competitive pricing, and outstanding service, inviting you to discover the difference with our Hob Relieving Lathe for unmatched gear manufacturing efficiency.

Testing Equipment

Q&A

1. Can the Hob Relieving Lathe handle various types of gear hobs?

Yes, the Hob Relieving Lathe is designed to handle a wide range of gear hobs, including finishing, before shaving, before grinding, worm gear hobs, and involute/triangular/rectangular spline hobs, among others. Its versatility makes it suitable for various gear manufacturing applications.

2. How does the Hob Relieving Lathe ensure precision and accuracy?

The Hob Relieving Lathe incorporates the LYNUC U3E system for three-axis three-linkage control, allowing for high-speed and high-precision performance. The bed head design provides high torque and rigidity, while the shovel back utilizes a high-thrust linear motor with a straight grating for precise control. These features work together to ensure exceptional precision and accuracy in gear hobbing processes.

3. What support does your company offer after the purchase?

At Raydafon, we believe in providing excellent pre-sales and after-sales support to our customers. Our dedicated team is available to address any inquiries, provide technical assistance, and offer guidance on maintenance and operation. We are committed to ensuring customer satisfaction throughout the entire product lifecycle.post by czh | edit by Jek/Zqq
