combine harvester Thesher Rasp bar

Combine Harvester Thesher Rasp Bar

The combine harvester thresher rasp bar is an essential component in agricultural machinery. It is a type of rasp bar commonly used in combine harvesters to thresh and separate crops such as wheat, corn, and soybeans.

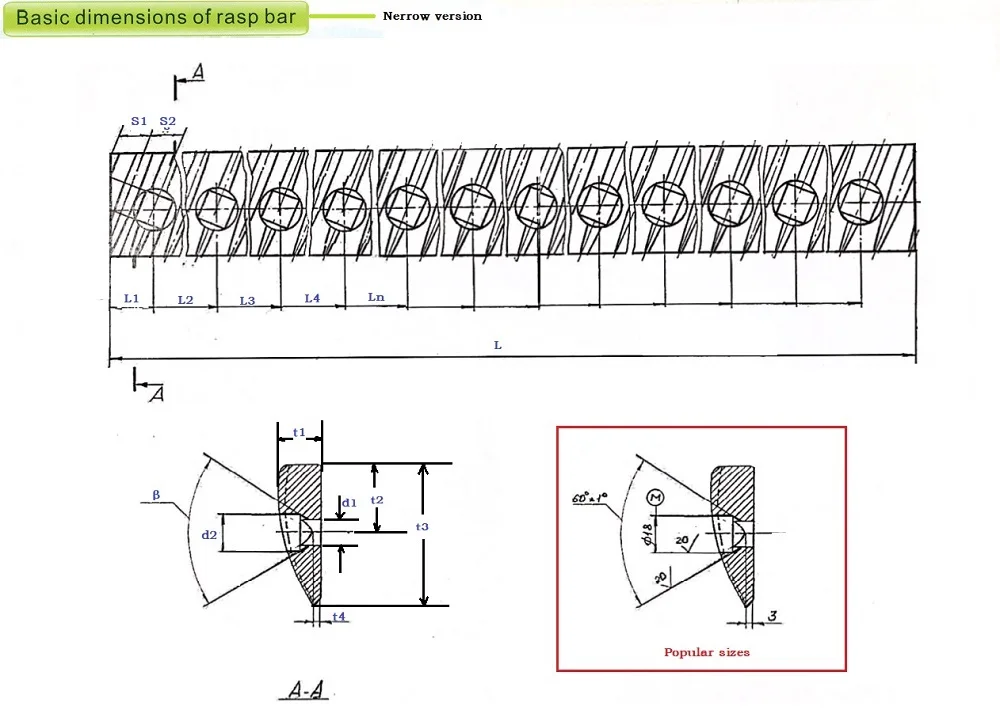

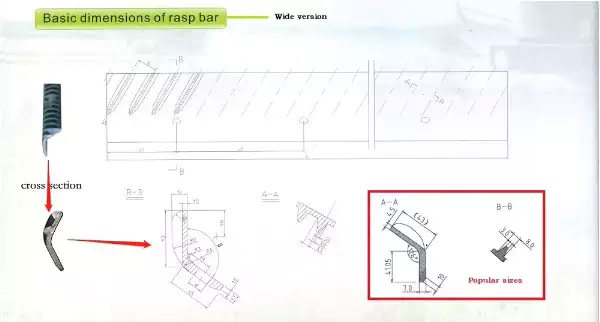

Specification

	Version	L(mm)	L1	L2	L3	L4
PCM-10.01.18.708	Narrow	1360	80	220
000177531.0	Wide	1044	22.5	170	115	130

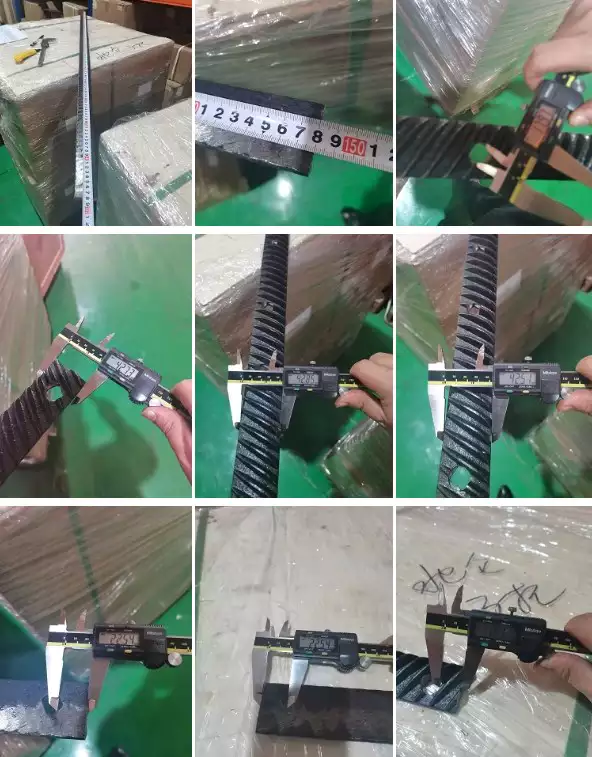

Product Test

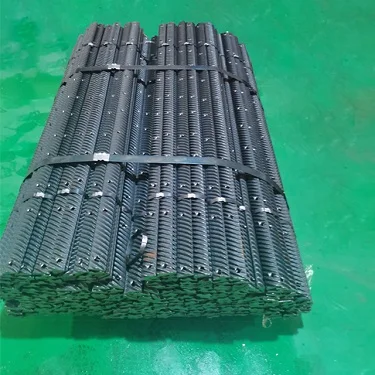

Product packaging

Normal packageWeight balanced N pieces of left hand + N pieces of right hand in 1 bundle According your requirements In steel pallet or ply-wood pallets Wrapped with films Weight balancedN pieces of left hand + N pieces of right hand in 1 bundle According your requirements In steel pallet or ply-wood pallets

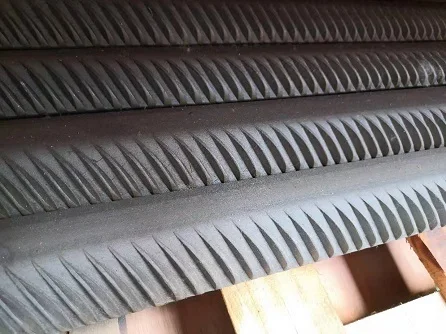

Details Images

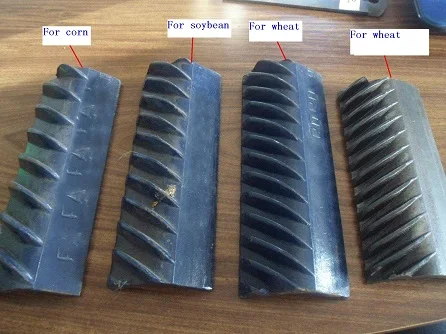

Warious choices avaialble. The distance of teeth are depends on corps Blump tooth.

Applications

• Combine harvesters
• Threshers
• Agricultural machinery

The combine harvester thresher rasp bar is usually located in the threshing cylinder of a combine harvester or thresher.

Compatible Brands and Models

Brand	Model
John Deere	9600, 9610, 9650, 9660, 9750, 9760, 9860, 9870
Claas	Lexion, Tucano, Dominator
New Holland	CR, CX, TR

In addition to the combine harvester thresher rasp bar, we also provide other agricultural machinery parts such as agricultural chains, agricultural gearbox, pulley, sprocket, coupling, pto shaft, concave, and more. You can find all the agricultural machinery parts you need with us.

When to Replace

• Decreased threshing efficiency
• Uneven threshing
• Increased grain damage

When the combine harvester thresher rasp bar shows signs of wear or damage, it is time to replace it. Decreased threshing efficiency, uneven threshing, and increased grain damage are all indications that the rasp bar needs to be replaced.

Choosing the Right Replacement Part

• Brand and model compatibility
• Material and durability
• Size and dimensions

When choosing a replacement combine harvester thresher rasp bar, it is important to consider brand and model compatibility, material and durability, and size and dimensions. Choosing the right replacement part ensures optimal performance and efficiency for your agricultural machinery. Author: Miya
