Continental Harvester used Rubber Track different sizes 400X43X90 DC70 Crawler with short high pattern

PRODUCT SPECIFICATIONS

Size	Single weight/kg
400x90x43(Offset)	88
450x90x48(center)	115
450x90x49(center)	119
500 x 90 x51(Offset)	140
500 x 90 x53(center)	151
500 x 90 x54(Offset)	147
550 x 90 x56(center)	160

Characteristics:

• 1). Rubber crawler with Less damage to the ground surface
• 2). Low noise
• 3). High running speed
• 4). Less vibration
• 5). Low ground contack specific pressure
• 6). High tractive force
• 7). Light weight
• 8). Anti-vibration

1. Installation of the Rubber Tracks A. Too small strength: Easily causes jumping teeth, riding a tooth or steering failure of the guide wheels and supporting wheelsand leads to track derailment or escapes.B. Too large strength: Track wire will be deformed at the elongation by the excessive strain tensile, which will make the pitchchanged, and track core iron and the drive wheels abnormally worn, also will make teeth touched and the track broken, the machinepower loss larger, track wear exacerbated, belt crack easier as well as the track life shorter. After the track is strained, themaximum sag distance is 10-15mm, just as the pitch below. 2. Attention In order to extend the life of rubber tracks, please complete the following work:A. Never turn urgently on the concrete floor, gravel road, or hard and sharp road, in order to avoid speeding up the wearing,twisting and chapping of the rubber track.B. Try not to work in the rotten field, to avoid rubber track skid and wear.C. When the stones or other objects come into the crawler and chassis, stop immediately, and clear gravels or obstacles. 3. Warns A. Do not travel on the road full of footstone, spinous-stone, scrap iron and other objects.B. Do not drive in the rivers, streams and on the seacast or any rugged road.C. Do not make the track unilaterial landing.D. Forbid aggressive driving.E. Avoid making a turn rapidly, please slow down and make a turn gradually.

Introduction

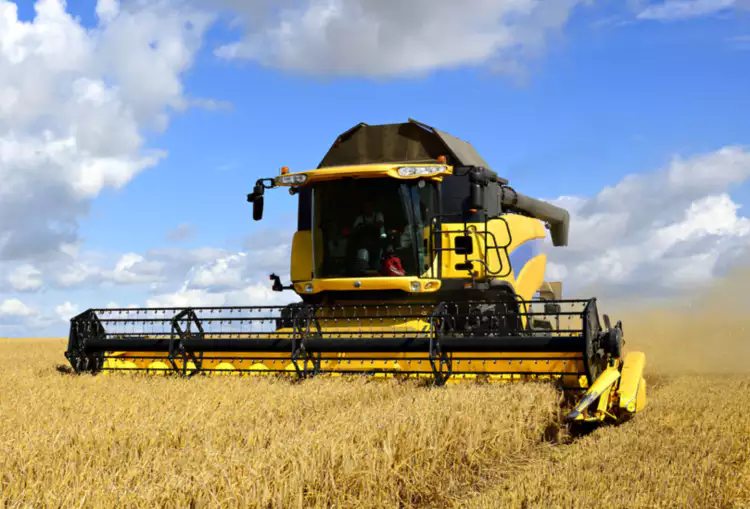

The Continental Harvester used Rubber Track is a replacement part for harvester machinery. It provides better grip and traction in wet terrains, reducing slippage and increasing efficiency. This product is designed to be installed in the crawler section of the harvester, allowing it to operate in harsh conditions such as muddy or hilly terrain.

Product Functionality

The track is responsible for providing the harvester with sufficient traction on slippery surfaces. The design of the track ensures a firm grip on the ground, even in the toughest of conditions. The short high pattern provides additional grip, making it easier to maneuver the harvester in difficult terrains.

Product Advantages

• Our product can be used as a replacement for most common harvester brands.
• We offer customizable options for different sizes of harvester crawlers.
• Our product is made with high-quality materials, ensuring durability and longevity.

Compatible Brands and Models

Brand	Model
John Deere	S560, S760, S960
Claas	Lexion 780, Tucano 430
New Holland	CR8.90, CX8.90

Other Agricultural Machinery Parts

Aside from the Continental Harvester used Rubber Track, we also offer a wide range of agricultural machinery parts. Our inventory includes agricultural chains, agricultural gearbox, pulley, sprocket, coupling, pto shaft, concave, and more.

Commonly Worn Parts

Harvesters have several parts that are prone to wear and tear. These include:

1. Blades/Cutting Parts: including the main cutting blade, protective blade, and cutting belt.
2. Threshing Drum and Concave: parts that aid in separating grain from straw.
3. Separating Sieve and Cleaning Fan Blades: components that clean and separate out any remaining debris.
4. Conveying Chains and Sprockets: parts responsible for moving harvested crops.
5. Rubber Tracks or Tires: components that provide traction on slippery surfaces.
6. Hydraulic Components: including hydraulic cylinders, hoses, and seals.
7. Bearings: components that support rotating parts.
8. Filters: air filters, fuel filters, and oil filters that keep the harvester running smoothly.

Signs for Replacement

Knowing when to replace worn parts is essential in maintaining the performance of your harvester. Some signs that may indicate the need for replacement include:

1. Poor Harvest Quality: excessive crop residue or poorly separated grain indicates worn threshing drum and concave.
2. Power Loss or Overheating: engine power loss or overheating may indicate a clogged air filter or faulty cooling system.
3. Decreased Harvest Efficiency: slowed conveyor chains or reduced drum speed may indicate worn-out belts, chains, or gears.
4. Difficult Movement or Increased Noise: loose rubber tracks, worn tires, or faulty bearings can cause difficulty in movement or increased noise.
5. Unstable Hydraulic System: unresponsive or weak hydraulic systems may indicate damaged hydraulic pumps, cylinders, or seals.
6. Leakage: oil or fuel leakage may indicate damaged seals or components.

Author: Miya
