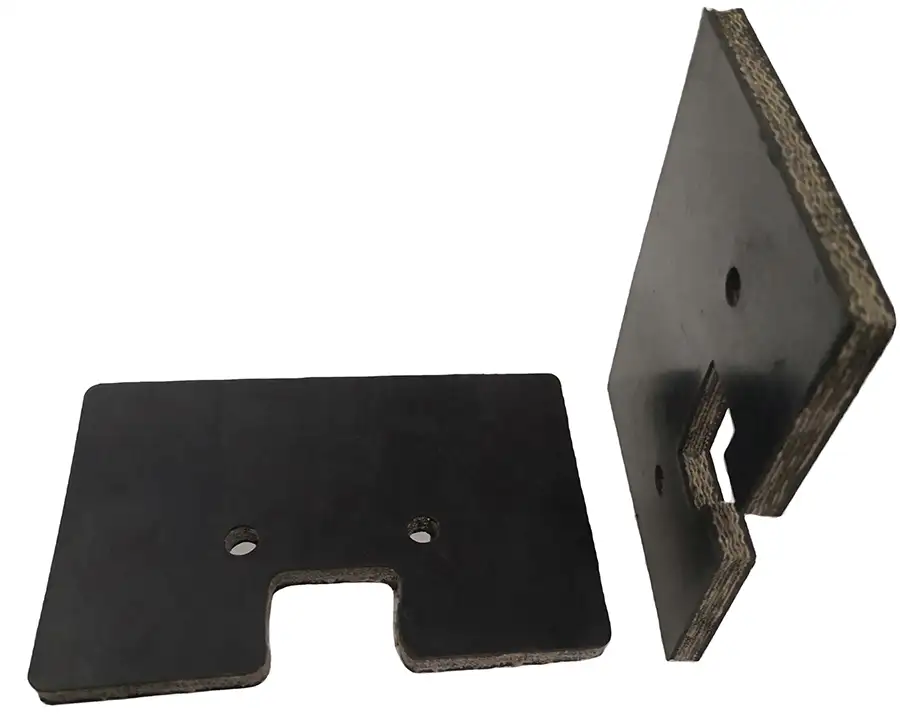

Conveyor Rubber Paddle for combine harvester agriculture machinery

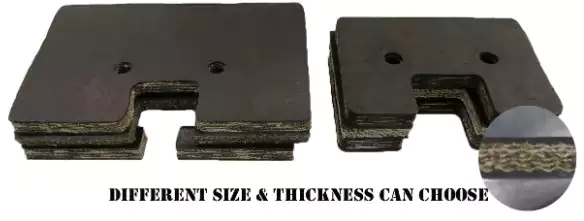

Material： Rubber: natural rubber. No use circle tire- Core of cable : canvas. No nylon line. Description： New natural rubber, hardness 40 HD, high wear-resistingCanvas in middle to provide enough strength Size & Thickness： Different sizes and thickness can choose to match your demand

PRODUCT SPECIFICATIONS



Item Name	Rubber paddle
COMBINE No.	4G1117
OEM Ref. No.	1318493C2
Size	102*192 *11
Weight	0.32kg
Application	Case-IH COMBINE: 1680,1682, 2188, 2377, 2388,2588

Item Name	Rubber paddle
COMBINE No.	4G1084
OEM Ref. No.	1317480C2
Size	144*102*11
Weight	0.086kg
Application	CASE1640,1644,1660,1666,1670,2144,2166,2344,2366

Item Name	Rubber paddle
COMBINE No.	4G1085
OEM Ref. No.	1303116C1
Size	146*71*9
Weight	0.150kg
Application	CASE 1420,1440,1460,1470,1480,1482,1620,1640,1644,1660,1666, 1670,1680,1682,1688,2144,2166,2188,2344,2366,2377,2388

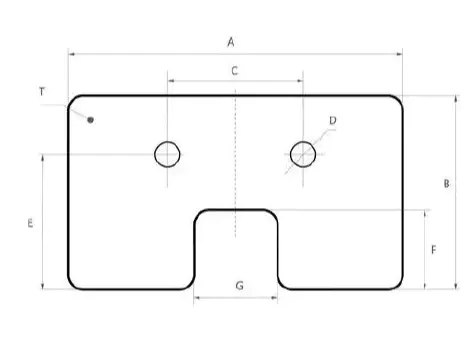

Ref. No.	A	B	C	D	E	F	G	T
101622-B	190	100	113	10	48	38	21	9
H135235	150	80	80	10	39	33	37	12
397856	154	80						9
60545.0	154	100	52	8.5	33	22	36	9
619298.2	107	80	52	8.5	33	22	36	9
642644	154	124	52	8.5	33	22	36	9
H137276	147	107	77	10	37	32	34	12
H137277	195	108	77	10	39	39	35	12
	204	100	88	8.5	45	40	42	9
H1303116C1	145	60	78	10	29	29	39	9
036276	154	78						9
69.9245	110	84						11
71.5466	93	80						11
	107	80	52	8.5	45	29	35	9
	154	100	52	8.5	40	26	34	9
	154	78	52	8.5	43	29	34	9
	154	124	52	8.5	41	26	34	9
	154	127	60	8.5	64	50	34	9
	134	39	52	8.5	53	30	40	9
	184	101	88	8.5	46	15	42	9
	152.5	80	54.5	6.5	34	30	32.5	9
	152	80	88	8.5	37	36	40	9
	120	109	88	8.5	41	33	40	9
	146	110	88	8.5	42	34	40	9
	186	100	88	8.5	41	34	40	9
	148	86	58	6.5	40	35	36	9
	174	85	58	6.5	40	35	34	9
	109	85	58	6.5	39	35	37	9
	146	71	79.4	8.5	44	32	37.4	9
	145	104	79.4	8.5	42	38	39	9

- The data are presented for your reference. - More sizes can be supplied according to your specification. Conveyor rubber paddles are an essential component in agriculture machinery, specifically in combine harvesters. They are responsible for helping to move harvested crops from the cutting platform to the threshing mechanism. Here are some key points about where conveyor rubber paddles are typically used in agriculture machinery: - Combine harvesters: conveyor rubber paddles are used in the cutting platform and feeder house. - Grain carts: conveyor rubber paddles are used to move grain up and into the cart. - Hay balers: conveyor rubber paddles are used in the pickup reel and in the bale chamber. - Forage harvesters: conveyor rubber paddles are used in the cutterhead and blower. At hzpt, we offer conveyor rubber paddles that are compatible with a variety of agriculture machinery brands and models. Here are some examples: Brand | Model --------|------ John Deere | 9400, 9500, 9600 Case IH | 2144, 2166, 2188 New Holland | CR920, CR940, CR960 In addition to conveyor rubber paddles, we also provide a range of other agriculture machinery parts, including agricultural chains, agricultural gearboxes, pulleys, sprockets, couplings, PTO shafts, concaves, and more. There are a few signs that it may be time to replace your conveyor rubber paddles: - Cracks or tears on the surface of the paddle - Paddles are missing or broken - Reduced efficiency in crop movement To ensure that you choose the right conveyor rubber paddles for your agriculture machinery, consider the following: - The make and model of your machinery - The size and shape of the paddles needed - The material of the paddles (some are better suited for certain crops or weather conditions) Replacing worn or damaged conveyor rubber paddles is essential for keeping your agriculture machinery working efficiently. At [Company Name], we offer a wide selection of parts and accessories to help you keep your machinery in top condition. Author: Miya
