Cuplock Scaffolding Vertical Standard for Construction Sites

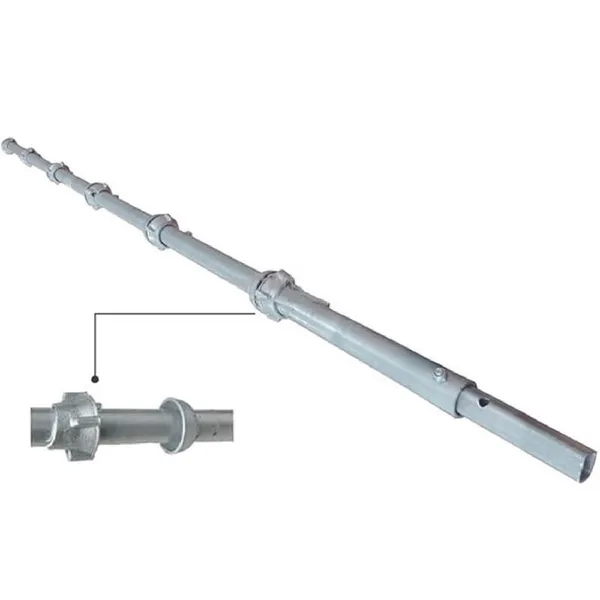

Cuplock scaffolding vertical standard is one of the main components used to connect the horizontal ledger and brace so its makes itself an entire scaffolding system.Features● The steel cups are welded to the vertical tube to provide versatility in handling different working heights and structural configurations.● The spacing between 2 cups is 0.5m● Hot dip galvanized● The spigot makes the standards possible to connect.Technical Information● The top cup is mainly made of forged steel, and the bottom cup is made of pressed steel.

Item No.	Name	Metric Size	Inch Size
CV18	Cuplock Vertical Standards with Spigot	500mm	1’8″
CV33	Cuplock Vertical Standards with Spigot	1000mm	3’3″
CV411	Cuplock Vertical Standards with Spigot	1500mm	4’11”
CV66	Cuplock Vertical Standards with Spigot	2000mm	6’6″
CV82	Cuplock Vertical Standards with Spigot	2500mm	8’8″
CV910	Cuplock Vertical Standards with Spigot	3000mm	9’10”

Instructions for Use

Put the cuplock vertical standard in position.Connect another post by the fixture if it needs to be extended.Erect the horizontal ledger but ham the cups until it stays tightened.

Features of Cuplock Standard Vertical

• Easy to handle
• Anti-corrosive
• Sturdy
• Compact design
• Durable

Application Areas of Cuplock Standard Vertical

• Residential & commercial buildings
• Other construction areas

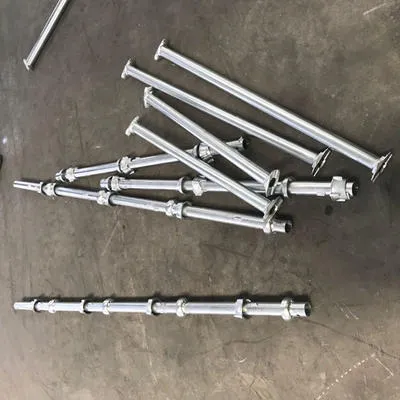

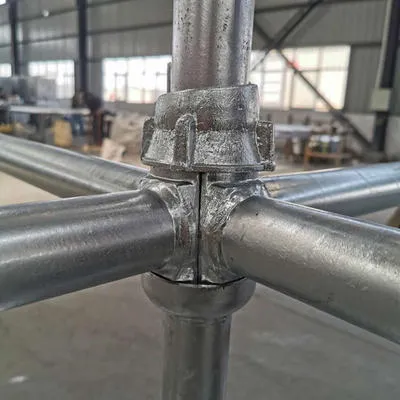

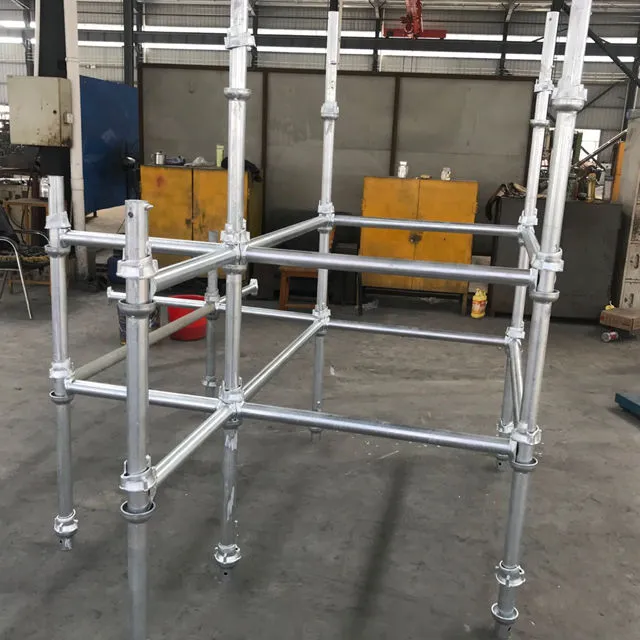

Product Display

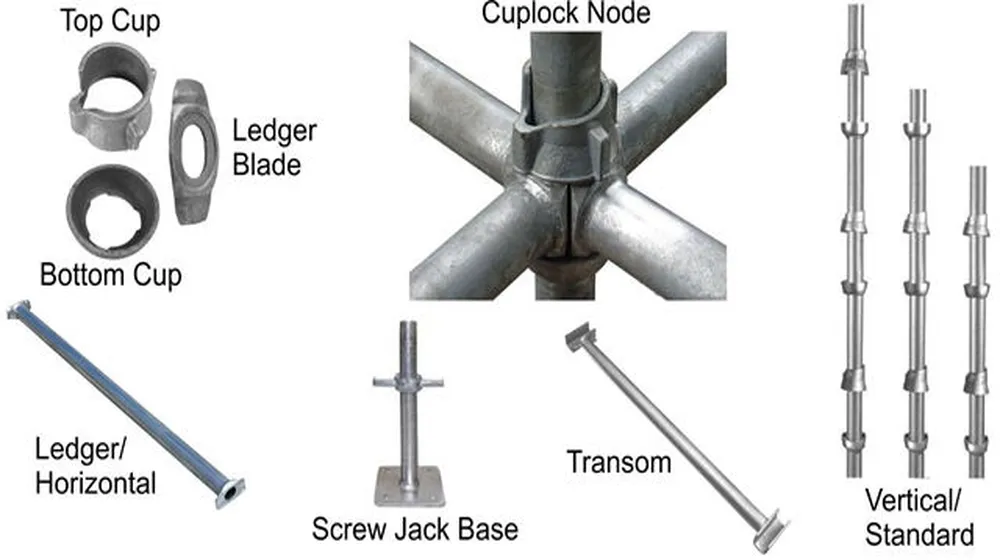

Cuplock Scaffolding Main Parts

Our service● Provide the technical design and solutions;● New construction guidance;● Designing and manufacturing of non-standard equipment;● Professional technical training and guidance on site according to the contract;● Supply accessories at any time;● Tele-technical consulting and services;● another particular technical service according to the client’s requirements.

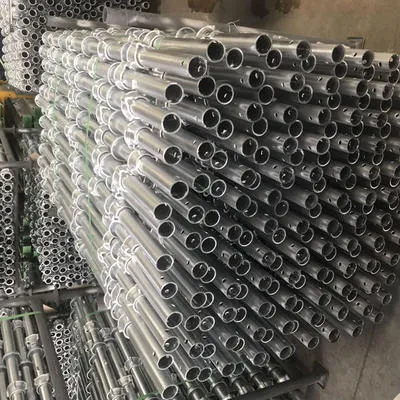

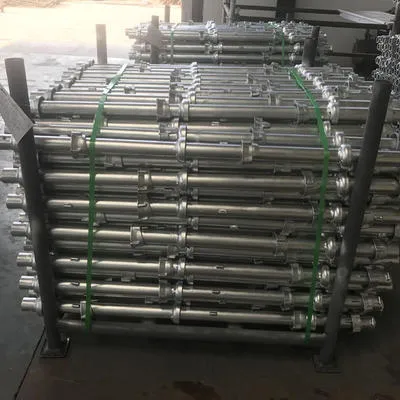

Product Packing
