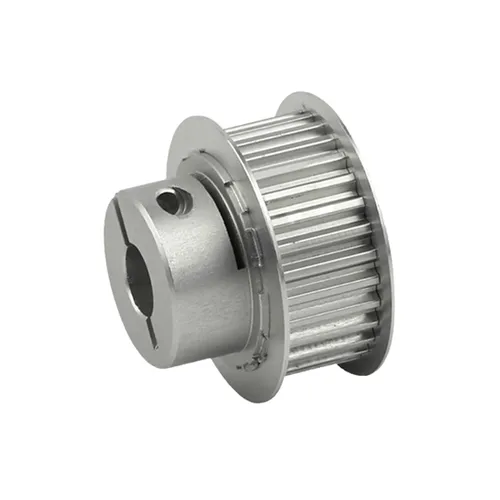

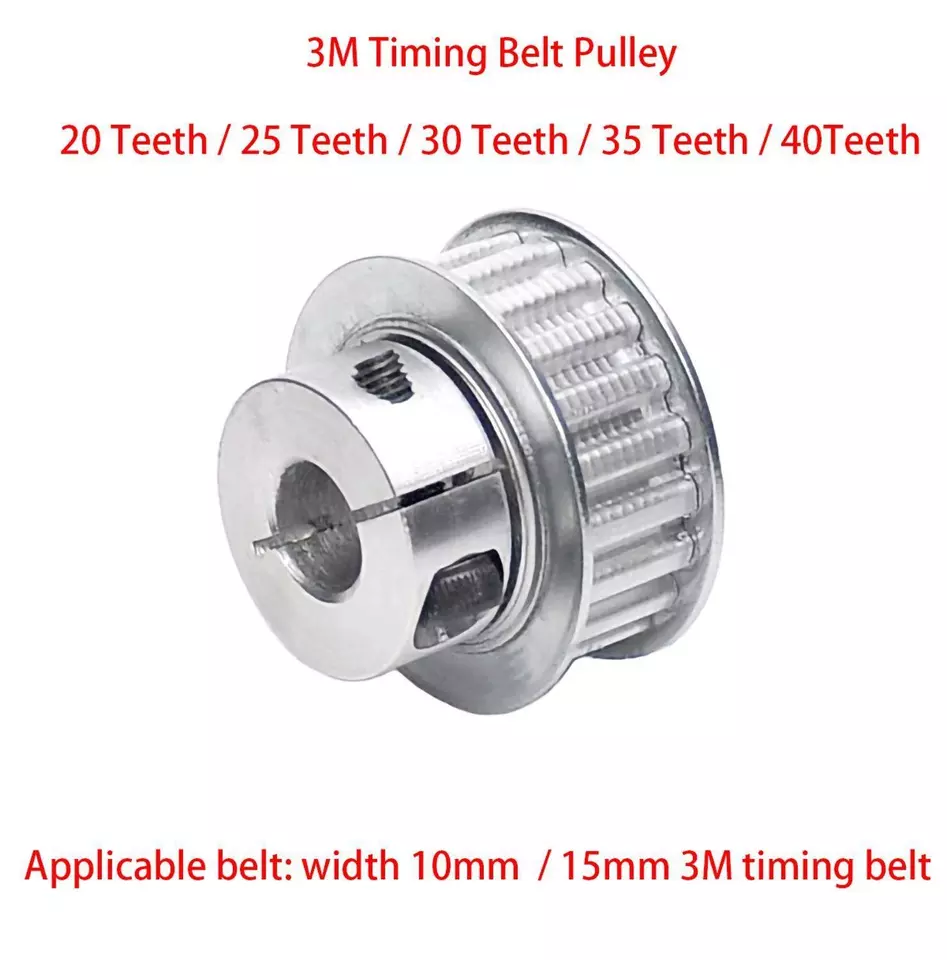

Customize Aluminium Clamping Timing Belt Pulley

Raydafon Group's Customize Aluminium Clamping Timing Belt Pulley is a precision-engineered component renowned for its durability and strength. Made from high-grade aluminium, it offers superior performance in various mechanical applications, ensuring smooth and reliable operation. This product is ideal for engineers, manufacturers, and DIY enthusiasts seeking efficient power transmission. Choose Raydafon Group for a solution that enhances your machinery's lifespan and efficiency!

Send Inquiry

Product Description

A clamping timing belt pulley is critical to a vehicle's timing belt system. Regular checks for wear, damage, and debris buildup are essential. Timing belt pulleys are typically made of steel, considered the most durable material for timing belt pulley systems. Besides being resistant to corrosion, steel components also have the highest tensile strength. In addition to steel, plastic materials like nylon, polycarbonate, and acetal are also used to manufacture timing belt pulley systems.Clamping Timing Belt Pulleys are available in different sizes and types. They can be used as standalone parts or as part of a larger assembly. Clamping synchronous pulley material has stainless steel, brass, carbon steel, aluminum, 6061, S45C, SUS303, and so on.Timing Belt Clamps can be made of plastic or aluminum and are available for single or double-sided timing belts. These are available off the shelf and are available in both metric and inch sizes. Flat Belt Pulleys are available in various sizes and a 1/4 inch (6 mm) width for high-speed applications.When selecting a timing belt pulley, choose one that is slip-resistant. This will reduce the amount of belt tension and reduce lubrication needs. In addition, the lower tension on the timing belt will reduce the load placed on the individual elements of the shaft.

Product Description

Tooth profile	Trapezoidal toothed	MXL, XXL, XL, L, H, XH, XXH
	T-toothed	T2.5, T5, T10, T20,AT5,AT10
	Arc toothed	3M, 5M, 8M, 14M
Pitch	Metric	2.5mm, 3mm, 5mm, 8mm, 10mm, 14mm,
	Inch	0.08", 1/5", 3/8", 1/2", 7/8",
Tooth No.	10~216, Customized Available
Bore Type	Plain Bore, Pilot Bore, Finished Bore, Taper Bushed Bore
Belt width	Metric	6mm, 9mm, 10mm, 15mm, 16mm, 20mm, 25mm, 30mm, 32mm, 40mm, 50mm, 55mm, 85mm, 115mm, 170mm
	Inch	1/4'''', 3/8'''', 1/2'''', 3/4'''', 1'''', 1-1/2'''', 2'''', 3", 4"
Pulley Construction	Solid, Web, Spoke
Material	Aluminum, Alloy, Steel, Cast Iron
Other Service	OEM/ODM Available, Huge Stock for standard pulleys
Measuring System	Metric & Inch
Surface treatment	Anodized/Black anodized/Hard anodized/Blacken/Zinc plating/Nickel plating/Chromium plating
Accessories	We can provide supporting bearings, screws, expansion sleeves,s, and other accessories services.

Timing Pulley Clamping Methods

Shape	CODE	SPA	A.P.LOCK Type
	How to work		By the taper-ring structure of A.P.Lock, when screws are fastened correctly, the inner surface shrinks inwards, so it tightens the shaft. At the same time, the outer surface becomes expanding outwards, so it clamps Timing Pulley tightly.
	Feature		With high clamping force, it doesn't require any other complementary methods, e.g., keyway.
			Self-centering function
Shape	CODE	SPB	TAPER BUSHING Type
	How to work		By the taper-ring structure of Taper bushing, when screws are fastened correctly, the inner surface shrinks inwards, so it tightens the shaft.
	Feature		With high clamping force, it doesn't require any other complementary methods, e.g., keyway.
			Easy and handy installation
Shape	CODE	SC	SIDE-CLAMP Type
	How to work		Clamp with fastening screws vertically to the shaft, making the hub's inner surface shrink inwards, so it tightens the post.
	Feature		Easy and handy installation

Application of Timing Belt Pulley

The timing belt pulleys are widely used in various industrial sectors.Engineering: Timing belt pulleys are widely used in machine tools, foundry equipment, painting systems, compressors, and conveyors.Pharmaceuticals & Food Processing: These pulleys are widely used in blowers in pulp mills, warehouse conveyors, bakery machines, machines for labeling, robot, etc.Textile Mills: Timing belt pulleys are widely used in machines like High-speed auto looms, Ruler calendar machines, high-speed winders, looms, wrappers, etc.Printing Machinery: Different plants and machinery have extensive use of these pulleys. These are used in the New paper press, Screen Printer Machine, Linotype machine offset printer, and more.Agriculture Industries: Tractors, cultivators, harvesters, Rice planters, etc. are primary machines used in Agricultural industries. Timing belt pulleys are widely used in these machines too.Paper Industries: There is wide use of timing belt pulleys in paper industries. Cut-off saws, or Edgers or flotation cells, etc., are those machines where these belt pulleys are hugely used. Customize Aluminium Clamping Timing Belt Pulley

Advantages of Timing Belt Pulley

Timing belt pulleys are available with lots of advanced features. Hence these pulleys are widely used in various industrial sectors such as textile, paper making, printing machinery, agriculture, and more. So, the advantages that are mainly available from these pulleys are mentioned below.

These are available with high torque carrying capacity
These are robust construction, so there will be no slipping between the belt and the pulley.
These help in transmitting the power at a constant speed.
Timing belt pulleys are available at a high strength
These are resistant to corrosion and available with features for low noise and vibration
Another essential advantage of this pulley is that it possesses a long life.
These pulleys are available in the market in varied sizes and models.

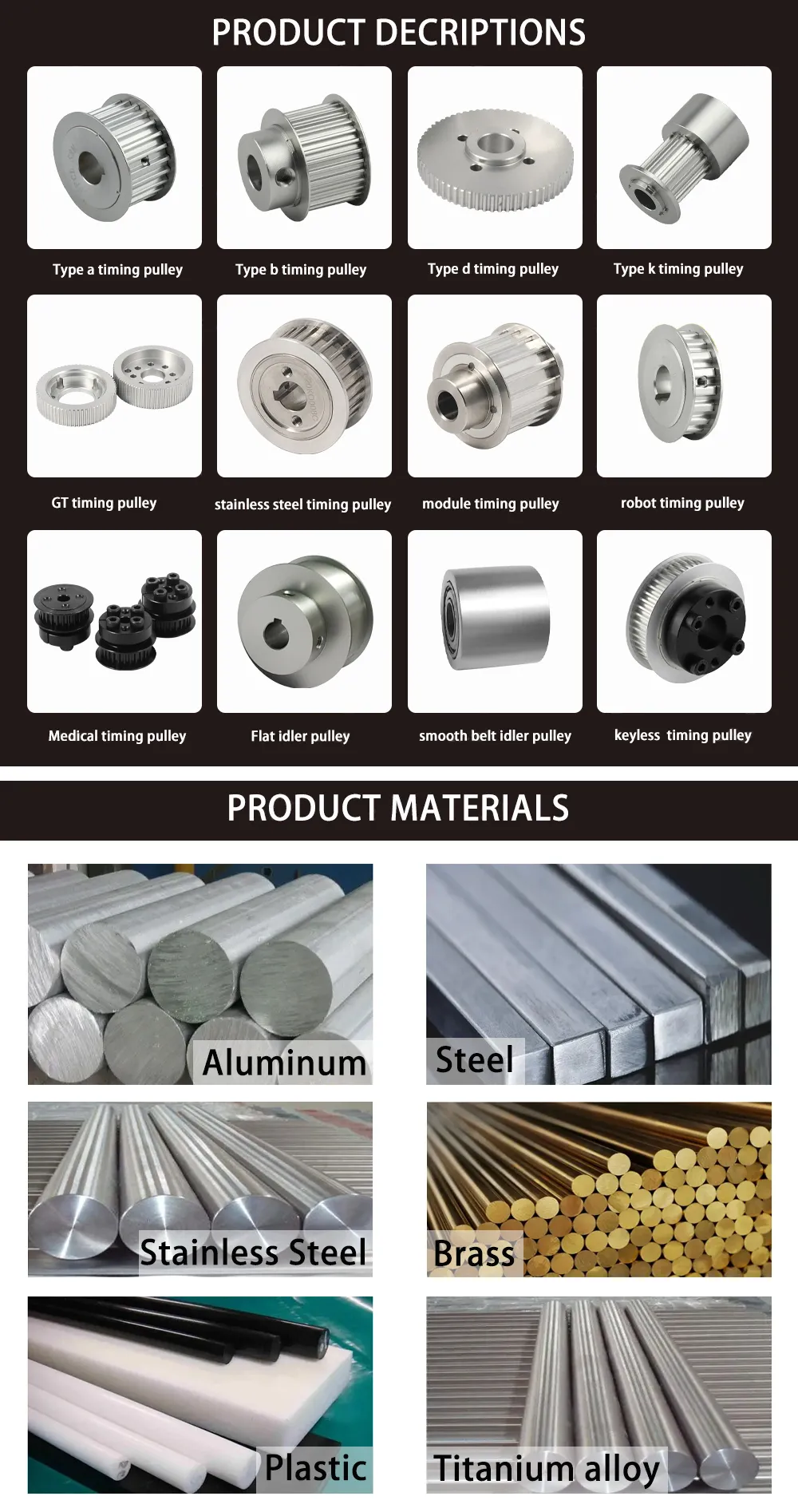

Other Related Products

Why Choose Our Timing Belt Pulley?

Timing pulleys are widely used in various equipment where the timing of both drives is precious, and the display ratio is essential. A timing pulley's benefit is eliminating slippage and maintaining constant angular velocity. Timing pulleys are manufactured per international and national standards with carbon steel/alloy steel/aluminum and hardened teeth to provide long life. We have been ranked as the most dependable and leading firm worldwide and actively emerged to offer a wide array of timing belts. Our sophisticated production unit's timing pulleys are fabricated by our skilled personnel using advanced technology.Known for superior sturdiness, dimensional accuracy, and durability, the offered range is manufactured in compliance with industry norms and guidelines. Further, we provide these components in various customized forms according to patrons' specific requirements. Apart from this, these pulleys are quality tested by our quality controllers on different parameters.

1) Warranty: our timing pulley's quality is excellent, and with insurance within one year, when you receive the products and find quality problems, we promise you could return it and free maintenance.

2) Drawings: please send your timing pulleys' drawings to us to get the best quotation; If you have no drawings, please get in touch with us, then we can work out CAD drawings and the best reference for you ASAP.

3) Sample: we accept one-piece sample orders. We could do examples until you're satisfied.

4) Confidentiality agreement: Strictly adherence to client confidentiality agreement for timing pulleys.
