Customized Bale Wrapper for Round Straw Bale High Quality Full Automatic

[embed]https://youtu.be/UUpEze-IUo0[/embed]

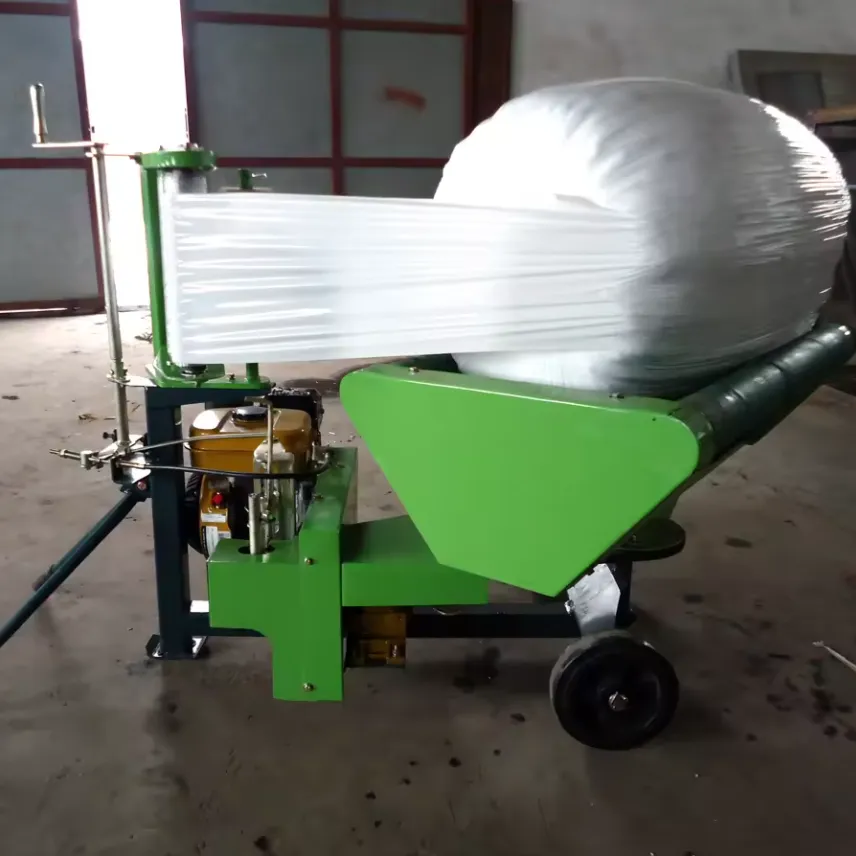

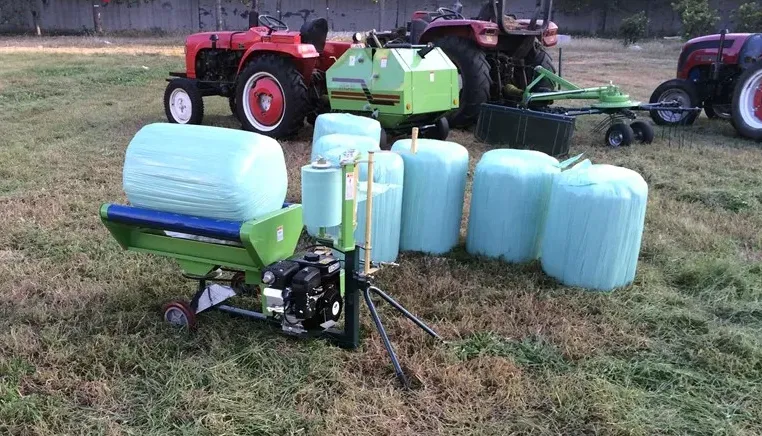

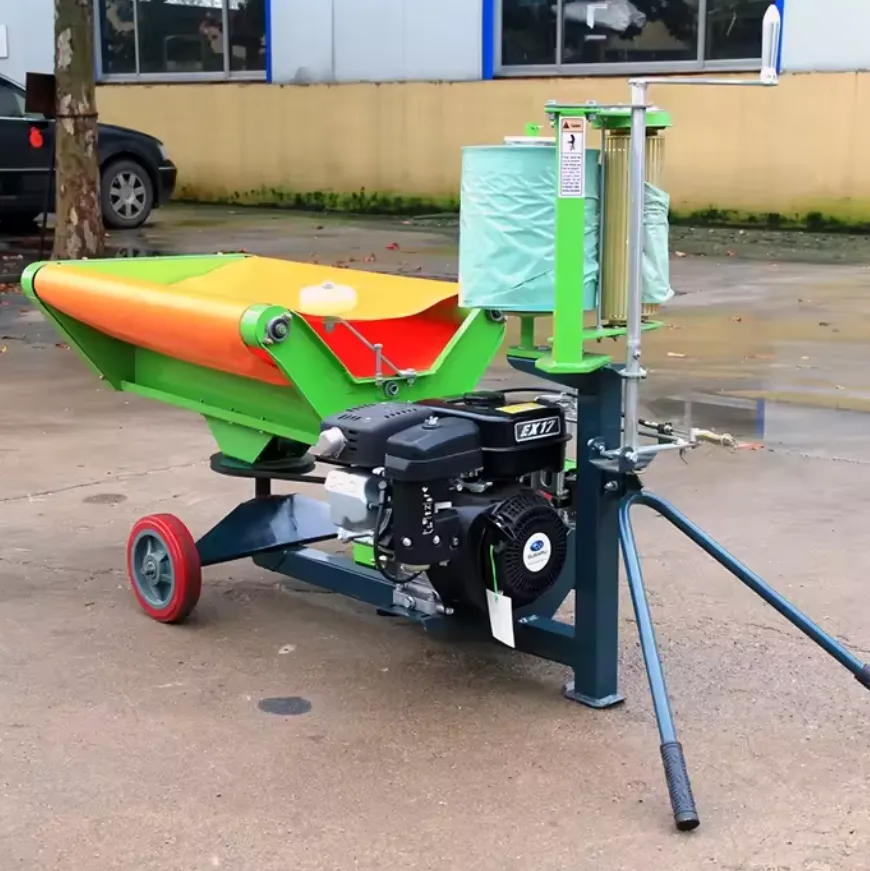

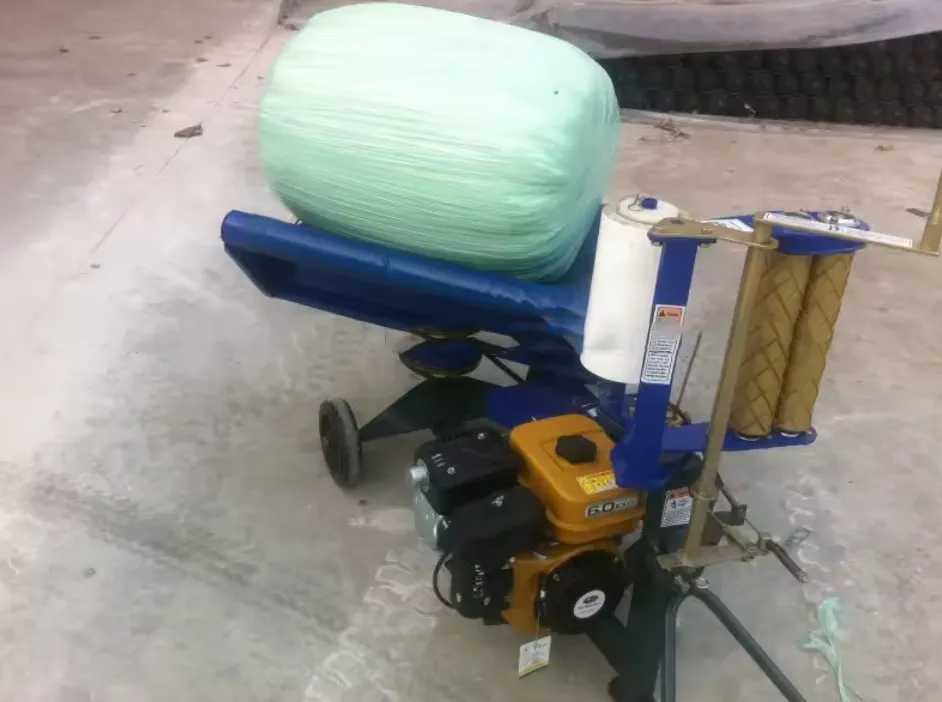

Customized Bale Wrapper for Round Straw Bale High Quality Full Automatic

A full automatic bale wrapper for round straw bales is an advanced machine that is used in the agricultural industry to wrap round bales of straw automatically. This innovative equipment simplifies the process of wrapping bales, saving time and effort for farmers or agricultural workers. The primary purpose of a bale wrapper is to protect the straw bales from external elements such as moisture, sunlight, and air, which can cause deterioration and decrease the quality of the straw. By tightly wrapping the bales in plastic film, the wrapper creates a protective barrier that preserves the integrity and nutritional value of the straw. Using a full automatic bale wrapper for round straw bales offers numerous benefits to farmers and agricultural businesses. It ensures better preservation of straw quality, reduces the risk of spoilage, and enables efficient handling and storage of bales. Additionally, it minimizes the physical strain on workers and streamlines the overall baling and wrapping process, leading to increased productivity and profitability.

Full Automatic Round Bale Wrapper RXHW0810 Specifications

Specifications for Bale Wrapper RXHW0810
Dia and Width for Bale		500 x 700 mm; 610 x 700mm
Dimension(L*W*H)		150 x 87 x 103 mm
Weight		85kg
Matched Power		6.5hp Gasoline Engine
Operating Speed		40seconds/bale
Application		Wrap the bales made by plasstic films or packe
Logo		Customized
Color		red, yellow, black, whine, Customized
Wrapping bale material		white plastic film rolls
Film layer		2/4/6
Application		Silage,Grass,Alfalfa,Hay,Straw

Functionalities of Using the Full Automatic Round Bale Wrapper

Using a full automatic round bale wrapper offers several functionalities and advantages for farmers and agricultural businesses. Here are some key functionalities and benefits of using this machine: 1. Efficient wrapping process: The full automatic round bale wrapper streamlines the wrapping process, saving time and effort. It eliminates the need for manual labor, reducing the physical strain on workers and increasing overall efficiency. 2. Consistent and uniform wrapping: The machine ensures consistent and uniform wrapping of round bales. It applies the plastic film evenly around the bale, resulting in a tight seal and better protection against external elements such as moisture and sunlight. 3. Preservation of straw quality: The primary purpose of using a bale wrapper is to protect the straw bales and preserve their quality. The full automatic wrapper tightly seals the bales, preventing moisture absorption and minimizing nutrient loss. This helps maintain the nutritional value and overall quality of the straw for longer periods. 4. Increased durability: By securely wrapping the bales, the machine enhances their durability. It creates a protective barrier that shields the straw from external factors that can cause deterioration, such as rain, snow, UV rays, and air exposure. 5. Versatility in film usage: The full automatic bale wrapper allows for the use of different types and thicknesses of plastic film. This versatility enables farmers to choose the appropriate film for their specific needs, whether it's for long-term storage, transportation, or livestock feed preservation. 6. Customizable settings: The machine offers customizable settings to adapt to different bale sizes, film requirements, and wrapping preferences. Users can adjust settings such as bale rotation speed, film tension, and number of film layers to achieve the desired wrapping quality and efficiency. 7. Time and labor savings: Automating the wrapping process with a full automatic bale wrapper significantly reduces the time and labor required. It eliminates the need for manual loading and unloading of bales, as well as the manual application of the film. This frees up labor resources for other farm tasks and increases overall productivity.

How Does the Full Automatic Round Bale Wrapper Work?

The full automatic round bale wrapper operates through a series of mechanical and electrical processes. Here is a general overview of how the machine works:

• Bale loading: The process begins with loading round straw bales onto the wrapper. This can be done manually or through an automated mechanism, depending on the specific design of the machine. The bales are positioned on the wrapper's turntable or platform.
• Film dispensing: The machine is equipped with a film dispenser that holds rolls of plastic film. The film is typically made of stretchable material that provides a tight seal around the bales. The film dispenser is positioned near the turntable or platform, ready for the wrapping process.
• Bale rotation: Once the bale is properly positioned, the turntable or platform starts to rotate. This rotation ensures that the plastic film is evenly applied around the bale, creating a uniform and secure wrap.
• Film application: As the bale rotates, the plastic film is dispensed from the film dispenser. The film is stretched and wrapped around the bale, covering its entire surface. The film tension can be adjusted based on the desired tightness of the wrap.
• Layering: In some cases, multiple layers of film may be applied to enhance the protection and durability of the bale. The machine can be programmed to apply a specific number of film layers, depending on the requirements.
• Film cutting and sealing: Once the desired number of film layers is applied, the machine cuts the film and seals it securely. This ensures that the film remains in place and prevents unraveling or loosening during handling and storage.
• Bale unloading: After the wrapping process is completed, the machine automatically unloads the wrapped bale from the turntable or platform. The bale is typically placed back on the ground or onto a conveyor for further handling or storage.

Common Troubleshooting of Full Automatic Round Bale Wrapper

While full automatic round bale wrappers are designed to be efficient and reliable, occasional issues or malfunctions may arise. Here are some common troubleshooting steps for typical problems that can occur with a full automatic round bale wrapper: (1) Film breakage: If the film breaks during the wrapping process, check the film roll for any tangles or knots. Ensure that the film roll is properly mounted and aligned in the dispenser. Adjust the film tension if necessary to prevent excessive stretching or strain on the film. (2) Wrinkled or loose film: If the film appears wrinkled or loose on the bale, check the film tension settings. Ensure that the film is properly stretched and applied evenly around the bale. Adjust the tension or film layer settings accordingly. (3) Film not cutting or sealing: If the film does not cut or seal properly after wrapping, check the cutting and sealing mechanism. Clean any debris or film residue that may be interfering with the mechanism. Verify that the cutting blade is sharp and properly aligned. Adjust the cutting and sealing settings if necessary. (4) Bale not rotating properly: If the bale is not rotating smoothly or consistently, check the turntable or platform for any obstructions or debris. Clean the rotating mechanism and lubricate if necessary. Ensure that the bale is positioned correctly on the turntable or platform. (5) Sensor errors: Full automatic bale wrappers may have sensors to detect bale position, film tension, or other parameters. If the machine displays sensor errors or malfunctions, inspect the sensors for any damage or misalignment. Clean the sensors and ensure they are properly calibrated. If the issue persists, consult the manufacturer or technical support for further guidance. (6) Wrapping inconsistencies: If the machine consistently produces uneven or inconsistent wraps, review the settings for bale rotation speed, film tension, and layering. Adjust the settings to achieve the desired wrapping quality. Additionally, check the condition of the film dispenser and ensure it is dispensing the film smoothly and evenly.

Operation Precautions of Full Automatic Round Bale Wrapper

Operating a full automatic round bale wrapper involves wrapping bales of agricultural products, such as hay or silage, with plastic film to preserve their quality and nutritional value. While these machines greatly enhance the efficiency of farm operations and feed preservation, it's crucial to follow certain precautions to ensure safe and effective operation. Here are some key operation precautions: 1. Read the Operator's Manual

• Before using the bale wrapper, thoroughly read and understand the operator's manual. It contains specific instructions, safety warnings, and maintenance schedules for your particular model.

2. Wear Appropriate Safety Gear

• Always wear appropriate personal protective equipment (PPE) such as gloves, safety glasses, and sturdy footwear when operating or performing maintenance on the bale wrapper.

3. Inspect the Machine Before Use

• Conduct a pre-operation inspection to check for any loose bolts, damaged parts, or leaks. Ensure all moving parts are lubricated and the plastic film is correctly loaded and threaded according to the manufacturer's instructions.

4. Ensure the Area is Clear

• Make sure the area around the bale wrapper is clear of people, especially children, and animals before starting the operation. Keep bystanders at a safe distance during operation.

5. Do Not Overload the Machine

• Follow the manufacturer’s specifications for bale size and weight. Overloading the machine can cause mechanical failure and may result in unsafe operating conditions.

6. Monitor the Wrapping Process

• Keep a close eye on the bale wrapper during operation. If you notice any irregularities, such as uneven wrapping or film tearing, stop the machine immediately to investigate and rectify the issue.

7. Avoid Moving Parts

• Never attempt to adjust, clean, or perform maintenance on the bale wrapper while it is in operation. Always turn off the engine, remove the key, and ensure all moving parts have stopped before approaching the machine.

8. Handle Plastic Film Carefully

• Be cautious when handling the plastic film, as it can be slippery or create a tripping hazard. Store unused rolls properly to avoid environmental damage or degradation.

Why Choose Raydafon's Hay Bale Wrapper?

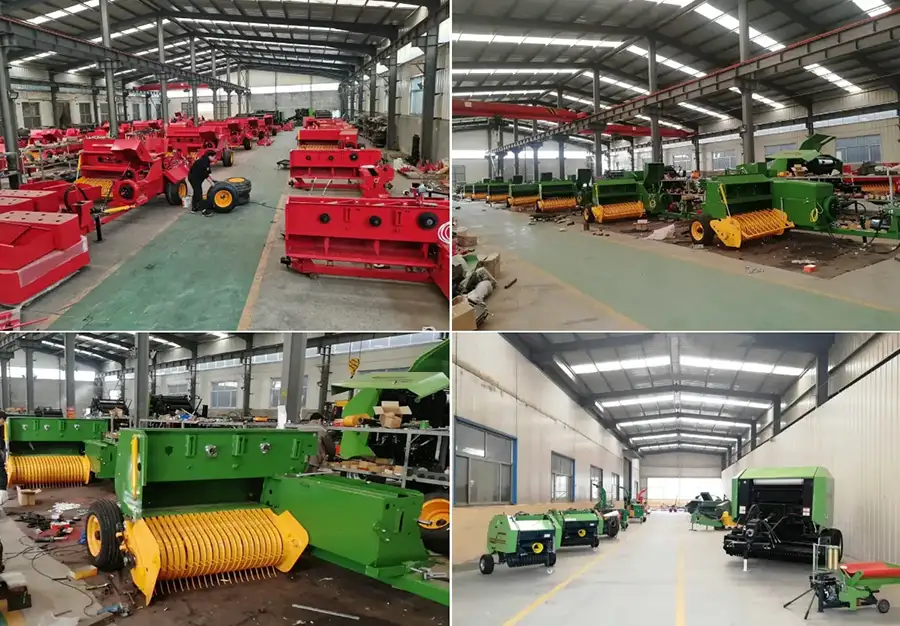

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, corn seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.
