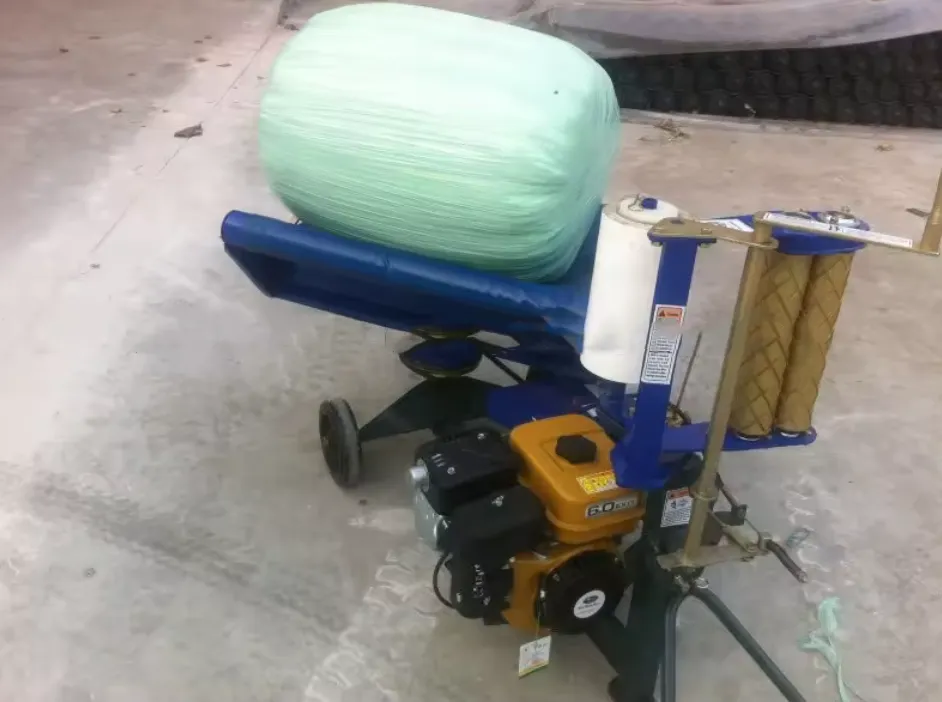

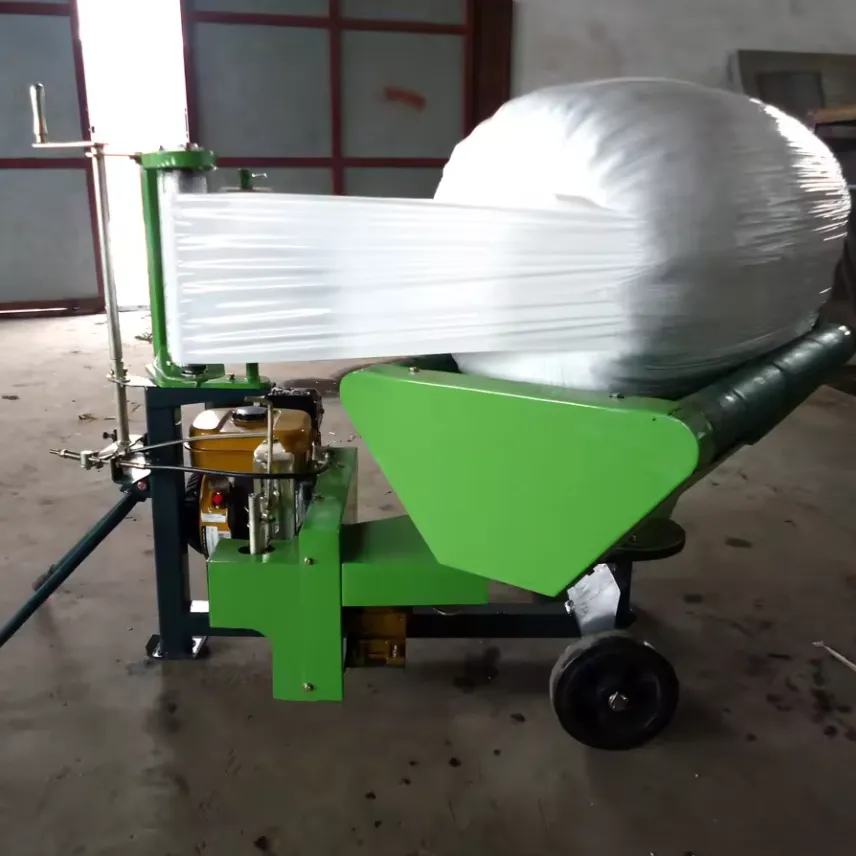

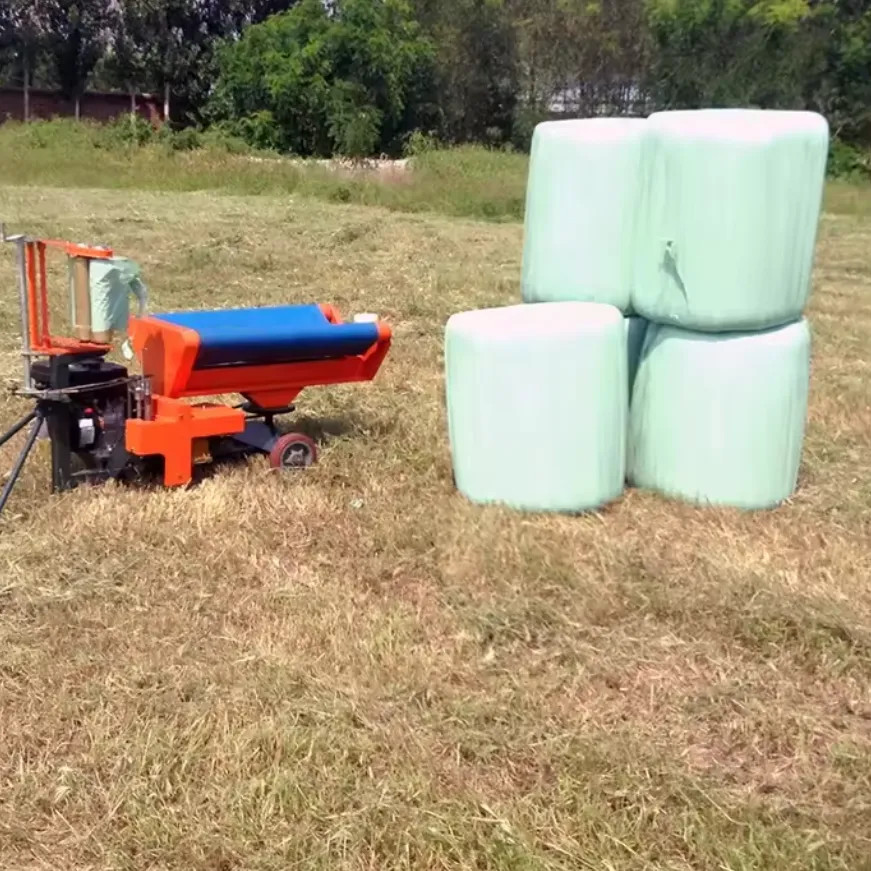

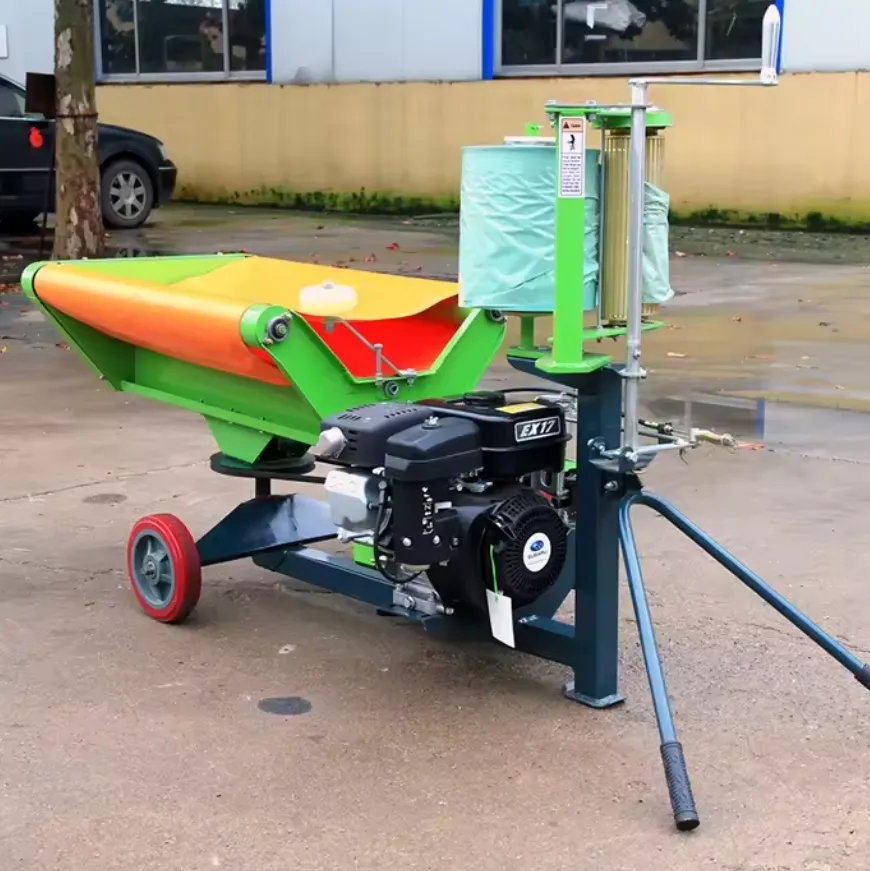

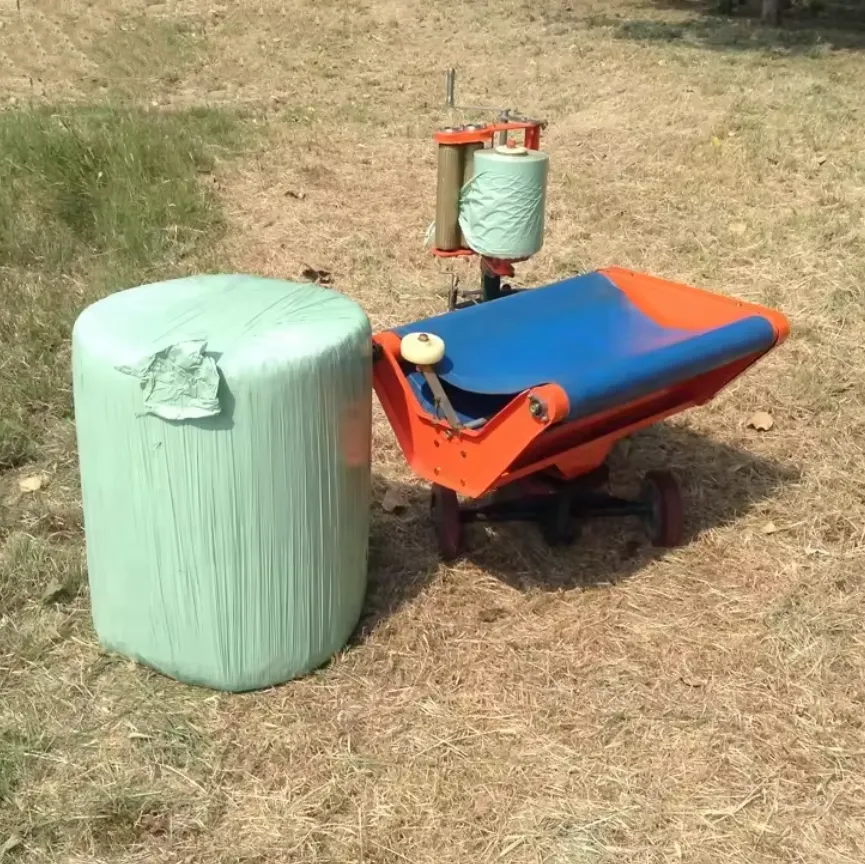

Hay Bale Wrapper for Round Bales RXHW0810

[embed]https://youtu.be/UUpEze-IUo0[/embed]

Hay Bale Wrapper for Round Bales RXHW0810

A hay round bale wrapper is a machine used in the agricultural industry to preserve and protect round bales of hay. It is commonly used by farmers and livestock owners to store hay for extended periods of time, especially during the winter months when fresh forage is scarce. The primary purpose of a round bale wrapper is to create a tightly sealed and weather-resistant cover around the bale, preventing spoilage and maintaining the nutritional value of the hay. This process is known as bale wrapping or bale silage. By wrapping the bales, farmers can preserve the quality of the forage, ensuring it remains suitable for feeding livestock. The bale wrapping process typically involves the use of a specialized machine, which can be either trailed behind a tractor or self-propelled. The machine is equipped with a rotating arm or table that holds the bale in place while it is wrapped. The wrap material, usually plastic film, is fed from a roll and stretched tightly around the bale as it rotates, creating a tight seal. The plastic film used in bale wrapping serves several purposes. It acts as a barrier against moisture, preventing rain or snow from penetrating the bale and causing spoilage. It also creates an anaerobic environment that promotes fermentation, allowing the hay to undergo a controlled ensiling process. This process preserves the nutrients in the forage and reduces the risk of mold or decay.

Hay Bale Wrapper RXHW0810 Specifications

Specifications for Bale Wrapper RXHW0810
Dia and Width for Bale		500 x 700 mm; 610 x 700mm
Dimension(L*W*H)		150 x 87 x 103 mm
Weight		85kg
Matched Power		6.5hp Gasoline Engine
Operating Speed		40seconds/bale
Application		Bale Hay Rice Wheat Straw
Logo		Customized
Color		Customized
Application		Silage,Grass,Alfalfa,Hay,Straw

Benefits of Using the Hay Bale Wrapper for Round Bale

Using a hay bale wrapper for round bales offers several benefits for farmers and livestock owners. Here are some of the key advantages: 1. Preservation of Nutritional Value: Wrapping round bales with a hay bale wrapper helps preserve the nutritional value of the forage. The tight seal created by the plastic film wrap prevents oxygen from entering the bale, reducing the risk of mold growth and preserving the hay's quality. This ensures that the forage retains its nutritional content, providing a high-quality feed for livestock. 2. Weather Protection: The plastic film wrap acts as a barrier against moisture, protecting the hay from rain, snow, and other weather elements. This is particularly important during the storage period, as exposure to moisture can lead to spoilage and nutrient loss. By keeping the bales dry, the wrapper helps maintain the hay's quality and palatability. 3. Reduced Storage Losses: When round bales are stored without protection, they are susceptible to significant losses due to weather, pests, and spoilage. Bale wrapping minimizes these losses by creating a tightly sealed environment that prevents the growth of bacteria and fungi. This, in turn, reduces waste and maximizes the utilization of stored forage. 4. Versatility: Hay bale wrappers are designed to accommodate bales of various sizes, allowing farmers to wrap round bales of different diameters and lengths. This versatility makes the machine suitable for different forage crops, such as hay, straw, and corn silage. Farmers can adapt the wrapping process to their specific needs and ensure efficient storage of various types of forage. 5. Time and Labor Savings: Using a hay bale wrapper can significantly reduce the time and labor required for bale storage and handling. Wrapping bales with a machine is generally faster and more efficient than manually covering them with tarps or other materials. It allows farmers to wrap multiple bales quickly, saving time and effort during busy seasons. 6. Enhanced Feed Efficiency: Bale wrapping facilitates the production of bale silage, which undergoes a controlled fermentation process. This results in improved feed efficiency, as the fermentation breaks down complex carbohydrates in the forage, making them more readily available to livestock. The resulting bale silage is highly digestible and can contribute to better animal performance.

Hay Round Bale Wrapper Application Scenarios

Hay round bale wrappers are versatile machines that can be used in various application scenarios in the agricultural industry. Here are some common scenarios where a hay round bale wrapper is employed: (1) Hay Storage: The primary application of a hay round bale wrapper is for storing hay. Farmers use bale wrappers to protect round bales from moisture, weather elements, and spoilage during storage. This is especially important when storing hay for extended periods, such as during the winter months when fresh forage is scarce. The wrapper ensures the hay retains its nutritional value and remains suitable for feeding livestock when needed. (2) Livestock Feeding: Bale wrappers are also used in scenarios where hay needs to be fed to livestock. The wrapped bales can be stored in a convenient location near the feeding area, allowing for easy access and efficient feeding. The plastic film wrap not only protects the hay from spoilage but also facilitates the controlled fermentation process, resulting in bale silage that provides high-quality feed to livestock. (3) Transportation: Bale wrappers can be used to prepare round bales for transportation. The tightly wrapped bales are more resistant to damage during handling and transport, reducing the risk of hay loss or degradation. This is particularly beneficial when hay needs to be transported over long distances or when bales are moved from one location to another on the farm.

Choose the Right Hay Bale Wrapper for Round Bales

Choosing the right hay bale wrapper for round bales requires careful consideration of several factors. Here are some key points to keep in mind when selecting a bale wrapper: 1. Bale Size and Capacity: Consider the size and weight of the round bales you typically handle on your farm. Ensure that the bale wrapper you choose is compatible with the bale sizes you work with. Check the maximum bale diameter and weight capacity specifications of the machine to ensure it can handle your bales efficiently. 2. Wrapping Speed and Efficiency: Evaluate the wrapping speed and efficiency of the bale wrapper. Different machines may have varying wrapping speeds, and some models may offer features like automatic or semi-automatic wrapping functions, which can improve efficiency and save time. Consider the throughput capacity of the machine to ensure it aligns with your farm's needs and the volume of bales you need to wrap. 3. Wrapping Quality and Control: Look for a bale wrapper that offers precise wrapping control and ensures consistent tension of the film. This is crucial for creating a tight seal and maintaining the integrity of the wrapped bale. Consider models with advanced control systems, sensors, and features that allow you to adjust wrapping parameters to achieve the desired wrapping quality. 4. Film Application and Compatibility: Consider the type of film used for wrapping and check if it is compatible with the bale wrapper you are considering. Some machines may have specific requirements regarding film dimensions, thickness, or type. It's important to ensure that the film is readily available and suits your wrapping needs. 5. Durability and Reliability: Assess the durability and reliability of the bale wrapper. Look for machines constructed with high-quality materials that can withstand the demands of the agricultural environment. Consider the reputation and track record of the manufacturer or brand to gauge the reliability of the equipment. Reading reviews and seeking recommendations from other farmers can provide insights into the performance and durability of different models.

Hay Round Bale Wrapper Common Troubleshooting

Troubleshooting common issues with a hay round bale wrapper involves identifying and resolving problems that can arise during the wrapping process. Efficiently addressing these issues can minimize downtime and ensure high-quality preservation of your hay. Here are some common problems and troubleshooting tips: 1. Uneven or Incomplete Wrapping

• Cause: This can result from incorrect tension settings, uneven bale shape, or a misaligned film dispenser.
• Solution: Check and adjust the tension settings according to the manufacturer's recommendations. Ensure bales are uniformly shaped and tightly rolled. Align the film dispenser to ensure even application of the film.

2. Film Tearing or Breaking

• Cause: Sharp edges on the bale, a dirty or damaged film dispenser, or low-quality film can cause the film to tear.
• Solution: Inspect and smooth any sharp edges on the bale wrapper where the film passes. Clean or replace any worn parts on the film dispenser. Use high-quality, agricultural-grade stretch film designed for bale wrapping.

3. Film Not Sticking to the Bale

• Cause: This can be due to using the wrong type of film, low film tension, or cold weather.
• Solution: Ensure you're using the correct type of stretch film designed for bale wrapping, which has one sticky side. Adjust the film tension as needed for a tighter wrap. In cold weather, storing the film in a warmer area before use can help improve its stickiness.

4. Machine Stops Unexpectedly

• Cause: Safety switches triggered by debris, incorrect setup, or mechanical issues can cause the machine to halt.
• Solution: Check for and clear any debris or obstructions in the machine. Ensure all safety guards and switches are correctly engaged. Consult the manual for setup guidelines and inspect for any mechanical failures that need repair.

5. Hydraulic Issues (Slow Operation or Lack of Power)

• Cause: Low hydraulic fluid levels, air in the hydraulic system, or faulty hydraulic components can affect performance.
• Solution: Check the hydraulic fluid level and top up if necessary. Bleed the hydraulic system to remove any air. Inspect hydraulic lines, fittings, and components for damage or leaks and replace as necessary.

6. Bale Ejection Problems

• Cause: Mechanical obstruction, hydraulic system issues, or incorrect operation can prevent bales from being ejected properly.
• Solution: Remove any obstructions in the bale ejection path. Check the hydraulic system for issues. Review the operational procedure for ejecting bales to ensure it's being performed correctly.

Why Choose Raydafon's Hay Bale Wrapper?

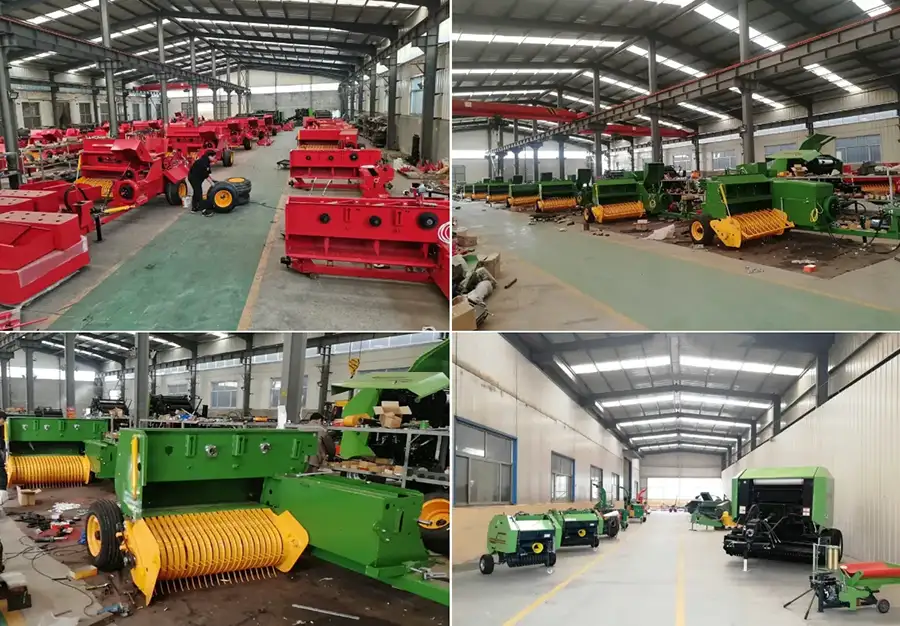

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, corn seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.
