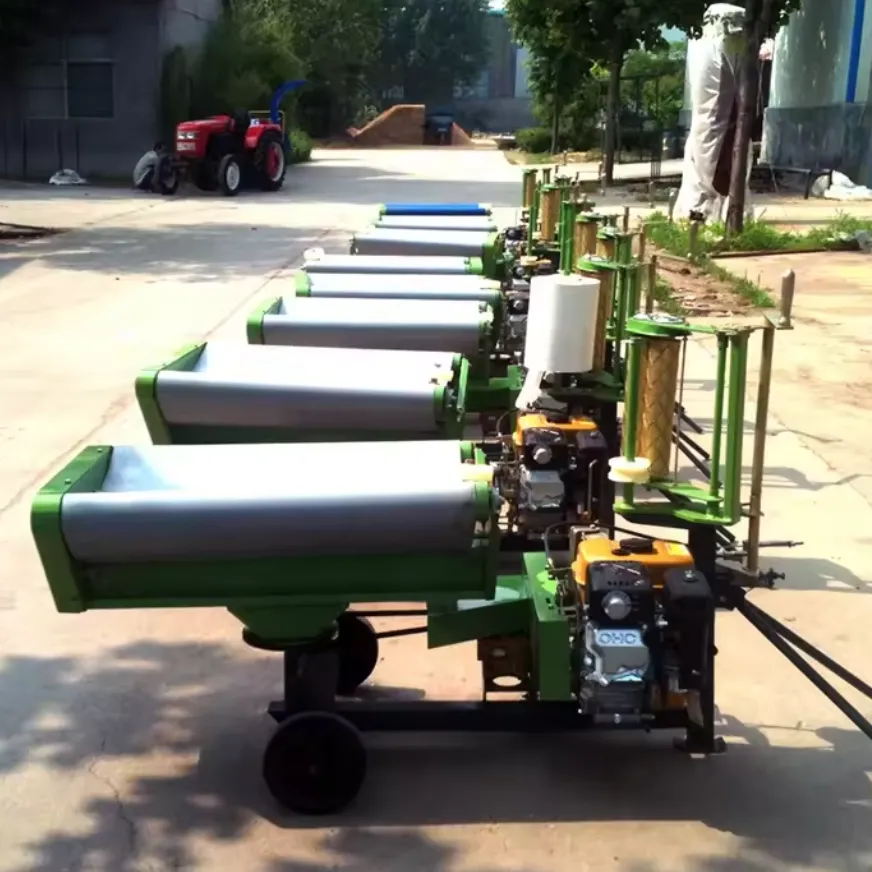

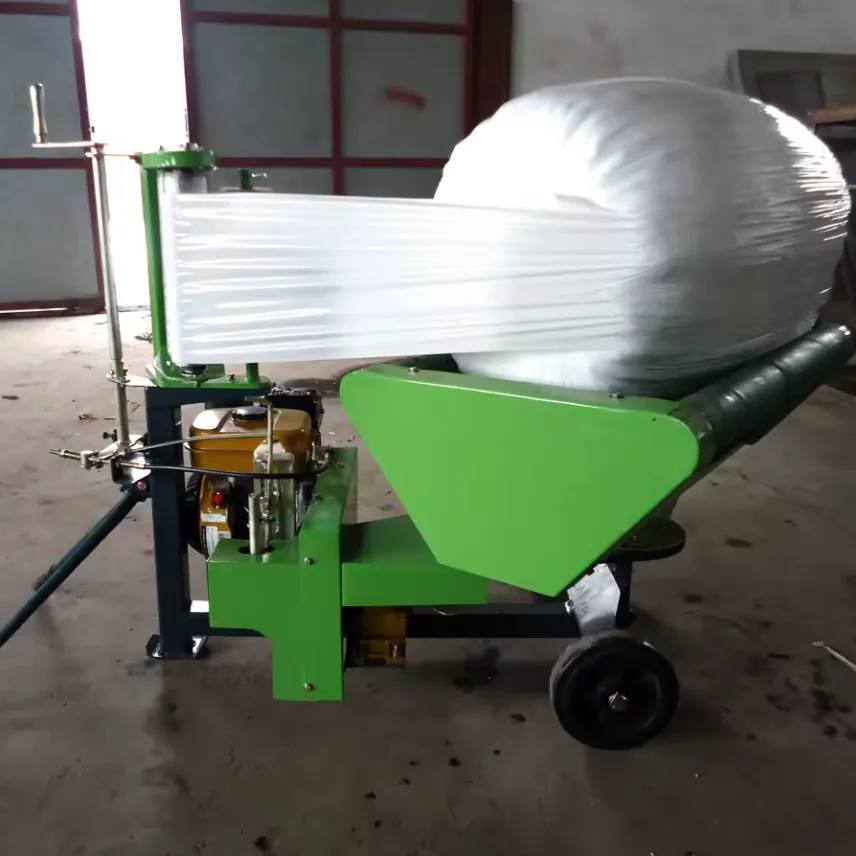

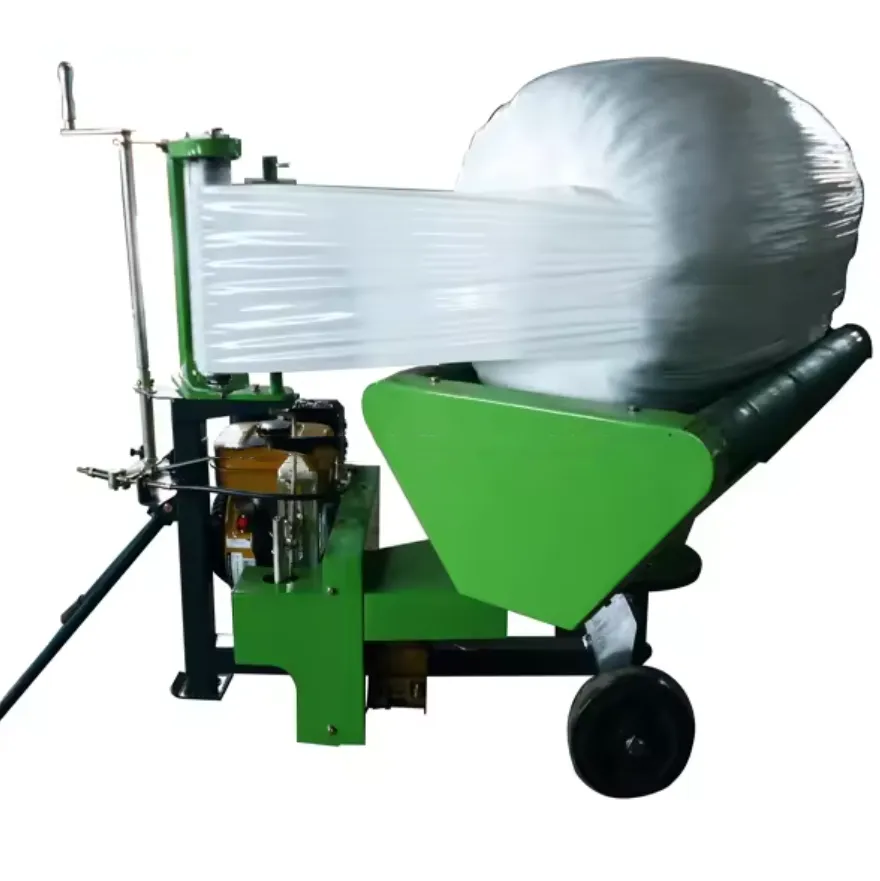

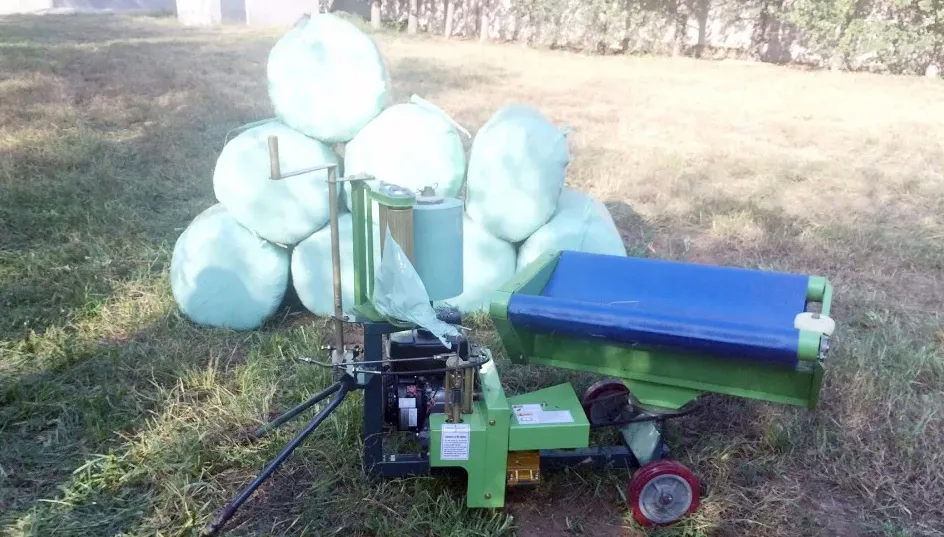

CE Approved Hay Wrapping Machine Bale Wrapper for Round Bale RXHW0810

[embed]https://youtu.be/UUpEze-IUo0[/embed]

CE Approved Hay Wrapping Machine Bale Wrapper for Round Bale RXHW0810

A hay bale wrapper for round bales is a machine used in agriculture to wrap bales of hay or silage with a protective layer of plastic film. It is commonly used to preserve the quality and nutritional value of the forage during storage or transportation. The process begins with the formation of a round bale, which is typically made by a baler. The baler collects the cut forage, compacts it into a cylindrical shape, and binds it together with twine or netting. Once the round bale is created, it is ready to be wrapped. The hay bale wrapper consists of a turntable or a rotating arm, which holds and rotates the bale. The round bale is placed on the turntable, and the plastic film is fed into the machine. The film is typically a stretchable and UV-resistant material that provides protection against moisture, air, and sunlight. As the round bale rotates, the plastic film is dispensed and wrapped tightly around the bale. The film is stretched during the wrapping process, ensuring a secure and airtight seal. Some wrappers apply multiple layers of film to enhance the preservation of the forage. The wrapping process is usually controlled by an operator who sets the desired parameters, such as the number of rotations or the amount of film to be applied. Some modern hay bale wrappers also feature automated controls and sensors to optimize the wrapping process. Once the wrapping is complete, the excess film is cut, and the wrapped bale is ejected from the machine. The wrapped bale is now protected from external elements, reducing the risk of spoilage and preserving its nutritional value for an extended period. The wrapped bales can be stored outdoors, as the plastic film acts as a barrier against moisture and prevents the growth of mold or bacteria. Additionally, the preserved forage can be transported more efficiently without the risk of degradation.

Hay Bale Wrapper RXHW0810 Specifications

Specifications for Bale Wrapper RXHW0810
Dia and Width for Bale		500 x 700 mm; 610 x 700mm
Dimension(L*W*H)		150 x 87 x 103 mm
Weight		85kg
Matched Power		6.5hp Gasoline Engine
Operating Speed		40seconds/bale
Application		Bale Hay Rice Wheat Straw
Logo		Customized
Color		Customized
Application		Silage,Grass,Alfalfa,Hay,Straw

Advantages of Using the Hay Bale Wrapper for Round Bale

Using a hay bale wrapper for round bales offers several advantages for farmers and agricultural operations. Here are some of the key benefits: 1. Improved forage quality: Wrapping round bales with plastic film creates an airtight seal, which helps preserve the nutritional quality of the forage. It minimizes exposure to oxygen, preventing spoilage, mold growth, and nutrient loss. This results in higher-quality feed for livestock, ensuring better animal health and productivity. 2. Extended storage life: The plastic film acts as a protective barrier, shielding the bales from moisture, rain, and sunlight. This significantly extends the storage life of the forage, allowing farmers to store hay or silage for longer periods without significant degradation. It reduces the need for frequent feeding or selling of bales and provides flexibility in managing feed inventory. 3. Weather resistance: By wrapping round bales, farmers can store them outdoors without worrying about weather conditions. The plastic film protects the forage from rain, snow, and other environmental factors that could damage the bales. This eliminates the need for additional storage space and infrastructure, reducing costs and increasing efficiency. 4. Easy transportation: Wrapped bales are more durable and compact, making them easier to handle and transport. The plastic film holds the bale together, preventing it from unraveling or losing its shape during handling or transit. This allows for more efficient logistics and reduces the risk of damage or loss during transportation. 5. Versatility: Hay bale wrappers are compatible with various bale sizes, making them suitable for different farming operations. They can handle round bales of different diameters and densities. This versatility enables farmers to adapt to their specific needs and baling equipment, ensuring compatibility and ease of use. 6. Time and labor savings: Wrapping round bales with a hay bale wrapper is a relatively quick and efficient process. It reduces the time and labor required compared to traditional methods of covering bales manually with tarps or storing them in barns. The machine automates the wrapping process, allowing farmers to wrap multiple bales in a short amount of time.

Working Principle of Hay Bale Wrapper for Round Bale

The working principle of a hay bale wrapper for round bales involves several key steps. Here's a general overview of the process:

• Bale Placement: The round bale, which has been formed by a baler, is placed onto the turntable or within the wrapping chamber of the hay bale wrapper. The turntable is typically a circular platform that can rotate the bale.
• Film Loading: The operator loads a roll of plastic film onto the wrapper, ensuring that the film is properly aligned and ready for wrapping. The film is typically a stretchable and UV-resistant material designed for agricultural applications.
• Start Wrapping: The operator initiates the wrapping process by activating the machine. Depending on the specific wrapper model, this can be done manually or through an automated control system.
• Film Dispensing: As the round bale rotates on the turntable, the hay bale wrapper begins dispensing the plastic film. The film is typically fed from the roll through a series of rollers or guides, ensuring smooth and even distribution.
• Film Stretching: The hay bale wrapper usually incorporates a mechanism to stretch the film as it is being applied to the bale. This stretching helps create a tight and secure seal around the bale, enhancing its protection and stability.
• Rotational Movement: The turntable or wrapping arm of the hay bale wrapper continues to rotate the bale while the film is being dispensed. This rotation ensures that the film covers the entire surface of the bale, providing consistent coverage.
• Overlapping Layers: Depending on the desired level of protection, the hay bale wrapper can apply multiple layers of film to the bale. This is achieved by controlling the speed of film dispensing and the rotational speed of the turntable.
• Film Cutting: Once the desired number of film layers has been applied, the hay bale wrapper cuts the film to separate it from the roll. This is typically done using a cutting mechanism integrated into the machine.
• Bale Ejection: After the wrapping process is complete, the hay bale wrapper releases the wrapped bale from the turntable or wrapping chamber. The wrapped bale is then ready for storage or transportation.

Common Troubleshooting of Hay Bale Wrapper for Round Bale

While hay bale wrappers for round bales are generally reliable machines, they can encounter occasional issues that may require troubleshooting. Here are some common troubleshooting steps for hay bale wrappers:

1. Film Breakage: If the plastic film breaks during the wrapping process, check for the following issues:
   • Ensure that the film roll is correctly loaded and aligned on the wrapper.
   • Inspect the film tensioning mechanism and adjust it if necessary.
   • Check for any obstructions or misalignments in the film path and clear them.
   • Verify that the film roll is not running out or getting stuck, and replace it if needed.
2. Wrinkled or Loose Film: If the film wraps unevenly or appears wrinkled or loose, consider the following troubleshooting steps:
   • Check the film tensioning mechanism and ensure it is properly adjusted to maintain consistent tension throughout the wrapping process.
   • Verify that the film rolls are not damaged or misaligned, as this can affect the smooth dispensing of the film.
   • Ensure that the bale is rotating evenly on the turntable or wrapping arm, as any irregular movement can cause the film to wrap improperly.
   • Adjust the wrapping parameters, such as rotation speed or film overlap, to achieve better tension and coverage.
3. Film Jamming or Sticking: If the film gets jammed or stuck during the wrapping process, try the following troubleshooting techniques:
   • Inspect the film path and rollers for any debris, dirt, or adhesive residue that may be causing the film to stick. Clean or replace any affected components.
   • Check the film tensioning mechanism and ensure it is not excessively tight, as this can cause the film to jam.
   • Verify that the film roll is not damaged or misshapen, as this can lead to feeding issues. Replace the roll if necessary.
   • Ensure that the film is properly aligned and guided through the machine, avoiding any sharp edges or rough surfaces that could cause the film to snag.
4. Mechanical Malfunctions: In case of mechanical issues with the hay bale wrapper, consider the following troubleshooting steps:
   • Inspect the drive components, such as motors, belts, and chains, and ensure they are properly lubricated and in good condition. Replace any worn or damaged parts.
   • Check for loose or misaligned components, such as guides, rollers, or cutting mechanisms, and adjust or tighten them as needed.
   • Refer to the manufacturer's manual for specific troubleshooting instructions and recommended maintenance procedures.
   • If the issue persists or is beyond your expertise, contact a qualified technician or the manufacturer for further assistance.

Why Choose Raydafon's Hay Bale Wrapper?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, corn seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.
