Factory Direct Sale High Quality Hay Bale Wrapper RXHW0810

Hay round bale wrappers are agricultural machines used to wrap round bales of hay or forage in protective plastic film. These wrappers play a crucial role in preserving the quality and nutritional value of hay by creating an airtight seal around the bales, which helps to maintain the moisture content and prevent spoilage. The process of wrapping hay bales begins with the collection of the bales in the field, typically produced by a hay baler. Once the bales are formed, they are moved to the wrapping area where the round bale wrapper is located. The wrapper is generally a self-propelled or towed machine that can be operated by a tractor or another suitable power source. To initiate the wrapping process, the bale is placed onto a rotating turntable or platform. The plastic film, which is usually supplied in rolls, is then fed through the wrapper and positioned to cover the bale. As the turntable rotates, the plastic film is stretched and wrapped tightly around the bale, creating multiple layers of film. This wrapping action ensures that the bale is completely covered and protected from external elements such as moisture, sunlight, and air. Hay round bale wrappers can vary in their design and features, but most modern models are equipped with advanced systems to control the wrapping process. These systems allow operators to adjust parameters like the number of film layers, the overlap between layers, and the tension of the film. Some wrappers also offer additional features such as automatic film cutting and application of netting for added stability. The benefits of using hay round bale wrappers are numerous. Firstly, they significantly extend the shelf life of hay by protecting it from moisture and reducing the risk of mold and spoilage. This preservation allows farmers to store hay for longer periods, ensuring a stable and sufficient supply of feed for livestock during the winter or periods of low forage availability. Additionally, wrapped bales are easier to handle and transport, as the film holds the bale together and reduces losses during handling and storage.

Hay Bale Wrapper RXHW0810 Specifications

Specifications for Bale Wrapper RXHW0810
Dia and Width for Bale		500 x 700 mm; 610 x 700mm
Dimension(L*W*H)		150 x 87 x 103 mm
Weight		85kg
Matched Power		6.5hp Gasoline Engine
Operating Speed		40seconds/bale
Application		Wrap the bales made by plasstic films or packe
Logo		Customized
Color		red, yellow, black, whine, Customized
Wrapping bale material		white plastic film rolls
Film layer		2/4/6
Application		Silage,Grass,Alfalfa,Hay,Straw

Benefits of Using the Hay Round Bale Wrapper

Using a hay round bale wrapper offers several benefits for farmers and agricultural operations. Here are some of the key advantages: 1. Preservation of Hay Quality: The primary benefit of using a round bale wrapper is the preservation of hay quality. The wrapper creates an airtight seal around the bale, protecting it from moisture, sunlight, and air. This helps to maintain the nutritional value, color, and flavor of the hay, reducing the risk of spoilage, mold growth, and nutrient loss. 2. Extended Storage Life: Wrapping hay bales with plastic film significantly extends their storage life. The protective barrier created by the wrapper shields the hay from external elements that can degrade its quality over time. With proper wrapping and storage conditions, wrapped bales can be stored for extended periods, allowing farmers to have a stable and sufficient feed supply even during periods of scarcity. 3. Improved Handling and Transport: Wrapped hay bales are easier to handle and transport compared to unwrapped bales. The plastic film holds the bale together, reducing the risk of bale disintegration and loss of forage during handling, loading, and unloading. This makes it more efficient to move bales within the farm or transport them to different locations. 4. Versatility: Hay round bale wrappers are versatile machines that can handle various bale sizes and types. They can wrap both small and large round bales, accommodating the specific needs of different farms and livestock operations. Additionally, some wrappers can also handle other forage materials, such as straw or silage, providing flexibility in feed preservation. 5. Time and Labor Savings: Wrapping hay bales with a round bale wrapper saves time and reduces labor requirements. The wrapping process can be automated, allowing a single operator to wrap multiple bales quickly. This efficiency is especially valuable during busy hay production seasons when there is a need to wrap large quantities of bales in a short amount of time. 6. Enhanced Feed Efficiency: Wrapped bales provide improved feed efficiency for livestock. The airtight seal created by the wrapper helps to preserve the moisture content of the hay, preventing it from becoming too dry or losing its nutritional value. Livestock can consume the wrapped bales without wastage, resulting in better feed utilization and reduced feed costs.

Applications of the Hay Round Bale Wrapper

Hay round bale wrappers have several applications in the agricultural industry. Here are some common applications: (1) Livestock Feed Preservation: The primary application of hay round bale wrappers is the preservation of livestock feed. Wrapping round bales in plastic film creates an airtight seal that protects the hay from moisture, air, and sunlight. This helps maintain its nutritional value and prevents spoilage, enabling farmers to store high-quality feed for their livestock over extended periods. The wrapped bales can be used as a primary source of forage during winter or periods of low forage availability. (2) Hay Storage and Transportation: Wrapped round bales are easier to store and transport compared to loose or unbound bales. The plastic film holds the bale together, reducing the risk of bale disintegration and loss of forage during handling and transportation. This allows farmers to efficiently store bales in barns, sheds, or outdoor stacks, as well as transport them to different locations such as livestock farms or auction markets. (3) Silage Production: In addition to preserving dry hay, round bale wrappers can also be used in silage production. Silage is a fermented forage feed made from green crops such as grass, corn, or other crops with high moisture content. The process involves wrapping the chopped crop material in plastic film to create anaerobic conditions for fermentation. Hay round bale wrappers can be adapted to wrap silage bales, allowing farmers to preserve and store high-moisture forage for livestock feed. (4) Straw Preservation: Hay round bale wrappers are not limited to wrapping hay; they can also be used for straw preservation. Straw, which is the dry stalks of cereal crops after grain harvest, can be wrapped in plastic film to maintain its quality and prevent it from becoming too dry or losing its value as bedding material or feed for certain livestock species. By wrapping straw bales, farmers can store and transport them more efficiently while preserving their quality. (5) Forage Export: Hay round bale wrappers are also used in the export of forage. Wrapped bales provide a protective layer that helps maintain the quality of forage during long-distance transportation and storage. This is particularly valuable when exporting hay or other forage products to regions with different climates or when shipping to international markets where quality standards must be met.

Common Troubleshooting of the Hay Round Bale Wrapper

Troubleshooting common issues with a hay round bale wrapper involves addressing problems that can affect its performance and the quality of wrapped bales. Efficient wrapping is crucial for preserving the nutritional value of silage and preventing spoilage. Here’s a guide to some frequent issues encountered with hay round bale wrappers and potential solutions:

• Uneven Film Application: If the plastic film is not evenly applied to the bale, it can result in weak spots or insufficient coverage. This can be caused by various factors such as improper tension settings, misalignment of the film roll, or worn film feeding components. To address this issue, check the tension settings and adjust them accordingly. Ensure that the film roll is properly aligned and securely mounted. If the film feeding components are worn, they may need to be replaced.
• Film Breakage: Film breakage during the wrapping process can occur due to excessive tension, sharp edges on the bale, or worn film handling components. Examine the tension settings and reduce them if necessary. Inspect the bale for any sharp edges that may be causing the film to tear and smooth them out if possible. If the film handling components are worn, they should be replaced to ensure smooth film feeding.
• Wrinkled or Loose Film: Wrinkled or loose film can result in poor bale coverage and decreased protection. This issue can be caused by incorrect film tension, incorrect film overlap settings, or faulty film stretching mechanisms. Check the tension settings and adjust them as needed to ensure proper film tightness. Verify the film overlap settings and make sure they are appropriate for the desired level of coverage. If the film stretching mechanisms are not functioning properly, they may require repair or replacement.
• Film Slippage: Film slippage occurs when the film does not adhere properly to the bale surface and starts to slide or unwrap. This can be caused by insufficient film tension, poor film adhesion properties, or bale surface conditions. Increase the tension settings to ensure a tighter film grip on the bale. Consider using a different type or brand of film with better adhesion properties. If the bale surface is too smooth or slippery, it may be helpful to roughen it slightly to enhance film adhesion.
• Electrical or Mechanical Malfunctions: Electrical or mechanical malfunctions can occur due to various reasons such as loose connections, worn components, or sensor issues. Conduct a thorough inspection of the electrical connections, wiring, and components. Tighten any loose connections and replace any worn or damaged parts. Check the sensors to ensure they are functioning correctly and making proper contact with the bale and wrapping components.
• Operating Errors: Sometimes, troubleshooting may reveal that the issues are caused by operator errors or incorrect settings. Ensure that the operator is properly trained on the operation of the specific round bale wrapper model and that they are following the recommended procedures, including setting the correct parameters for bale size, film tension, overlap, and other relevant settings.

Why Choose Raydafon's Hay Bale Wrapper?

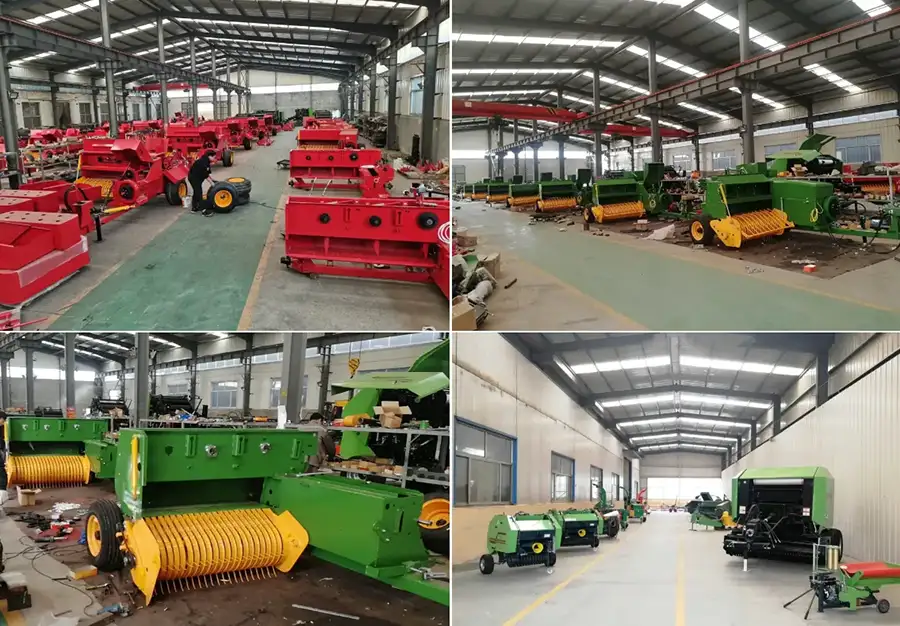

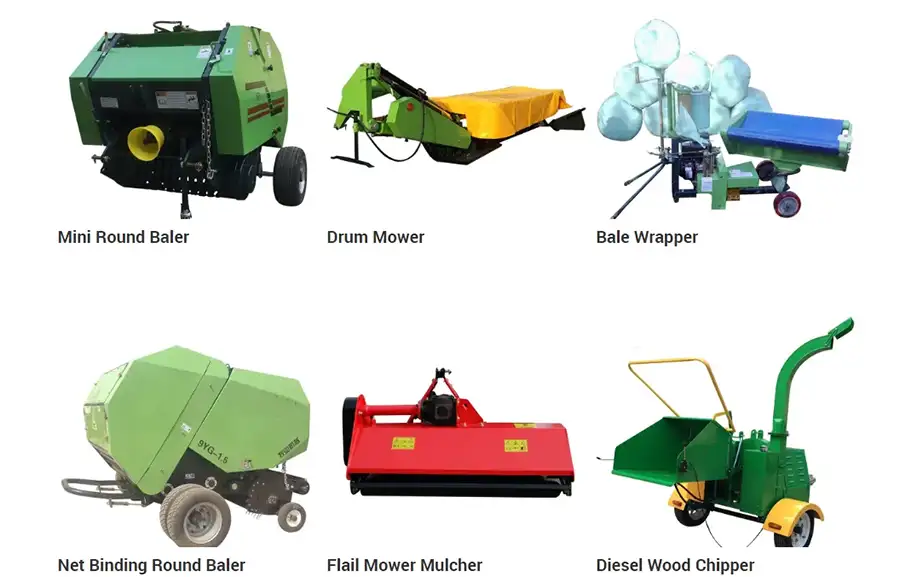

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, corn seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.
