Customized Cast Iron Stainless Steel High Precision Timing Belt Pulley A/B/D/E/F/K Shape

Customized Cast Iron Stainless Steel High Precision Timing Belt Pulley A/B/D/E/F/K Shape

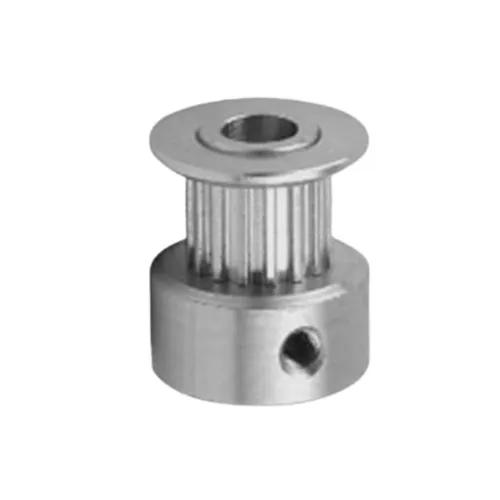

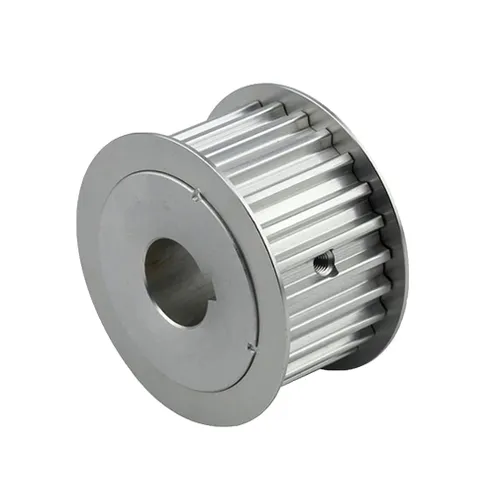

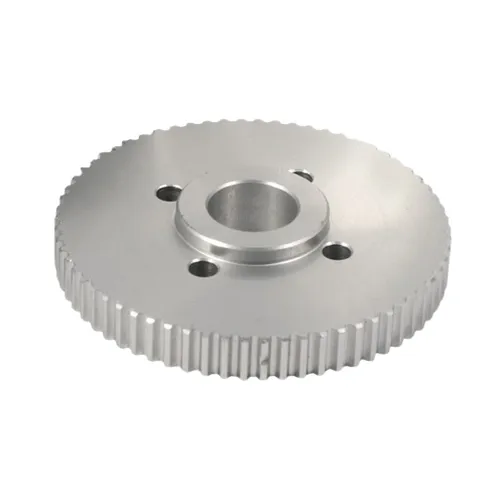

The timing belt pulley is a low-speed and high-torque transmission part that combines the advantages of belt drive, chain drive, and gear drive. It has the advantages of high efficiency, small size, less maintenance, no pollution, and a small load on the shaft.The basic shape of the timing belt pulleys： A-shape, B-shape, D-shape, E-shape, F-shape, and K-shape.

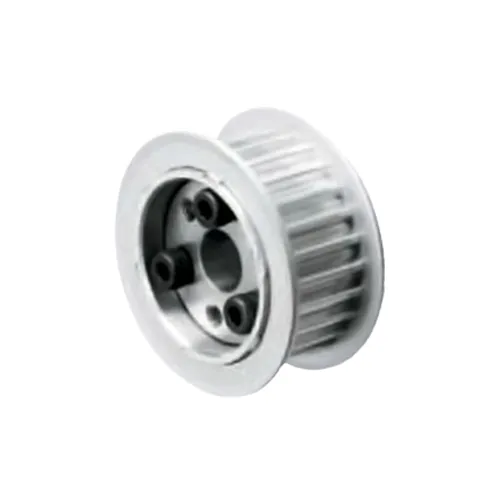

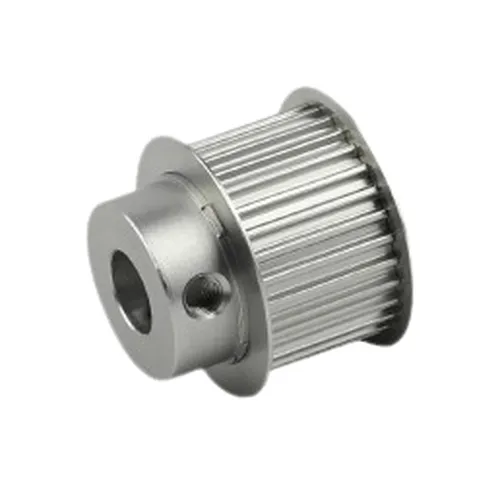

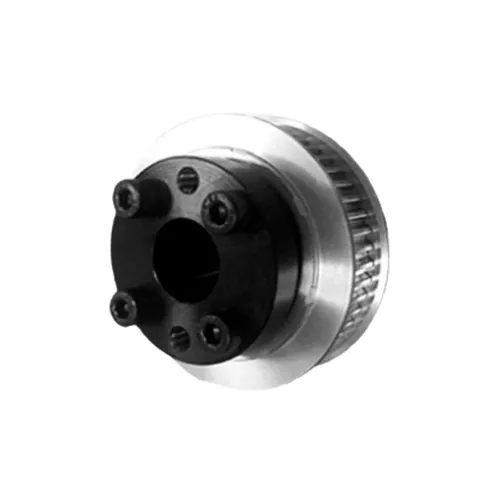

Timing Belt Pulley Types

Timing Belt Pulley Specifications

Product	Timing Belt Pulley & timing belt idler pulley
Teeth type	Normal Torque Drive Type: MXL timing belt pulley, XL timing belt pulley, L timing belt pulley, H timing belt pulley, XH timing belt pulley, XXH timing belt pulleyHigh Torque Drive Type:S2M,S3M,S5M,S8M,HTD2M,HTD3M,HTD5M,HTD8M,P2M,P3M,P5M,P8MHigh Precision Position Drive Type:GT2 timing belt pulley,GT3 timing belt pulley,GT5 timing belt pulley,8YULight Load Drive Type: T5 timing belt pulley, T10 timing belt pulley, T20 timing belt pulleyHeavy Load Drive Type: AT5 timing belt pulley, AT10 timing belt pulley, AT20 timing belt pulley
Basic shape	Type A,Type B,Type D,Type E,Type F,Type K
surface treatment	Natural color anodizing, Black anodizing, Hard anodizing, Ni-plating, Blackening
Material	6061(aluminum),S45C(45# steel),SUS304(Stainless steel)
Bore	Pilot bore, Taper bore, and Customized bore.
testing equipment	projecting apparatus, salt spray test, durometer, coating thickness tester,2D projector
producing  equipment	CNC machine, automatic lathe machine, stamping machine, CNC milling machine, rolling machine, lasering, tag grinding machine, etc.
Machining Process	Gear Hobbing, Gear Milling, Gear Shaping, Gear Broaching, Gear Shaving, Gear Grinding, and Gear Lapping
Application industry	Robot industry, Medical industry, Making machine industry, Automation industry,3C industry equipment, Packaging industry, UAV industry, and New energy industry.
Advantages	1. High-temperature resistance, Self-lubrication, Wear resistance, Flame retardant properties2. Good quality products3. Competitive prices4. Fast delivery5. Best after-sale service6. OEM/ ODM7. Good service: satisfactory service before and after the sale.8. Direct manufacturers

The Characteristics of Timing Belt Pulley

1) Accurate transmission, no slippage during operation, and a constant transmission ratio2) The transmission is stable, with buffering, vibration reduction capabilities, and low noise;3) High transmission efficiency, up to more than 98%, with a noticeable energy-saving effect;4) Easy maintenance, no need for lubrication, low maintenance cost;5) The speed ratio range is extensive, generally up to 10, and the line speed can reach 50m/s6) No pollution, you can typically work where pollution is not allowed and the working environment is relatively harsh.

What is the Purpose of the Timing Belt Pulley?

Timing belt pulleys are widely used in various industrial sectors.Engineering: Timing belt pulleys are widely used in machine tools, foundry equipment, painting systems, compressors, and conveyors.Pharmaceutical and food processing: These timing belt pulleys are widely used in pulp mills for blowers, warehouse conveyors, bakers, labelers, robots, and more.Textile mills: Timing belt pulleys are widely used in high-speed automatic looms, straight-edge calendars, high-speed winders, looms, packaging machines, and other machines.Printing Machinery: These timing belt pulleys are widely used in different factories and types of machinery. These are used in new paper presses, screen presses, Linotype machine offset presses, etc.Agricultural industry: Tractors, cultivators, harvesters, rice seeders, etc., are the primary machines used in the farming industry. Timing belt pulleys are also widely used in these machines.Paper industry: Timing belt pulleys are widely used in the paper industry. Cut-off saws, edgers, flotation machines, etc., are heavily used for these pulleys.

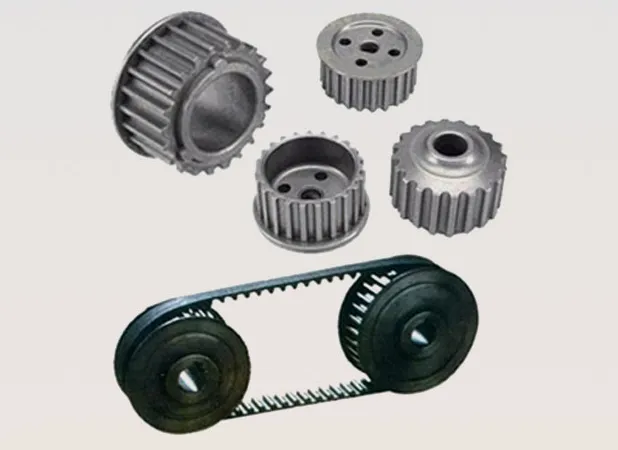

Why Choose Our Timing Belt Pulley?

Timing belt pulleys are widely used in various equipment where the timing of both drives is precious, and the display ratio is essential. A timing belt pulley's benefit is eliminating slippage and maintaining constant angular velocity. Timing belt pulleys are manufactured per international and national standards with carbon steel/alloy steel/aluminum and hardened teeth to provide long life. We have been ranked as the most dependable and leading firm worldwide and actively emerged to offer a wide array of timing belts. Our sophisticated production unit's timing belt pulleys are fabricated by our skilled personnel using advanced technology.

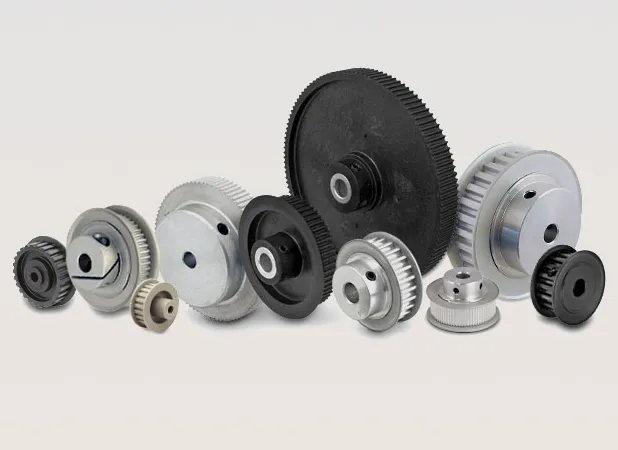

Custom Timing Belt Pulleys

Known for superior sturdiness, dimensional accuracy, and durability, the offered range is manufactured in compliance with industry norms and guidelines. Further, we provide these components in various customized forms according to patrons' specific requirements. Apart from this, these pulleys are quality tested by our quality controllers on different parameters.

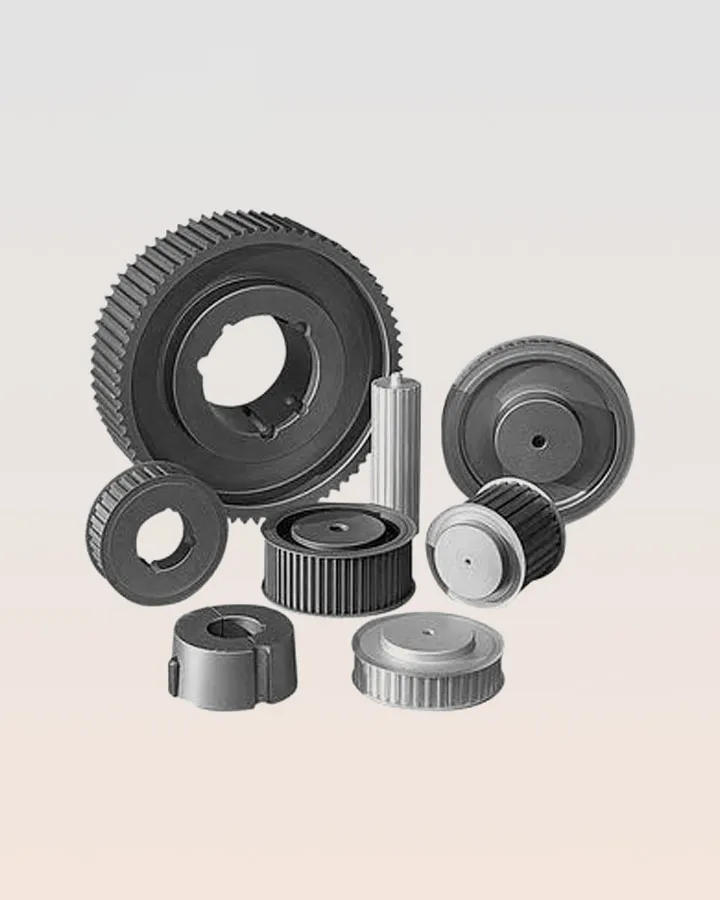

Timing Belt Pulley Manufacturers

Raydafon is one of the leading manufacturers and suppliers of top-grade timing belt pulley products in China. We offer some of the finest custom and standard models of timing belt pulley products that can be used for a broad range of applications. Our products offer numerous advantages over the conventional pulleys and chain drives. We not only use the best materials to create our timing belt pulley products but we also cover them with a coat of finish that prevents any kind of corrosion or damage in years to come. Since our products can deliver you powerful performance for a long time, you can save on your operational costs.We always provide high-quality timing belt pulleys that are competitively priced for our customers. Our products come in inch (U.S.) and metric systems. When you contact us, we can provide you with a great range of sizes and styles for numerous standard and custom applications.

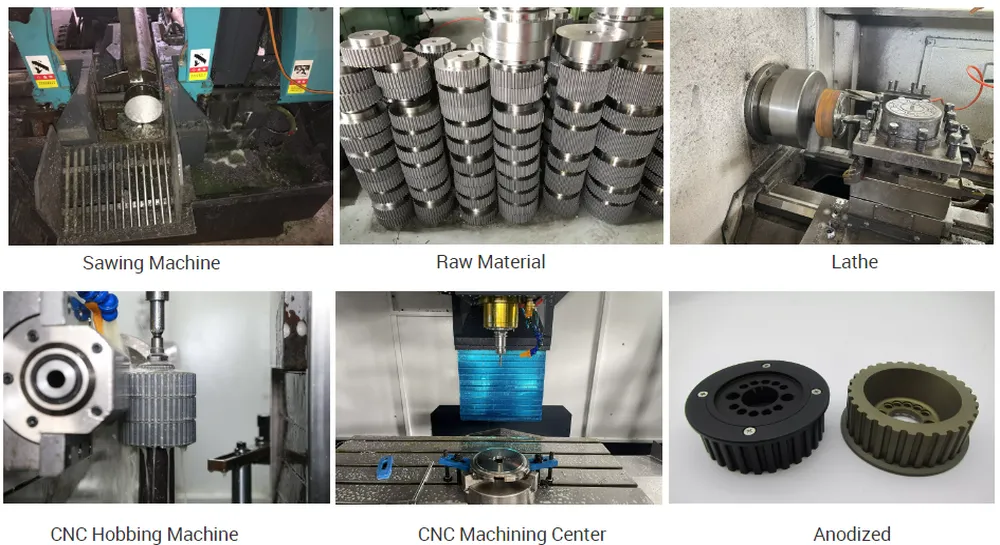

Timing Belt Pulley Produce Workshop

Timing Belt Pulleys Packaging

1. Put the timing belt pulley into the plastic shell2. Individual carton packing3. Carton boxes4. Wooden case
