Double Pitch Sprocket 2042A with carrier roller

Introduction to Double Pitch Sprocket 2042A with Carrier Roller

Double Pitch Sprocket 2042A with carrier roller is a type of chain sprocket used in power transmission systems. It features a larger pitch than standard roller chain sprockets, which makes it suitable for applications with lower speed and higher torque requirements. Below is a picture of the Double Pitch Sprocket 2042A with carrier roller:

Definition and Basic Structure of Double Pitch Sprocket

Double pitch sprocket is a type of chain sprocket with a larger pitch than standard roller chain sprockets. It consists of a hub and teeth that mesh with the chain. The teeth are usually straight and evenly spaced, and the sprocket can have a fixed or detachable center. The basic structure of the Double Pitch Sprocket 2042A with carrier roller includes the carrier roller, which provides additional support for the chain.

Main Features of Double Pitch Sprocket

• Larger pitch: The Double Pitch Sprocket has a larger pitch than standard roller chain sprockets, which allows for lower speed and higher torque applications.
• Higher load capacity: The larger teeth of the Double Pitch Sprocket provide a higher load capacity than standard roller chain sprockets.
• Smooth operation: The evenly spaced teeth and carrier roller of the Double Pitch Sprocket ensure smooth operation and reduce wear and tear on the chain.

Below is a picture of the Double Pitch Sprocket:

Material Choices for Double Pitch Sprocket

Double Pitch Sprocket can be made from a variety of materials, including carbon steel, alloy steel, and stainless steel. Carbon steel is the most common and cost-effective material, while alloy steel and stainless steel provide higher strength and corrosion resistance for more demanding applications.

Manufacturing Process of Double Pitch Sprocket

To manufacture a Double Pitch Sprocket, the following process is usually followed:

1. Raw material preparation: The selected material is cut into the required shape for forging or casting.
2. Forging or casting: The hub and teeth are either forged or cast into shape.
3. Machining: The hub and teeth are then machined to the required tolerances.
4. Teeth rolling: The teeth are rolled to form the final shape and improve their strength.
5. Heat treatment: The sprocket is heat-treated to improve its hardness and wear resistance.
6. Surface treatment: The sprocket is then coated or plated to improve its corrosion resistance and appearance.
7. Quality control: The finished sprocket is inspected to ensure it meets the required standards.

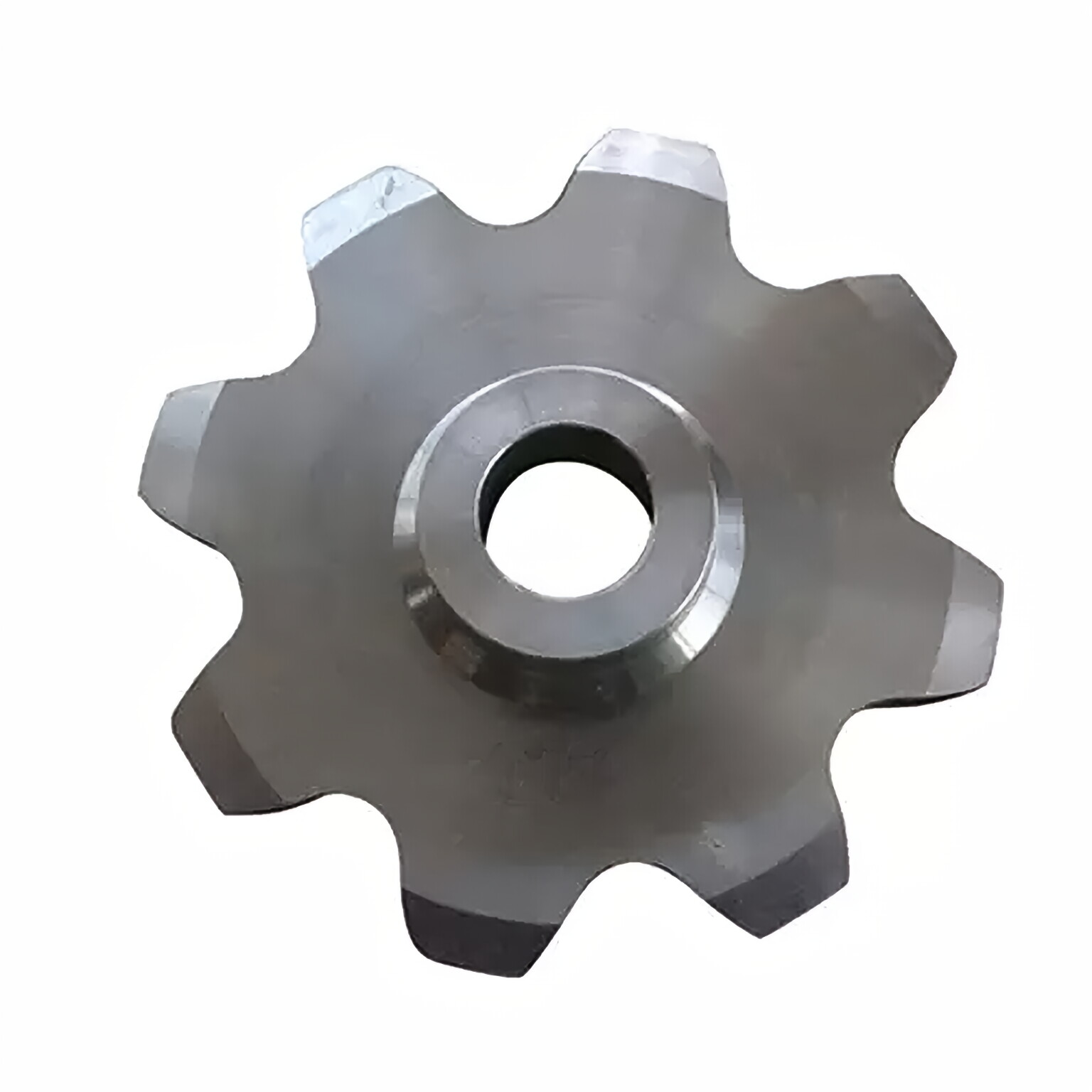

Below is a picture of a steel sprocket:

Customization Options for Double Pitch Sprocket

We offer various customization options for Double Pitch Sprockets, including material selection, tooth profile design, bore size, and keyway size. These options allow us to tailor the sprocket to the specific needs of our customers.

FAQ

1. What is the maximum speed at which Double Pitch Sprocket can operate?
   Double Pitch Sprocket is best suited for low-speed applications and is not recommended for high-speed applications.
2. What is the maximum operating temperature for Double Pitch Sprocket?
   The temperature limit for Double Pitch Sprocket depends on the material used. Carbon steel sprockets can operate at temperatures up to 250??C, while alloy steel and stainless steel sprockets can operate at higher temperatures.
3. What is the difference between a fixed center and a detachable center Double Pitch Sprocket?
   A fixed center Double Pitch Sprocket has a one-piece construction, while a detachable center sprocket consists of two separate parts that can be attached or detached as needed.
4. What lubrication is recommended for Double Pitch Sprocket?
   It is recommended to use a high-quality lubricant specifically designed for chain systems.
5. What is the difference between a Double Pitch Sprocket and a standard roller chain sprocket?
   Double Pitch Sprockets have a larger pitch than standard roller chain sprockets, which makes them suitable for lower speed and higher torque applications.

Author: Miya
