Double Pitch Sprocket 2042B with Carrier Roller

The Double Pitch Sprocket 2042B with carrier roller is a type of sprocket used in transmission systems. It is designed with a double pitch, which refers to the distance between the teeth. This type of sprocket is commonly used in industrial machinery and equipment.

Definition and Basic Structure

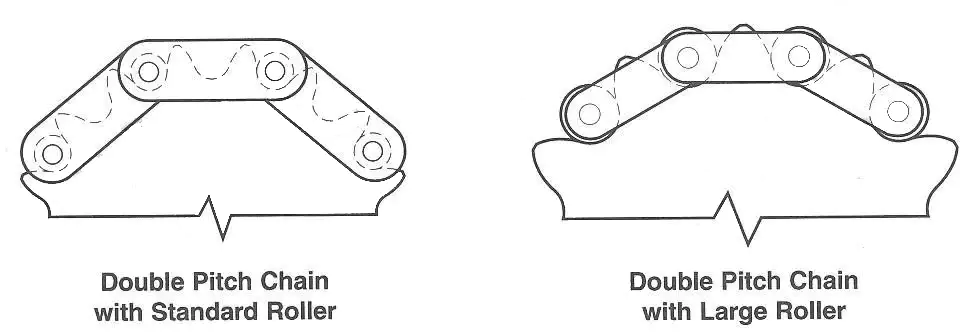

A double pitch sprocket is defined by its larger tooth spacing compared to a standard sprocket. It consists of a hub with teeth spaced farther apart, allowing it to engage with a double pitch roller chain. This type of sprocket is typically made of durable materials such as carbon steel, alloy steel, or stainless steel.

Main Features

• Greater tooth spacing: The double pitch sprocket has larger gaps between teeth, which provides more clearance for the roller chain.
• Higher load capacity: Due to its design, the double pitch sprocket can handle heavier loads and operate more smoothly.
• Smooth operation: The larger tooth spacing and robust construction contribute to a smoother running of the transmission system.

Material Selection

Double pitch sprockets can be manufactured using different materials such as carbon steel, alloy steel, and stainless steel. Each material has its own characteristics and suitable applications. Carbon steel provides strength and durability, alloy steel offers enhanced performance in demanding environments, and stainless steel is resistant to corrosion and ideal for hygiene-sensitive industries.

Manufacturing Process

1. Raw material preparation: The selected material is procured and prepared for the manufacturing process.
2. Forging or casting: The material is forged or cast into the desired shape of the sprocket.
3. Machining: The sprocket undergoes machining processes to achieve precise dimensions and smooth surfaces.
4. Tooth rolling: The teeth are formed on the sprocket through a rolling process to ensure accurate tooth profiles.
5. Heat treatment: The sprocket is heat-treated to optimize its strength and wear resistance.
6. Surface treatment: Various surface treatments such as plating or coating are applied to enhance corrosion resistance and aesthetics.
7. Quality inspection: The finished sprocket undergoes rigorous quality checks to ensure it meets the required standards.

Customization Services

We offer customization services for double pitch sprockets, including material selection, tooth profile design, and hole diameter with keyway specifications. This allows us to meet the specific requirements of our customers and provide tailored solutions for their transmission systems.

Frequently Asked Questions (FAQ)

1. Q: What is the maximum load capacity of the Double Pitch Sprocket 2042B with carrier roller?

A: The maximum load capacity depends on various factors such as the material used and the specific application. Please contact our customer service for detailed load capacity information.

2. Q: Can the Double Pitch Sprocket 2042B with carrier roller be used in high-speed applications?

A: Yes, the Double Pitch Sprocket 2042B with carrier roller is suitable for high-speed applications. However, it is important to consider the specific requirements and consult our technical team for proper selection and installation.

3. Q: Can the Double Pitch Sprocket 2042B with carrier roller be used with other types of roller chains?

A: The Double Pitch Sprocket 2042B with carrier roller is specifically designed to work with double pitch roller chains. It may not be compatible with other types of chains. Please consult our technical team for chain compatibility.

4. Q: Can the Double Pitch Sprocket 2042B with carrier roller be modified to fit non-standard shaft diameters?

A: Yes, we offer customization services for shaft diameter and keyway specifications. Please provide your specific requirements, and our technical team will assist you with the customization process.

5. Q: Does the Double Pitch Sprocket 2042B with carrier roller require regular maintenance?

A: Proper maintenance is essential for optimal performance and longevity of any sprocket. Regular lubrication and inspection of the sprocket teeth and roller chain are recommended. Please refer to our maintenance guidelines for detailed instructions.
