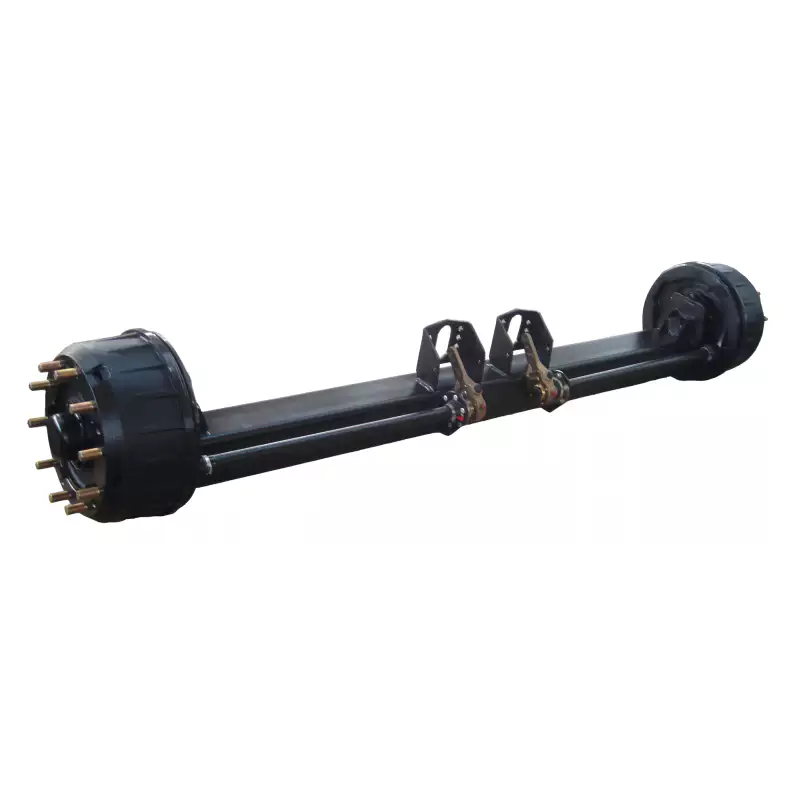

Drop axle serles for Heavy Duty Trailer

Drop Axle Series for Heavy Duty Trailer

What is a Trailer Axle?

An axle for trailers or semi-trailers is an essential component that connects the wheels. It supports and transfers the load of the vehicle, and provides suspension and steering functions.

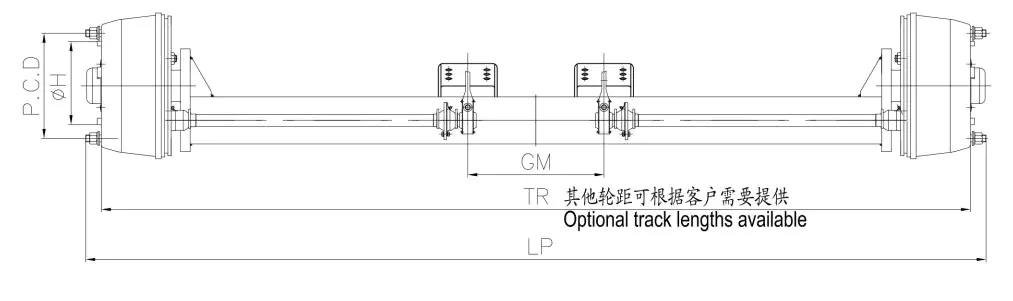

Axle specifications

Structure of a Trailer Axle

The trailer axle is made up of several key parts:

1. Axle Tube

The axle tube is the main body of the trailer axle, usually a hollow metal tube, which has enough strength to bear the load of the vehicle. It connects and supports the wheels, and reduces shocks through the suspension system.

2. Axle Ends

The ends of the axle usually have axle ends, which are used to connect the wheels. The axle ends typically have hub and bearing components that support the rotation of the wheels, enabling the wheels to operate safely on the axle.

3. Suspension System

The trailer axle is usually used in conjunction with a suspension system to provide suspension and shock absorption functions for the vehicle. The suspension system can include springs, shock absorbers, and suspension arms, which help disperse and absorb shocks and vibrations during vehicle operation.

4. Steering System

Some trailer axles may also have steering capabilities, enabling the vehicle to turn. The steering system usually includes components that connect the axle and the steering device, such as steering arms, connecting rods, and steering mechanisms.

How to Choose a Suitable Trailer Axle for Your Vehicle

There are several parameters you need to determine:

1. Load Capacity

Determine the maximum load weight your vehicle needs to carry, and ensure that the selected axle can safely and effectively support the required load.

2. Wheelbase and Hub Configuration

Based on the size and wheelbase requirements of your vehicle's tires, make sure the axle length and hub configuration match your vehicle's tires to ensure compatibility in installation and operation.

3. Suspension Type

Common suspension types include independent suspension and rigid suspension. Independent suspension provides better shock absorption and suspension effects, suitable for applications that require smoother driving.

4. Steering Requirements

If your vehicle needs to have steering capabilities, select an axle with a steering system. Ensure that the selected axle is compatible with your steering device and can provide good steering performance and reliability.

Popular Applications of Axles

Axles are widely used in various applications:

1. Camping and Leisure

Camping trailers, caravans, and other recreational vehicles use trailer axles to provide support and suspension functions.

2. Agriculture and Agricultural Machinery

Agricultural trailers and farm machinery trailers use trailer axles to carry agricultural equipment, agricultural products, and other weights required for agricultural purposes.

3. Marine and Boat Transport

Boat trailers or boat trailers use trailer axles to support and transport the hull, making boat transport more convenient and efficient.

4. Automotive Transport

Transporting sedans, trucks, and other types of automobiles, automotive trailer axles often have high load capacities and appropriate wheelbase configurations to ensure safe and stable automotive transport.

Our Trailer Axles Factory Overview

Established in 1999, we are one of the most professional axle manufacturers in China. The factory has a building area of 20,000 square meters, passes the ISO/TS16949 quality inspection certification every year, and provides professional design and customization services. Our products are sold to more than 30 countries and regions worldwide, and have received high praise for their quality and service from users.

Our Production Equipment

We use advanced equipment such as electron beam welding machines, arc welding robots, CNC machine tool processing centers, CNC plate welding gantry cutting centers, large hydraulic presses, and large cylindrical grinders, automatic spraying lines, ultrasonic detectors, three-coordinate measuring instruments and a series of the most advanced manufacturing and fatigue testing and inspection equipment.

Our Main Products

We offer German and American standard axle assemblies, auto parts, various types of light axles, mechanical suspensions, air suspensions, single point suspensions, wheel and brake drum assemblies and their supporting parts, European-style agricultural axle series, single-line double-axle rigid series, torsion arm axle series, and including trailer parts.Author: Miya
