The DTII Belt Conveyor Roller is a critical component of the DTII conveyor system, an advanced evolution of the TD75 standard, widely used in mining, coal, ports, and other heavy industries. These rollers, also known as idlers, are positioned along the conveyor to support the belt and the material it carries, ensuring smooth, efficient, and reliable transportation. Available in various types—carrying rollers, return rollers, impact rollers, and self-aligning rollers—they serve specific functions like supporting the belt, absorbing material impact, or correcting misalignment.

Designed for durability in harsh mining environments, DTII rollers reduce belt wear, minimize downtime, and enhance conveyor performance. This page covers what DTII rollers do, where they’re used, how to install them, what users say, and answers common questions, all in plain language to help you decide if they’re right for your conveyor system.

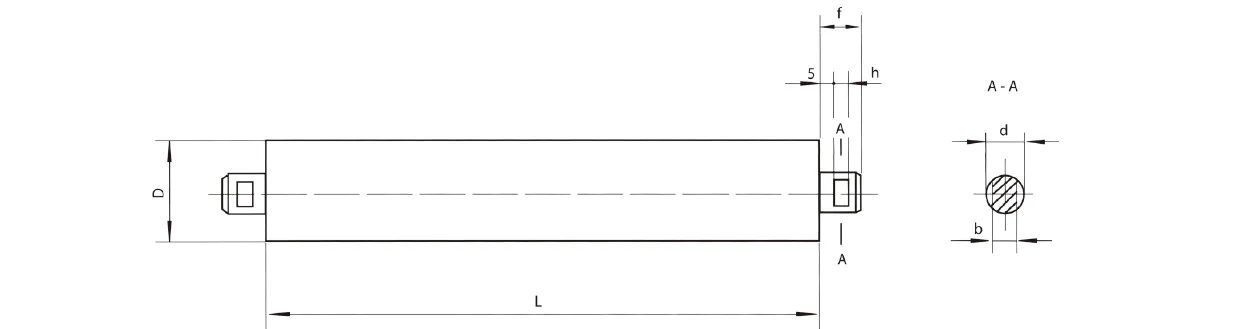

DTII Belt Conveyor Roller for Mining Machinery Dimensions:

The DTII Conveyor Roller is designed to support, guide, and protect conveyor belts in mining operations, ensuring smooth material transport and minimal maintenance. Here’s what makes it stand out:

1. Multiple Roller Types

   • Carrying Rollers: Support the loaded belt, typically trough-shaped (20°, 35°, 45°) to handle bulk materials like coal or ore.

   • Return Rollers: Support the empty belt on the return side, preventing sagging and stretching.

   • Impact Rollers: Absorb shock at loading points with rubber rings or coatings to minimize belt damage.

   • Self-aligning Rollers: Pivot to correct belt misalignment, reducing edge wear.

2. Durable Materials

   • Roller tubes made of Q235 steel (equivalent to SS400/JIS G3101/ASTM A36) for strength under heavy loads.

   • Shafts crafted from 45# steel (equivalent to DIN C45/JIS S45C/ASTM A1045) for precision and durability.

   • Optional stainless steel, rubber, or HDPE coatings for corrosion and wear resistance in harsh environments.

3. High-Quality Bearings

   • Equipped with deep groove ball bearings (6204, 6205, 6305, etc., with C3 clearance, 2RZ/2Z seals) for smooth rotation and extended lifespan.

   • Triple labyrinth seals protect against dust, dirt, and moisture, ideal for mining conditions.

4. Low Noise and Vibration

   • Precision manufacturing and balance testing ensure quiet operation and minimal vibration.

   • Reduces wear on the belt and conveyor frame, prolonging system life.

5. Corrosion Resistance

   • Options for zinc plating, baking paint, or epoxy coatings to resist rust in environments like coastal ports.

   • Stainless steel or HDPE options for added durability in abrasive or chemical conditions.

6. Customizable Design

   • Roller diameters from 76mm to 219mm, lengths from 100mm to 3000mm, fitting belts 500mm to 2400mm wide.

   • Customizable trough angles, coatings, and frame designs to suit specific conveyor layouts.

7. Standards Compliance

   • Meets DTII, DTII(A), CEMA (B, C, D, E), JIS, and ISO 9001:2008 standards for quality and safety.

   • Tested for radial runout (≤0.5mm), axial displacement (≤1.2mm), and rotation resistance (≤3.5N) to ensure reliability.

DTII Belt Conveyor Roller Applications:

The DTII Conveyor Roller is used in various conveyor systems to support and guide belts, particularly in high-tension or long-distance setups. It’s ideal for these industries:

1. Mining

   • Supports belts carrying coal, iron ore, copper, or aggregates in underground or open-pit mines.

   • Impact rollers reduce belt damage at loading points; return rollers prevent sagging on long systems like a 10 km conveyor in Inner Mongolia.

2. Metallurgy

   • Supports belts handling raw or processed metals in smelting plants.

   • Corrosion-resistant coatings withstand abrasive or high-temperature environments.

3. Ports and Terminals

   • Supports belts during loading/unloading of coal, grain, or aggregates.

   • Rust-resistant coatings are ideal for salty coastal conditions.

4. Construction

   • Supports belts carrying gravel, sand, or aggregates on job sites.

   • Works with mobile or fixed conveyors for flexible setups.

5. Power Plants

   • Supports belts handling coal or ash in fuel or waste systems.

   • Designed for dusty, high-tension environments.
