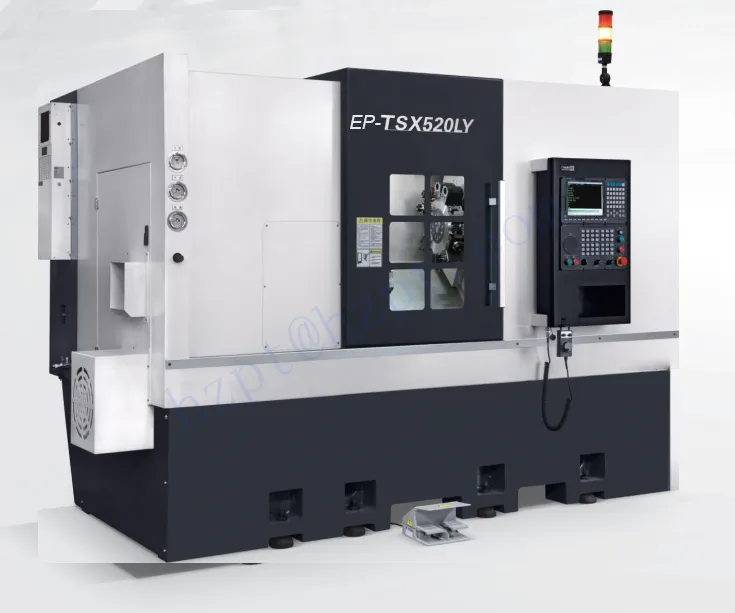

Dual-Spindle Power Turret Turning-Milling Compound (With Y-Axis) RDF-TSX520LY RDF-TSX500LY RDF-TSK500LY RDF-TSX680LY

Standard Configuration:

SYNTEC CNC system / Taiwanese Y-axis Powered Turret / SYNTEC X, Z, Y-axis Servo Motors / Hydraulic Chuck / Taiwanese PMI, HIWIN Ball Screw, Roller Linear Guide.

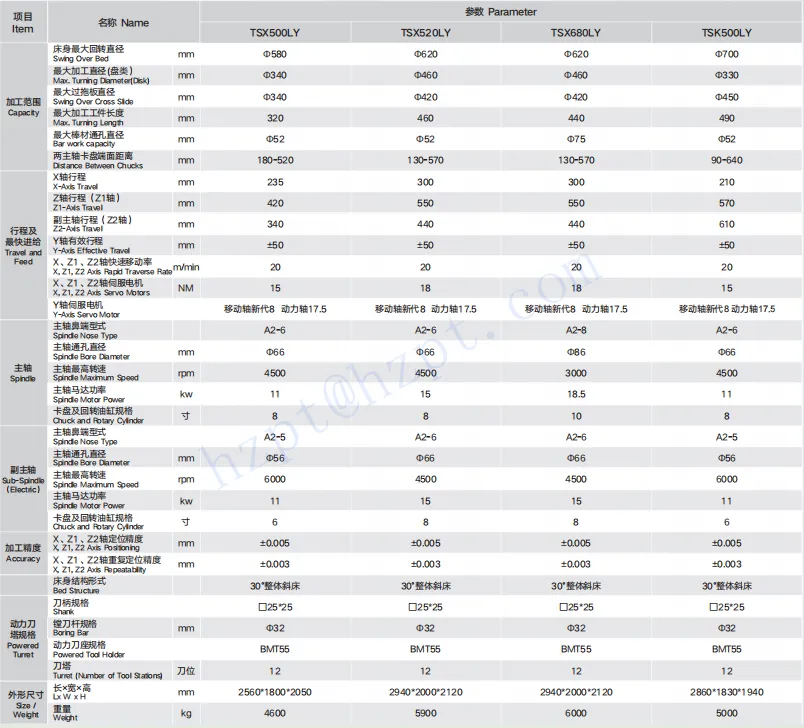

Parameter

Machine Tool Features

• High Rigidity and Low Vibration Design:Our machine tools feature a 30-degree slant bed design that enhances stability and rigidity. This design is the result of comprehensive finite element analysis, ensuring that the machine body is optimally structured for performance. The internal rib layout of the bed is carefully arranged to minimize vibrations during operation, leading to improved machining accuracy and surface finish.
• Reduced Workpiece Clamping:The design allows for seamless switching between different spindles for the same workpiece, significantly reducing the number of clamping cycles required. By eliminating the cumulative errors associated with multiple clamping, our machine tools enable more precise operations. The integration of primary and secondary spindle connections streamlines the machining process, enhancing operational efficiency and productivity.

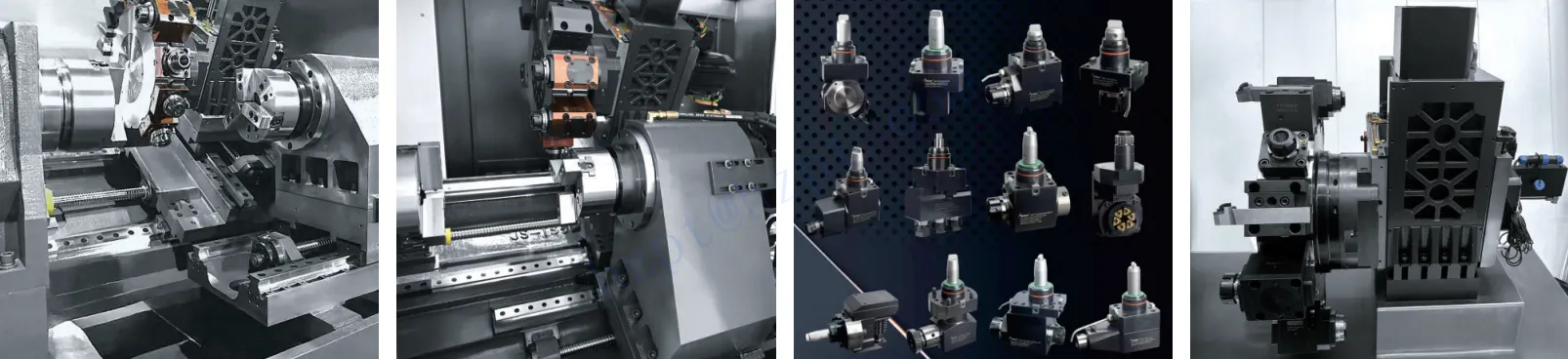

• Equipped with Hard Rail Y-Axis Power Turret:Our machines come equipped with a hard rail Y-axis power turret that integrates multiple functions, including turning, milling, drilling, and tapping. The combination of C-axis and Y-axis capabilities allows for complex machining operations to be performed in a single setup. This integration not only shortens product processing times but also reduces the labor required for operations, minimizing the risk of errors that can occur during secondary clamping of workpieces.
• Enhanced P3-Class Ball Screws and Roller Linear Guides:The machines are fitted with high-performance P3-class ball screws and roller linear guides, which provide superior motion accuracy and repeatability. These components are designed to withstand heavy loads while maintaining smooth operation, ensuring reliability and longevity in demanding machining environments.

Overall, our machine tools are engineered to optimize performance, increase productivity, and enhance precision, making them ideal for a wide range of manufacturing applications.

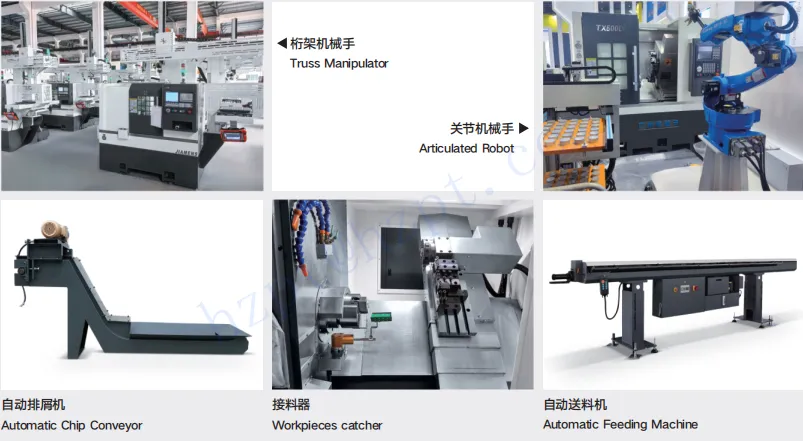

Auxiliary Extension

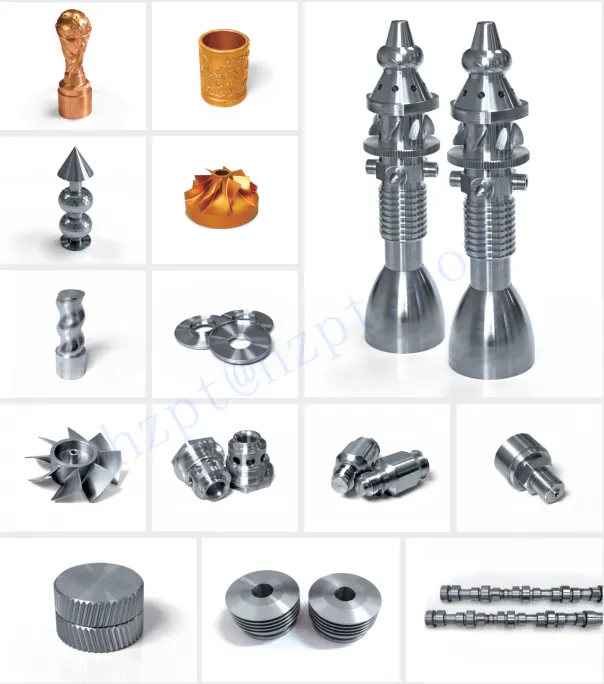

Workpiece Display

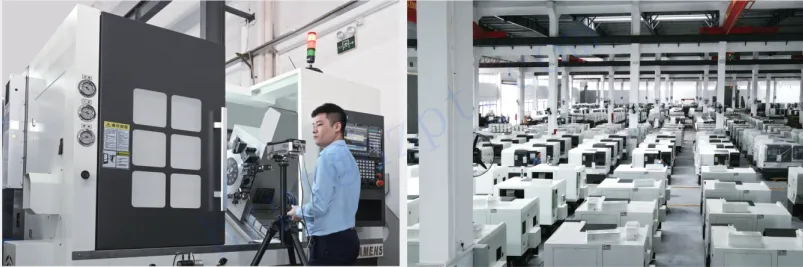

Workshop

We have been pursuing high-end technology and investing in high-precision equipment to make first-class products, which will create a world full of miracles for us. We exist for miracles.

About Raydafon

Raydafon was founded in 2006 and has established itself as a national high-tech enterprise specializing in the research and development, production, sales, and service of CNC machine tools. With a keen understanding of market trends, Raydafon delivers comprehensive solutions tailored to meet the diverse needs of its customers.The company’s product portfolio includes a wide array of advanced machinery, such as turning and milling centers, vertical machining centers, turret and row tool CNC lathes, as well as solutions for industrial automation. These products are employed across various industries, including automotive, telecommunications, new energy, engineering machinery, and chemicals, showcasing their versatility and reliability.Raydafon places a strong emphasis on product research and development, continuously striving for technological progress. The company is dedicated to fostering ongoing technological innovation, which significantly enhances its competitiveness in the market. By prioritizing quality and innovation, Raydafon aims to lead the way in the CNC machine tool industry, ensuring that it meets the evolving demands of its clients and contributes to the advancement of manufacturing technologies.
