Dual Stage Refrigerant Vacuum Pump 2T2 2T2/2T4/2T6/2T8/2T10 R32 for Refrigeration Systems

Dual Stage Refrigerant Vacuum Pump 2T2 2T2/2T4/2T6/2T8/2T10 R32 for Refrigeration Systems

A dual stage refrigerant vacuum pump is a type of vacuum pump that is used to remove air and moisture from refrigeration systems. It has two stages, or compression cycles, which allows it to reach a lower vacuum level than a single stage pump. This is important for refrigeration systems, as it helps to ensure that the system is properly sealed and that the refrigerant is not contaminated with air or moisture.The dual stage refrigerant vacuum pump operates in two stages, with each stage consisting of a separate pump mechanism. The first stage is designed to remove the bulk of the air and moisture from the system, while the second stage is intended to achieve a deeper vacuum level and remove any remaining traces of air and moisture.Dual stage refrigerant vacuum pumps are typically more efficient and effective than single stage pumps, as they can achieve a lower vacuum level and remove more moisture from the system. They are also more durable and long-lasting, making them a popular choice for professional technicians and HVAC contractors. If you are looking for a vacuum pump to use for your refrigeration system, a dual stage refrigerant vacuum pump is a good option. It is more efficient, durable, and effective than a single stage pump.

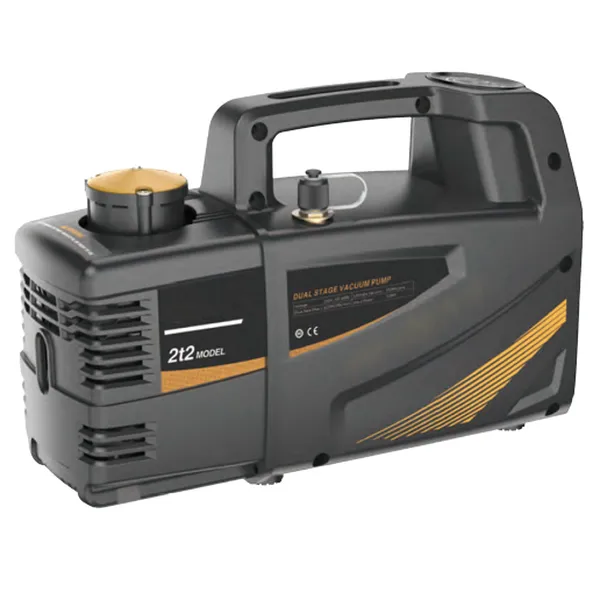

▍Dual Stage Refrigerant Vacuum Pump 2T2

High Ultimate & Fast Vacuum• Anti-dumping oil tank design to avoid oil leakage• Stronger&more lightweight motor with long service life• Large oil level sight glass with max/min oil level indicator• Built-in device eliminates oil mist and prevents oil contamination

▍Dual Stage Refrigerant Vacuum Pump 2T2 Technical Data:

Model	Dual Stage Refrigerant Vacuum Pump 2T2
Voltage	230V~/50-60Hz or 100-120V~/50-60Hz
Ultimate Vacuum	15 microns
Flow Rate (Max.)	2CFM58 L/min
Input Power	1/4HP
Oil Capacity	280ml
Weight	4.7kg
Dimension	310x123x200
Inlet Port	1/4"SAE

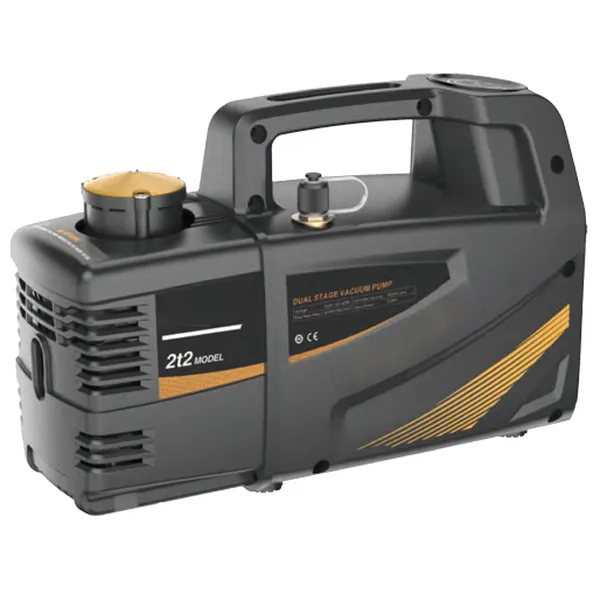

▍Dual Stage R32 Refrigerant Vacuum Pump 2T2 / 2T4 / 2T6 / 2T8 / 2T10 R32

High Ultimate & Fast Vacuum• Anti-dumping oil tank design to avoid oil leakage• Stronger&more lightweight motor with long service life• Large oil level sight glass with max/min oil level indicator• Built-in device eliminates oil mist and prevents oil contamination• Non-sparking design, suitable for use with R32 and other new refrigerants

▍Dual Stage R32 Refrigerant Vacuum Pump 2T2 / 2T4 / 2T6 / 2T8 / 2T10 R32 Technical Data:

Model	Dual Stage R32 Refrigerant Vacuum Pump 2T2 R32	Dual Stage R32 Refrigerant Vacuum Pump 2T4 R32	Dual Stage R32 Refrigerant Vacuum Pump 2T6 R32	Dual Stage R32 Refrigerant Vacuum Pump 2TB R32	Dual Stage R32 Refrigerant Vacuum Pump 2T10 R32
Voltage	230V~/50-60Hz or 100-120V~/50-60Hz
Ultimate Vacuum	15 microns
Flow Rate (Max.)	2CFM58 L/min	4CFM114L/min	6CFM170 L/min	8CFM226 L/min	10CFM282 L/min
Input Power	1/4HP	1/3HP	1/2HP	3/4HP	1HP
Oil Capacity	280ml	480ml	450ml	335ml	315ml
Weight	4.2kg	6.2kg	6.5kg	7.9kg	8.2kg
Dimension	310x123x200	345x140x225	345x140x225	345x140x225	345x140x225
Inlet Port	1/4"SAE	1/4"&3/8"SAE	1/4"&3/S"SAE	1/4"&3/8"SAE	1/4"&3/S"SAE

▍Benefits of Dual Stage Refrigerant Vacuum Pump

There are several benefits of using a dual stage refrigerant vacuum pump in refrigeration and air conditioning systems. Here are some of the key advantages:1. Deeper vacuum level: The dual stage refrigerant vacuum pump is designed to achieve a deeper vacuum level than a single stage refrigerant vacuum pump. This means that it can remove more air and moisture from the system, which can improve system performance and reduce the risk of system failure.2. Faster evacuation time: The dual stage refrigerant vacuum pump can evacuate the system more quickly than a single stage pump, which can save time and increase productivity for HVAC technicians and contractors.3. Improved moisture removal: The dual stage refrigerant vacuum pump is specifically designed to remove moisture from the system. This can help prevent corrosion and extend the life of the system.4. Reduced risk of contamination: The dual stage refrigerant vacuum pump can help reduce the risk of contamination in the system by removing more air and moisture. This can help ensure that the system is clean and operating at its best.5. Enhanced durability: Dual stage refrigerant vacuum pumps are typically more durable than single stage refrigerant vacuum pumps, which can help reduce maintenance costs and downtime.Overall, a dual stage refrigerant vacuum pump is a valuable tool for HVAC professionals who want to ensure that refrigeration and air conditioning systems are operating at their best.

▍Dual Stage Refrigerant Vacuum Pump for Refrigeration Systems

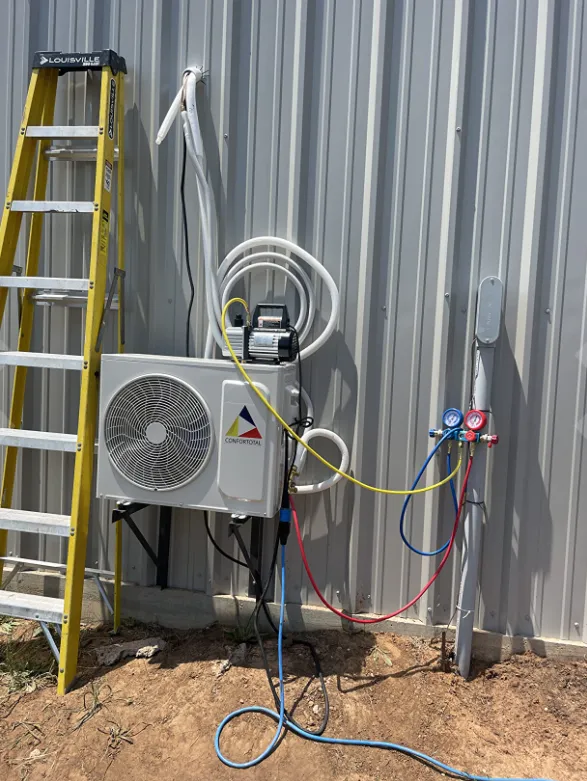

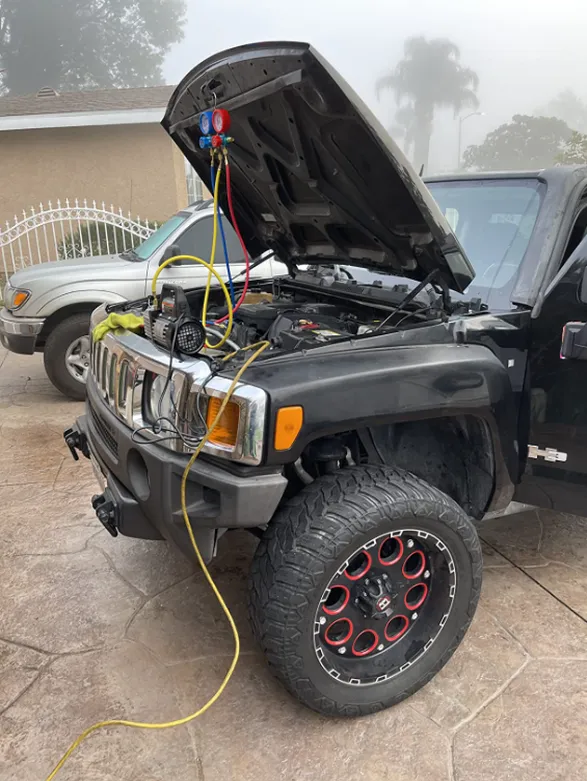

Dual stage refrigerant vacuum pumps are commonly used in the refrigeration and air conditioning industry for several applications. Here are some examples:(1) Evacuating and charging refrigeration systems: Before a refrigeration system can be charged with refrigerant, it is essential to evacuate the system of any air and moisture. Dual stage refrigerant vacuum pumps are ideal for this task, as they can achieve a deep vacuum level and remove more moisture from the system, ensuring that the system is clean and operating at its best.(2) Leak detection: Dual stage refrigerant vacuum pumps can be used to detect leaks in refrigeration systems by pressurizing the system with nitrogen and then evacuating it. If there is a leak in the system, the vacuum level will not hold, indicating the location of the leak.(3) HVAC system maintenance: HVAC technicians and contractors use dual stage refrigerant vacuum pumps to maintain and service HVAC systems, ensuring that they are operating efficiently and effectively.(4) Automotive air conditioning: Dual stage refrigerant vacuum pumps are also used in the automotive industry to evacuate and charge air conditioning systems in cars and trucks.Overall, dual stage refrigerant vacuum pumps are versatile tools that are essential for maintaining and servicing refrigeration and air conditioning systems across a range of industries and applications.

▍Dual Stage Refrigerant Vacuum Pump Vs Single Stage Refrigerant Vacuum Pump

Dual stage refrigerant vacuum pumps and single stage refrigerant vacuum pumps are two types of vacuum pumps commonly used in the refrigeration and air conditioning industry.A single stage refrigerant vacuum pump is a simple pump that uses a single piston to create a vacuum by drawing air or refrigerant into the cylinder and then expelling it out through an exhaust valve. This type of pump is generally less expensive and is suitable for small to medium-sized systems.On the other hand, a dual stage refrigerant vacuum pump is a more advanced pump that uses two stages to achieve a deeper vacuum. In the first stage, a larger piston draws in air or refrigerant and compresses it into a smaller space before expelling it out through an exhaust valve. The second stage then repeats the process, drawing the air or refrigerant from the first stage and compressing it even further. This creates a deeper vacuum that is necessary for larger systems.The main advantage of a dual stage refrigerant vacuum pump over a single stage pump is that it can achieve a deeper vacuum, which is necessary for larger systems. Additionally, dual stage pumps are often more durable and have a longer lifespan compared to single stage pumps. However, they are also more expensive and may require more maintenance.In summary, the choice between a dual stage refrigerant vacuum pump and a single stage refrigerant vacuum pump depends on the size of the system and the level of vacuum needed. Smaller systems may be adequately served by a single stage pump, while larger systems require the deeper vacuum of a dual stage pump. We can also provide other HVAC tools and HVAC equipment for your need.

Dual Stage Refrigerant Vacuum Pump	Single Stage Refrigerant Vacuum Pump

▍Dual Stage Refrigeration Vacuum Pump Oil Lubrication

Dual stage refrigeration vacuum pumps require lubrication to operate properly and maintain their efficiency over time. The lubrication helps to reduce friction between the moving parts of the pump, which reduces wear and tear and helps to extend the life of the pump.When it comes to lubrication, there are two main types of oil that can be used in a dual stage refrigeration vacuum pump: mineral oil and synthetic oil. Mineral oil is the traditional choice and is typically less expensive than synthetic oil. However, synthetic oil has several advantages over mineral oil, including better resistance to high temperatures, longer life, and better performance in extreme conditions.It's important to choose a high-quality oil that is specifically designed for use in refrigeration vacuum pumps. The dual stage refrigeration vacuum pump oil should meet the manufacturer's specifications for the pump and be compatible with the refrigerant being used in the system. It's also important to follow the manufacturer's recommended oil change intervals and procedures for proper maintenance of the pump.When adding or changing the oil in a dual stage refrigeration vacuum pump, it's important to follow the manufacturer's instructions carefully. Typically, the oil is added through a fill port on the top of the pump, and a drain plug is used to remove the old oil. Some pumps may also have a sight glass or oil level indicator to help monitor the oil level.In summary, dual stage refrigeration vacuum pumps require proper lubrication to operate efficiently and maintain their longevity. Choosing the right type of dual stage refrigeration vacuum pump oil and following the manufacturer's recommended maintenance procedures are key to ensuring reliable pump performance.
