DWC-22 Wood Chipper for Chipping Wood into Pieces

The DWC-22 Wood Chipper is an essential piece of equipment widely used in the farming industry. It is a brand-new, diesel-powered machinery designed specifically for chipping wood. With its robust construction, it has a dimension of 3100x1750x1800mm and weighs 650 KG. The wood chipper is equipped with an engine power range of 18hp, 22hp, and 40hp diesel engines, and uses a hydraulic feeding system. It features two rotary blades and one stationary blade that can chip wood with a maximum diameter of 20cm/8 inch. The chipper comes in various colors such as red, green, orange, or can be customized as per your preference. It has an electric start system for easy operation. The product comes with a one-year warranty, and a machinery test report and video outgoing-inspection are provided for assurance.

Why DWC-22 Diesel Wood Chipper is Your Best Choice

The DWC-22 Diesel Wood Chipper offers multiple advantages:

1. High Efficiency: With the ability to chip wood of up to 20cm/8 inch in diameter, this wood chipper boosts productivity and efficiency.
2. Powerful Performance: Equipped with a diesel engine ranging from 18hp to 40hp, it delivers powerful performance to handle any wood chipping task.
3. Excellent Durability: With core components like bearings and pump, the wood chipper guarantees durability and long service life.
4. Convenient Operation: The hydraulic feeding system ensures a smooth and easy feeding process, while the electric start feature adds to the convenience of operation.
5. Customizable Color: Available in standard colors of red, green, and orange, the wood chipper can also be customized to your preferred color.
6. Quality Assurance: The wood chipper comes with a one-year warranty, a machinery test report, and video outgoing-inspection for quality assurance.

Applications of DWC-22 Diesel Wood Chipper

The DWC-22 Diesel Wood Chipper is versatile and can be used in a variety of applications:

1. Wood Chipping: The primary application is in chipping wood, converting logs, branches, or wood wastes into small chips.
2. Farming: It is widely used in farms for clearing fallen branches, twigs, and leaves, and turning them into mulch for compost.
3. Landscaping: It helps in maintaining landscapes by reducing large wood wastes into manageable chips.
4. Forestry: The tool is also used in forestry operations for reducing tree branches and logs into chips for easy transportation.
5. Recycling: The wood chips can be recycled and used in various applications like as a raw material for making paper or as biomass fuel.
6. Waste Management: It plays a crucial role in waste management by turning wood waste into useful products.

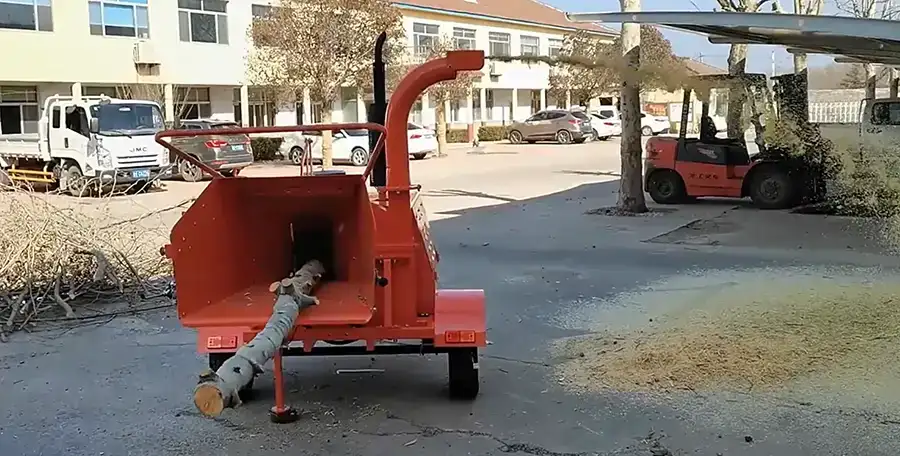

How Does the Diesel Wood Chipper Work?

The DWC-22 Diesel Wood Chipper operates through a straightforward process:

1. 1. Wood Material Input: Operators feed the wood material into the chipper through the feed chute. This includes branches, logs, tree trunks, and other wood waste.
   2. Diesel Engine Power: The chipper is equipped with a diesel engine that powers the cutting mechanism. The diesel engine generates high torque, allowing the chipper to handle tough and dense wood material effectively.
   3. Cutting Mechanism: The chipper's cutting mechanism comprises a cutting disc or drum with sharp blades. The disc or drum is mounted on a rotating shaft connected to the diesel engine. As the engine powers the rotation, the blades spin rapidly.
   4. Wood Shredding and Chipping: As the wood material passes through the cutting mechanism, the sharp blades slice and shred it into smaller pieces. The high-speed rotation of the blades generates significant force, allowing the chipper to chip the wood into consistent-sized chips or mulch.
   5. Discharge Chute: Once the wood is shredded and chipped, the wood chips are expelled through the discharge chute. The chute can be directed into a container, truck, or other designated area for collection and transport.

Diesel Wood Chipper Operating Precautions

Operating a diesel wood chipper requires careful attention to safety precautions:

1. Inspection: Before starting, inspect the chipper for any signs of damage or wear. Ensure that all safety guards and shields are in place and secure. Check that the cutting blades are sharp and properly aligned.
2. Clear the Work Area: Remove any obstructions from the work area. Establish a safety perimeter or use barriers to prevent unauthorized access to the chipper.
3. Feed Material Carefully: Feed the wood material into the chipper cautiously and at a controlled pace to avoid overloading.
4. Maintain Stability: Ensure that the chipper is placed on stable ground and properly secured before operation.
5. Shut Down and Maintenance: After using the chipper, wait for all moving parts to stop before performing any maintenance or cleaning tasks.
6. Fuel Safety: Handle diesel fuel with care. Refuel the chipper in a well-ventilated area, away from open flames or sparks.

Common Troubleshooting for DWC-22 Diesel Wood Chipper

Here are some common troubleshooting steps for the DWC-22 Diesel Wood Chipper:

1. Engine Won't Start: Check the fuel level, fuel line, battery, and connections, and the engine kill switch's position.
2. Engine Runs Roughly or Stalls: Check the fuel filters, air filters, spark plugs, fuel injectors, and look for any loose or damaged wires or connections.
3. Chipper Blades are Dull or Inefficient: Inspect the blades for dullness, damage, or wear. Sharpen or replace the blades following the manufacturer's guidelines.
4. Chipper Jams or Material Doesn't Feed Properly: Clear any jammed material from the feed chute and cutting mechanism. Check for any obstructions in the feed chute or cutting mechanism.
5. Excessive Vibration or Noise: Inspect the chipper for loose or damaged parts and check the bearings of the cutting mechanism for wear or damage.

Why Choose Raydafon's Diesel Wood Chipper?

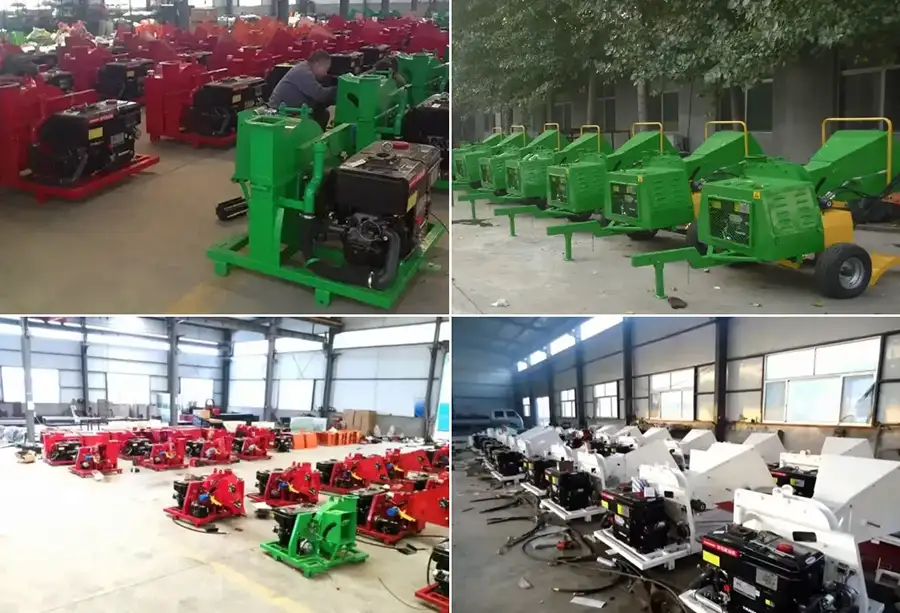

Raydafon Agricultural Machinery Co., Ltd. offers the DWC-22 Diesel Wood Chipper, a reliable and efficient solution for your wood chipping needs. With over 29 years of experience in producing farming machinery, Raydafon ensures high-quality products designed with advanced technology and strict testing management. Our team of skilled technical staff and senior R&D personnel are dedicated to providing excellent customer service. We offer a wide range of farming machinery and accessories, including PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. We are committed to providing top-notch products that meet international standards and customer satisfaction.Our production facilities are equipped with advanced machinery, including lathing, milling, planing, stamping, cutting plate, and electric welding. We use the CAD computer-aided design system for precision and accuracy. Our products are widely used in farms across the country and exported to various regions globally, including Europe, America, Africa, the Middle East, and Southeast Asia.At Raydafon, we understand that each customer has unique needs. Hence, we offer custom-made products tailored to your specific requirements. We also provide a comprehensive after-sales service, including training on how to install and use our machines, and a prompt delivery of spare parts. Our technical team is always ready to provide support and solutions for any issues or concerns you may encounter.With Raydafon, you can trust that you are investing in reliable and efficient farming machinery designed to enhance your productivity and efficiency.[embed]https://youtu.be/sqxBad8yFs0[/embed]Author: Yjx
