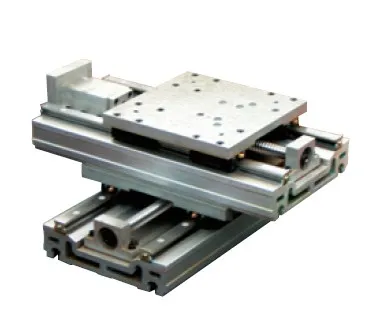

DZHTQ Type Single Coordinate Worktable

DZHTQ Type Single Coordinate Worktable

DZHTQ type single coordinate worktable—an advanced solution designed to enhance precision and efficiency in workstation operations. This innovative product is specifically engineered to provide smooth and accurate movement along a single coordinate axis, making it ideal for various industrial and laboratory applications.The DZHTQ type single coordinate worktable is a powerful tool for enhancing precision and efficiency in workstation operations. With its precision engineering, sturdy construction, smooth operation, and space-saving design, this worktable provides a reliable and efficient solution for various industrial and laboratory tasks. By following the recommended usage method and maintenance guidelines, you can unlock the full potential of the DZHTQ type single coordinate worktable, leading to improved workflow, increased productivity, and exceptional results in your daily operations. Experience the precision and efficiency of the DZHTQ type single coordinate Worktable today and elevate your workstation capabilities to new heights.CNC precision worktable consists of a linear motion guide as guide supporting and ball screw as motion enforcing parts. Its advantages include high accuracy, high efficiency, long lifetime, less abrasion, saved energy, small friction coefficient, compact structure, and wide application. It is widely used for measuring, laser welding, laser cutting, gelatinization, boring, small-type CNC machine tools, ray screeners, carving & milling machines, actual teaching situations, etc.

Characteristics of DZHTQ Type:

Precision Engineering: The DZHTQ type single coordinate worktable is crafted with meticulous precision. It incorporates high-quality components and advanced manufacturing techniques, ensuring reliable and precise movement along the coordinate axis. Experience accurate positioning and efficient workflow execution.Sturdy Construction: This worktable boasts a robust and durable construction. It is designed to withstand heavy loads and provide stability during operation, making it suitable for demanding tasks in industrial and laboratory environments.Smooth and Quiet Operation: The DZHTQ type single coordinate worktable is engineered for smooth and quiet operation. Its refined mechanism minimizes friction and vibration, enabling seamless movement without disruptive noise. Enjoy a peaceful working environment.Compact and Space-Saving Design: With its compact footprint, the DZHTQ type single-coordinate worktable optimizes workspace utilization. It efficiently fits into tight areas, allowing you to maximize your available space without compromising functionality.

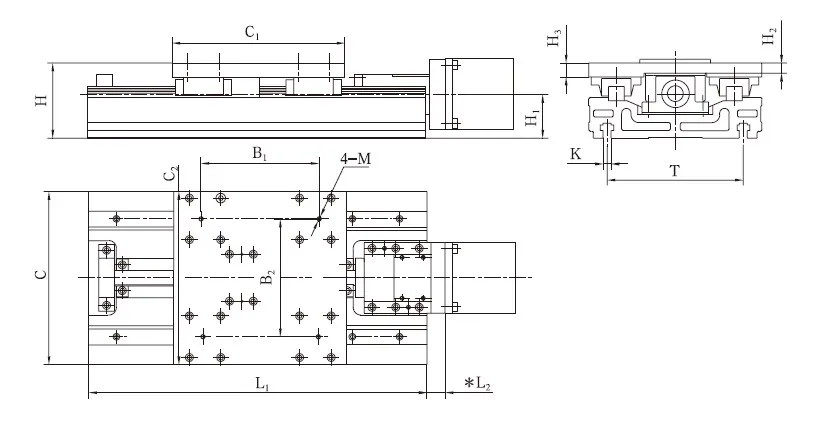

Dimension of SZHQ Types:

Usage Method of DZHTQ Type:

To maximize the performance of the DZHTQ type single coordinate worktable, follow these usage guidelines:Secure Mounting: Ensure the worktable is securely mounted to the workstation or supporting structure. Use appropriate fixtures or brackets to achieve a stable and rigid connection. This ensures accurate and reliable movement along the coordinate axis.Coordinate Alignment: Align the worktable along the desired coordinate axis. Use precise measurement tools to ensure accurate positioning. Proper alignment is crucial for achieving exact results in your workstation operations.Control and Adjustment: Familiarize yourself with the worktable's control mechanisms and adjustment features. Follow the manufacturer's instructions to fine-tune the movement parameters and optimize performance according to your requirements.

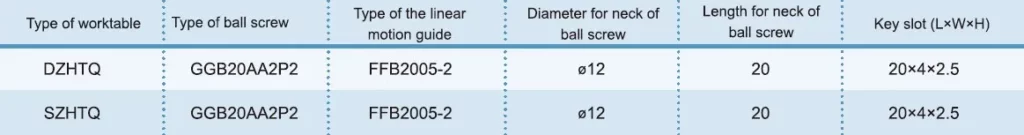

Type of Ball Screw and Linear Motion Guide, Parameters for Neck of Ball Screw in DZHTQ and SZHTQ:

Type of workable:

Code rules:

Selection Principle:

There are 49 types of standard type single & double-coordinate worktables manufactured in our factory, and all their worktables belong to 10 series, such as DZH, DZHT, DZHK, SZH, SZHT, and SZHK.Double coordinate worktables SZH, SZHT, and SZHK consist of two single-color donate worktables DZH, DZHT, and DZHK, respectively. The principle is that the above worktable travel is not longer than underside worktable travel.We can provide integration unit of machine & electric. Customize a select motor, drive, and CNC system according to the requirements to meet the speed, load, and pulse needs. The series of standard worktables has no dustproof unit and no electric limit unit. When customers want it, we will make it a particular project. If customers select a motor by themselves, its power should not be much higher or lower. Generally, the relative motors will be chosen according to the neck of the ball screw.Type of ball screw and linear motion guide, the parameter for the neck of ball screw in series standard worktable.

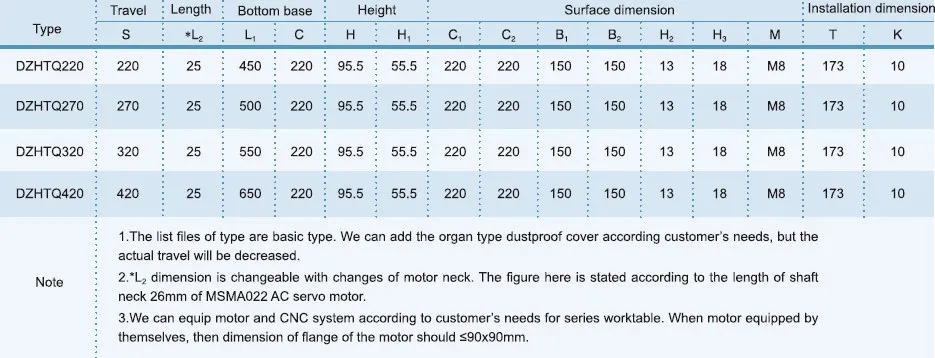

Dimension of Worktable:

Accuracy Grade:

Accuracy Grade

Accuracy Gracle

New Product-aluminium Alloy Structure Worktable:

With the aluminum alloy of the base component, it has advantages such as high accuracy, long lifetime, lightweight, compact structure, and beauty. It is widely used for measuring, laser welding, laser cutting, gelatinization,insen, ray screener, actual teaching situations, etc. There are two types of single coordinate worktable DZHQ and double coordinate worktable SZHQ for customers to choose from.We can provide integration unit of machine & electric. Customers can select motors, drives, and CNC systems according to the requirements to meet the needs of speed, load, pulse, etc.

Accuracy of DZHQ and SZHQ Aluminium Alloy Worktable:

Accuracy of SZHQ and SZHTQ Aluminium Alloy Worktable:

Excellent Equipment Quality Guarantee:
