Electric Furnace Mast Cylinder

Electric Furnace Mast Cylinder

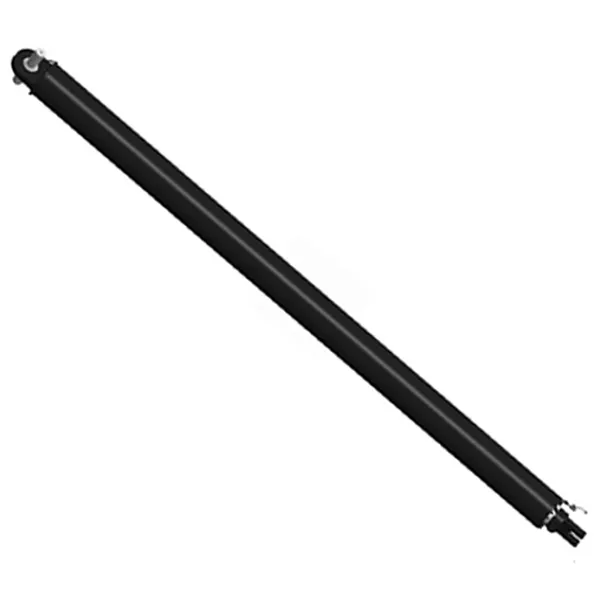

An electric furnace mast cylinder is a hydraulic cylinder that is used to tilt or lift the mast of an electric furnace. The mast is a vertical structure that supports the electrodes and other components of the furnace. The cylinder is typically located at the base of the mast and is connected to it by a piston rod. When the cylinder is pressurized, the piston rod extends, tilting or lifting the mast.

Electric furnace mast cylinders are typically made of high-strength steel and are designed to withstand the harsh conditions of the furnace environment. They are also typically equipped with a variety of features to ensure safety and reliability, such as:

• Seals: The seals of an electric furnace mast cylinder must be able to withstand high temperatures and pressures, as well as the corrosive environment of the furnace.
• Cushion structure: The cylinder should have a cushion structure at both ends to reduce impact and noise during operation.
• Displacement sensor: The cylinder may be equipped with a displacement sensor to monitor the stroke of the piston rod and ensure precise control.

Electric Furnace Mast Cylinder Specifications:

Product Name	Electric Furnace Mast Cylinder
Bore diameter:	300mm
Rod diameter:	230mm
Pressure:	14MPa
Thrust force:	Maximum 581KN
Electric Furnace Mast Cylinder Applications:	Electric Furnace

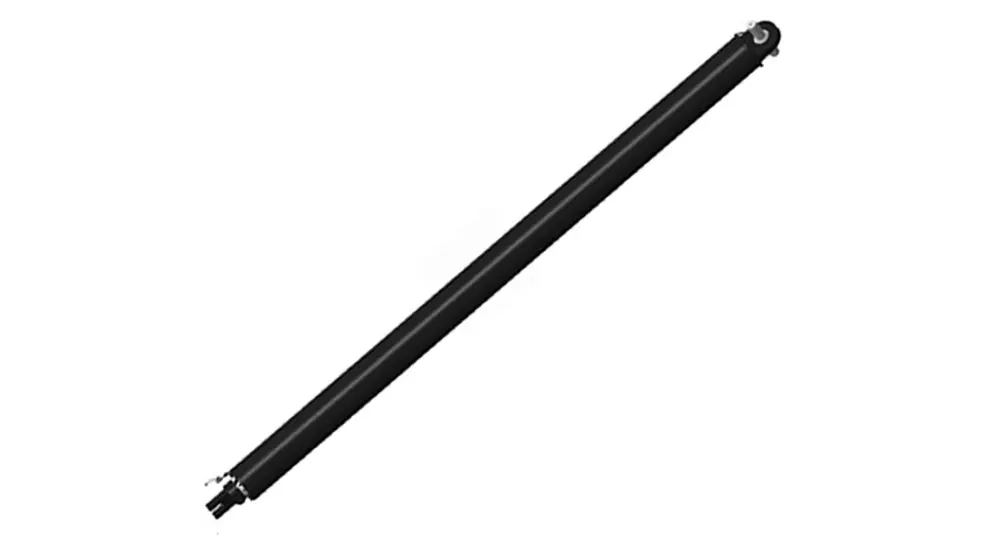

Benefits of Electric Furnace Mast Cylinder:

The electric furnace mast cylinder offers several benefits in the operation of electric furnaces. Here are some advantages:1. Precise Temperature Control: The electric furnace mast cylinder allows for precise temperature control within the electric furnace. By adjusting the position of the electrodes, the power input can be regulated, enabling operators to achieve and maintain specific temperatures required for the melting or refining process. This precise control helps ensure consistent and accurate results.2. Energy Efficiency: Electric furnace mast cylinders are known for their energy efficiency. The ability to adjust the electrodes allows for optimal power distribution and utilization. This means that the furnace can be operated at the most efficient power levels, reducing energy waste and improving overall energy efficiency.3. Flexibility and Adaptability: The mast cylinder's adjustability offers flexibility and adaptability in furnace operations. It allows for quick and easy changes to the electrode position, which is beneficial when working with different types of metals or when adjusting the furnace for different production requirements. This flexibility enables efficient switching between various processes and enhances the furnace's versatility.4. Enhanced Melting Performance: The electric furnace mast cylinder plays a crucial role in achieving efficient and effective melting of metals. It ensures proper alignment of the electrodes, which promotes uniform distribution of heat within the furnace. This results in improved melting performance, reduced heat loss, and more homogeneous metal quality.5. Durability and Reliability: Electric furnace mast cylinders are designed to withstand high temperatures, corrosive environments, and mechanical stress. They are typically made from robust materials that can withstand the demanding conditions of industrial operations. Their durability and reliability contribute to the longevity and consistent performance of the furnace system.6. Operator Safety: The mast cylinder design prioritizes operator safety. It incorporates features such as insulation and protective coatings to minimize the risk of electrical shocks or burns. Additionally, the adjustability of the electrodes allows for easier maintenance and inspection, promoting safer working conditions for operators.

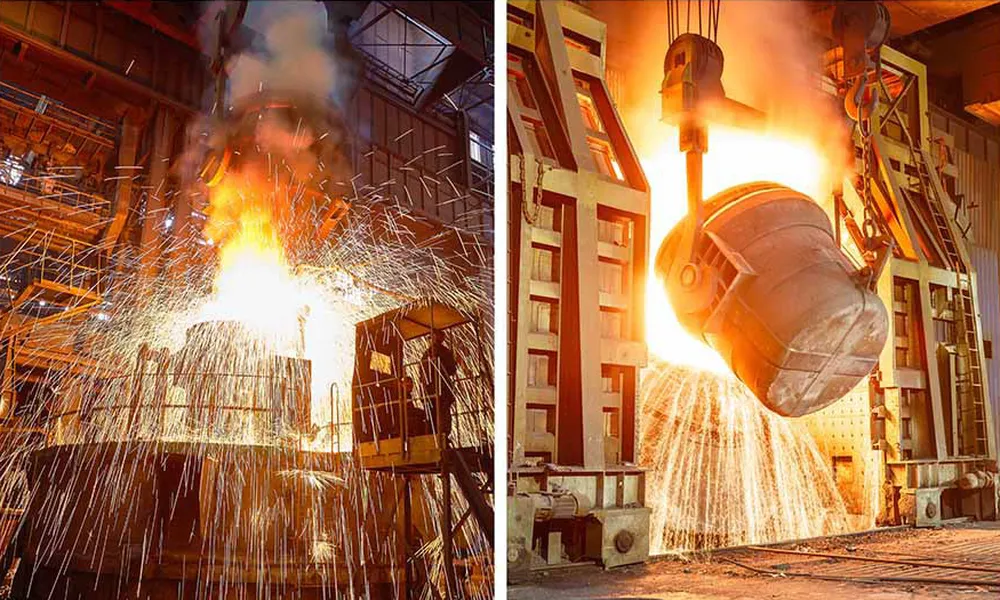

Applications of Electric Furnace Mast Cylinder:

An electric furnace mast cylinder is a hydraulic cylinder that is used to move the mast assembly of an electric arc furnace (EAF). The mast assembly supports the electrodes of the EAF, and the mast cylinder is used to raise and lower the electrodes in order to maintain a constant arc length.

Electric furnace mast cylinders are used in a variety of applications, including:

• Melting scrap metal: Electric arc furnaces are commonly used to melt scrap metal, which is then refined into steel. The mast cylinder is used to control the arc length during the melting process, which helps to ensure that the scrap metal is melted quickly and efficiently.
• Producing alloy steels: Electric arc furnaces are also used to produce alloy steels, which are steels that contain other elements, such as chromium, nickel, or molybdenum. The mast cylinder is used to control the arc length during the alloying process, which helps to ensure that the alloying elements are properly incorporated into the steel.
• Refining molten steel: Electric arc furnaces can also be used to refine molten steel, which is steel that has already been melted. The mast cylinder is used to control the arc length during the refining process, which helps to remove impurities from the steel and improve its quality.

In addition to these primary applications, electric furnace mast cylinders are also used in a variety of other applications, such as:

• Furnace maintenance: The mast cylinder can be used to raise and lower the electrodes for maintenance purposes, such as when replacing worn electrodes or repairing the furnace lining.
• Furnace tapping: The mast cylinder can be used to raise and lower the electrodes to facilitate furnace tapping, which is the process of pouring the molten steel out of the furnace.
• Furnace charging: The mast cylinder can be used to raise and lower the electrodes to facilitate furnace charging, which is the process of adding scrap metal or other materials to the furnace.

Electric furnace mast cylinders are essential components of EAFs, and they play a critical role in a variety of steelmaking processes.
