EMG Helical Gearboxes

EMG Helical Gearboxes

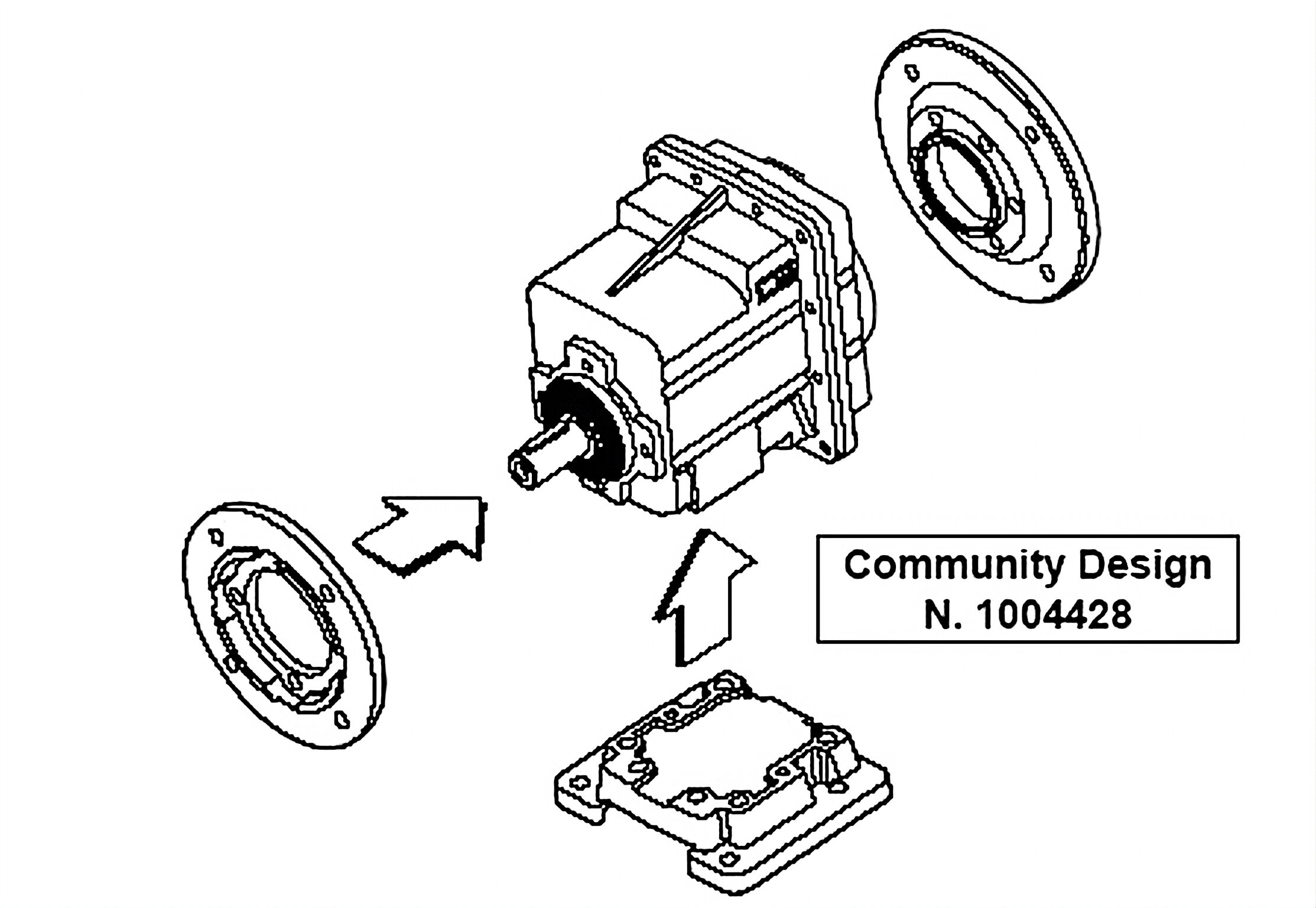

Technical Characteristics

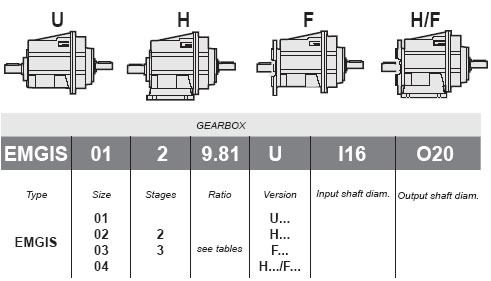

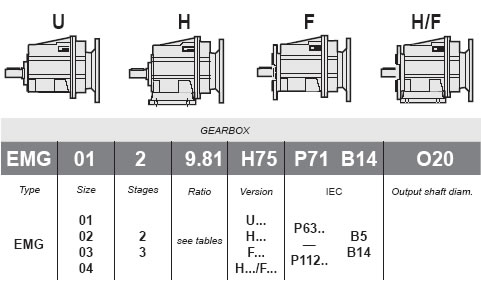

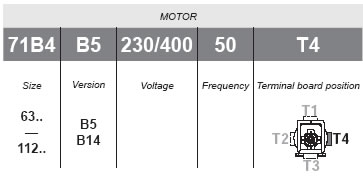

Designation

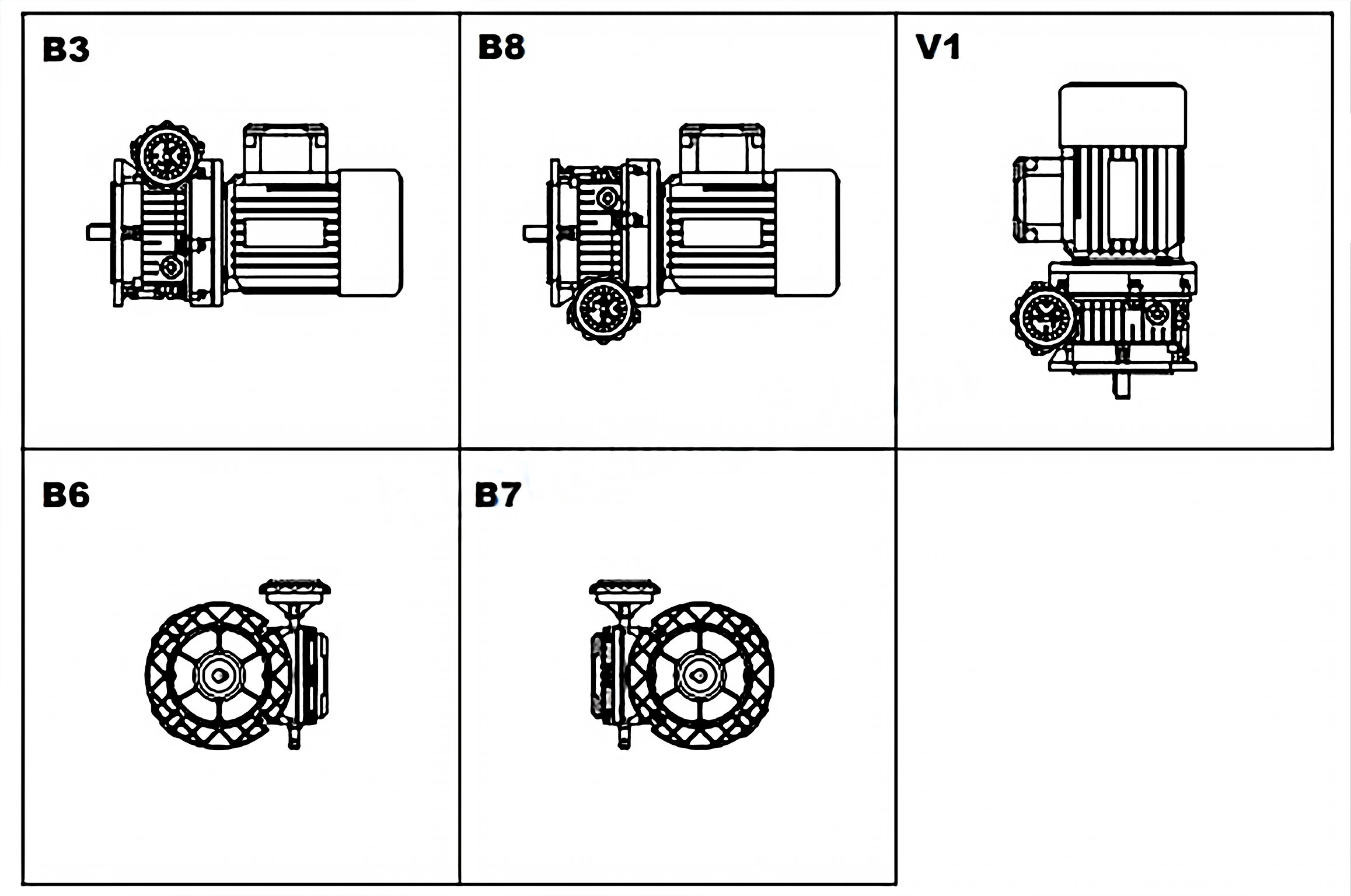

Mounting positions

All EMG reduction units are supplied complete with synthetic lubricantviscosity 320. For this reason they can be installed in anyassembly position and do not require maintenance.N.B.The oil quantity does not depend on mounting position.

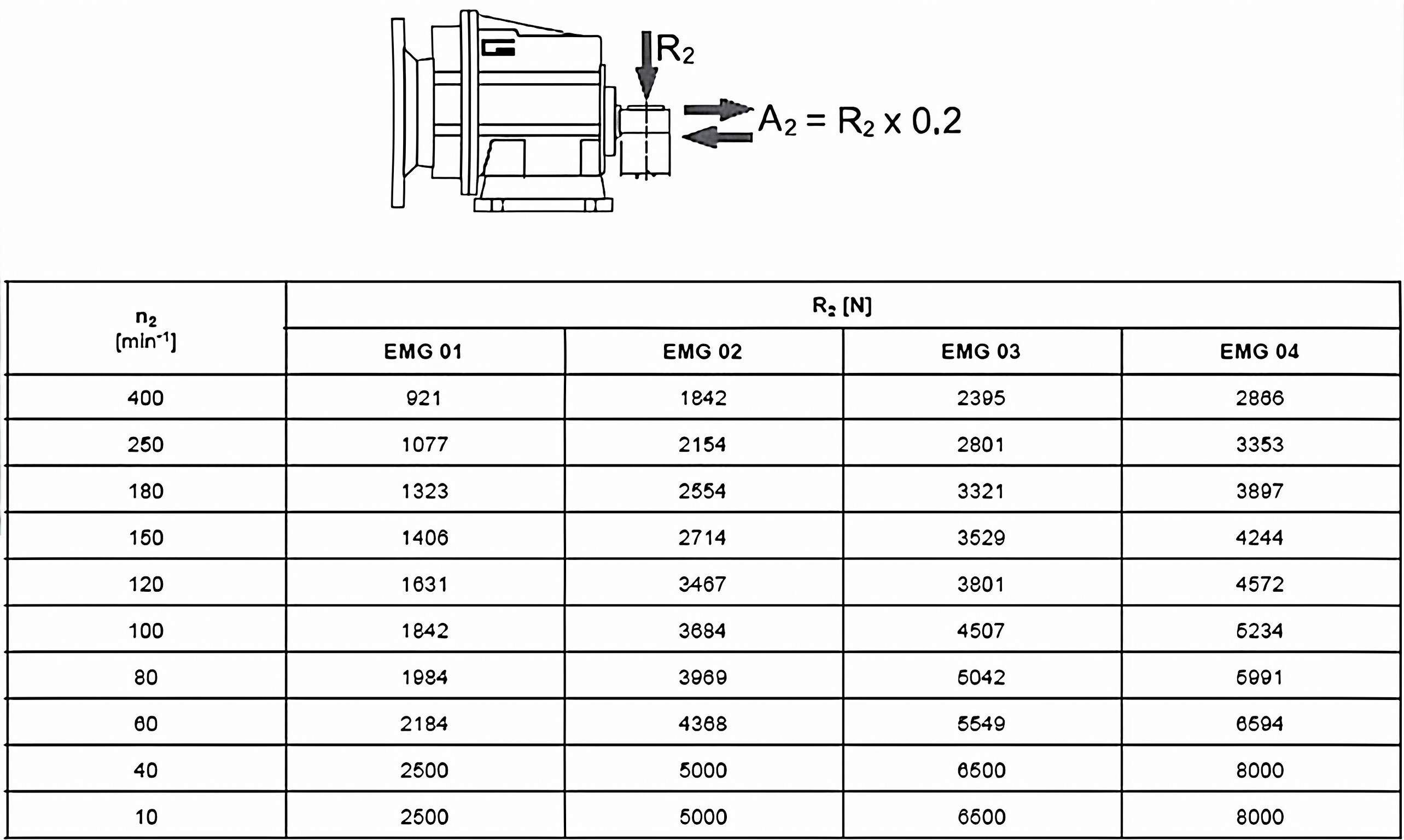

Radial Loads

n1 [min ] -1 Input speedn2 [min ] -1 Output speedi RatioP1 Input powerMn Nominal output torquesf Service factorR2 Permitted output radial load

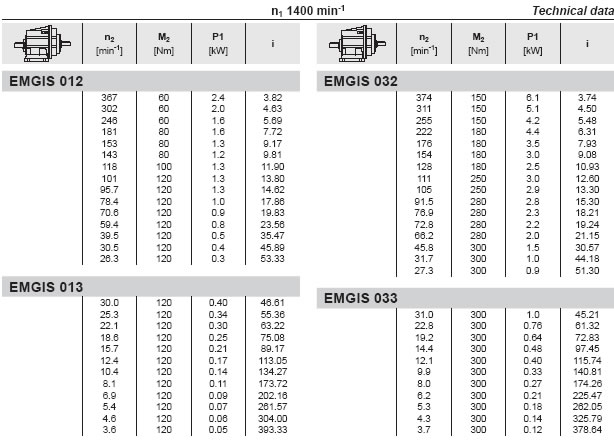

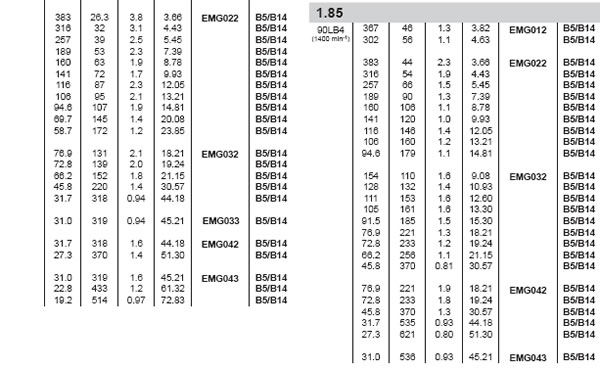

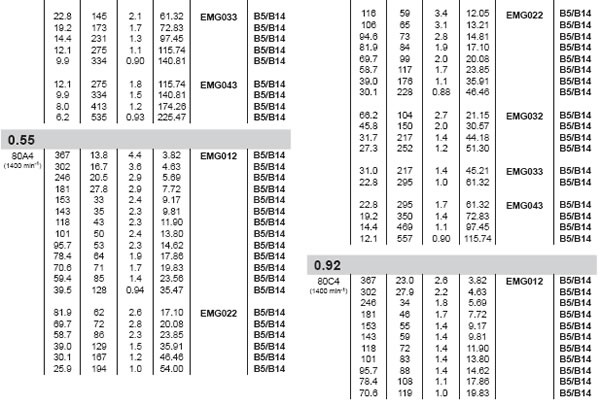

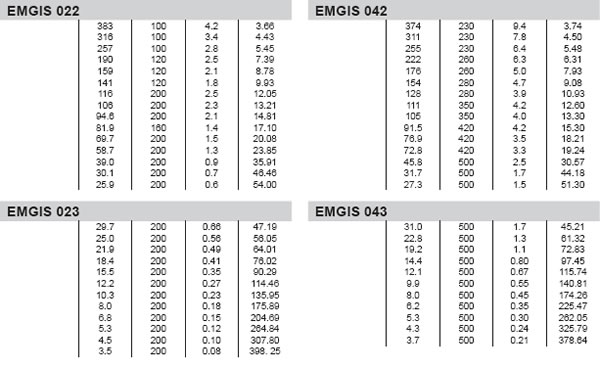

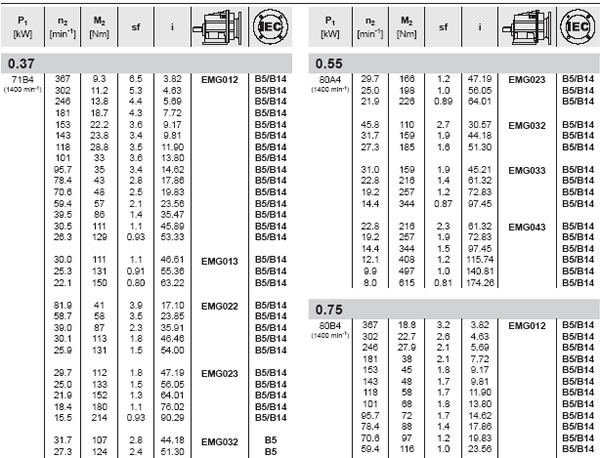

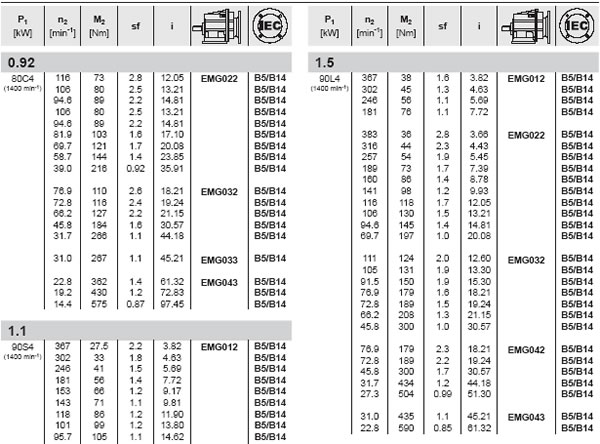

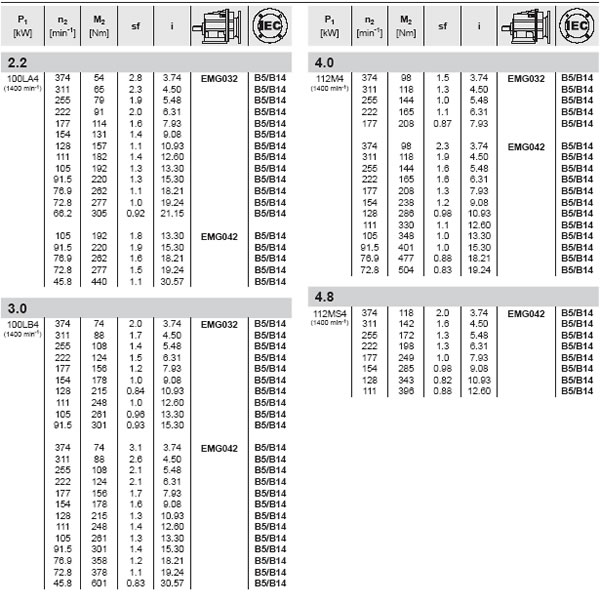

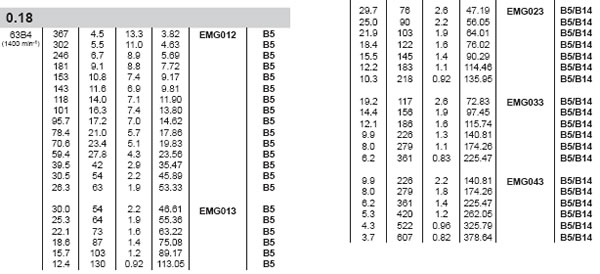

Technical data

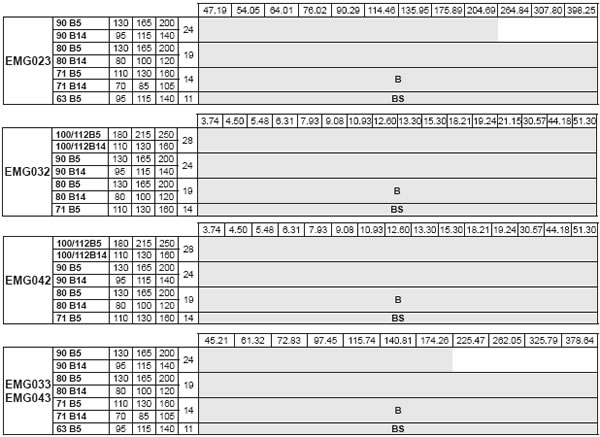

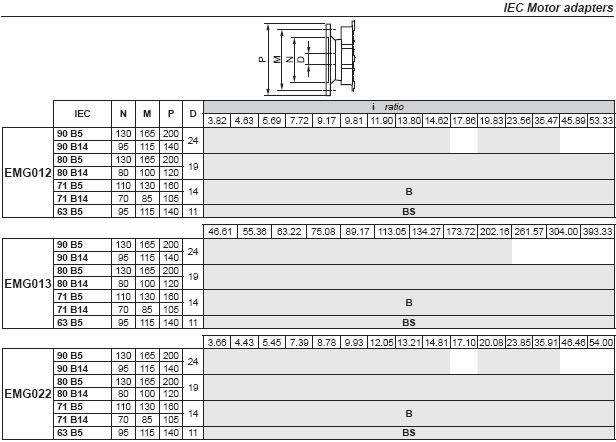

IEC Motor adapters

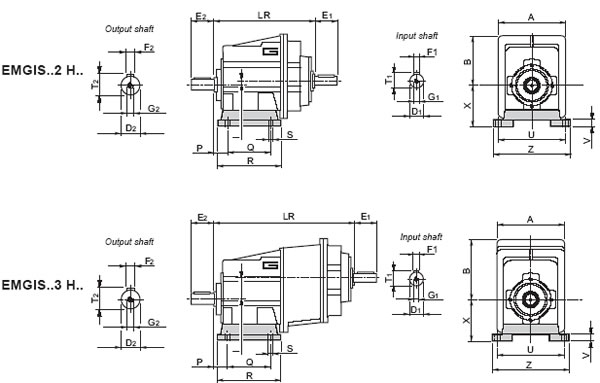

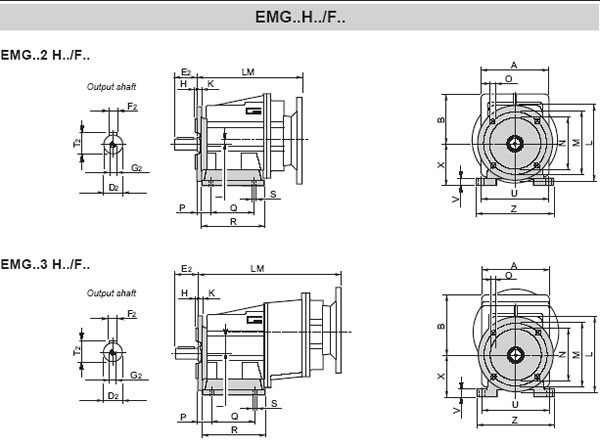

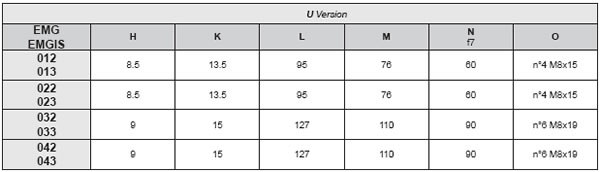

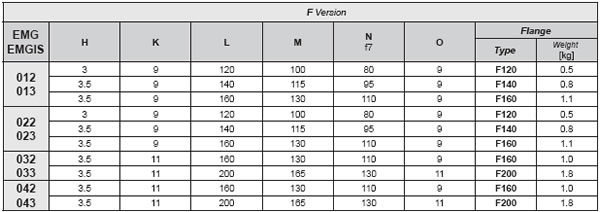

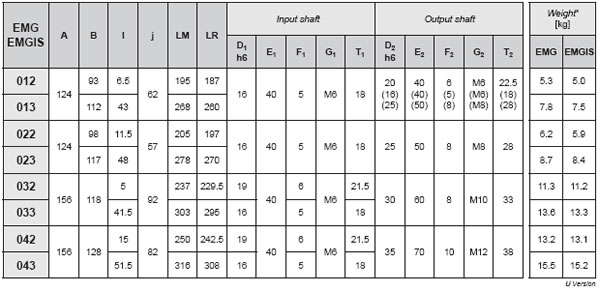

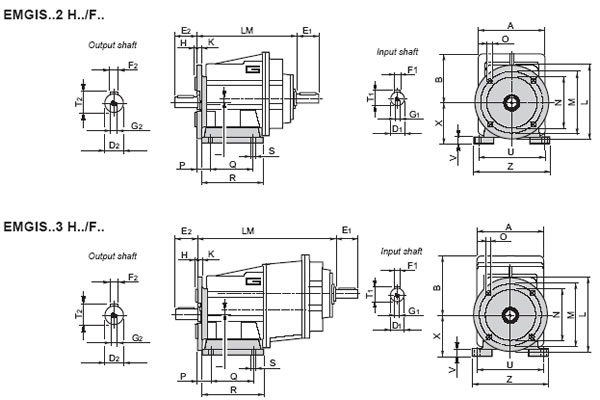

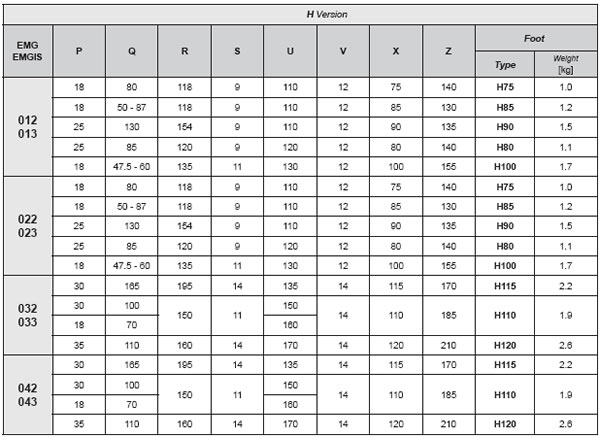

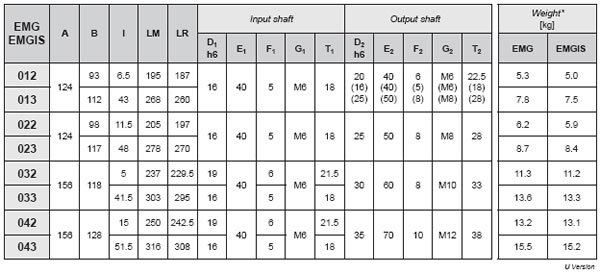

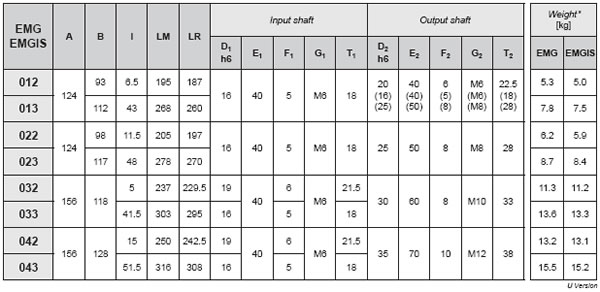

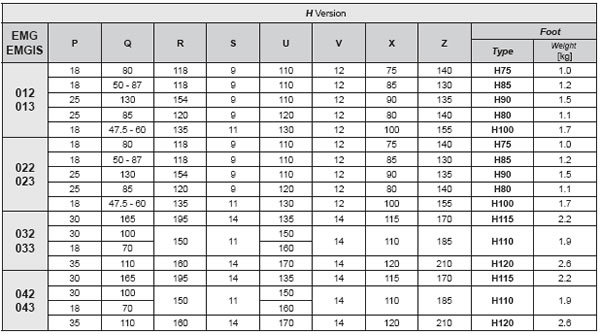

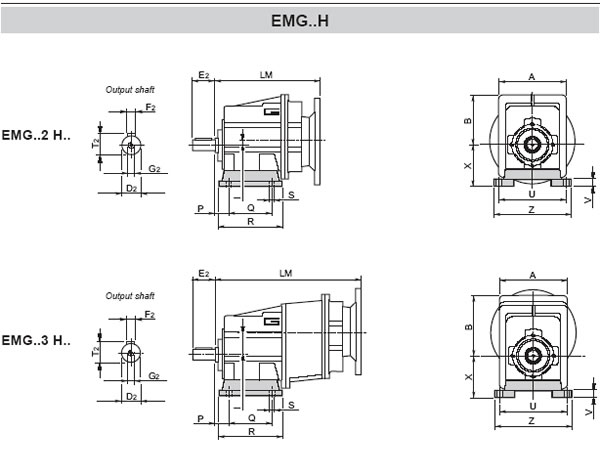

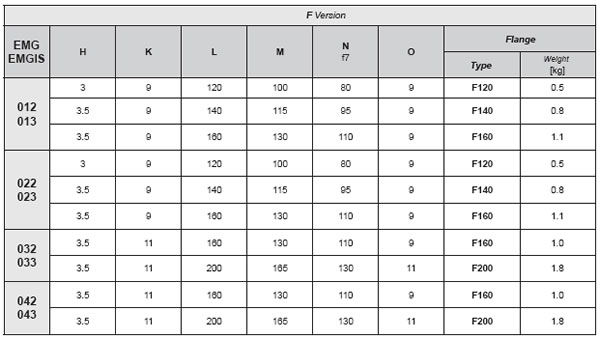

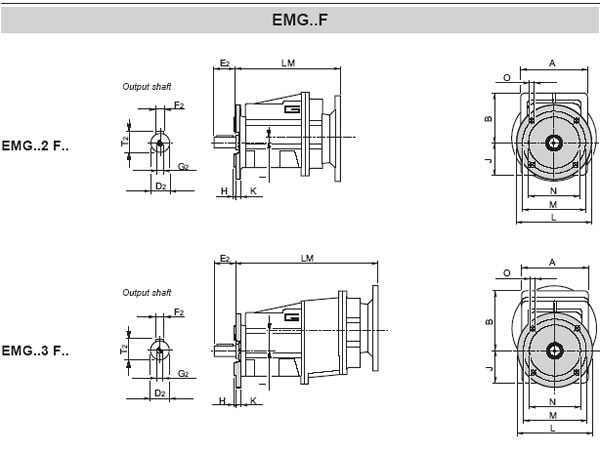

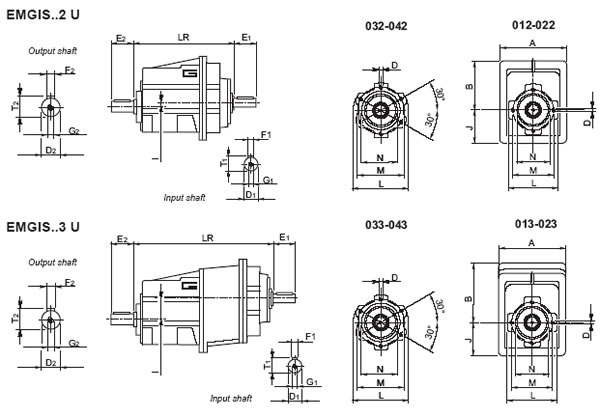

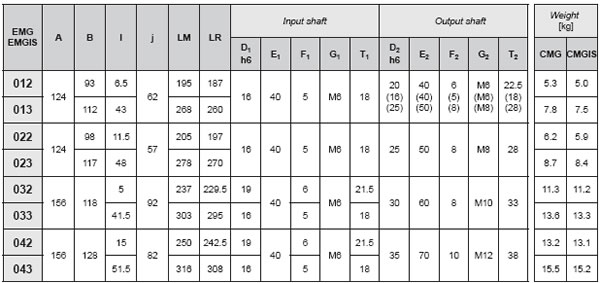

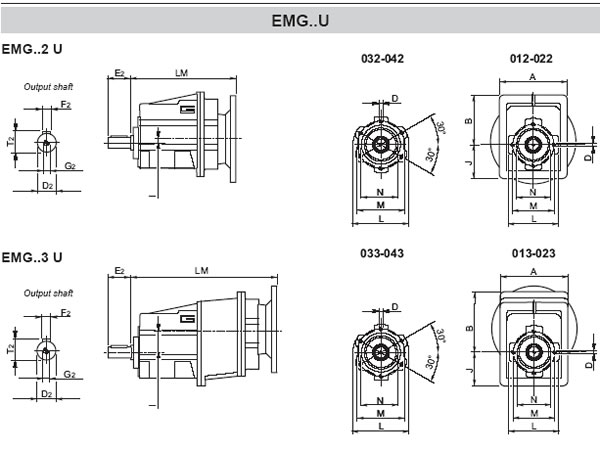

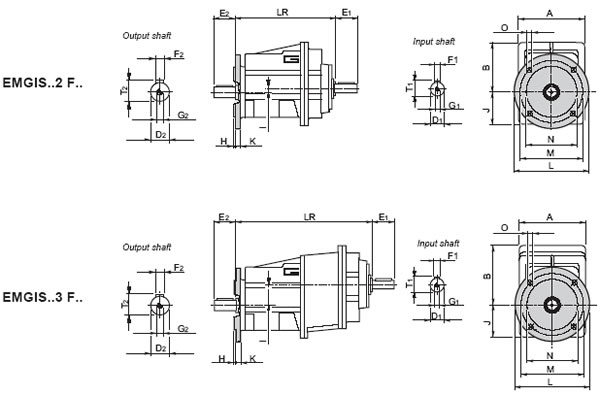

Dimensions
