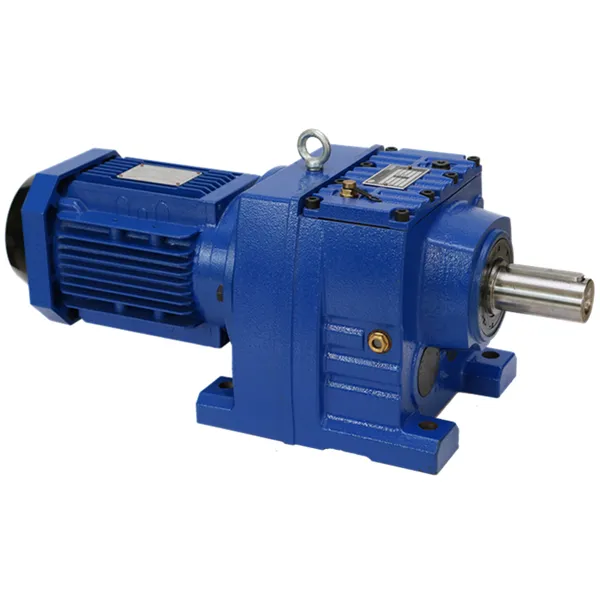

EPR Series Foot Mounted Helical Gearbox

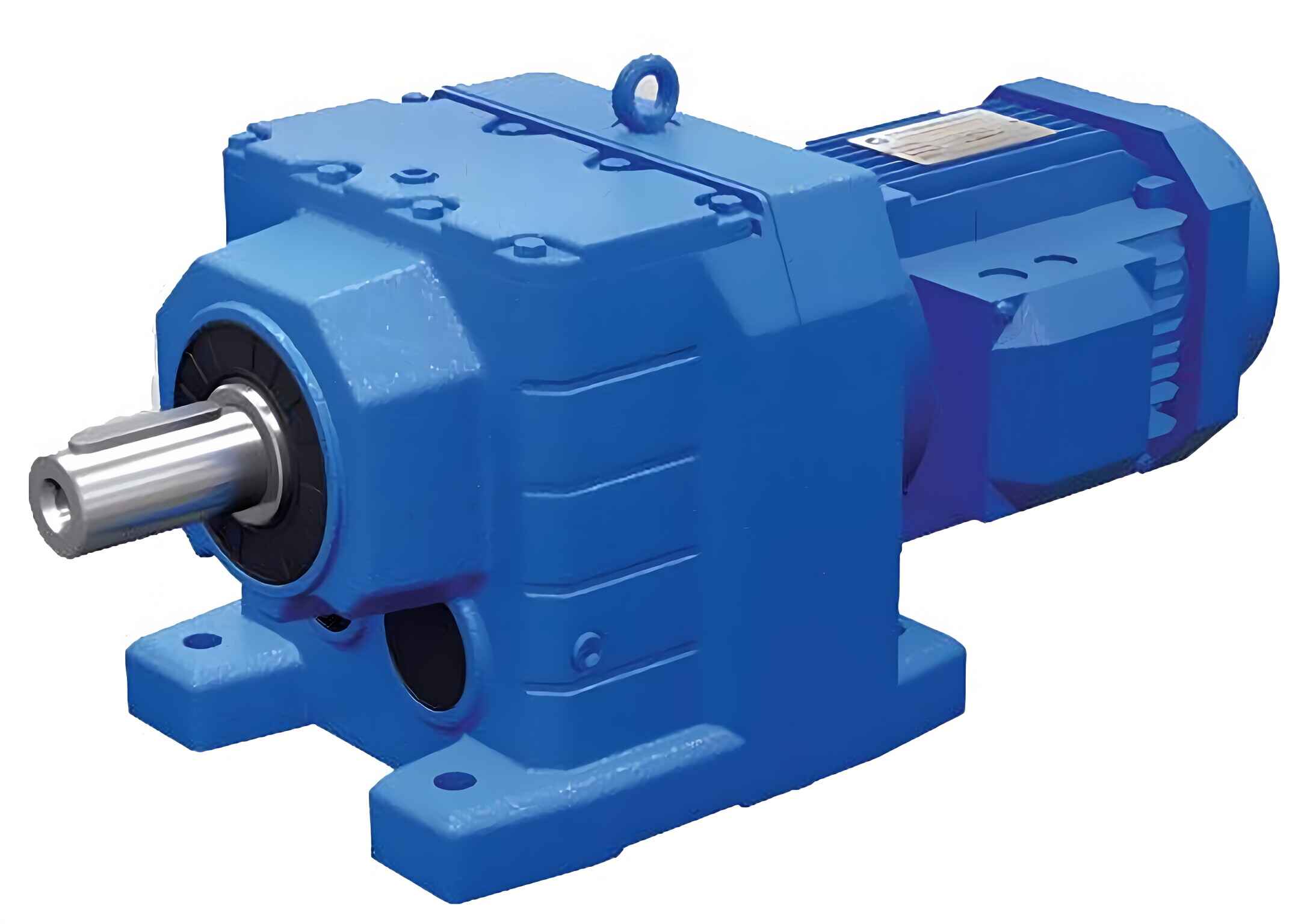

EPR Series Foot Mounted Helical Gearbox

EPR series helical gearbox adopts an integral casting box, which has good structural rigidity and is easy to improve the strength of the shaft and the life of the bearings. The installation methods of the EPR series helical gear reducer include foot installation and flange installation, foot installation type is more widely used. As its structure is compact, it saves a lot of space. Its average efficiency is 96% for the double-stage type, 94% for the three-stage type, and 85% for the RDF-R/R combination type.EPR series gearboxes are widely used in the light industry, food, beer and beverage, chemical industry, escalator, automatic storage equipment, building materials machinery, iron and steel metallurgy, environmental protection, power plants, coal, mining, papermaking, wood-based panels, automobiles, ports ( Airports, terminals), tobacco machinery and other fields.

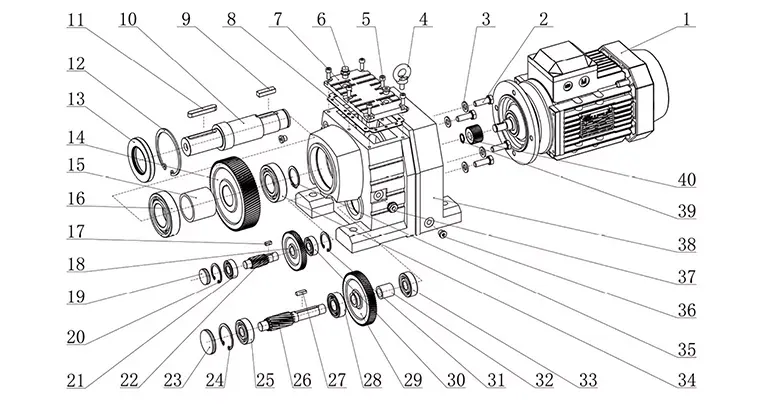

EPR Series Helical Gearbox Parts

1、Motor	2、Bolt	3、Washer	4、Lifting ring	5、Cap Screw
6、Vent Cap	7、Cover	8、Sealing shim	9、Parallel Key	10、Output shaft
11、Parallel Key	12、Circlip for hole	13、Skeleton oil seal	14、Gear	15、Bearing sleeve
16、Bear	17、Parallel Key	18、Gear	19、Plane Oil Seal	20、Circlip for hole
21、Gear	22、Skeleton oil seal Gear Shaft	23、Plane Oil Seal	24、Circlip for hole	25、Bearing
26、Gear Shaft	27、Parallel Key	28、Bearing	29、Gear	30、Bearing
31、Circlip for hole	32、Bearing sleeve	33、Bearing	34、Bearing	35、Circlip for shaft
36、Plug cock	37、Oil mirror	38、Case	39、Circlip for shaft	40、Gear

EPR Series Helical Gearbox Specifications:

Product name:	EPR series helical gear reducer
Model:	EPR17/27/37/47/57/67/77/87/97/107/137/147/167
Mounting ways:	Foot-mounted and flange mounted
Input ways:	Motor input, AM (IEC) flange input, and shaft input
Output way:	Solid shaft output
Efficiency:	94%-98%(depends on the transmission stage)
Housing material:	HT250 high-strength cast iron
Gear material:	20CrMnTi
Surface hardness of gears:	HRC58-62
Input/Output shaft:	40Cr steel
Heat treatment:	Carburizing and quenching
Bearing:	C&U or other brands
Oil seal:	NAK or other brands
Lubricating oil:	Gear oil
Packing:	plywood case

EPR Series Helical Gearbox Parameters

Size	17	27	37	47	57	67	77	87	97	107	137	147	167
Structure	EPR
Input powerrating (kW)	0.18-0.75	0.18-3	0.18-3	0.18-5.5	0.18-7.5	0.18-7.5	0.18-11	0.55-22	0.55-30	22-45	5.5-55	11-90	11-160
Ratio	3.83-74.84	3.37-135.09	3.33-134.82	3.83-176.88	4.39-186.88	4.29-199.81	5.21-195.24	5.36-246.54	4.49-289.74	5.06-249.16	5.15-222.60	5.00-163.31	10.24-229.71
Permissible torque(N.M)	85	130	200	300	450	600	820	1550	3000	4300	8000	13000	18000

EPR Series Helical Gearbox Types Models:

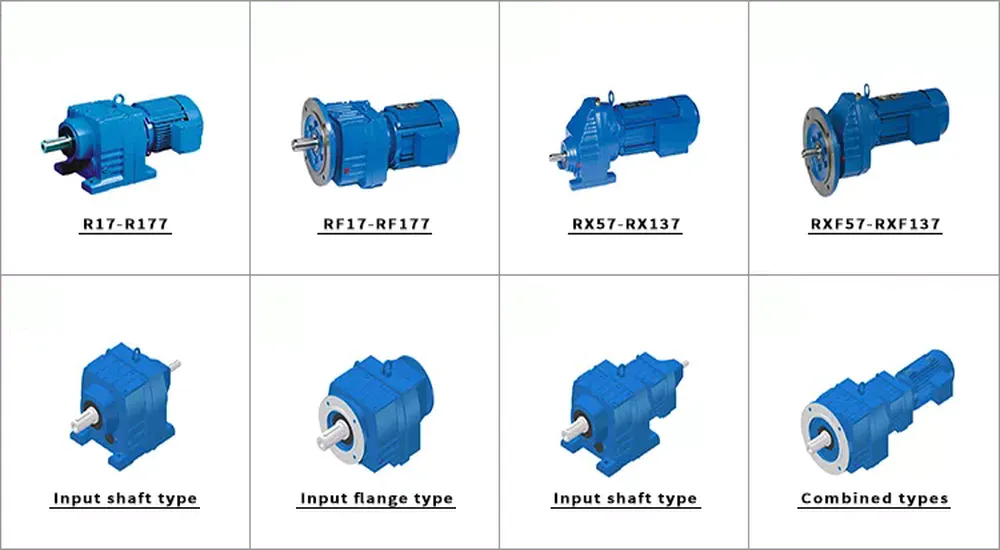

EPR series helical gear reducer models and marks:EPR..: foot mountedRDF-RF..: flange mountedRDF-R..F: foot and flange mountedRDF-RM..: Flange mounted with extended bearing boxRDF-RX..: Single-stage foot mountedRDF-RXF..: Single-stage flange mounted

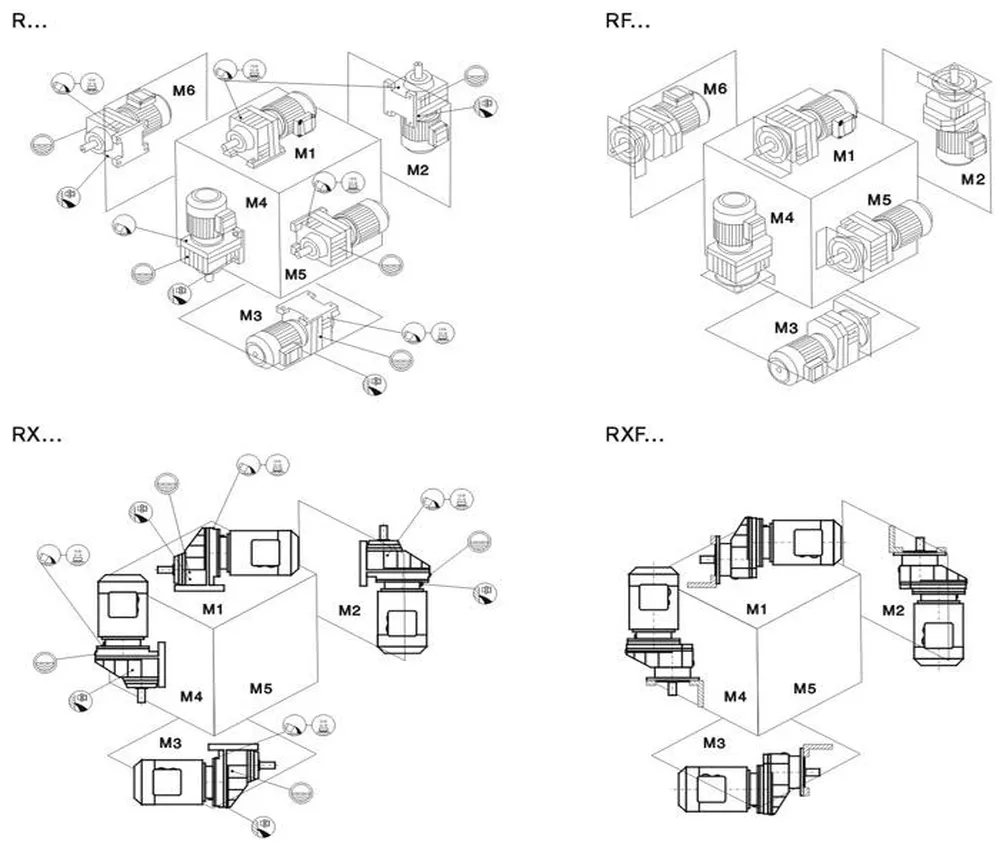

EPR Series Helical Gearbox Mounting Position

EPR Series Helical Gearbox Design Features

1. This series of reducers is manufactured in combination with international technical requirements and has a high technological content.2. EPR series helical gearbox is space-saving, reliable, and durable, with high overload capacity and power up to 160KW.3. low energy consumption, superior performance, and reducer efficiency of up to 95% or more.4. Low vibration, low noise, and high energy saving.5. EPR series helical gearbox is made of high-quality forged steel material steel cast iron case, and the gear surface is heat treated with high frequency.6. After precision machining to ensure shaft parallelism and positioning bearing requirements, the formation of a helical gear reducer configured with various motors, combined into electromechanical integration, fully guarantees the quality characteristics of the use of reducer motor products.

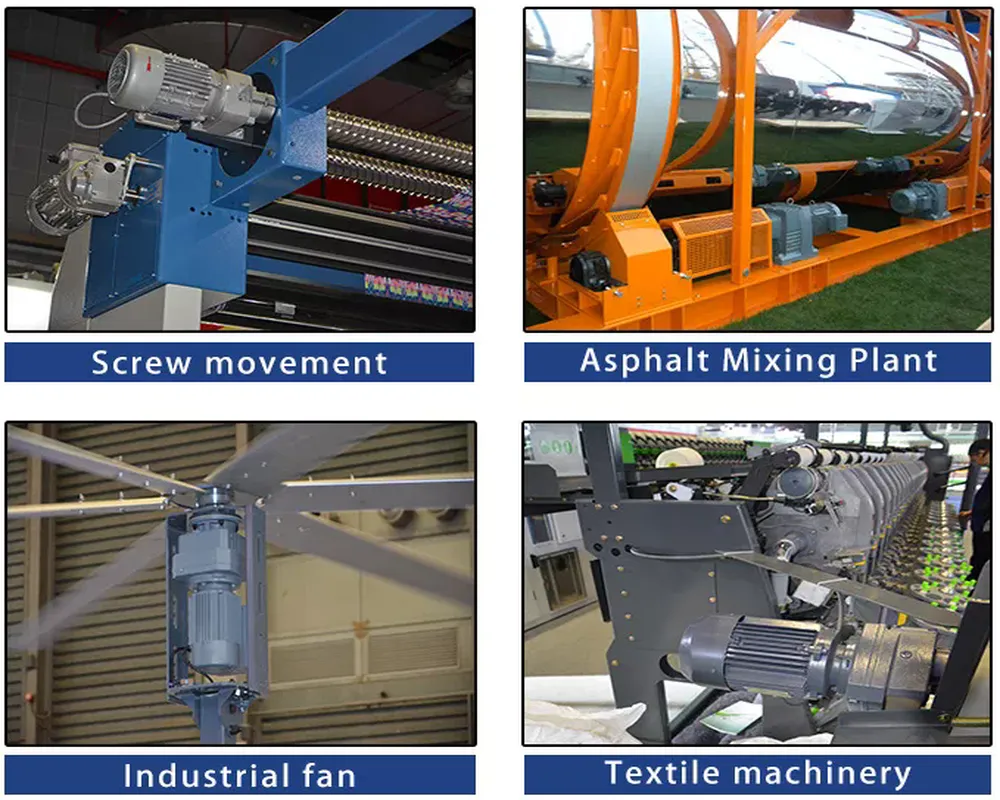

EPR Series Helical Gearbox Applications

EPR series helical gearbox is widely used in metallurgy, mining, building materials, building, petrochemical industry, aerospace, food industry, medical industry, overweight transportation, textile industry, general machinery, and other fields.

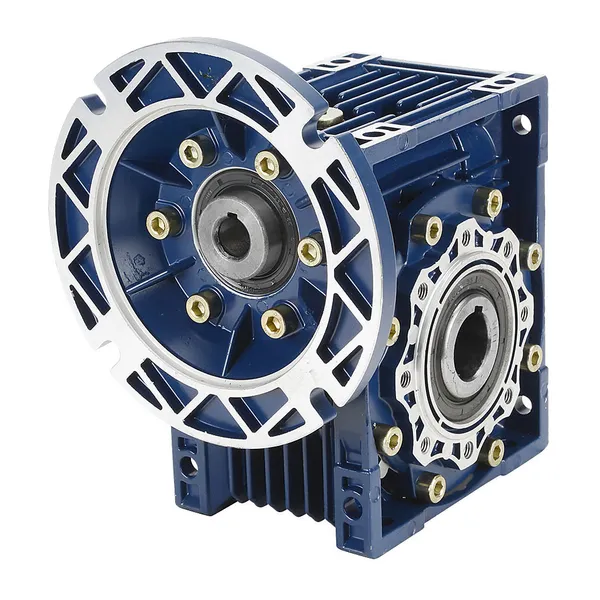

Helical Gearbox VS Worm Gearbox

Helical Gearbox Manufacturer in China

Our company is located in the city of Ningbo, Zhejiang Province of China. We handle the products of power transmission, and our lines mainly cover series products in speed reducers, RV series worm gearboxes, WP series worm gearboxes, HB series helical gearboxes, RC series helical gearboxes, EPS/EPR/EPK/EPF series helical gearboxes, X/B series cycloidal gearboxes, ATA series shaft mounted gearboxes, SMR series shaft mounted gearboxes, associated electric motors, and other power transmission accessories. Based on their versatile functions, our products can be utilized in many fields: machines of wastewater treatment, dredgers, the chemical industry, cranes, metalworking mills, conveyors, the paper industry, the cement industry, cableways, and so on. With excellent quality and reasonable prices, our products enjoy a good reputation from customers and peers all over the world.Furthermore, the R&D investment is annually increasing for the purpose of better meeting the new demands of our customers and adapting to the new tendency of the industry. Depending on the principles of honestly operating and mutual benefit, We sincerely look forward to cooperating with you.
