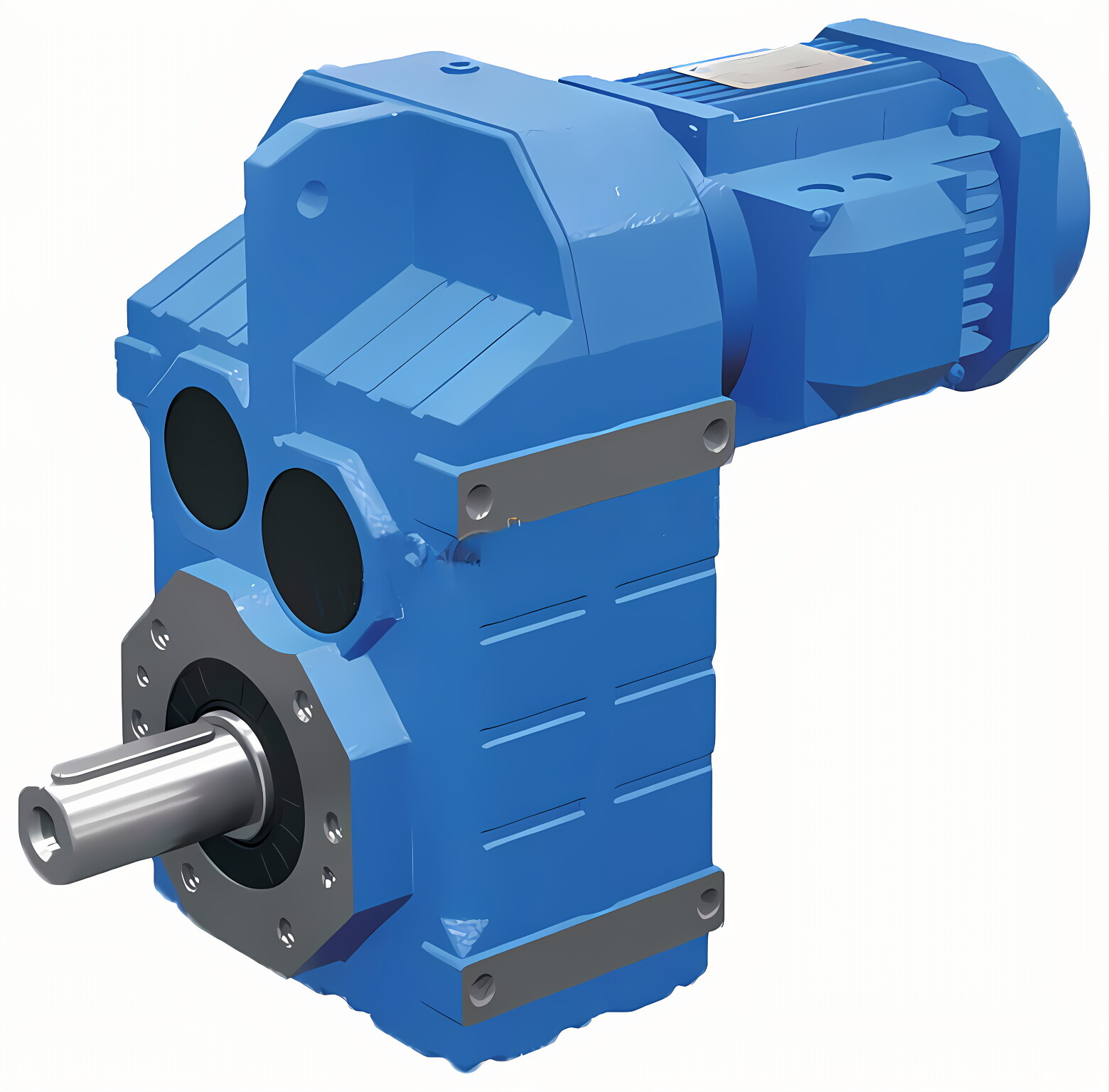

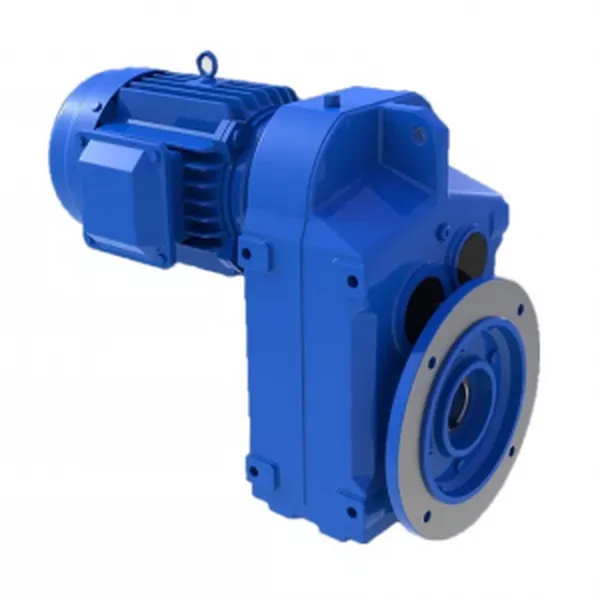

EPF Series Parallel Shaft Helical Gearbox

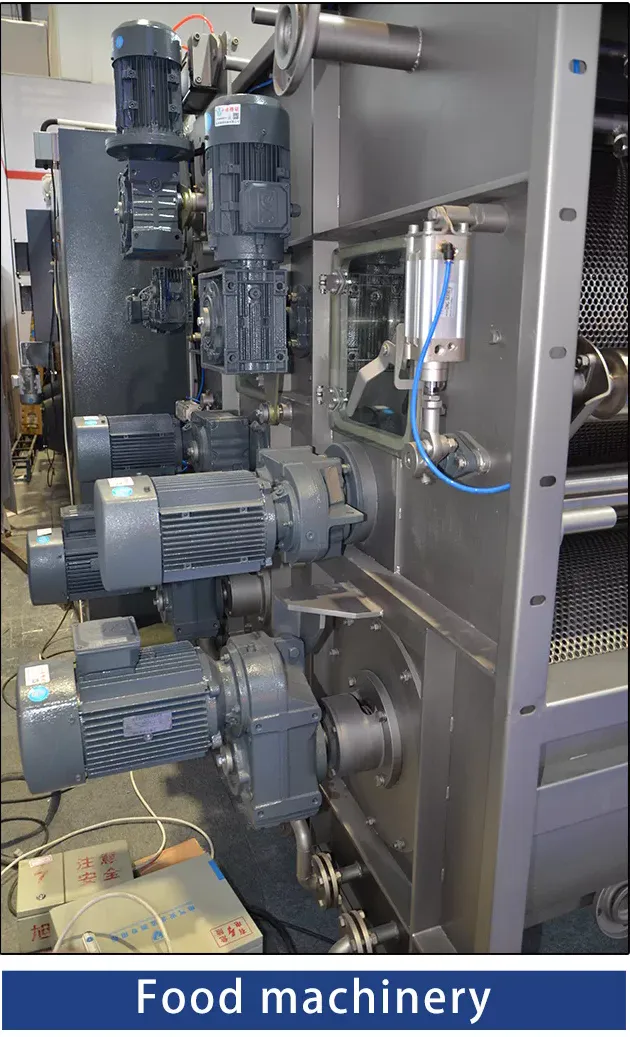

EPF series helical gearbox is a parallel shaft helical gearbox, and its input shaft and output shaft are parallel. EPF series parallel shaft helical gearbox has the advantages of compact structure, large transmission torque, stable operation, low noise, and long service life. The basic two-stage input and output rotate in the same direction, while the third stage rotates in the opposite direction. It can be used in combination with EPR series helical gearbox. The average efficiency is 96% for the basic two-stage, 94% for three stages, and 85% for the EPF Series and EPR Series combination.

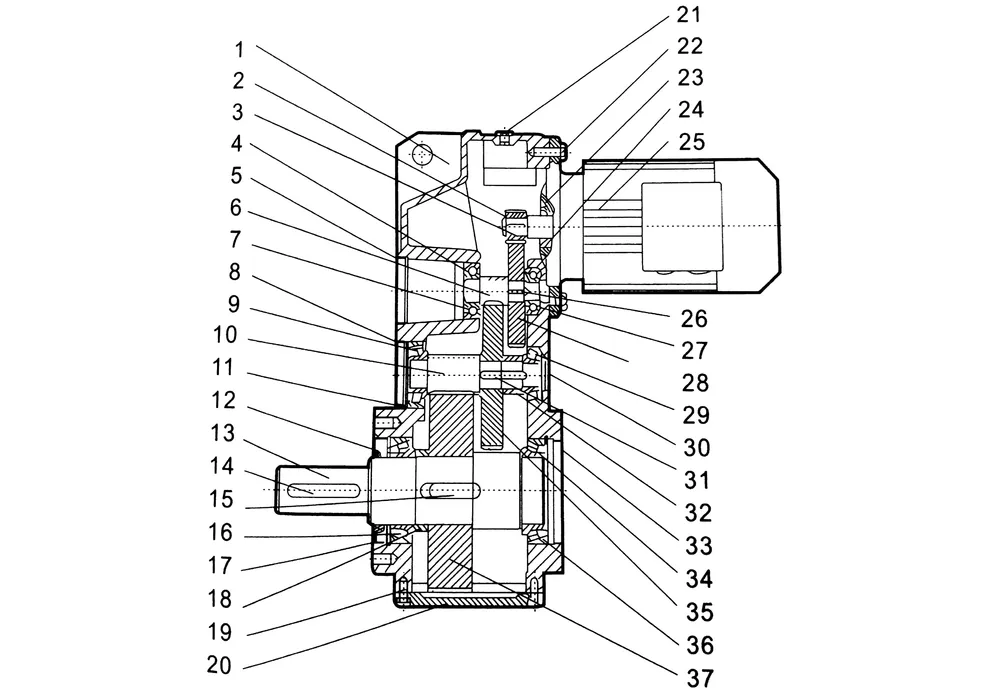

EPF Series Parallel Shaft Helical Gearbox Parts Diagram

1、Housing	2、Retaining Rings for Shafts I	3、Input Gear	4、Retaining Rings for Bores I	5、Seal I
6、Gear Shaft II	7、Bearing I	8、Seal II	9、Bearing II	10、Gear Shaft III
11、Retaining Rings for Bores II	12、Output Shaft Seal	13、Output Shaft	14、Flat Key I	15、Flat Key II
16、Bearing III	17、Retaining Rings for Shafts III	18、Spacer Tube III	19、Bolt	20、Cover Plate
21、Breather Value	22、Bolt	23、Motor Seal	24、Motor Bearing	25、Motor
26、Flat Key III	27、Bearing IV	28、Gear I	29、 Bearing V	30、Seal III
31、Flat Key IV	32、Spacer Tube II	33、Seal IV	34、Bearing IV	35、Gear II
36、Retaining Rings for Bores IV	37、Gear III

EPF series helical gearbox housing is made of HT250 high-strength cast iron with a shot-shaped inner cavity, which effectively reduces the wear of parts, dissipates heat quickly, and increases the bearing capacity of the thickened box.The gears are made of low-carbon alloy steel, processed by imported gear grinding machines, with high hardness, stable performance, and vacuum carburizing treatment.The gear shaft is made of high-strength bearing steel, quenched and finished, with strong bearing capacity and stable transmission.The output shaft has undergone multiple precision machining and has passed the rigorous dynamic and static balance tests to ensure that the reducer runs smoothly and has low noise.For the accessories, we use high-precision bearings with imported brand oil seal, which effectively reduces friction and leakage to ensure high efficiency and stale, reliable running.

EPF Series Parallel Shaft Helical Gearbox Specifications

Product name:	EPF series parallel shaft helical gearbox
Model:	EPF37/47/57/67/77/87/97/107/127/157

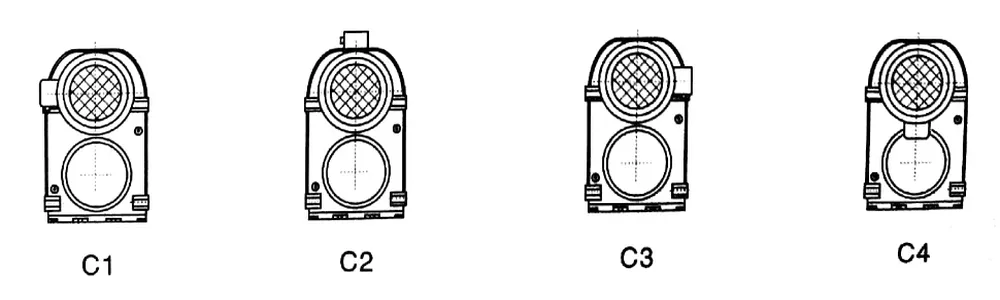

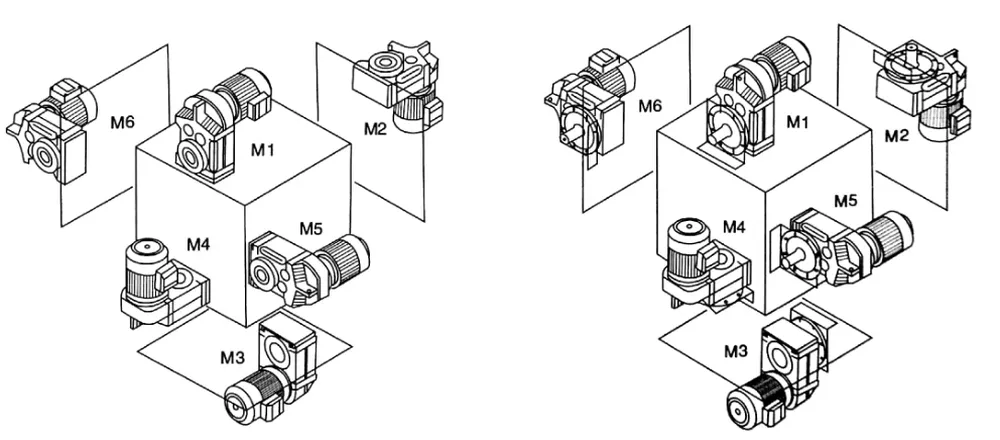

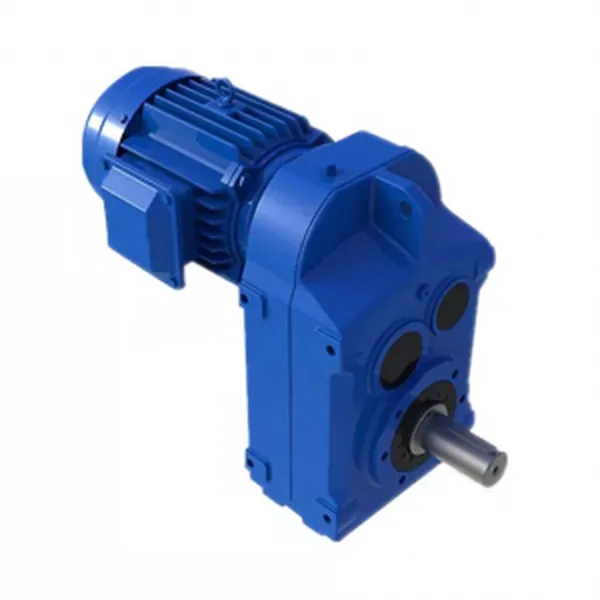

Mounting ways:	Foot mounted, flange mounted or shaft mounted
Input ways:	Motor input, AM (IEC) flange input, and shaft input

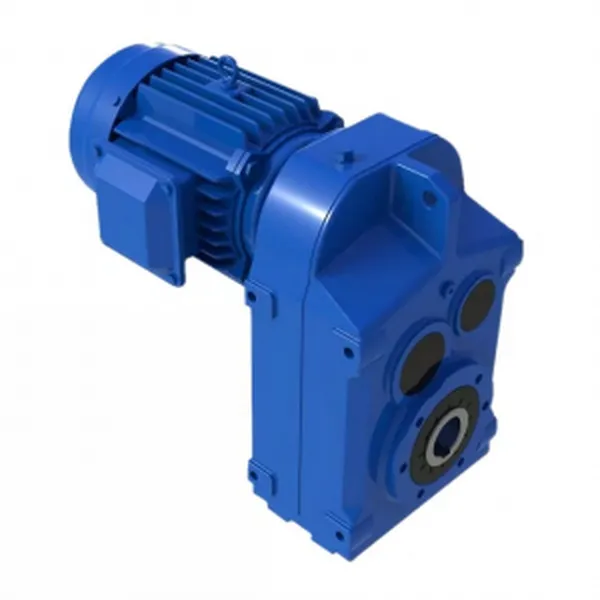

Output way:	Solid shaft output, hollow shaft output, output with large flange, output with small flange
Efficiency:	96% for basic two-stage, 94% for three-stage
Housing material:	HT250 high-strength cast iron
Gear material:	20CrMnTi
Surface hardness of gears:	HRC58-62
Input/Output shaft:	40Cr steel
Heat treatment:	Carburizing and quenching
Bearing:	C&U or other brands
Oil seal:	NAK or other brands
Lubricating oil:	Gear oil
Packing:	Plywood case

EPF Series Parallel Shaft Helical Gearbox Parameters

Input power and permissible torque chart
Size	37	47	57	67	77	87	97	107	127	157
Structure	EPF   RDF-FA   RDF-FF   RDF-FAF   RDF-FAZ
Input power(kW)	0.18-3.0	0.18-3.0	0.18-5.5	0.18-5.5	0.37-11	0.75-22	1.1-30	2.2-45	7.5-90	11-200
Ratio	3.81-128.51	5.06-189.39	5.18-199.70	4.21-228.99	4.30-281.71	4.12-270.68	4.68-280.76	6.20-254.76	4.63-172.17	11.92-267.43
Permissibletorque(N.M)	200	400	600	820	1500	3000	4300	7840	12000	18000
