EP700L4 EP701L4 EP703AL4 EP705AL4 Planetary Yaw Drives

EP700L4 EP701L4 EP703AL4 EP705AL4 Planetary Yaw Drives

Experience unmatched precision with Raydafon Group's EP700L4, EP701L4, EP703AL4, and EP705AL4 Planetary Yaw Drives, engineered for robust industrial applications. These drives deliver superior torque and reliability, ideal for wind turbines and robotics, solving alignment challenges efficiently. Their compact design and advanced materials ensure durability, setting them apart from competitors. Elevate your operations with Raydafon Group—trust in innovation that drives success.

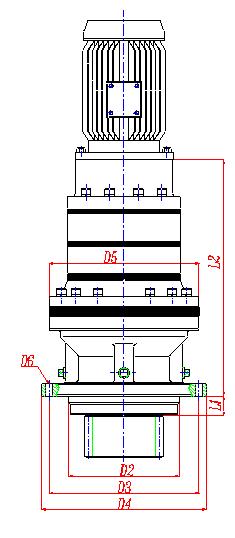

EP700L4, EP701L4 Yaw and Pitch driveEP703AL4, EP705AL4 Yaw and Pitch drive

Dimension

Type

EP700L4

EP701L4

EP703AL4

EP705AL4
D2

150

150

175

175

D3

195

195

245

245

D4

220

220

270

270

D5

185

185

245

245

D6

10-ф13

10-ф13

12-ф13

12-ф13

L1

31

31

32

32

L2

Size according to motor type

Pinion data

Pinion data according to customer

EP700L4 EP701L4 EP703AL4 EP705AL4 Planetary Yaw Drives

Technical specification

Type

Nominal Output Torque

Peak Static Output Torque

Ratio

(N.m)

(N.m)

(i)

EP700L

1000

2000

297--2153

EP701L

2000

4000

297--2153

EP703AL

2500

5000

278--1866

EP705AL

5000

10000

278--1866

    • Input – output rotate same direction.
    • Other ratio can be specially designed.
