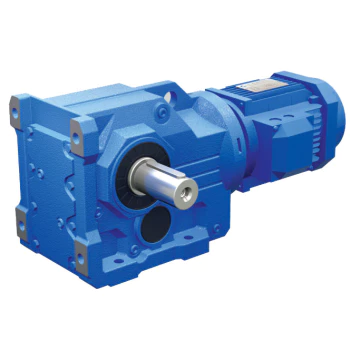

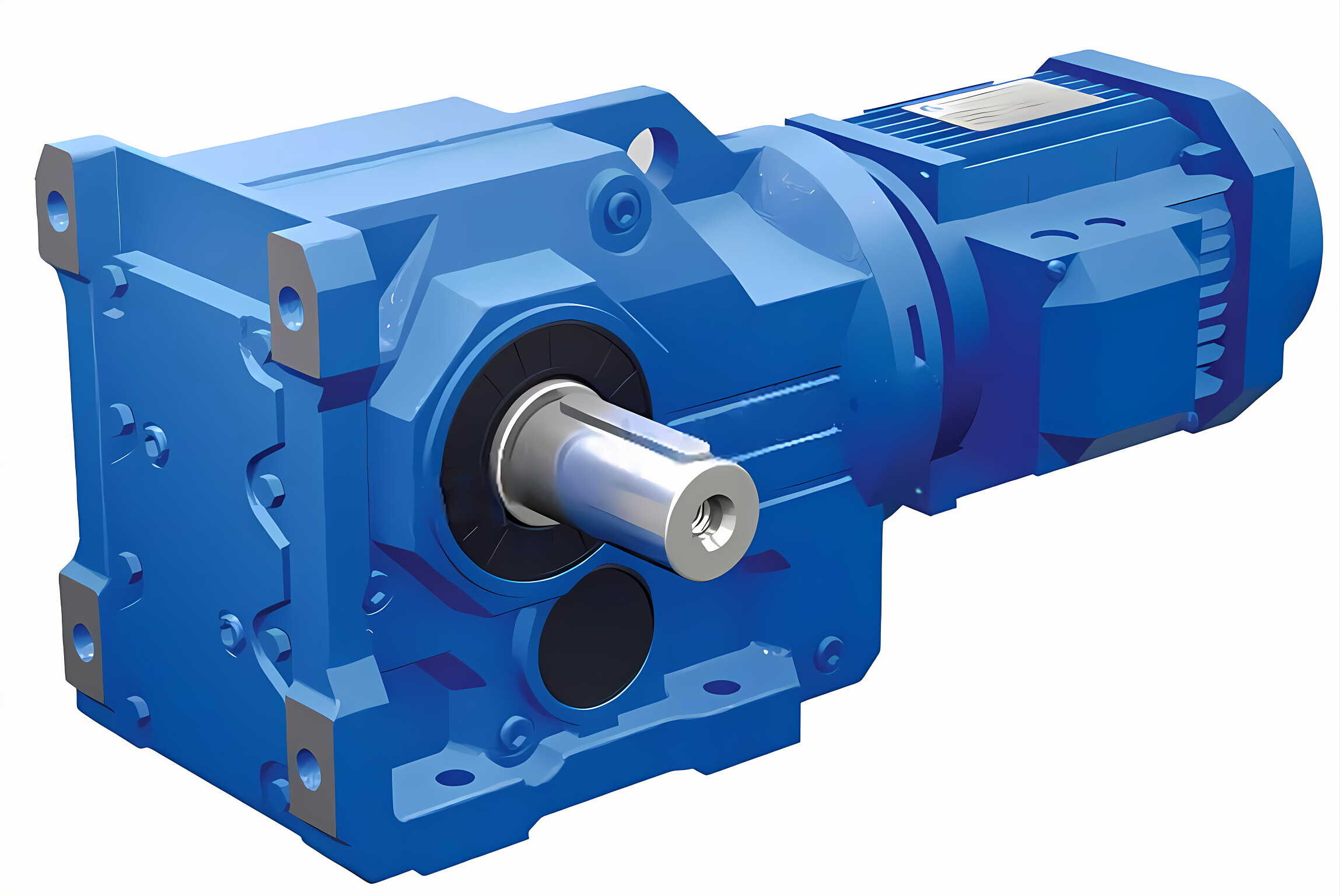

The EPK series helical gearbox is a right-angle gearbox of helical bevel gears, and the 90-degree vertical output form greatly saves much installation space. The combination design of multi-stage hardened gears has higher efficiency, larger torque, and longer service life than single-stage worm gearboxes.Its housing is made of cast iron, the gear is made of high-quality carburized steel, and the gear surface is high-frequency heat treated. We use integral needle roller bearings for the accessories, which greatly improve rigidity and torque. And high-viscosity grease is used to prevent grease leakage effectively. The gearbox can be equipped with various types of motors to form mechatronics. EPK series helical bevel gearboxes are widely used in petrochemical equipment, pharmaceutical equipment, printing and packaging equipment, ceramic equipment, mining construction equipment, stage equipment, and so on.

EPK Series Helical Bevel Gearbox Specifications

Product name:	EPK series helical bevel gearbox
Model:	EPK37/47/57/67/77/87/97/107/127/157/167/187
Mounting ways:	Foot-mounted and flange mounted
Input ways:	Motor input, AM (IEC) flange input, and shaft input
Output way:	Solid shaft output or hollow shaft output
Efficiency:	over 95%
Housing material:	HT250 high-strength cast iron
Gear material:	20CrMnTi
Surface hardness of gears:	HRC58-62
Input/Output shaft:	40Cr steel
Heat treatment:	Carburizing and quenching
Bearing:	C&U or other brands
Oil seal:	NAK or other brands
Lubricating oil:	Gear oil
Packing:	plywood case

EPK Series Helical Bevel Gearbox Parameters

Size	37	47	57	67	77	87	97	107	127	157	167	187
Structure	EPK    RDF-KA    RDF-KF    RDF-KAF    RDF-KAZ    RDF-KAT    RDF-KAB
Input power(kW)	0.18-3.0	0.18-3.0	0.18-5.5	0.18-5.5	0.37-11	0.75-22	1.1-30	3-45	7.5-90	11-160	00	18.5
Ratio	5.36-106.38	5.81-131.87	6.57-145.14	7.14-144.79	7.24-192.18	7.19-197.37	8.95~176.05	8.74-141.46	8.68-146.07	12.65-150.41	17.28-163.91	17.27-180.78
Permissible torque(N.m)	200	400	600	820	1550	2700	4300	8000	13000	18000	32000	50000

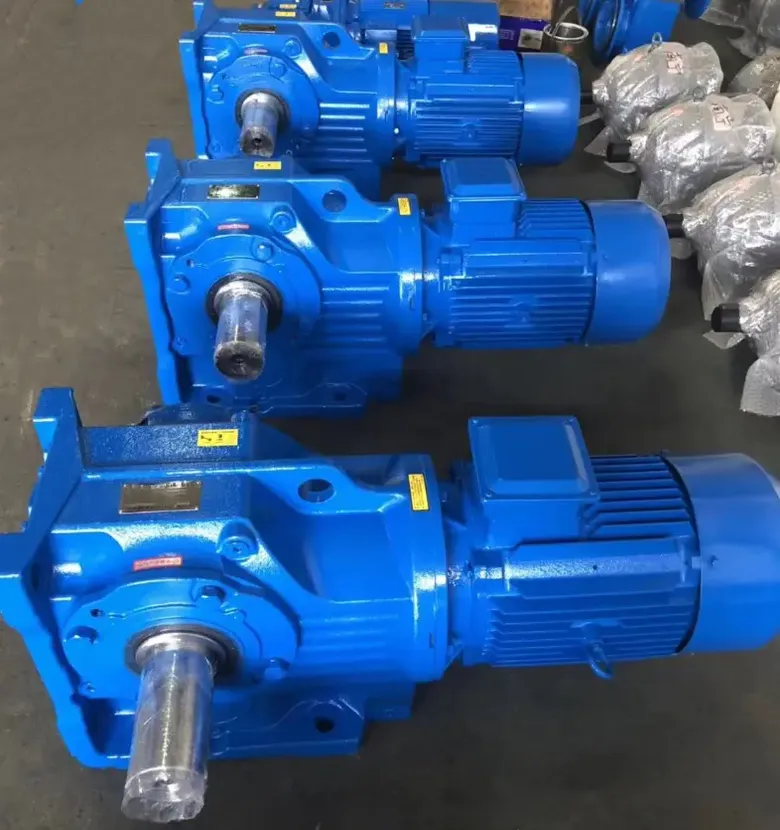

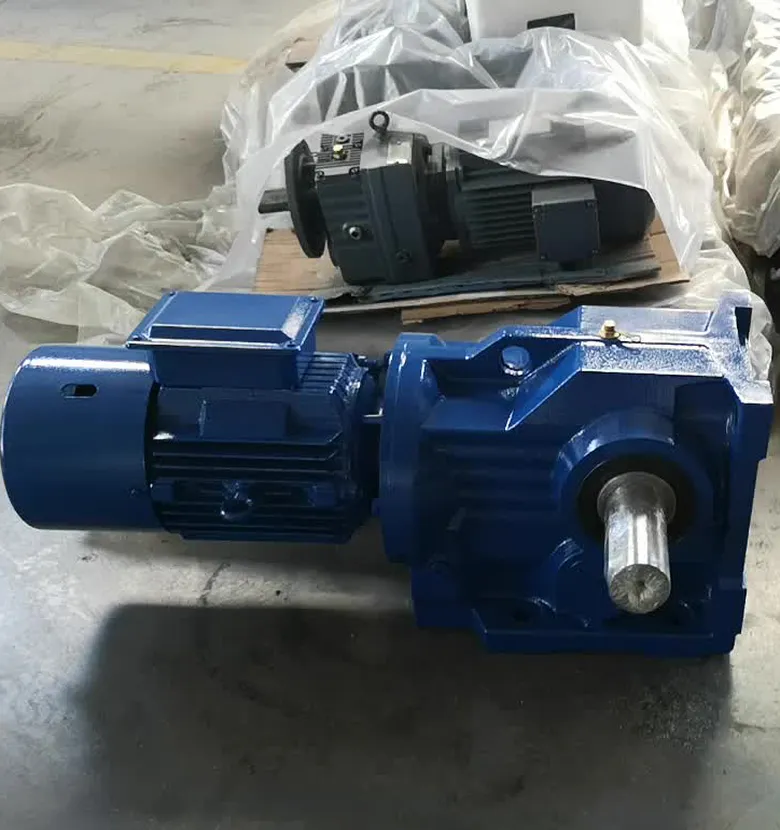

EPK Series Helical Bevel Gearbox Design Feature

EPK series 3 stage helical gearbox has high-efficiency and long-life gears. There are foot mounting, flange mounting, and shaft mounting types.1. Highly modular design: It can be easily equipped with various types of motors or other power inputs. The same model can be equipped with motors of multiple powers. It is easy to realize the combined connection between various models.2. Transmission ratio: fine division and wide range. Combined models can form a large transmission ratio, that is, output extremely low speed.3. Installation form: the installation location is not restricted.4. High strength and small size: the box body is made of high-strength cast iron. The gears and gear shafts adopt the gas carburizing quenching and fine grinding process, so the load capacity per unit volume is high.5. Long service life: Under the conditions of correct model selection (including the selection of appropriate use coefficient) and normal use and maintenance, the life of the main parts of the reducer (except for wearing parts) is generally not less than 20,000 hours. The wearing parts include lubricating oil, oil seals, and bearings.6. Low noise: The main parts of the reducer have been precision processed, assembled, and tested, so the reducer has low noise.7. High efficiency: the efficiency of a single model is not less than 95%.8. It can bear a larger radial load.9. Can bear axial load not more than 15% of radial force.

EPK Series Helical Bevel Gearbox Types

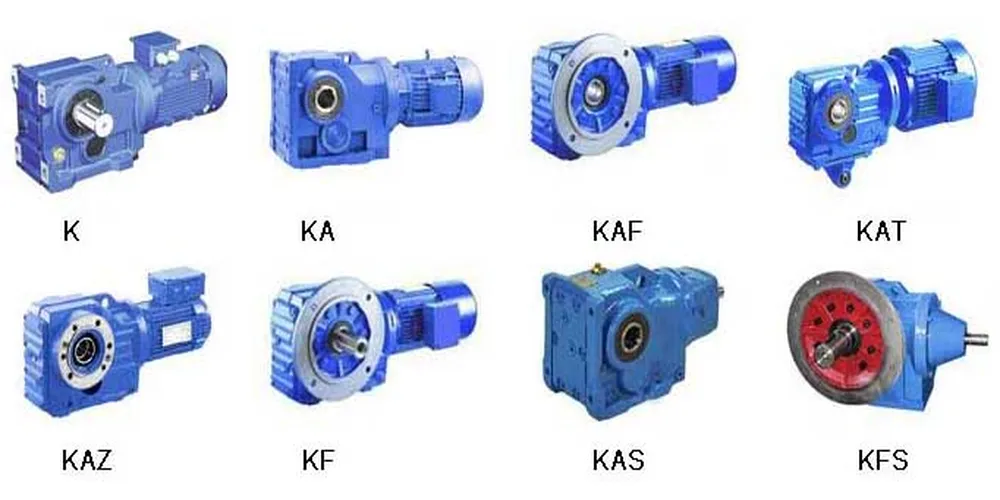

EPK Series Helical Gearbox– Foot-mounted, solid shaft outputRDF-KA Series Helical Gearbox– Keyed hollow shaft outputRDF-KF Series Helical Gearbox– B5 Flange-mounted, solid shaft outputRDF-KAF Series Helical Gearbox– B5 Flange-mounted, hollow shaft outputRDF-KAZ SeriesHelical Gearbox– B14 Flange-mounted, hollow shaft outputRDF-KAT Series Helical Gearbox– torque arm mounted, hollow shaft outputRDF-KH, RDF-KHB, RDF-KHF, RDF-KHZ Series Helical Gearbox– Hollow shaft output, shrink disk.RDF-KV, RDF-KVB, RDF-KVF, RDF-KVZ Series Helical Gearbox– Hollow shaft output, splined hollow shaft

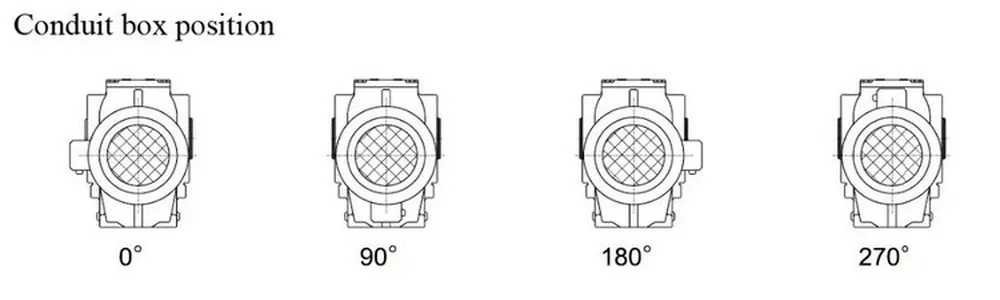

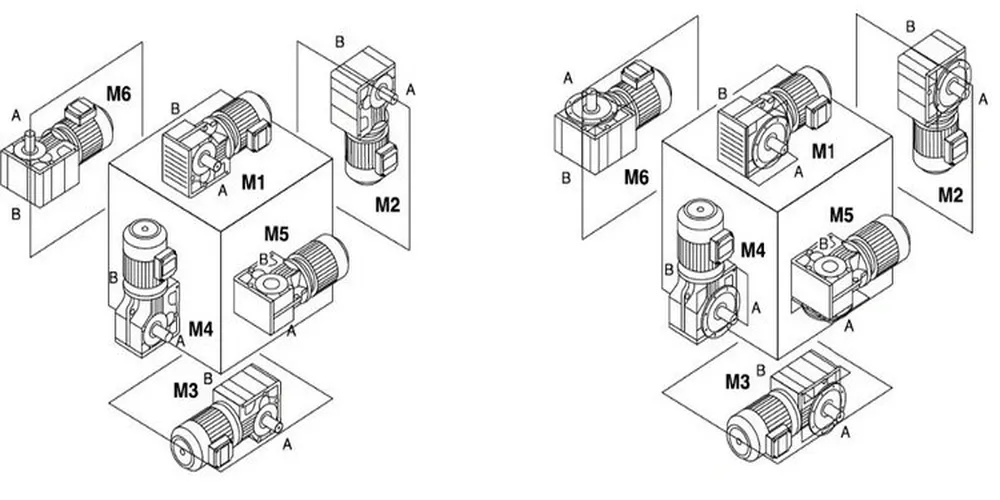

EPK Series Helical Bevel Gearbox Mounting Position

EPK Series Helical Bevel Gearbox Applications

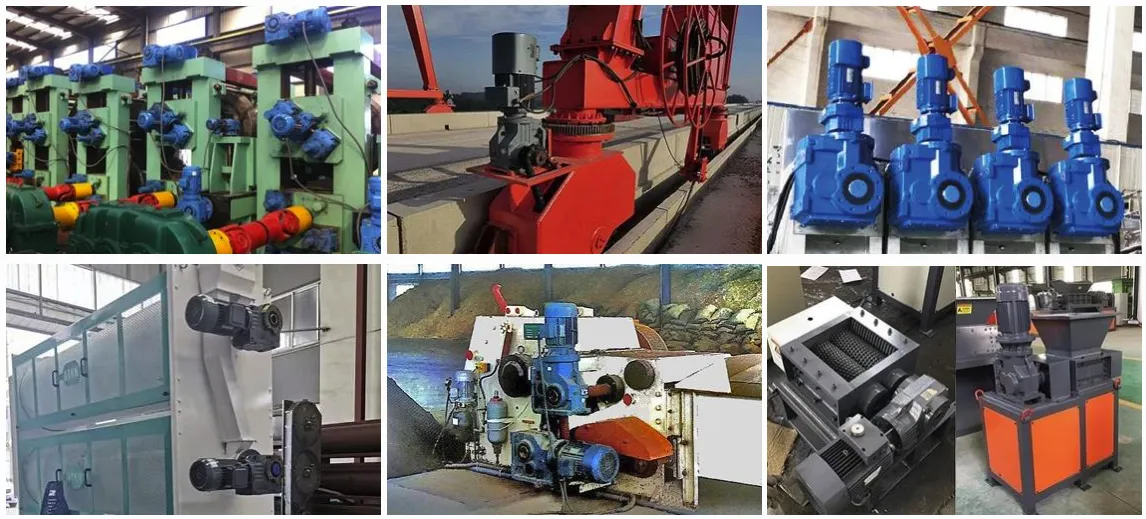

EPK series helical bevel gearboxes are used in industries like metallurgy, mining, lifting, conveying, chemical industry, food, building materials, and light industries.
